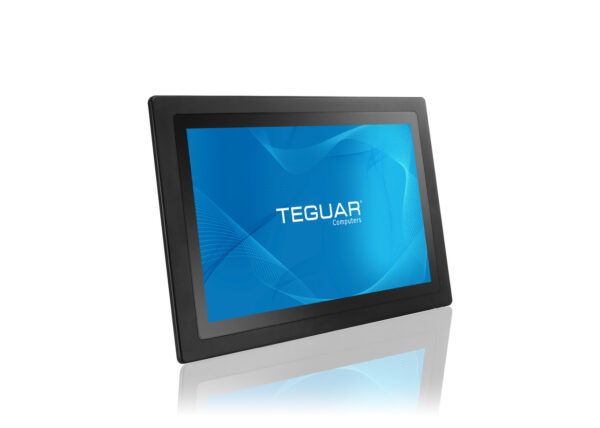

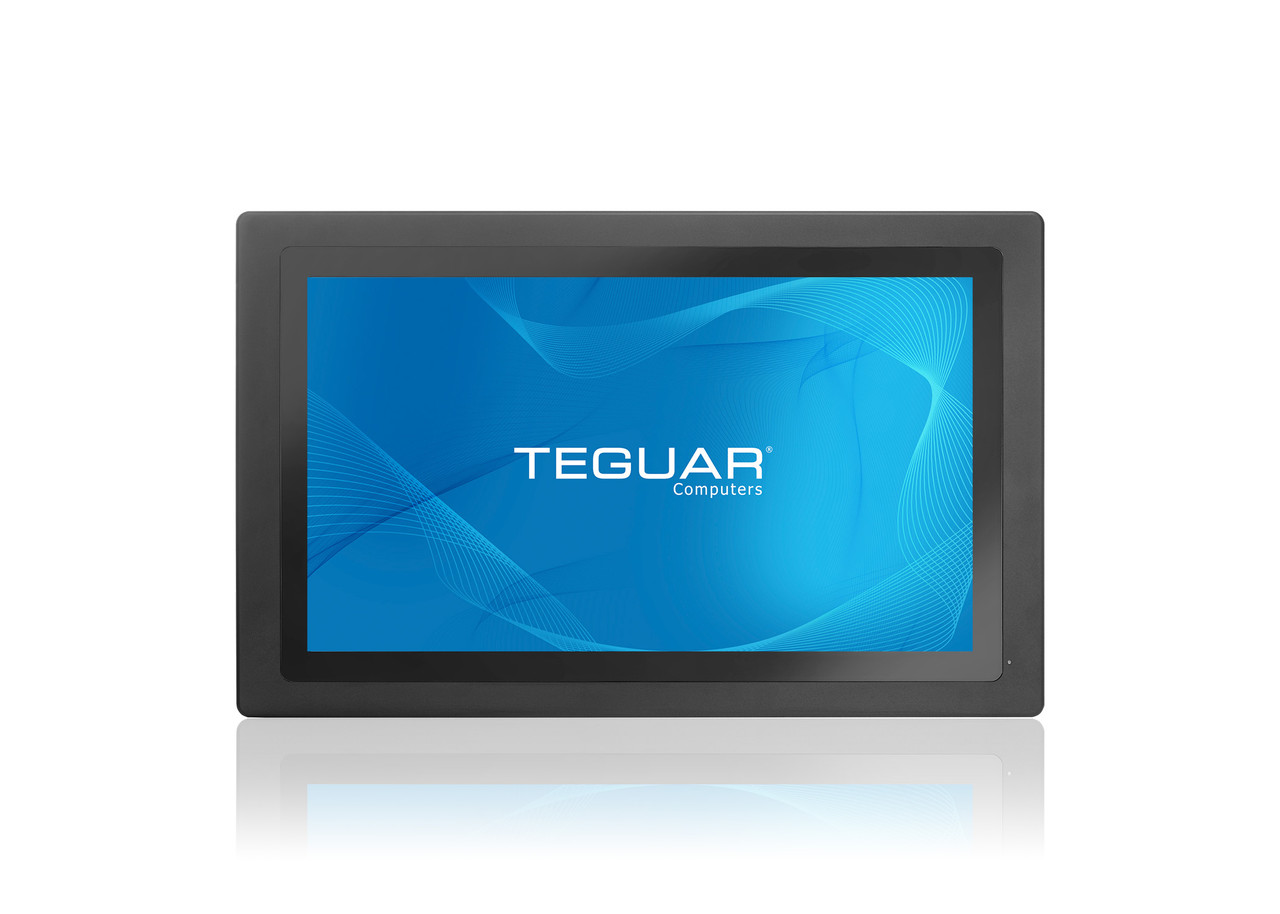

TP-5610-22

22" Touchscreen Panel PC
Available – Contact Us for Quick Quote

Description

The 22″ Touchscreen Panel PC has a powerful Intel 8th Generation Core i5 CPU and is built with high quality components to ensure the highest reliability and 24/7 use of industrial and commercial applications. This PC can enhance connectivity with optional wireless and Bluetooth and has several mounting options including a panel mount and VESA mount. Because of its powerful processing power, the TP-5610-22 is able to run Windows 11 operating system smoothly. This industrial panel PC has an IP66 rated front bezel and fanless design, making it resistant to spills or sprays and suitable for particulate-rich environments. 

Key Highlights

  • 21.5” LED Full Flat Resistive/P-cap Touchscreen
  • Windows 11 Capabilities
  • Intel Core i5-8365UE Quad Core CPU
  • Fanless Cooling System
  • IP66 Front Rated Bezel

Primary Components

Processor FamilyIntel Core I series 8th Generation Whiskey Lake-U
Processor ModelCore i5-8365UE
Processor SpeedUp to 4.1 GHz, 1.6 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support32GB
Storage Type1x M.2 SATA3 2280 Slot
Storage Support128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive
HardnessResistive: 3H, P-cap: 7H

External I/O Ports

USB4x USB 3.1
Serial / Com3x COM
Serial Protocol Detail1x RS-232, 2x RS-232/422/485
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DisplayPort, 1x HDMI
Audio Ports1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19-28V DC
Max Power Consumption90.9W
Standard Power Adapter100W, 100-240Vac, 19Vdc, 5.26A

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 65°C (-4°F – 149°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum front bezel and SECC Steel Chassis
IP RatingIP66 Front Bezel
ColorBlack
Control ButtonsPower Switch
Mounting OptionsPanel Mount, VESA 75 Mount

Weight / Dimensions

Weight9.6 kg (21.2 lbs)
Dimensions584.2 x 91.5 x 364.6 mm (23.0 x 3.6 x 14.4 in)

Warranty

Warranty1 Year

Manufacturing Execution Systems (MES) in Automotive Industry: The TP-5610 Series can be used to run MES applications in automotive manufacturing plants, facilitating real-time monitoring of production data, quality control processes, and inventory management.

Supervisory Control and Data Acquisition (SCADA) in Oil and Gas Industry: These industrial computers are suitable for SCADA systems in the oil and gas industry, allowing operators to monitor and control remote facilities, pipelines, and equipment for efficient operations and safety.

Human-Machine Interface (HMI) in Food and Beverage Industry: The TP-5610 Series can serve as an HMI platform in food and beverage production facilities, enabling operators to interact with and monitor automated machinery, control systems, and recipe management for streamlined production processes.

Dimensional Drawings & I/Os

I/O Diagram Images

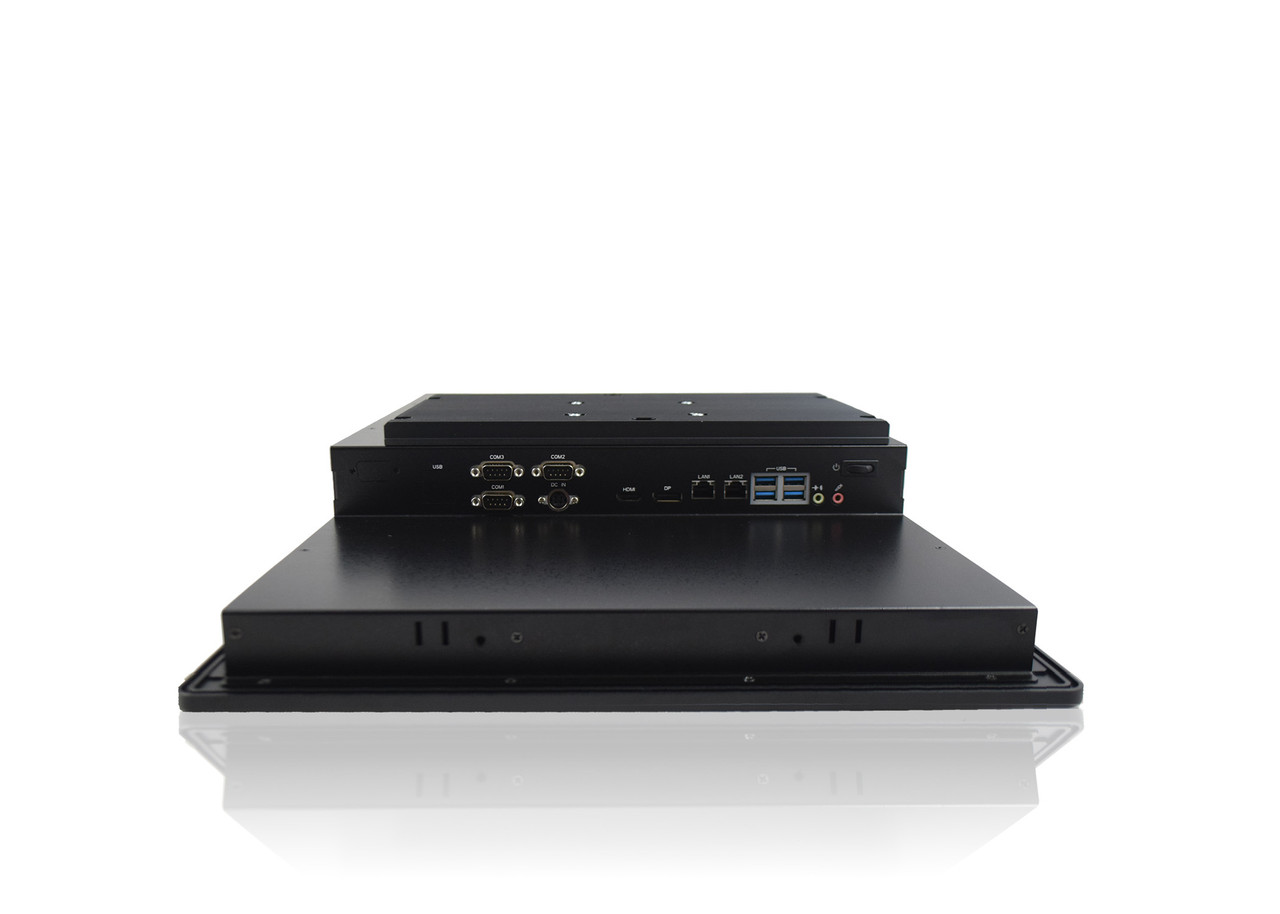

TP-5610-22 IOs

Tech Diagram Images
