TP-5610-15

15" Touchscreen Panel PC
Available – Contact Us for Quick Quote

Description

The 15″ Touchscreen Panel PC is ideal for industrial and commercial applications, with an IP66 rated front bezel and fanless design. These features make it suitable for particulate-rich surroundings and environments prone to spills or sprays. With a powerful Intel 8th Generation Core i5 CPU, this unit is capable of running Windows 11 operating system smoothly. The TP-5610-15 also has several mounting options, including a panel mount and VESA mount, so it can easily be implemented in a diverse range of applications. The 15” design saves space and enables you to fully maximize your business output by making your processes more efficient.

Key Highlights

  • 15” LED Full Flat Resistive/P-cap Touchscreen
  • Intel Core i5-8365UE Quad Core CPU
  • Windows 11 Capabilities
  • Fanless Cooling System
  • IP66 Front Rated Bezel

Primary Components

Processor FamilyIntel Core I series 8th Generation Whiskey Lake-U
Processor ModelCore i5-8365UE
Processor SpeedUp to 4.1 GHz, 1.6 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support32GB
Storage Type1x M.2 SATA3 2280 Slot
Storage Support128GB-1TB

Display

Screen Size15"
Resolution1024 x 768 (XGA)
Screen Ratio4:3
Brightness350 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive
HardnessResistive: 3H, P-cap: 7H

External I/O Ports

USB4x USB 3.1
Serial / Com3x COM
Serial Protocol Detail1x RS-232, 2x RS-232/422/485
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DisplayPort, 1x HDMI
Audio Ports1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Max Power Consumption94.1W
Standard Power Adapter100W, 100-240Vac, 19Vdc, 5.26A

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 65°C (-4°F – 149°F)

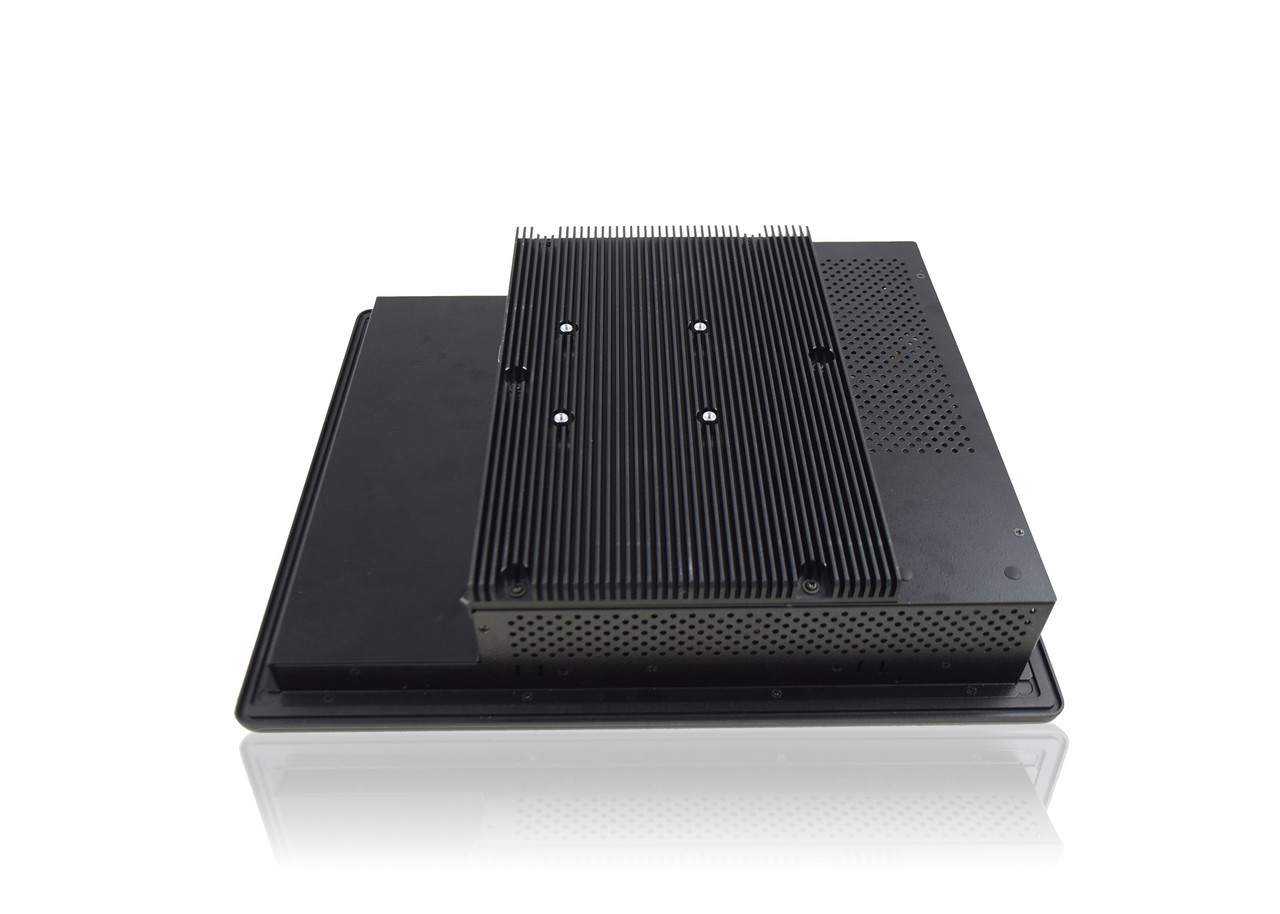

Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum front bezel and SECC Steel Chassis
IP RatingIP66 Front Bezel
ColorBlack
Control ButtonsPower Switch
Mounting OptionsPanel Mount, VESA 75 Mount

Weight / Dimensions

Weight6.4 kg (14.1 lbs)
Dimensions398 x 330 x 86 mm (15.7 x 13.0 x 3.4 in)

Warranty

Warranty1 Year

Manufacturing Execution Systems (MES) in Automotive Industry: The TP-5610 Series can be used to run MES applications in automotive manufacturing plants, facilitating real-time monitoring of production data, quality control processes, and inventory management.

Supervisory Control and Data Acquisition (SCADA) in Oil and Gas Industry: These industrial computers are suitable for SCADA systems in the oil and gas industry, allowing operators to monitor and control remote facilities, pipelines, and equipment for efficient operations and safety.

Human-Machine Interface (HMI) in Food and Beverage Industry: The TP-5610 Series can serve as an HMI platform in food and beverage production facilities, enabling operators to interact with and monitor automated machinery, control systems, and recipe management for streamlined production processes.

Dimensional Drawings & I/Os

I/O Diagram Images

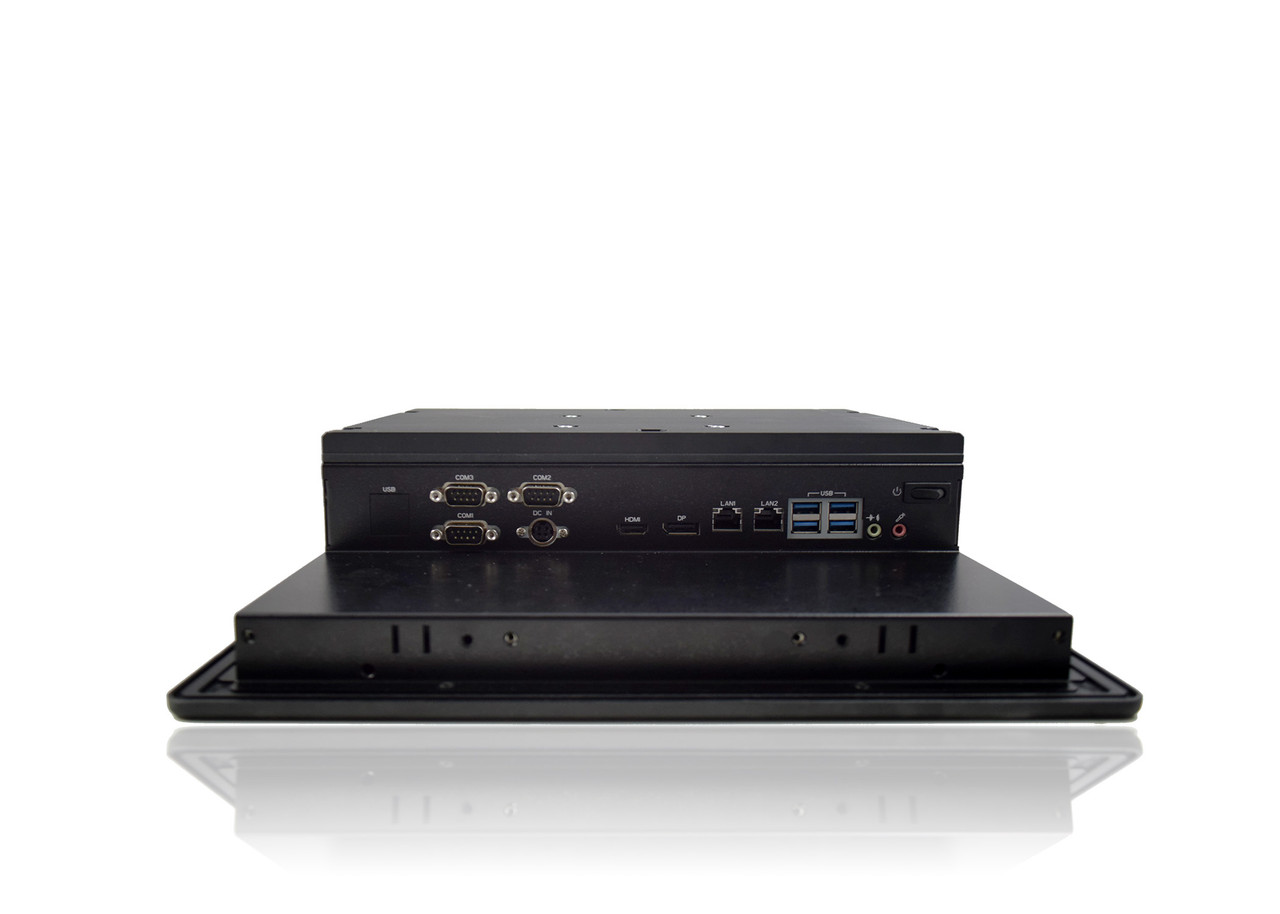

TP-5610-15 IOs

Tech Diagram Images

TP-5610-15 Technical Drawing
