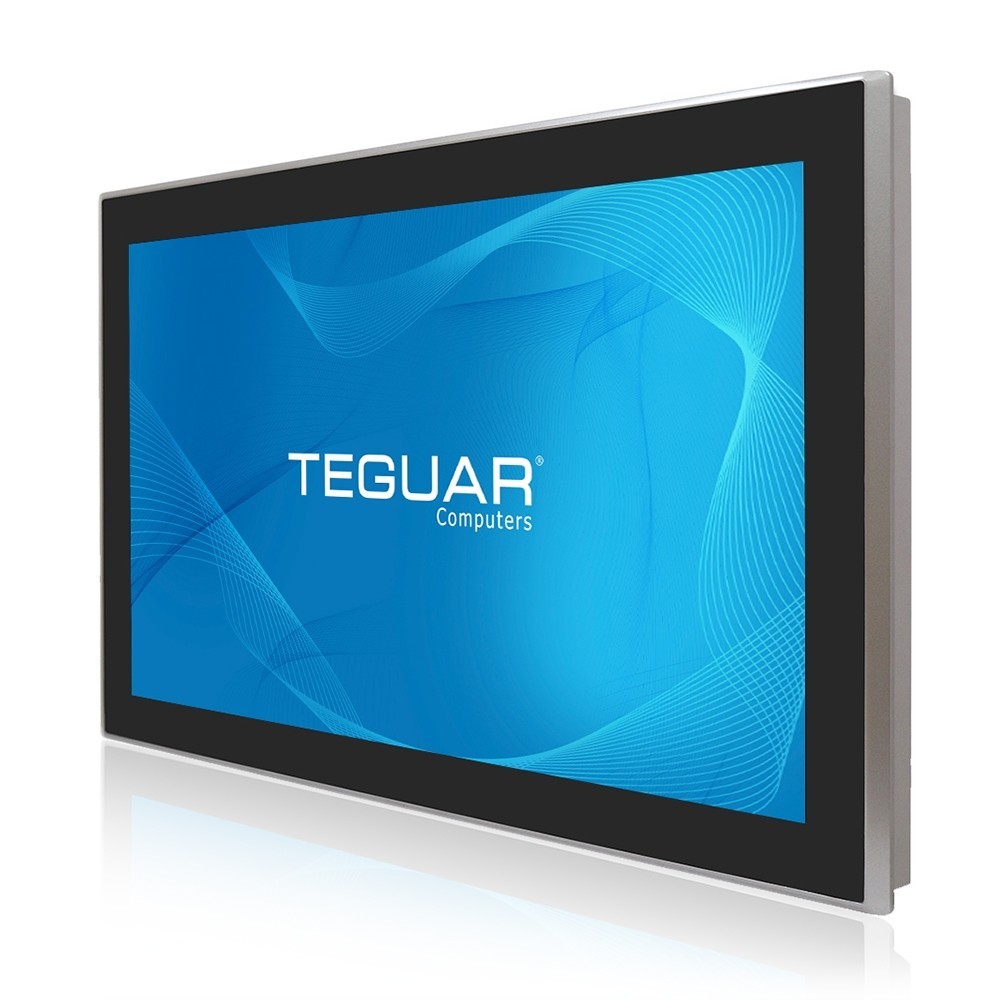

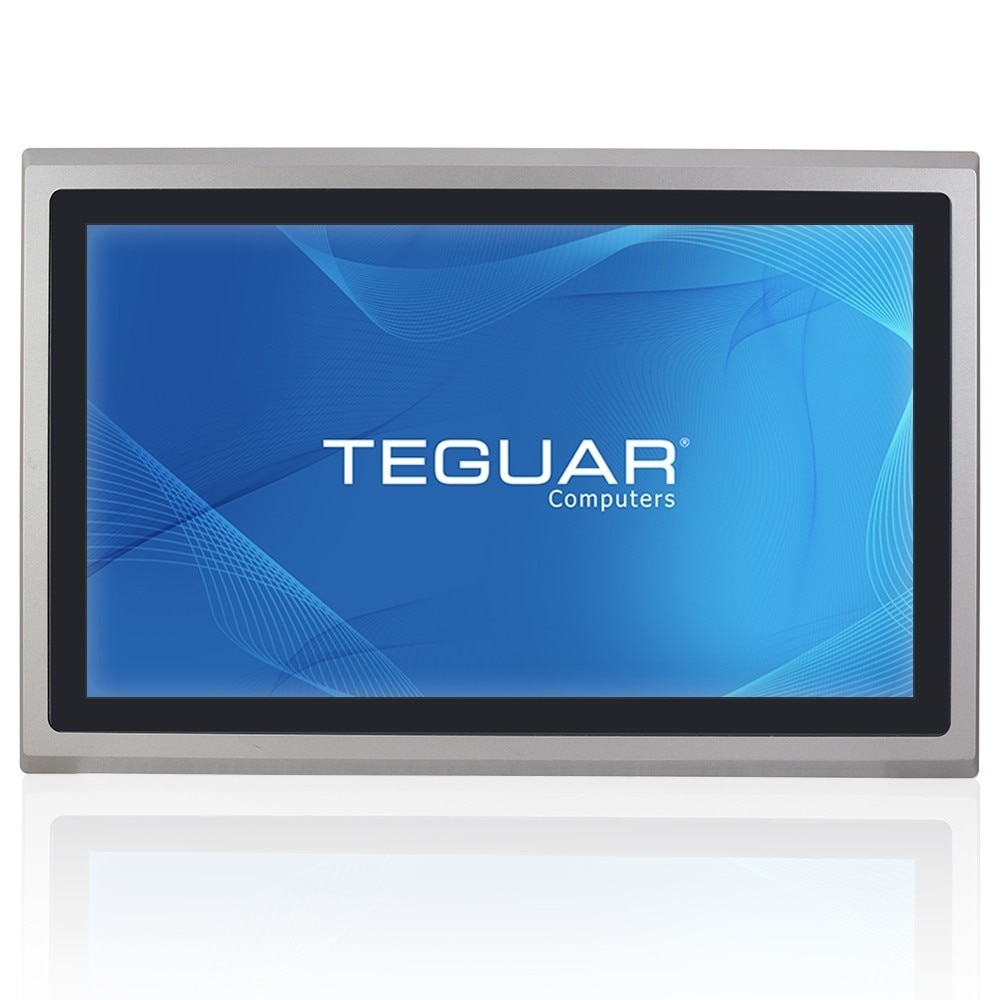

TP-5045-22

22" Fanless Industrial Panel PC
Available – Contact Us for Quick Quote

Description

The TP-5045-22 fanless panel PC offers the latest Intel 6th generation core i3/i5 CPUs superior processing power with long life cycle support. The front bezel is IP66 rated for protection from water and dust. It uses a full flat design to prevent build-up of particulates on the front surface. The thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. A high-brightness touchscreen option can be chosen for environments with low screen visibility. The TP-5045-22 is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software. With up to 16GB of DDR4 memory, the TP-5045-22 fanless panel PC is ideal for most Windows or Linux based applications.

Key Highlights

  • 21.5″ Projected Capacitive or Resistive Touchscreen
  • Intel 6th Gen. Core i3/i5 CPU
  • IP66 Protected Front with Fanless Design
  • DDR4 2133MHz Memory with up to 16GB
  • Wide Range 9~36V DC Power Input
  • Sunlight Readable LCD Option

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore i3-6100U
Processor Speed2.3 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 300 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB2x USB 3.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x HDMI
Other Ports1x 2-Pin DC Power Switch Connector
Audio Ports1x Audio Line-Out
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-32V DC
Standard Power AdapterOptional 12V AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 7 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

SD card1x Full Size SD Slot

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP66 Front Bezel
Mounting OptionsPanel Mount, VESA Mount

Weight / Dimensions

Weight7.5 kg (16.5 lbs)
Dimensions557 x 362 x 65 mm (21.9 x 14.3 x 2.6 in)

Certification

CertificationsCE, FCC Class A

Warranty

Warranty1 Year

Factory Automation:The TP-5045 Series can be used as a control interface for factory automation systems, allowing operators to monitor and manage production processes, machinery, and equipment.

Process Control: These industrial panel PCs are suitable for process control applications in industries such as oil and gas, chemical, and pharmaceutical, providing real-time monitoring and control of critical variables and parameters.

Logistics and Warehouse Management: The TP-5045 Series can be deployed in logistics and warehouse environments for inventory management, order tracking, and warehouse optimization, streamlining operations and improving efficiency.

Building Automation: These panel PCs can serve as a central control system for building automation, enabling facility managers to monitor and control various systems such as lighting, HVAC, security, and access control.

Transportation and Fleet Management: The TP-5045 Series can be utilized in transportation and fleet management applications, providing real-time tracking, route optimization, and communication capabilities for improved logistics and fleet efficiency.

Dimensional Drawings & I/Os

I/O Diagram Images

TP-5045-22_IOS

Tech Diagram Images

22" Fanless Panel PC Drawing
