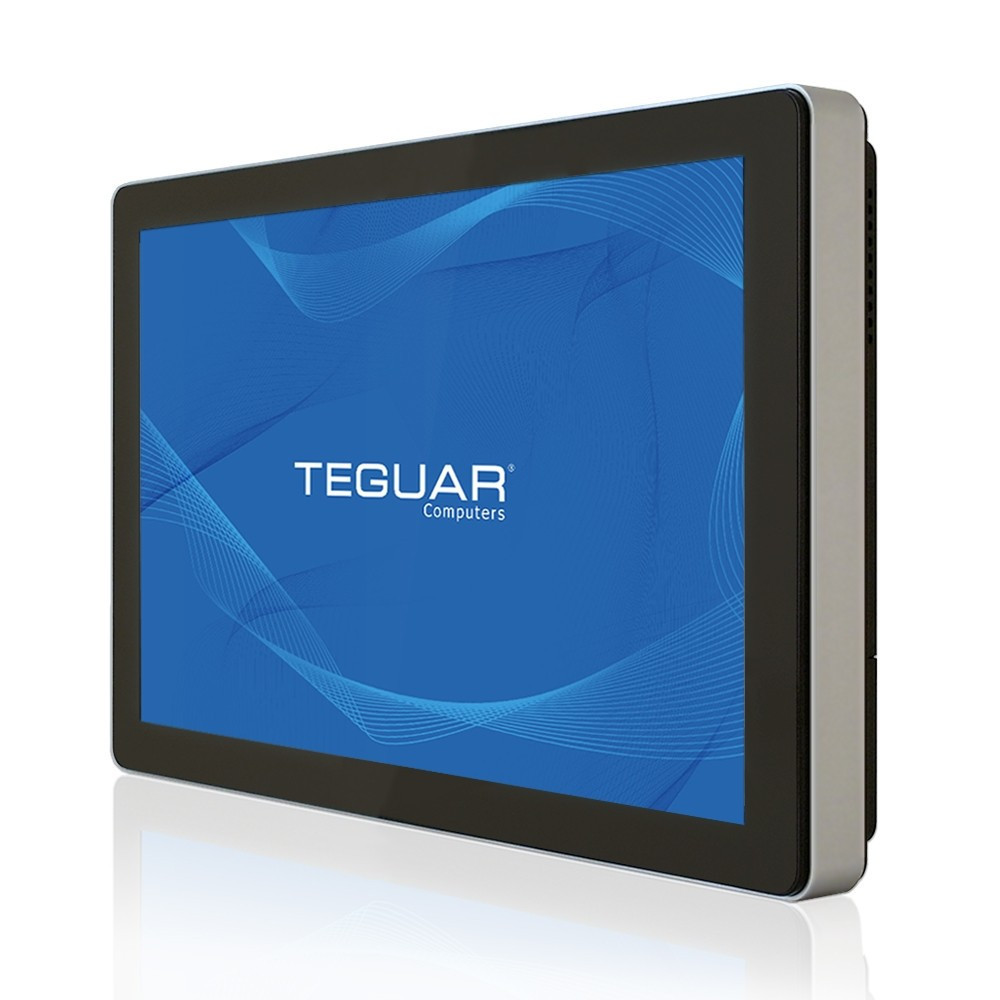

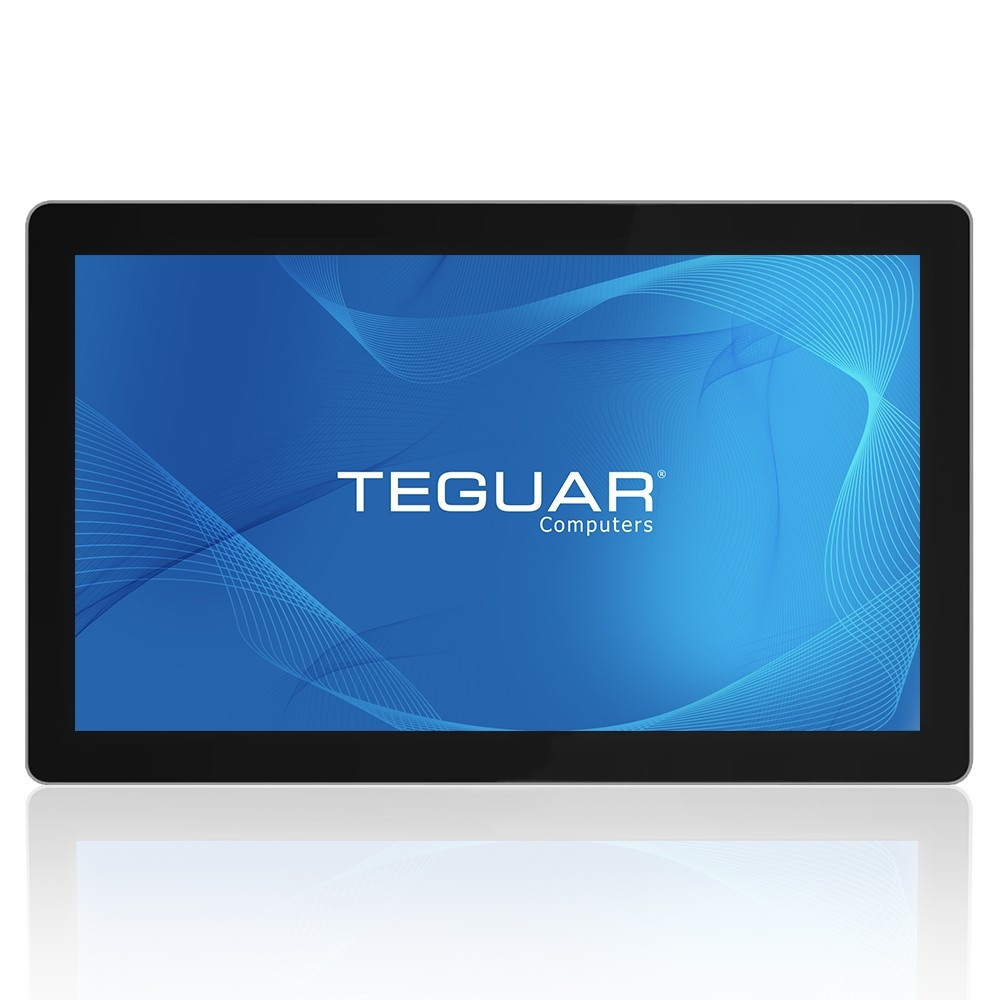

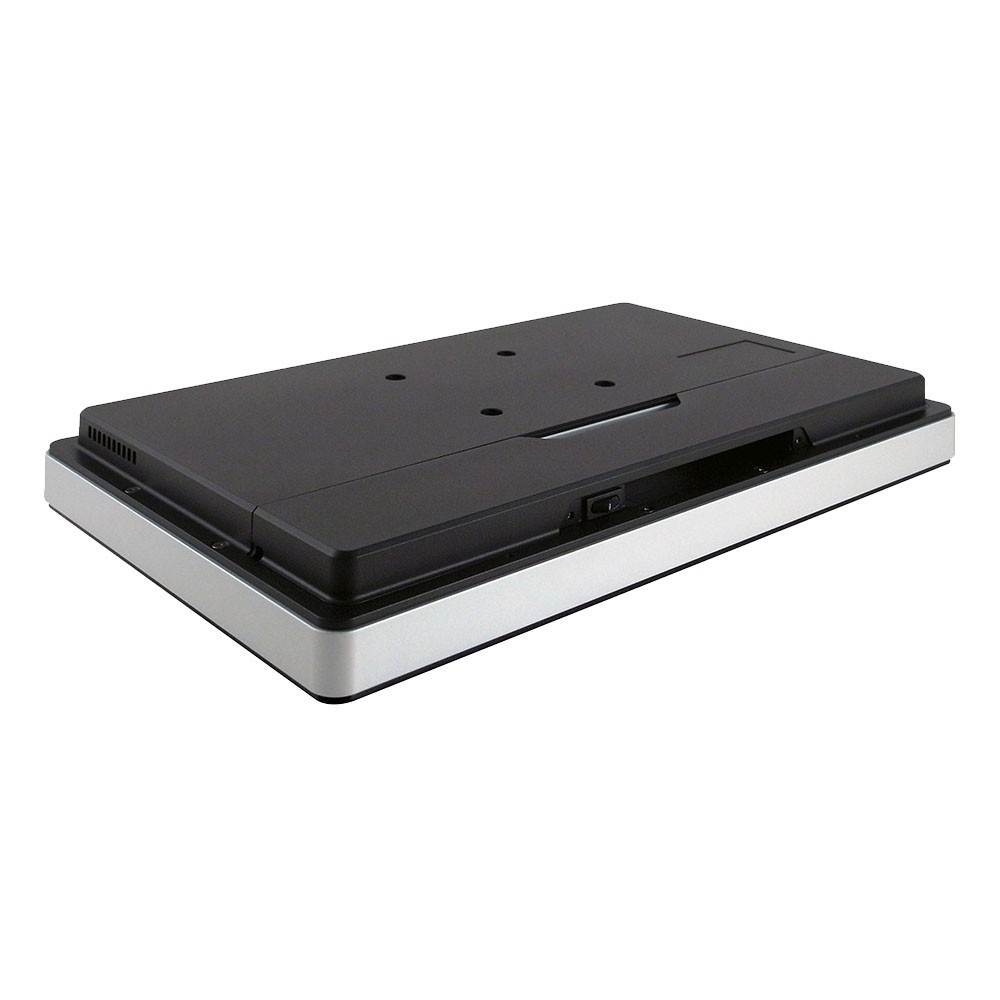

TP-5040-18

18.5" Industrial Fanless PC
Available – Contact Us for Quick Quote

Description

The TP-5040-18 widescreen All-in-One computer is a powerful industrial PC. With the Skylake Core i3/i5 CPU and up to 8GB of RAM, this computer is capable of handling demanding applications on your production line, shop floor or warehouse. This PC utilizes fanless cooling, allowing it to operate efficiently and silently, while standing up to dusty or dirty environments. The TP-5040-18 has a large 18.5″ projected capacitive touchscreen and IP65 rated waterproof front housing that can be sprayed and wiped down for easy cleaning. Options including an integrated barcode scanner and RFID reader allow this computer to integrate seamlessly into your workflow.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Panel PCs.



Key Highlights

  • 18.5″ Full Flat IP65 Protected Touchscreen
  • Intel Skylake Core i3/i5 CPU
  • Thin, Attractive, Design with Die-Cast Housing
  • Several I/O Ports and an HDD Bay
  • Fanless and Low Power Consumption

Primary Components

Processor FamilyIntel Core I series 6th Generation Skylake
Processor ModelCore- i3-6100U
Processor Speed2.3 GHz, 2.4 GHz
Memory Type1x DDR3 SO-DIMM
Memory Support2GB, 4GB, 8GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support32GB-1TB

Display

Screen Size18.5"
ResolutionOptional 1920 x 1080, 1366 x 768
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB2x USB 2.0, 4x USB 2.0
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x DVI, 1x Optional DisplayPort, 1x VGA
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Standard Power Adapter120W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwarefTPM 2.0, Intel vPro Technology: Intel AMT Supported

Expansion Slots

Video Card SupportIntel HD Graphics

Multimedia

Speakers2x 2W Speakers
Camera2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel
ColorBlack

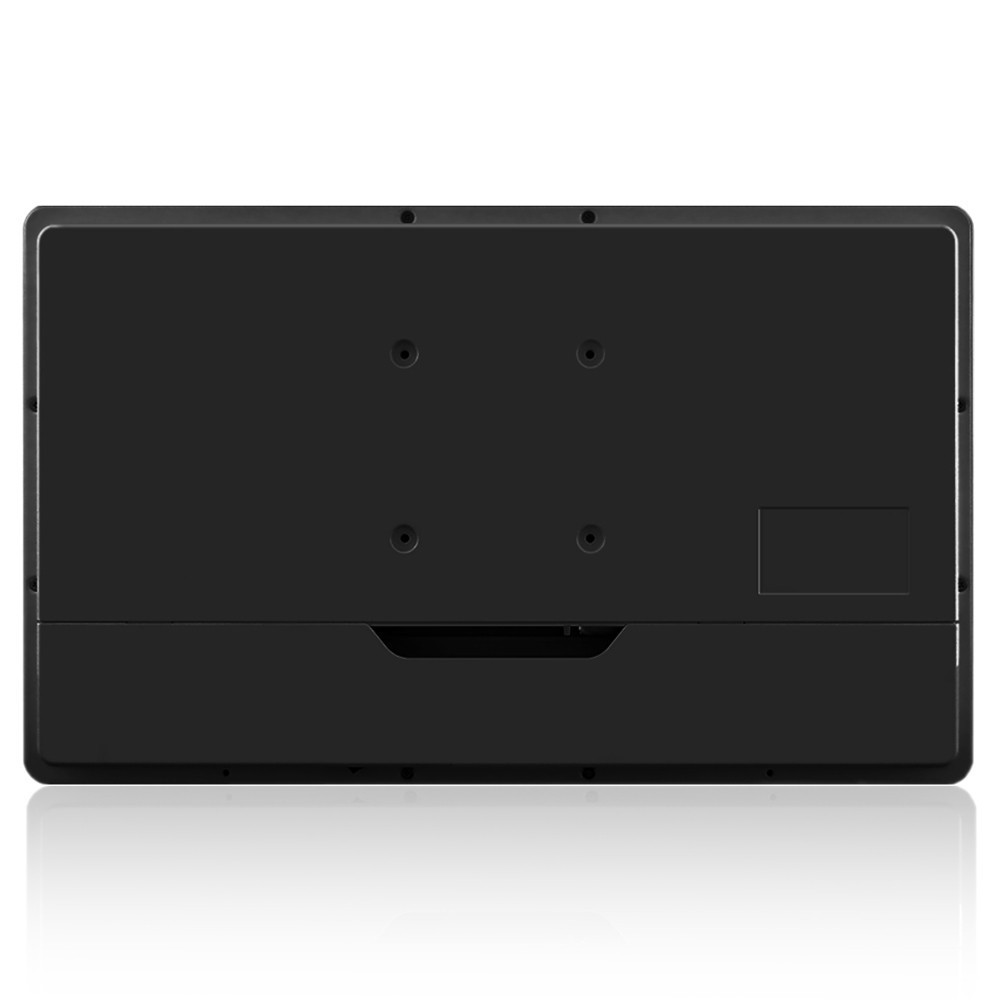

Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 b/g/n WLAN card
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID Module

Weight / Dimensions

Weight6.8 kg kg (15.0 lbs)
Dimensions464 x 48 x 284 mm (18.3 x 1.9 x 11.2 in)

Certification

CertificationsCE, FCC Class A, IEC 60950-1

Warranty

WarrantyUp to 5 Years

The TP-5040-18 has an 18.5″ Pcap touchscreen and runs on the Intel Skylake Core i3/i5 CPU. This industrial grade computer is built to last on your manufacturing line, in your warehouse, and in other industrial environments.

Dimensional Drawings & I/Os

I/O Diagram Images

tp-5040-18 i/os

Tech Diagram Images

tp-5040-technical drawing
