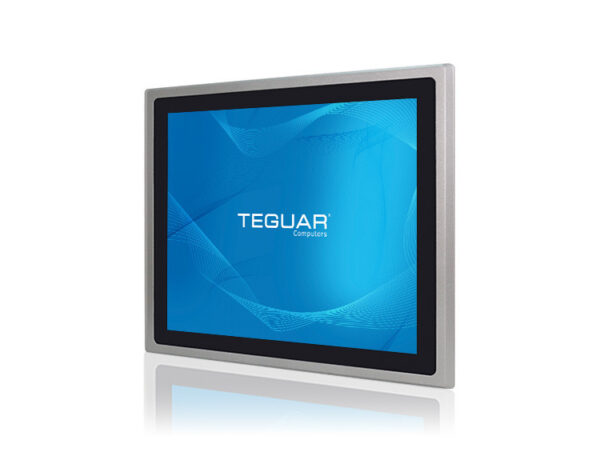

TP-4845-19

19" Panel PC

Available – Contact Us for Quick Quote

Description

The 19” Panel PC combines durability with customization. Powered by the Intel J6412 Quad Core processor, it guarantees seamless Windows 11 performance. Integrated WiFi 6 support adapts to industrial demands. With IP66 rated aluminum die cast housing, this unit is able to survive harsh conditions. The TP-4845-19 offers a range of I/O options, enabling a customized solution that adapts perfectly to specific project requirements. The M.2 SSD enhances storage speed and capacity to meet the demands of data-intensive tasks in various professional settings.

Key Highlights

19” Resistive or PCAP Touchscreen
Die Cast Aluminum Housing and IP66 Rated Front Bezel
Designed for flexible IO expansion
Windows 11 Capabilities
Intel Celeron J6412 Quad Core Processor

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	Up to 2.6 GHz, 2.0 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 SATA3 2242 Slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	RS-232/422/485 (Default RS-232; select via BIOS)
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x DisplayPort, supports DP++
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V AC/DC Adapter, 5A, 60W

Battery

Battery Type

Optional Internal Battery

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option)

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Gray
Mounting Options	Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	7.2 kg (15.9 lbs)
Dimensions	468 x 380 x 64.8 mm (18.4 x 15.0 x 2.6 in)

Certification

Certifications

CE, FCC, UL 62368

Warranty

Up to 5 Years

Industrial Automation Control Systems: The TP-4845 is powered by the Intel J6412 Quad Core processor, ensuring seamless Windows 11 operation for precise control in industrial automation. With a full flush IP66 rated front bezel and integrated WiFi 6 capability, it’s ideal for standard industrial applications.

Manufacturing Process Monitoring: The TP-4845 Flush Mount Panel PC series excels in rugged manufacturing applications for process monitoring. Featuring a full flush IP66 rated front bezel, it ensures reliable performance in environments with dust and dirt. With integrated WiFi 6, it offers connectivity support.

Machine Vision and Quality Inspection: The TP-4845, powered by the Intel J6412 Quad Core processor, is a reliable choice for machine vision and quality inspection. Offering seamless Windows 11 operation and integrated WiFi 6, it suits rugged manufacturing environments with its full flush IP66 rated front bezel. Available in various screen sizes with both capacitive and resistive touch options, providing flexibility for user interaction.
