TP-4845-08

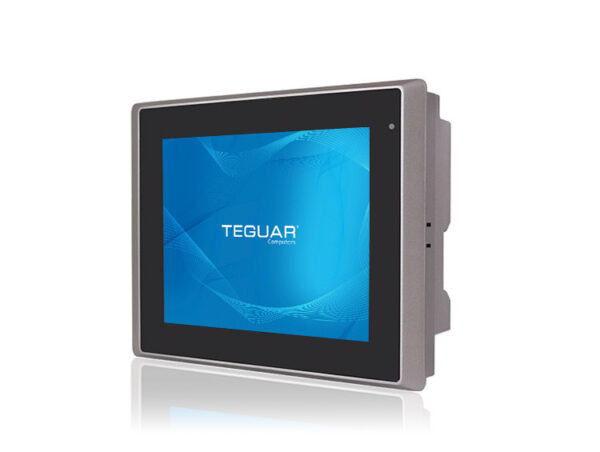

8" Panel PC
Available – Contact Us for Quick Quote

Description

The 8” Panel PC is powered by an Intel Celeron J6412 Quad Core processor and is built to last. With an IP66 rated aluminum die-cast housing, this Panel PC is ideal for rugged manufacturing applications where dust and debris are present. You can enjoy all the latest features with the Windows 11 operating system. Tailor the TP-4845-08 to your specific project by adding customizable I/Os such as extra USB and COM ports. The 8” screen size comes in either a resistive or PCAP touch option.

Key Highlights

  • 8” Resistive or PCAP Touchscreen
  • Intel Celeron J6412 Quad Core Processor
  • WiFi 6 Capable
  • Windows 11 Capabilities
  • Die Cast Aluminum Housing and IP66 Rated Front Bezel

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor SpeedUp to 2.6 GHz, 2.0 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 SATA3 2242 Slot
Storage SupportM.2: 256GB-1TB

Display

Screen Size8"
Resolution800 x 600 (SVGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB2x USB 2.0, 2x USB 3.2
Serial / Com1x COM
Serial Protocol DetailRS-232/422/485 (Default RS-232; select via BIOS)
Ethernet / LAN2x RJ45 2.5 GbE LAN
Video Outputs1x DisplayPort, supports DP++
Audio Ports1x Audio Line-Out
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-36V DC
Standard Power AdapterOptional 12V AC/DC Adapter, 5A, 60W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 95% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP66 Front Bezel
ColorGray
Mounting OptionsPanel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi
BluetoothOptional Bluetooth 4.0

Weight / Dimensions

Weight1.9 kg (4.2 lbs)
Dimensions231 x 176 x 50 mm (9.1 x 6.9 x 2.0 in)

Certification

CertificationsCE, FCC, UL 62368

Warranty

WarrantyUp to 5 Years

Industrial Automation Control Systems: The TP-4845 is powered by the Intel J6412 Quad Core processor, ensuring seamless Windows 11 operation for precise control in industrial automation. With a full flush IP66 rated front bezel and integrated WiFi 6 capability, it’s ideal for standard industrial applications.

Manufacturing Process Monitoring: The TP-4845 Flush Mount Panel PC series excels in rugged manufacturing applications for process monitoring. Featuring a full flush IP66 rated front bezel, it ensures reliable performance in environments with dust and dirt. With integrated WiFi 6, it offers connectivity support.

Machine Vision and Quality Inspection: The TP-4845, powered by the Intel J6412 Quad Core processor, is a reliable choice for machine vision and quality inspection. Offering seamless Windows 11 operation and integrated WiFi 6, it suits rugged manufacturing environments with its full flush IP66 rated front bezel. Available in various screen sizes with both capacitive and resistive touch options, providing flexibility for user interaction.

Dimensional Drawings & I/Os

I/O Diagram Images

TP-4845-08 Labeled IOs

Tech Diagram Images

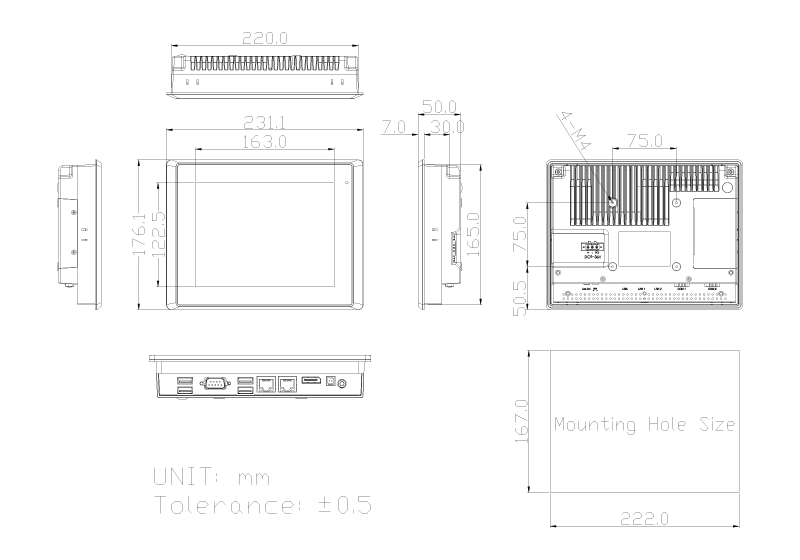

TP-4845-08 Technical Drawing
