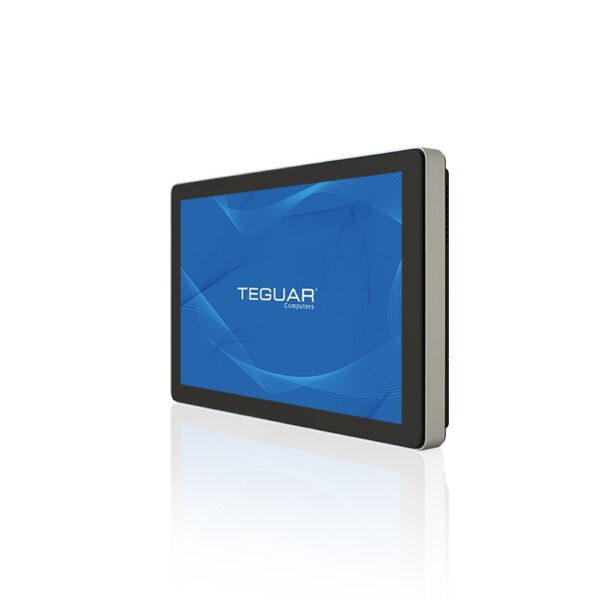

TP-4840-10

10" All-In-One PC
Available – Contact Us for Quick Quote

Description

The TP-4840-10 Industrial All-in-One PC runs on an Elkhart Lake Quad Core CPU and has up to 8GB RAM. This industrial computer has a 10.1” PCap touchscreen. The computer has an IP65 rating with an aluminum die cast housing, making this computer ideal for industrial environments. This unit also has multiple I/Os and M.2 SSD with an easily swappable storage bay located on the back of the PC. The smaller screen size and great processing power works well for applications such as a time clock check in station, or to signal and program facility use with meeting room software.

Key Highlights

  • 10.1″ Full Flat IP65 Protected Touchscreen
  • Intel Elkhart Lake 10th Gen Celeron J6412 Quad core CPU
  • Windows 11 Capabilities
  • Projected Capacitive Multi-Touch Touchscreen
  • Multiple I/Os including 2x USB 3.0, 4x USB 2.0, 1x USB-C, 3x COM, 1X LAN

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz, 2.6 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x M.2 slot for SSD
Storage SupportM.2: 64GB-1TB

Display

Screen Size10.1"
Resolution1920 x 1200 (WUXGA)
Screen Ratio16:10
Brightness200 nits

Touch Screen

Touch ScreenProjected Capacitive
Hardness> 6H

External I/O Ports

USB1x USB 3.0, 1x USB 3.0 type C, 3x USB 2.0
Serial / Com3x COM

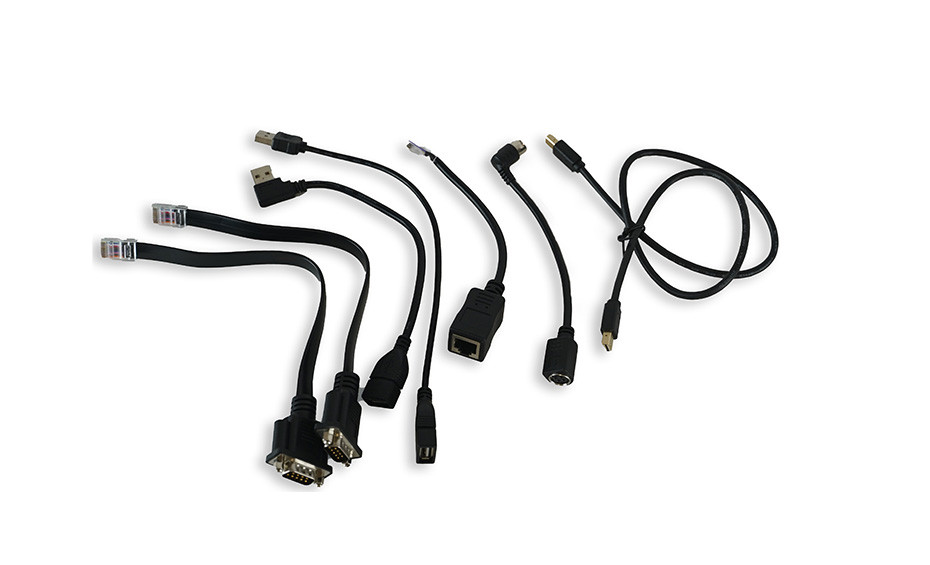

Serial Protocol DetailRJ-48 plug with adapter to DB-9, RS-232 protocol, with configurable power to Pin-9
Ethernet / LAN1x RJ45 GbE LAN
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Standard Power AdapterIncluded 65W AC/DC Adpater

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11
LinuxLinux (Contact your sales rep for more information)

Expansion Slots

Internal M.21x M.2
Video Card SupportIntel HD Graphics

Multimedia

Speakers2x 2W Speakers
Camera2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range25% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel
ColorBlack
Mounting OptionsVESA 75 Mount
Approved Cleaning SolutionsAcetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat

Peripherals & Wireless Connectivity

WiFiOptional WiFi 6E
BluetoothOptional Bluetooth 5.3
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID Module

Weight / Dimensions

Weight1.5 kg (3.3 lbs)
Dimensions263 x 38 x 170 mm (10.4 x 1.5 x 6.7 in)

Certification

CertificationsCE, FCC Class A, LVD

Warranty

WarrantyUp to 5 Years

Manufacturing Line Monitoring in Automotive Industry: The TP-4840 Series can be used to monitor and control manufacturing lines in the automotive industry, providing real-time data visualization, process tracking, and quality control for improved efficiency and productivity.

Assembly Operations in Electronics Industry: These industrial all-in-one PCs are suitable for assembly operations in the electronics industry, enabling operators to access work instructions, perform quality checks, and manage inventory, ensuring accurate and efficient assembly processes.

Industrial Automation in Food Processing Industry: The TP-4840 Series can be integrated into industrial automation systems in the food processing industry, enabling operators to monitor and control production processes, manage recipe settings, and ensure compliance with safety regulations.

Facility Management in Logistics and Warehousing: These computers can be utilized for facility management in logistics and warehousing, providing real-time monitoring of equipment, energy consumption, and environmental conditions, optimizing resource allocation and enhancing operational efficiency.

Dimensional Drawings & I/Os

I/O Diagram Images

10" Industrial Computer I/Os

Tech Diagram Images

TP-4040-10 Technical Drawing
