TP-4810-22

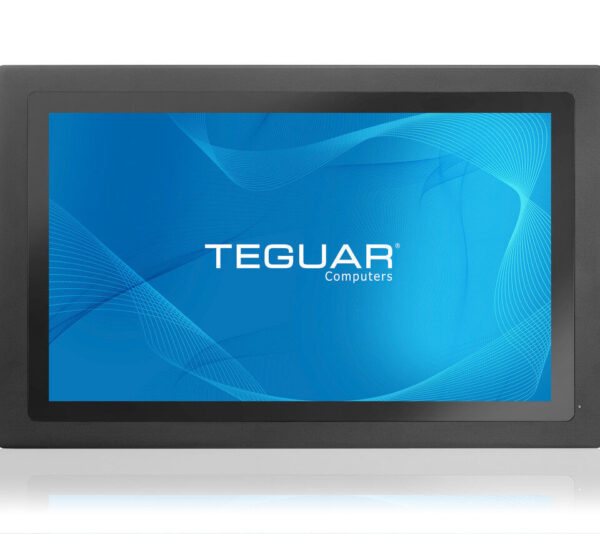

22" Fanless Panel PC
Available – Contact Us for Quick Quote

Description

The 22″ Fanless Panel PC is a large panel mount computer ideal for industrial settings. It runs on an Intel Celeron J6412 processor and has the capability to operate Windows 11. The front bezel is IP66 waterproof rated and can come in either a resistive or P-capacitive touchscreen. Even with its large size, it comes with panel mount hardware and can be easily installed for your application. This unit is packed with abundant inputs and outputs, including 3x COM, 2x USB 2.0, 2x USB 3.2, 1x Gigabit LAN, 1x 2.5 Gigabit LAN, and more.

Key Highlights

  • 22” Resistive or P-Capacitive Touchscreen Display
  • Multiple Inputs and Outputs including 4x USB, 1 Gb LAN, 2.5 Gb LAN, 3x COM and more
  • Fanless Cooling System
  • Windows 11 Capabilities
  • Intel Celeron J6412 Processor

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor Speed2.0 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support32GB
Storage Type1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 SATA3 2280 Slot
Storage SupportM.2: 128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive
HardnessResistive: 3H, P-cap: 7H

External I/O Ports

USB2x USB 2.0, 2x USB 3.2
Serial / Com3x COM
Serial Protocol Detail1x RS-232, 2x RS-232/422/485
Ethernet / LAN1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs1x HDMI, 1x VGA
Audio Ports2x 3.5mm Audio Line-Out/Mic-In
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range12-28V DC
Max Power Consumption64.7W
Standard Power Adapter60 watts, 100 ~240V AC in, 19V DC out

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 Pro

Compatibility

Security HardwareOptional TPM 2.0

Expansion Slots

Internal M.21x M.2 Type B, 1x M.2 Type E
Other1x SIM socket connected to M.2 B-Key

Thermal & Environmental

Operating Temperature0°C - 45°C (32°F – 113°F)
Storage Temperature-20°C - 65°C (-4°F – 149°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum front bezel and SECC Steel Chassis
IP RatingIP66 Front Bezel
ColorBlack
Control ButtonsPower Reset
Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

Sim Card1x SIM Card Slot

Weight / Dimensions

Weight9.6 kg (21.2 lbs)
Dimensions584.5 x 364.2 x 77.5 mm (23.0 x 14.3 x 3.1 in)

Certification

CertificationsCE, FCC

Warranty

Warranty1 Year

Industrial Automation Control Panel: The TP-4810 panel PC is perfect for industrial automation. Its fanless design and powerful Intel Celeron J6412 processor ensure reliable operation in harsh environments. With multiple connectivity options and an IP66 waterproof-rated front bezel, it’s ideal for controlling manufacturing equipment. The touchscreen interface and easy installation make it efficient for operators.

Retail Point-of-Sale (POS) System: The TP-4810 is an excellent choice for retail POS systems. Its compact design, powerful processor, and various connectivity options make it perfect for managing retail operations. The waterproof front bezel and touchscreen interface enhance durability and usability in busy retail environments.

Manufacturing Computer: The TP-4810 serves as a reliable computing solution for manufacturing environments. Its fanless design and Intel Celeron J6412 processor ensure stable performance on the manufacturing floor. With multiple connectivity options and an IP66 waterproof-rated front bezel, it seamlessly integrates into production processes. The touchscreen interface facilitates user interaction, while easy installation streamlines deployment in manufacturing facilities.

Dimensional Drawings & I/Os

I/O Diagram Images

tp-4810-22 ios

Tech Diagram Images

tp-4810-22 technical drawing
