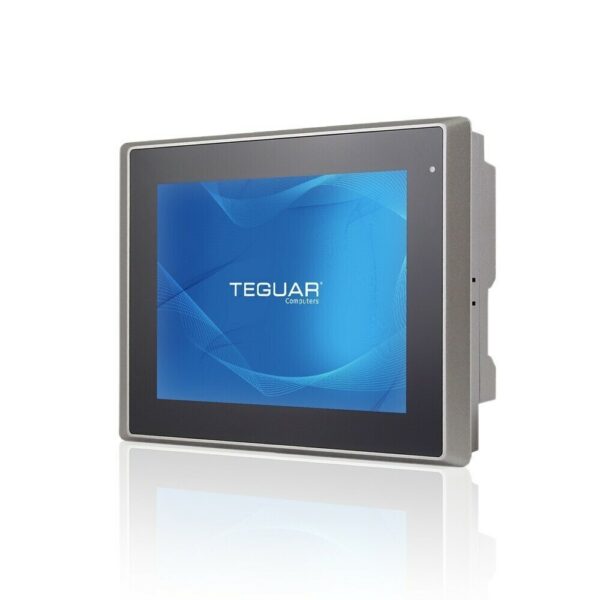

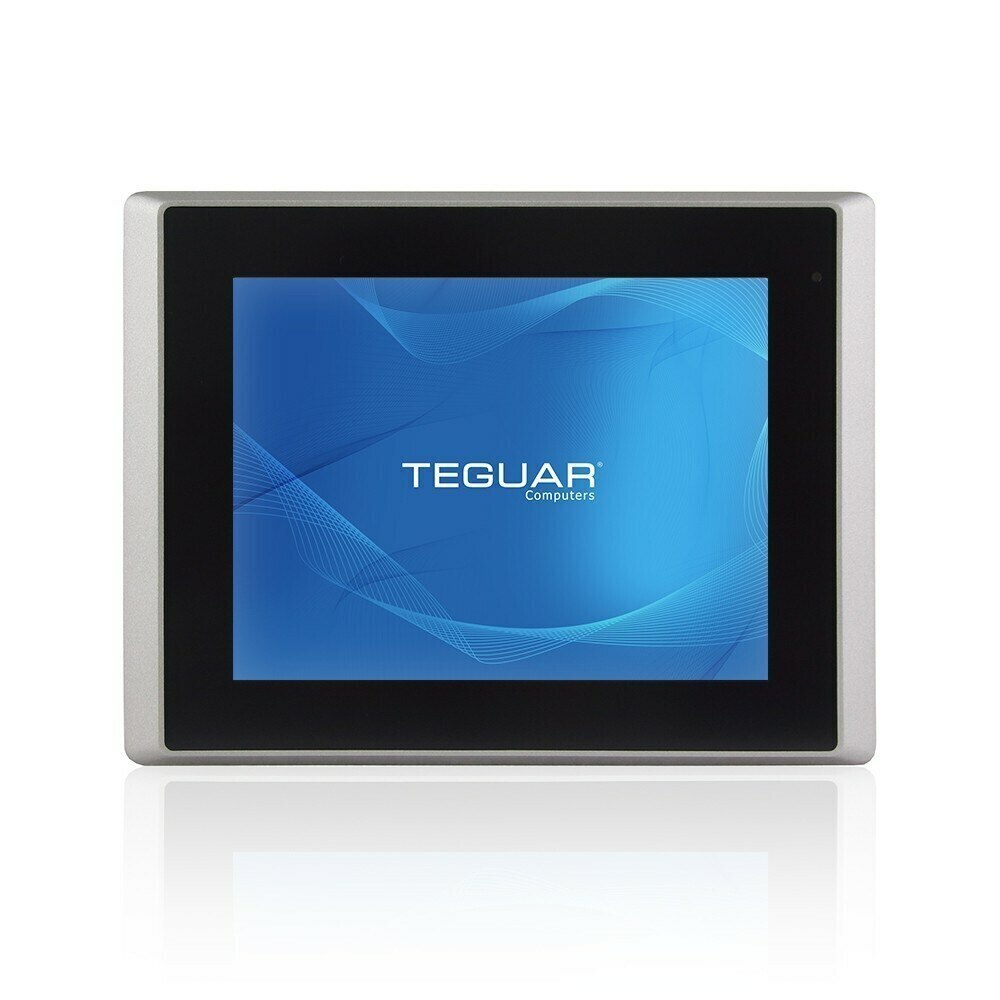

TP-3445-08

8” Panel Mount Computer
Available – Contact Us for Quick Quote

Description

The TP-3445-08 Industrial Panel PC is slim and compact. Fit this computer into a cut out on your machine, on your production line, or into a control cabinet. This PC is built with die-cast aluminum housing and has fanless heatsink cooling. It also has an IP66 rated front bezel and accessable storage via 3 screws on the back of the unit. The TP-3445-08 runs on an Intel Apollo Lake CPU and has DC 9~36V wide range power input. This industrial grade computer is built to last, even in tough manufacturing environments.

Key Highlights

  • 8” Pcap or Resistive Touchscreen
  • Intel Apollo Lake N4200 Quad Core CPU
  • Fanless Design and Aluminum Housing
  • IP66 Rated Full-Flat Front Bezel
  • Wide Range DC 9~36V Power Input

Primary Components

Processor FamilyIntel Pentium Apollo Lake
Processor ModelN4200
Processor Speed1.10 GHz
Memory TypeOnboard DDR3
Memory Support4GB, 8GB
Storage Type1.8" Half Size MO297 SATA Drive Bay
Storage Support32GB-256GB

Display

Screen Size8"
Resolution800 x 600 (SVGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB2x USB 3.0
Serial / Com2x COM
Serial Protocol Detail1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x HDMI
Other Ports1x 2-Pin DC Power Switch Connector
Audio Ports1x Audio Line-Out
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-36V DC
Standard Power AdapterOptional 12V AC/DC Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro
LinuxLinux (Contact your sales rep for more information)

Expansion Slots

SD card1x Micro SD Slot

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless with Heatsink
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP66 Front Bezel
Mounting OptionsPanel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi
BluetoothOptional Bluetooth 4.0
Mobile Network 4G LTEOptional 4G

Weight / Dimensions

Weight1.9 kg (4.2 lbs)
Dimensions231 x 176 x 50 mm (9.1 x 6.9 x 2.0 in)

Certification

CertificationsCE, FCC Class A, UL 60950, UL 62368

Warranty

WarrantyUp to 5 Years

Industrial Automation: The TP-3445 Series is well-suited for industrial automation applications such as machine control, data acquisition, and process monitoring. The durable construction and wide range of expansion options make it reliable and flexible in various industrial environments.

Outdoor Digital Signage: With its optional high-bright, sunlight-readable LCD, the TP-3445 Series is ideal for outdoor digital signage. It can withstand different weather conditions and deliver clear and visible content to engage customers or provide information in outdoor settings.

Transportation and Logistics: These panel PCs are suitable for transportation and logistics applications such as fleet management, vehicle tracking, and warehouse management. The wide range DC power input and optional internal backup battery ensure uninterrupted operation in mobile and remote environments.

Dimensional Drawings & I/Os

I/O Diagram Images

8-inch Computer IOs

Tech Diagram Images

8" Fanless Industrial Technical Drawings
