Tech Specs
Primary Components
| Processor Family | Intel Celeron Bay Trail |
| Processor Model | N2930 |
| Processor Speed | 1.83 GHz |
| Memory Type | Onboard DDR3 |
| Memory Support | 4GB |
| Storage Type | 1.8" Half Size MO297 SATA Drive Bay |
| Storage Support | 32GB-256GB |

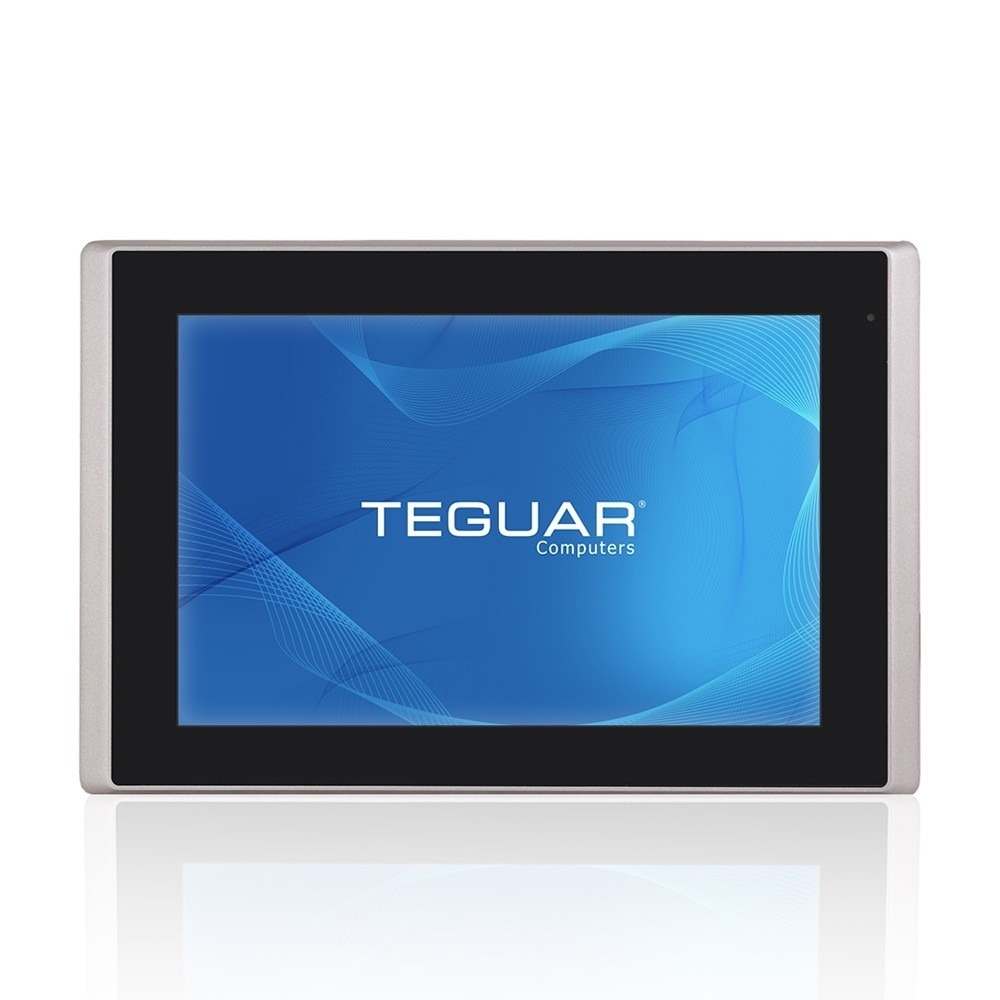

Display
| Screen Size | 7" |
| Resolution | 800 x 480 (WVGA) |
| Screen Ratio | 5:3 |
| Brightness | Optional 1000 nit High Brightness, 350 nits |
Touch Screen
| Touch Screen | Projected Capacitive, Resistive |

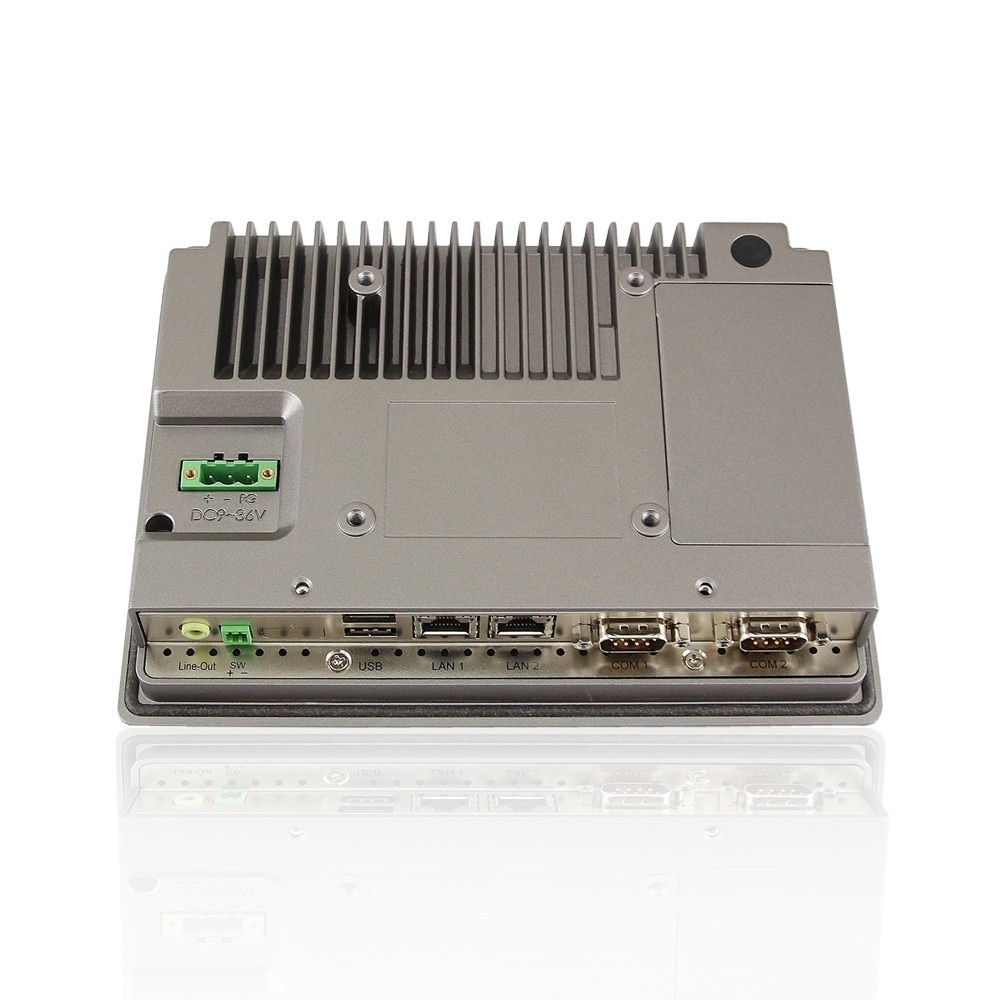

External I/O Ports
| USB | 2x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2) |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x HDMI |
| Other Ports | 1x 2-Pin DC Power Switch Connector |
| Audio Ports | 1x Audio Line-Out |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
| Standard Power Adapter | Optional 12V AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 7 Pro, Windows 8.1 Pro |
| Linux | Linux (Contact your sales rep for more information) |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F – 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless with Heatsink |
| Humidity Range | 10% – 90% Non-condensing |
Enclosure
| Material | Aluminum |
| IP Rating | IP66 Front Bezel |
| Mounting Options | Panel Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional WiFi |
| Bluetooth | Optional Bluetooth 4.0 |
| Mobile Network 4G LTE | Optional 4G |
Weight / Dimensions
| Weight | 1.2 kg (2.6 lbs) |
| Dimensions | 202 x 149 x 39 mm (8.0 x 5.9 x 1.5 in) |
Certification
| Certifications | CE, FCC Class A, UL 60950 |
Warranty
| Warranty | Up to 5 Years |
