TP-2920-10

10" Industrial Fanless PC

Available – Contact Us for Quick Quote

Description

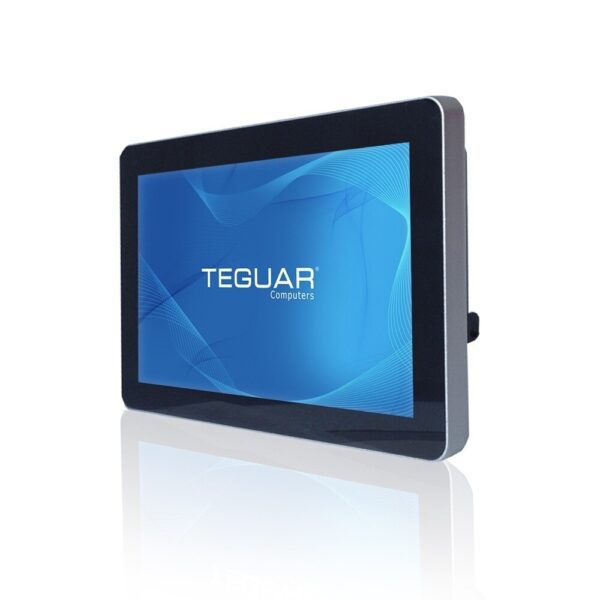

This 10.1″ sleek widescreen panel PC is equipped with a Bay Trail Intel Celeron N2930 CPU and supports power over ethernet (PoE) for high computing functionality. The TP-2920-10 flat touchscreen panel pc is designed for installation on visible surfaces with its projective capacitive multi-touch screen for a more intuitive user experience. Repeated contact, ambient moisture and dust present no problems for this front panel IP65 rated unit. This interactive widescreen panel is perfect for building automation, conference room booking and room information display applications. The aluminum housing and fanless design make the TP-2920-10 ideal for maintaining a quiet and cool indoor environment.

Key Highlights

10.1″ Projective Capacitive Multi-touch Screen
Intel Bay Trail Celeron N2930 1.83GHz CPU
Fanless System with Ultra-low Power Use
Supports Power over Ethernet(PoE) Power Input
Digital I/O(Phoenix Type) for Environment Control
Front IP65 Dust and Waterproof

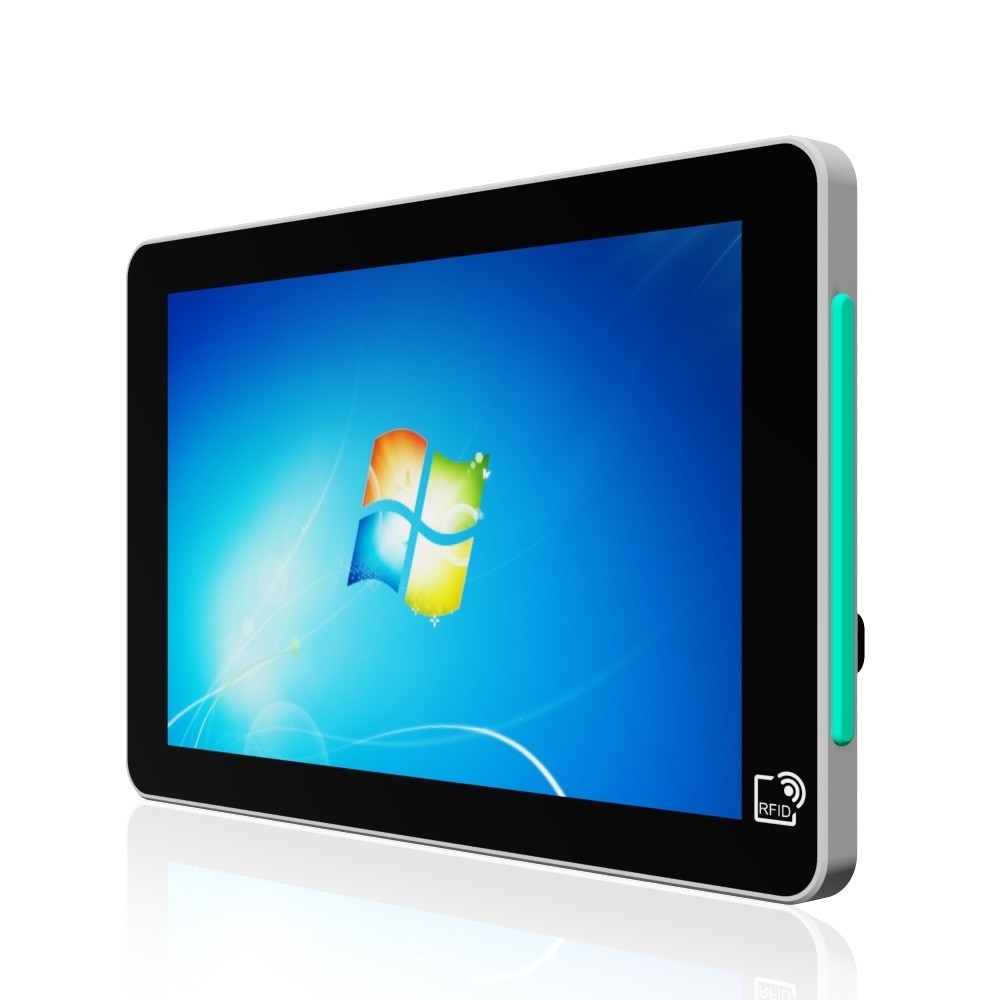

Optional Housing w/ LED Light Bars on Two Sides

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Celeron Bay Trail
Processor Model	N2930
Processor Speed	1.83 GHz
Memory Type	1x DDR3L SO-DIMM
Memory Support	2GB, 4GB, 8GB
Storage Type	mSATA
Storage Support	32GB-512GB

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	16:9
Brightness	300 nits

Touch Screen

Projected Capacitive (Multi-touch)

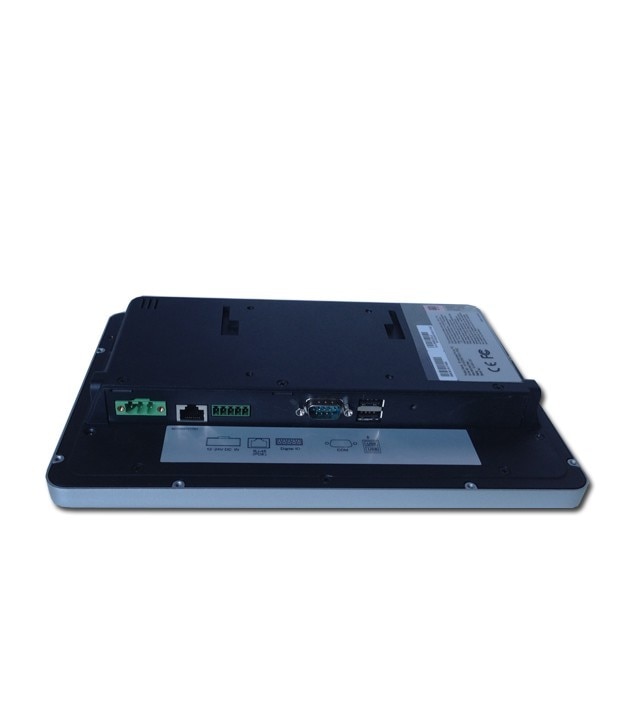

External I/O Ports

USB	1x USB 2.0, 1x USB 3.0
Serial / Com	1x COM
Serial Protocol Detail	1x RS-232/422/485
Ethernet / LAN	1x RJ45 GbE LAN
Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range

12V DC

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Expansion Slots

Internal M.2

1x M.2 Type B

Multimedia

Speakers

1x 1W Speaker

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Cooling Solution	Passive – Fanless
Humidity Range	30% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP65 Front Bezel
Mounting Options	Panel Mount, VESA Mount

Weight / Dimensions

Weight	3.2 kg (7.1 lbs)
Dimensions	263.28 x 171 x 35.7 mm (10.4 x 6.7 x 1.4 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Manufacturing: This computer series is suitable for manufacturing environments where it can be used for process monitoring, quality control, and data visualization. It enables real-time tracking of production metrics and facilitates efficient communication between different production areas.

Retail: The TP-2910-10 can be utilized in retail settings for digital signage displays, interactive product catalogs, and self-service kiosks. It allows customers to access product information, check inventory, and place orders, enhancing the shopping experience.

See the data sheet Warranty Download Drivers
