TMT-7165-13

13" Healthcare Tablet

Available – Contact Us for Quick Quote

Description

The Prism Healthcare Tablet is a medical professional’s choice for hygienic office use, EMR management, and smart operation in any setting.

The TMT-7165-13 displays beautifully on a 1080p high-resolution PCAP touch screen. Also, the 13” screen boasts a high brightness of 1000 nits, making it readable in sunlight or under bright operating room lights. The antimicrobial enclosure, equipped with a carry handle, houses a magnesium chassis, which provides greater strength at a lighter weight than aluminum. Further, the Healthcare Tablet’s accessible backside bay allows for hot-swapping the battery without interrupting use.

With ease of use, transport, and maintenance, Prism lets you see portable healthcare in a whole different light.

Key Highlights

Intel® Raptor Lake i5 Processor with a Passmark of 14,600
Windows 11 Compatible
Full portability with a hot-swappable battery
Shock and drop resistant, fully water-resistant
Easy access battery and SSD for convenient replacement and upgrade

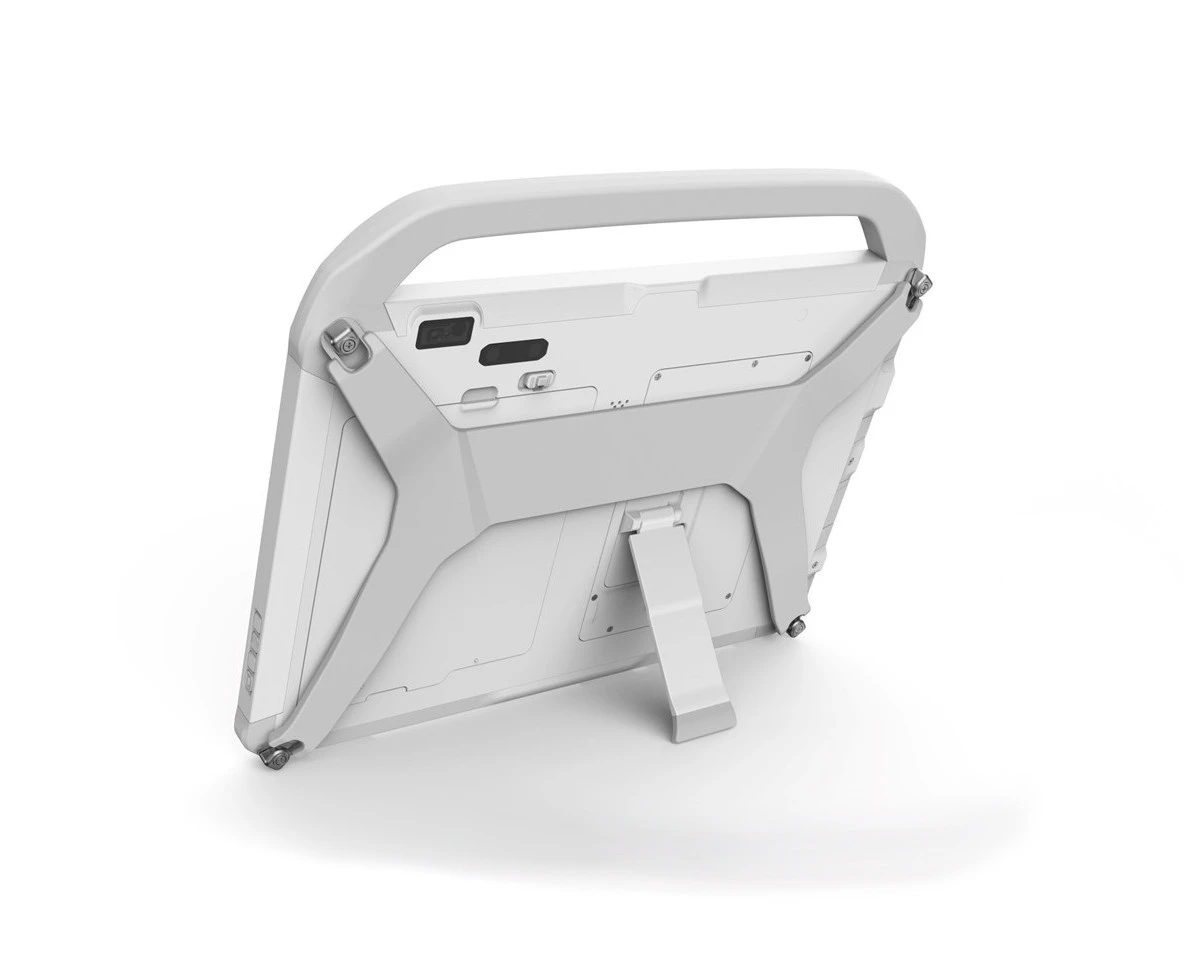

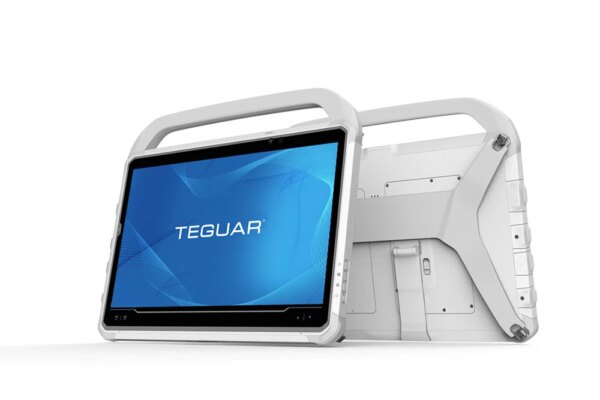

Carry handle makes for improved portability on a lightweight form factor

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 13th Generation Raptor Lake
Processor Model	Core i5-1335U
Processor Speed	2x Performance Cores up to 4.6 GHz Turbo, 8x Efficient Cores up to 3.4 GHz Turbo
Memory Type	Onboard LPDDR4
Memory Support	16GB, 32GB
Storage Type	1x M.2 2280 NVME SSD slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	13.3"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	1000 nits

Touch Screen

Projected Capacitive (Multi-touch)

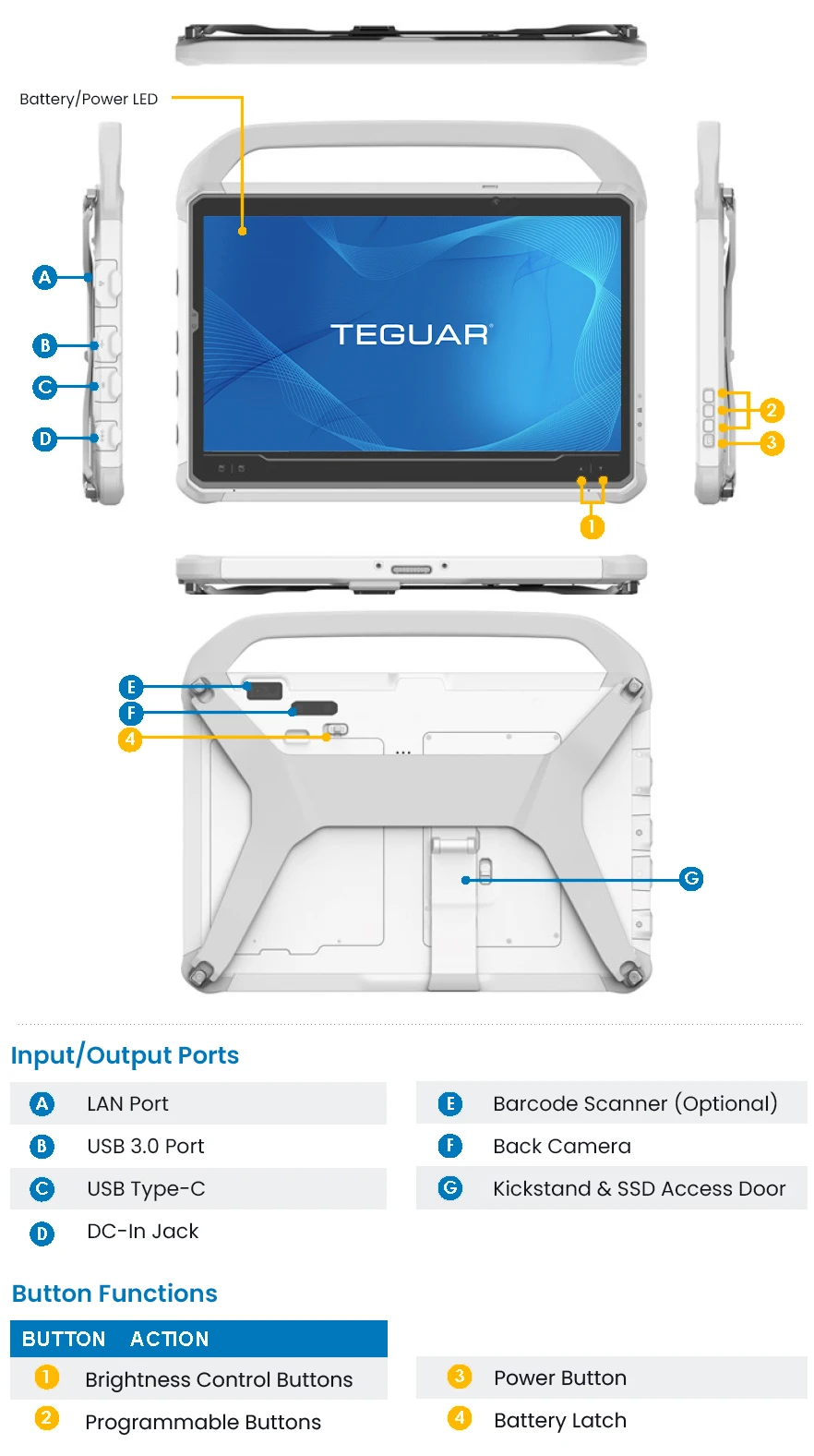

External I/O Ports

USB	1x USB 2.0 type C (data only), 1x USB 3.0
Ethernet / LAN	1x RJ45 GbE LAN
Power Input Port	5.0mm DC-in Jack

Power

Standard Power Adapter

19Vdc, 3.78A, US Power Cord

Battery

Battery Type

Hot Swappable 11.4V/3800mAh Battery, Optional Hot Swappable 11.4V/5400mAh, Optional Hot Swappable 11.4V/8000mAh

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0

Multimedia

Speakers	1x Speaker
Camera	Front: 5MP, Rear: 8MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-10°C - 60°C (14°F – 140°F (With WT devices))
Storage Temperature	-55°C - 70°C (-67°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	0% – 90% Non-condensing

Enclosure

Material	PC+ABS and Magnesium-Aluminum Alloy
IP Rating	IP65
Color	White
Led Indicator Light	Battery, Charging Indicator, Power
Control Buttons	Brightness Down, Brightness Up, Menu, Power Button, Settings
Programmable Function Buttons	5x Programmable Function Keys
Shock Rating	MIL-STD-810H

Peripherals & Wireless Connectivity

WiFi	Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4/5 GHz Dual Band
Bluetooth	Bluetooth 5.0
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional NFC, 125Khz & 13.5MHz

Weight / Dimensions

Weight	1.72 kg (3.8 lbs)
Dimensions	325 x 20 x 273.5 mm (12.8 x 0.8 x 10.8 in)

Warranty

Up to 5 Years

Medical Offices: With an antimicrobial, fully water-resistant enclosure, the TMT-7165-13 is built to be sanitized time and time again. This makes it ideal for receptionists and nurses to use and pass to patients to view information, sign forms, etc.

EMR Management: The 13” Healthcare Tablet provides a stable platform for software needed to create and maintain medical records. These records need to be readily accessible at the point of care, which include the patient’s bedside and the emergency room or operating room.

Point-of-care: Lightweight and easy to carry for healthcare providers on the move, the Prism tablet can connect to Wi-Fi and bring patient-centric care anywhere, from the hospital bed to a patient’s home. Windows 11 provides a user-friendly, seamless interaction in diverse settings.

See the data sheet Warranty Download Drivers
