Prism TMT-7165-10

10" Healthcare Tablet
Available – Contact Us for Quick Quote

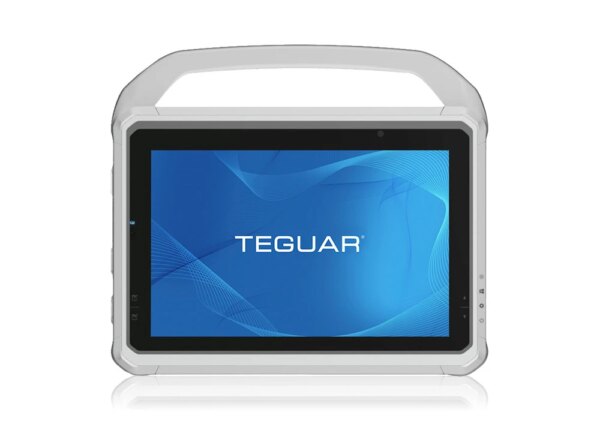

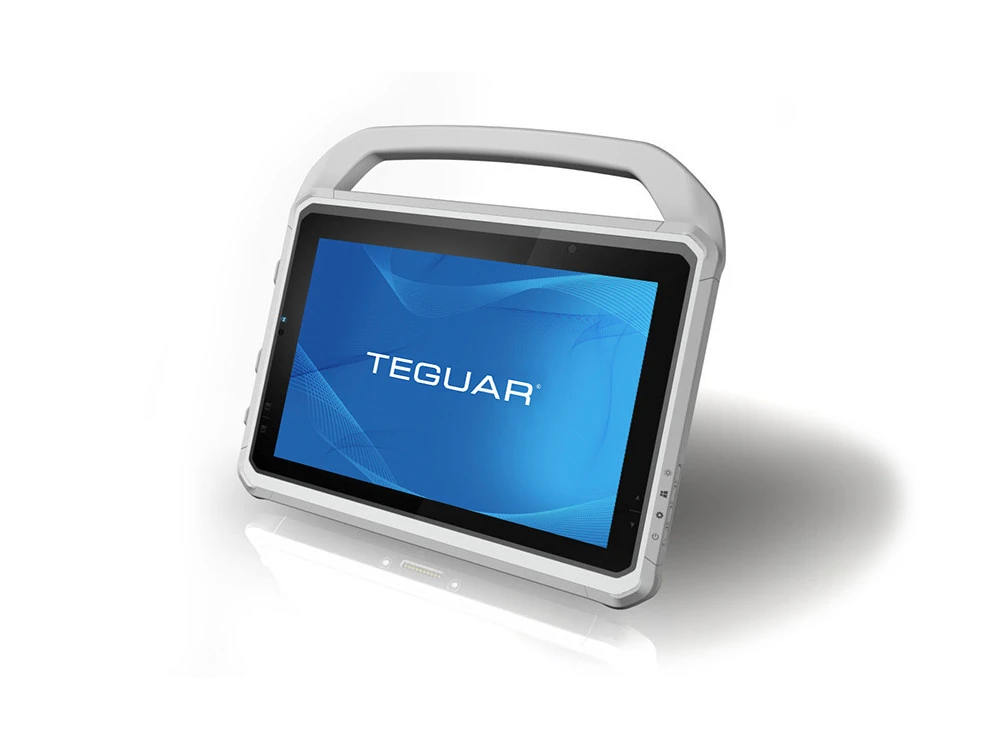

Prism TMT-7165-10
Prism TMT-7165-10 - Image 2
Prism TMT-7165-10 - Image 3
Prism TMT-7165-10 - Image 4

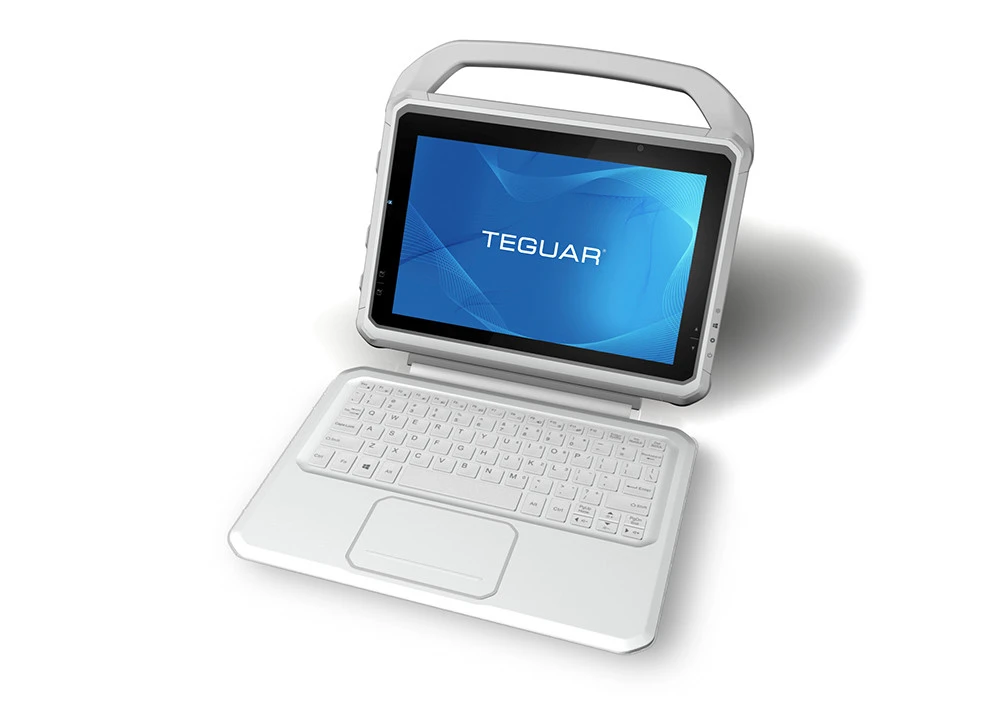

Prism Healthcare Tablet with Keyboard Attachment

Description

The Prism Healthcare Tablet is a medical professional’s choice for hygienic office use, EMR management, and smart operation in any setting.

The TMT-7165-10 displays beautifully on a 1080p high-resolution PCAP touch screen. Also, the 10” screen boasts a high brightness of 800 nits, making it readable in sunlight or under bright operating room lights. The antimicrobial enclosure, equipped with a carry handle, houses a magnesium chassis, which provides greater strength at a lighter weight than aluminum. Further, the Healthcare Tablet’s accessible backside bay allows for hot-swapping the battery without interrupting use.

With ease of use, transport, and maintenance, Prism lets you see portable healthcare in a whole different light.

Key Highlights

  • Intel® Raptor Lake i5 Processor with a Passmark of 14,600
  • Windows 11 Compatible
  • Full portability with a hot-swappable battery
  • Shock and drop resistant, fully water-resistant
  • Easy access battery and SSD for convenient replacement and upgrade
  • Carry handle makes for improved portability on a lightweight form factor

Screen Size

10.1" 13.3"
Get a DemoGet a Quick Quote
Why Buy from Teguar

Tech Specs

See the data sheet Download Drivers

Primary Components

Processor FamilyIntel Core I series 13th Generation Raptor Lake
Processor ModelCore i5-1335U
Processor Speed2x Performance Cores up to 4.6 GHz Turbo, 8x Efficient Cores up to 3.4 GHz Turbo
Memory TypeOnboard LPDDR4
Memory Support16GB, 32GB
Storage Type1x M.2 2280 NVME SSD slot, 1x M.2 slot for SSD
Storage SupportM.2: 256GB-1TB

Display

Screen Size10.1"
Resolution1920 x 1200 (WUXGA)
Screen Ratio16:10
Brightness800 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x USB 2.0 type C (data only), 1x USB 3.0
Ethernet / LAN1x RJ45 GbE LAN
Audio Ports1x Headphone Jack
Power Input Port5.0mm DC-in Jack

Power

Standard Power Adapter19Vdc, 3.78A, US Power Cord

Battery

Battery TypeHot Swappable 11.4V/3800mAh Battery, Optional Hot Swappable 11.4V/5400mAh, Optional Hot Swappable 11.4V/8000mAh

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwarefTPM 2.0

Multimedia

CameraFront: 5MP, Rear: 8MP
MicrophoneBuilt-in Microphone

Thermal & Environmental

Operating Temperature-10°C - 60°C (14°F – 140°F (With WT devices))
Storage Temperature-55°C - 70°C (-67°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range0% – 90% Non-condensing

Enclosure

MaterialPC+ABS and Magnesium-Aluminum Alloy
ColorWhite
Led Indicator LightBattery, Charging Indicator
Control ButtonsBrightness Down, Brightness Up, Menu, Power Button, Settings
Programmable Function Buttons5x Programmable Function Keys
Shock RatingMIL-STD-810H

Peripherals & Wireless Connectivity

WiFiWi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4/5 GHz Dual Band
BluetoothBluetooth 5.0
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional NFC, 125Khz & 13.5MHz

Weight / Dimensions

Weight1.32 kg (2.9 lbs)
Dimensions272 x 20 x 195.6 mm (10.7 x 0.8 x 7.7 in)

Warranty

WarrantyUp to 5 Years

Medical Offices: With an antimicrobial, fully water-resistant enclosure, the TMT-7165-10 is built to be sanitized time and time again. This makes it ideal for receptionists and nurses to use and pass to patients to view information, sign forms, etc.

EMR Management: The 10” Healthcare Tablet provides a stable platform for software needed to create and maintain medical records. These records need to be readily accessible at the point of care, which include the patient’s bedside and the emergency room or operating room.

Point-of-care: Lightweight and easy to carry for healthcare providers on the move, the Prism tablet can connect to Wi-Fi and bring patient-centric care anywhere, from the hospital bed to a patient’s home. Windows 11 provides a user-friendly, seamless interaction in diverse settings.

See the data sheetWarrantyDownload Drivers

Dimensional Drawings & I/Os

See the data sheet

I/O Diagram Images

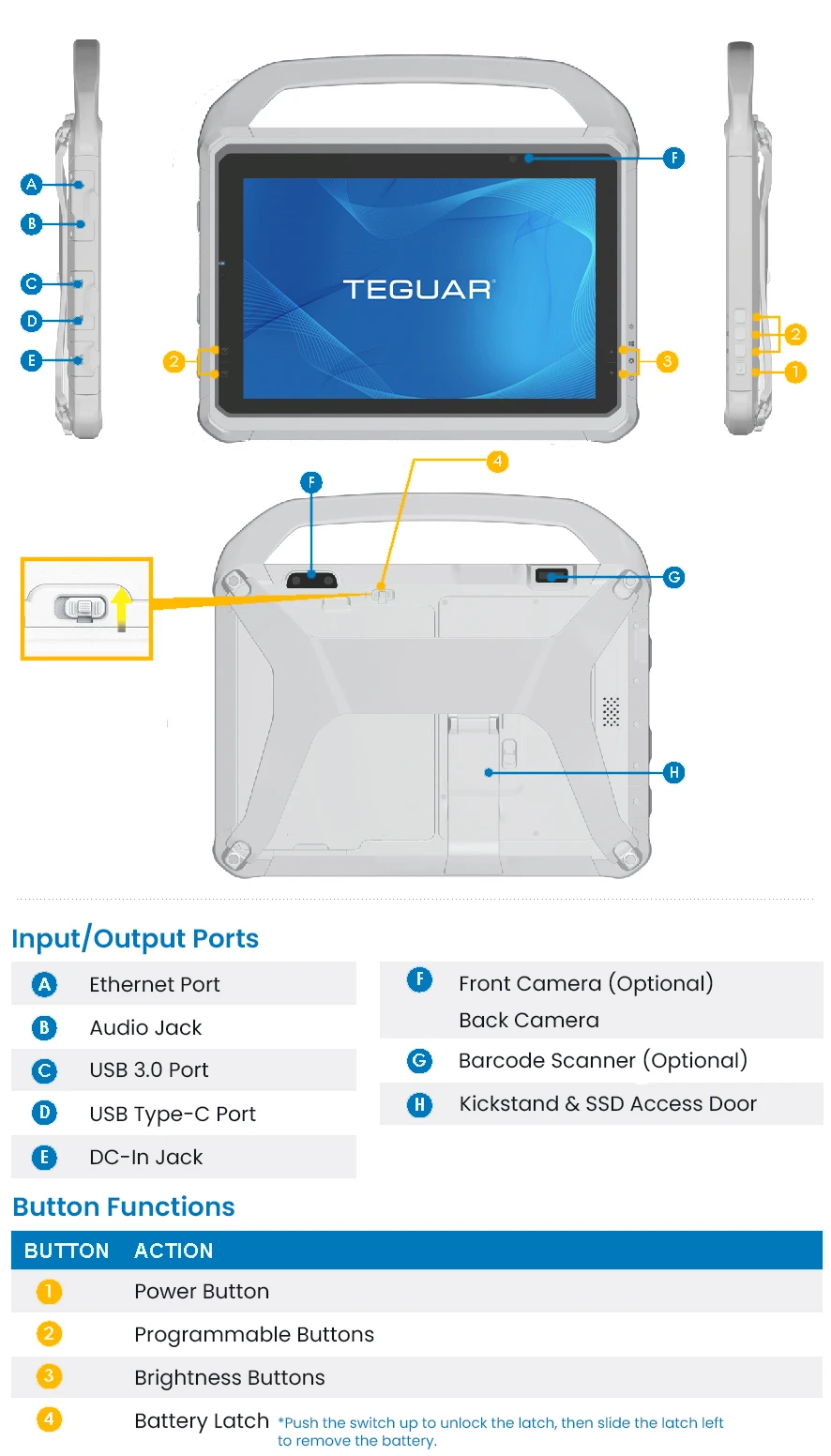

10 inch Prism Healthcare Tablet I/O and Button Function Diagram

Tech Diagram Images

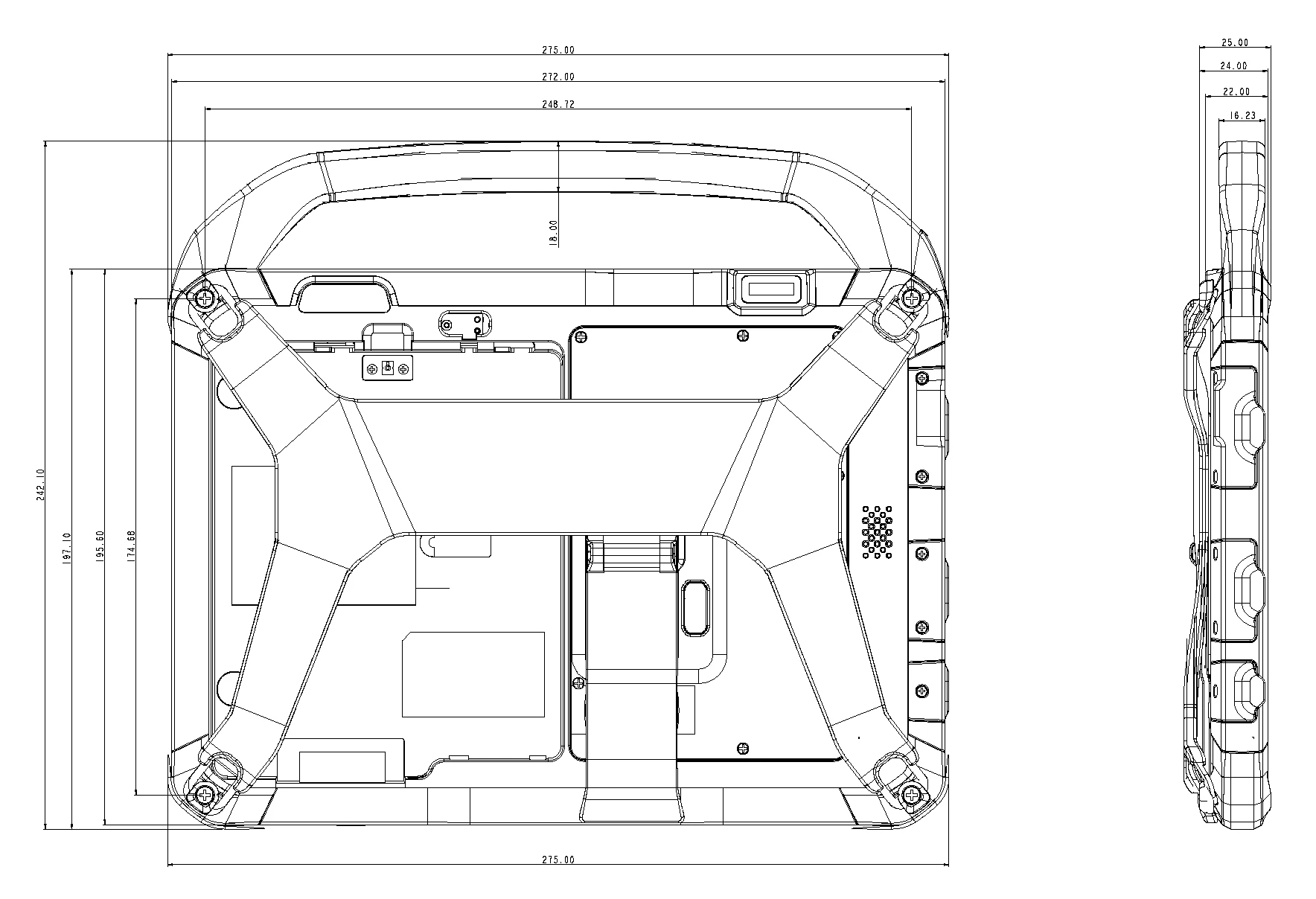

13 inch Prism Healthcare Tablet 2 dimensional drawing with measurements in millimeters
