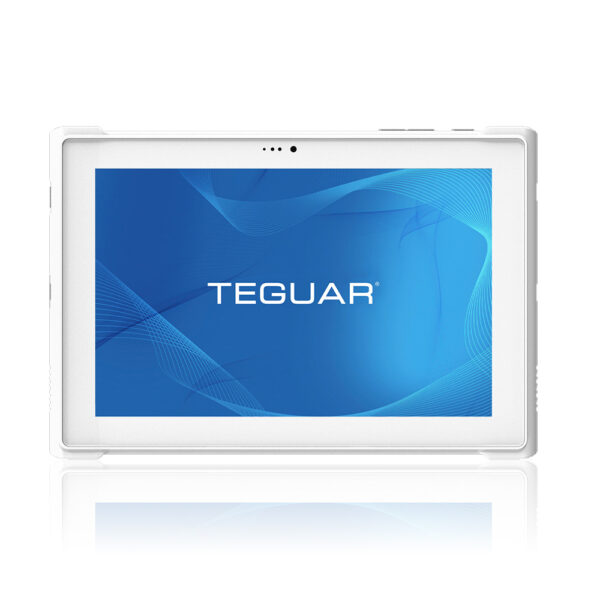

TMT-6280-10S

Slim Medical Tablet with Fast Charging

Available – Contact Us for Quick Quote

Description

The TMT-6280-10S Medical Tablet is a slim, cost-effective, compact powerhouse designed to accompany its operator anywhere. Ruggedized against water, drops, and electrostatic discharge, this tablet thrives from the operating room to patient bedside with an IP67 rating, MIL-STD-810H certification, and durable hand strap for easy carrying. Add the active stylus for taking notes on the go and dock via USB-C for 33W fast charging when the long-life battery (7.4 hours) needs a charge.

Key Highlights

Intel 12th Gen N150 Alder Lake Processor
Windows 11 Home, Pro, or IoT
10.1” Full HD Screen with 700 nits Brightness
60601 Medical Certification Compliant
Two USB-C for Power In and A/V Out
Dual Band Wi-Fi, Bluetooth, 4G/5G LTE

Get a Demo Get a Quick Quote

Why Buy from Teguar

✆ Dedicated, Quick Response Customer Support Experts
✓ 30-Day Worry Free Return, Plus Up to 5 Years Warranty
★ Top-Rated by Our Customers on Google & Trustpilot

Primary Components

Processor Family	Intel Twin Lake
Processor Model	Intel Processor N150
Processor Speed	Up to 3.6 GHz
Memory Type	Onboard LPDDR5
Memory Support	8GB

Display

Screen Size	10.1"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	700 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	2x USB-C
Video Outputs	1x USB-C
Power Input Port	USB Type-C PD Input

Power

Standard Power Adapter

Type-C, 33W/PD 3.0 Fast Charging Adapter

Battery

Battery Type	7.4V/4800mAh Battery
Battery Operating Time	7.4hrs

Operating Systems

Windows

Windows 11, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Video Card Support	Intel Graphics
SD card	1x Micro SD Slot
Other	Pogo Pin Expansion

Multimedia

Speakers	2x 1W Speakers
Camera	Front: 5MP, Rear: 13MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	95% Non-condensing

Enclosure

IP Rating	IP67
Color	White
Led Indicator Light	Power
Control Buttons	Audio Down, Audio Up, Power Button, Scanner
Shock Rating	MIL-STD-810H
Drop Rating	5.9ft
Approved Cleaning Solutions	Alcohol, Petroleum Ether

Peripherals & Wireless Connectivity

WiFi	802.11 AX
Bluetooth	Bluetooth 5.2
GPS	yes
Mobile Network 4G LTE	*Not Certified for USA Carrier Networks, 4G LTE
Mobile Network 5G	*Not Certified For USA Carrier Networks, Optional 5G
Sim Card	1x Micro SIM Card Slot
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	NFC
Peripheral Other	Hand Strap, Fingerprint Reader, Optional: Desktop Dock, Digitizer Pen

Weight / Dimensions

Weight	2.05 lbs kg (4.5 lbs)

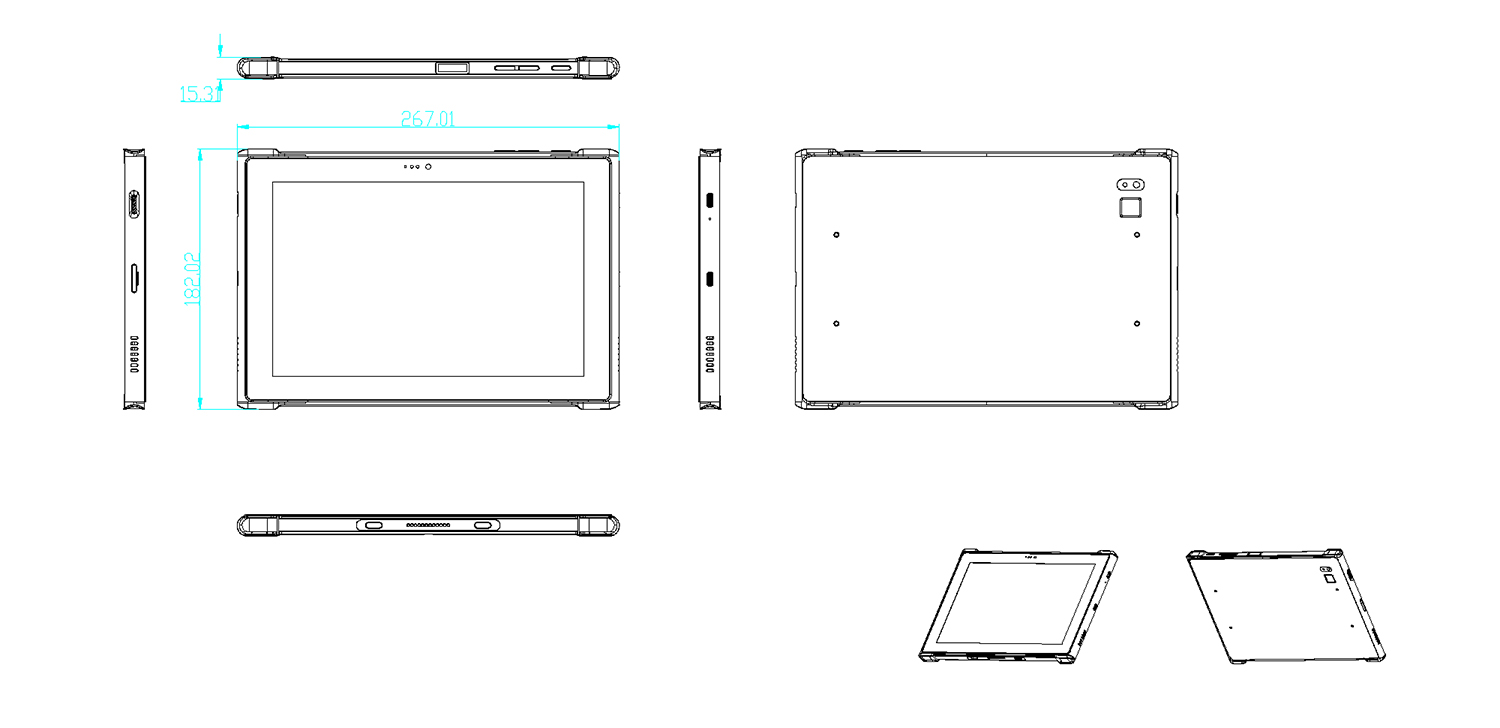

Dimensions	260 x 174.7 x 12.7 mm (10.2 x 6.9 x 0.5 in)

Certification

Certifications

CE, FCC, MIL-STD-810H Compliant, IP67 Compliant, 60601 Compliant

Warranty

1 Year

Healthcare – Trust and Reliability – Deltos Medical Tablet is easy to disinfect with an IP67 rating and is 60601 compliant. It’s protected against electrostatic discharge, making it approved for medical use with or adjacent to medical devices.

Patient Data Visualization – Medical Image Capture – Capture images using front and rear cameras and markup or record information using the active stylus for dynamic patient documentation in the operating room, triage center, or ambulance.

Retail – Sleek Point of Sale – The slim tablet is a small footprint all-in-one solution for mobile workstations, showrooms, and small counters and can take payment with NFC. Its slim shape, light weight, and long battery life enable easy comfort and all-day use.
