TMD-65-27

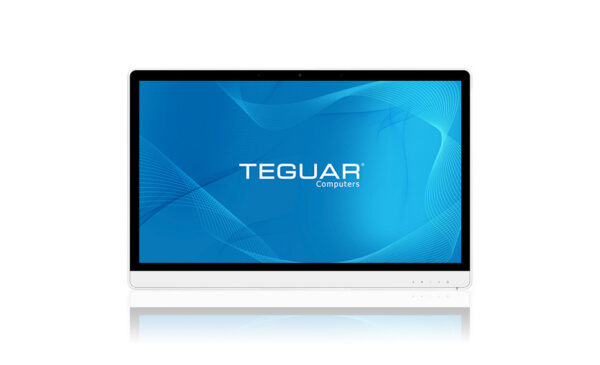

27" Medical Display
Available – Contact Us for Quick Quote

Description

The 27” Medical display is a solution crafted to fulfill the requirements of various medical applications. Its PCAP Multi- Touchscreen allows for natural and interactive user interactions. The display boasts a white housing made with anti-microbial materials, ensuring a sanitary and hygienic setting. It is equipped with user-friendly buttons for effortless navigation and control, facilitating convenient operation. Featuring multiple USB ports, including USB 2.0 and USB 3.0, as well as HDMI connectivity, it seamlessly integrates with peripherals and external devices. The TMD-65-27 includes an external 72W medical power supply for dependable performance. The display accommodates a wide range of medical use scenarios.

Key Highlights

  • 27” Full HD Display Size
  • Multiple Inputs and Outputs such as 1x USB 2.0 Type-B, 1x USB 3.0 Type-B, 6x USB 3.0, 1x HDMI
  • FCC, CE, and 60601-1-2 Medically Compliant
  • Sleek design with anti-microbial Housing
  • Built-in speakers with optional Auto Focus Webcam

Display

Screen Size27"
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness300 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x USB 2.0 Type-B (touch), 1x USB 3.0 Type-B (HUB), 6x USB 3.0
Power Input Port5.0mm DC-in Jack

Power

Input Voltage Range19V DC
Max Power Consumption58W
Standard Power Adapter19Vdc 3.78A, 72W, US AC

Multimedia

Speakers2x 1W Speakers
CameraOptional 5MP Auto Focus Webcam

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-10°C - 50°C (14°F – 122°F)
Cooling SolutionPassive – Fanless
Humidity Range0% – 90% Non-condensing

Enclosure

MaterialAnti-Microbial, PC+ABS
IP RatingIP65 Front Bezel
ColorWhite
Control ButtonsAuto/Exit, Power Button, Up/Down
Mounting OptionsVESA 100 Mount

Weight / Dimensions

Weight7.34 kg (16.2 lbs)
Dimensions411.8 x 639.1 x 45 mm (16.2 x 25.2 x 1.8 in)

Warranty

Warranty1 Year

Medical Imaging: The Medical Display Series is perfect for medical imaging applications, providing high-definition and detailed visuals for accurate interpretation of radiological images such as X-rays, CT scans, and MRIs.

Operating Room Integration: These displays can be integrated into operating rooms, allowing surgeons and medical staff to view critical information such as patient vitals, surgical imaging, and real-time data during procedures.

Telemedicine and Teleconferencing: The TMD-65 display, equipped with built-in speakers and an optional 5MP AF webcam, is ideal for telemedicine applications, enabling remote consultations, video conferences, and virtual patient assessments.

Dimensional Drawings & I/Os

I/O Diagram Images

27 medical display

Tech Diagram Images

Medical Display Technical Drawing
