TMD-25-15

15.6" Medical Grade Display
Available – Contact Us for Quick Quote

Description

The TMD-25-15 is a medically certified touchscreen display with a projected-capacitive multi-touch screen. The 1920 x 1080 resolution display provides high quality image reproduction for viewing patient images or electronic medical records. This healthcare monitor has both VGA and HDMI inputs for video, USB for touch, and audio for the built in speakers. This display has various VESA mounting hole patterns, for mounting on a desktop stand, ergonomic arm, medical cart, or medical machine. The TMD-25-15 is a stylish and elegant display that will deliver reliable performance in your healthcare setting.

Key Highlights

  • 15.6″ Projected Capacitive Touchscreen
  • IEC 60601-1 Medically Certified
  • VGA and HDMI Inputs
  • High Resolution 1920 x 1080 Display
  • Slim and Light Weight Design

Display

Screen Size15.6"
Resolution1920 x 1080 (Full HD)
Brightness300 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x USB 2.0
Audio Ports1x 3.5mm Audio Line-In

Power

Standard Power AdapterExternal AC to DC Adapter (complies with Level VI efficiency standard)

Enclosure

ColorWhite
Control ButtonsDown, Input, Left, Menu, Right, Up
Mounting OptionsVESA 75 Mount

Weight / Dimensions

Weight1.6 kg (3.5 lbs)
Dimensions387.8 x 232.9 x 38.4 mm (15.3 x 9.2 x 1.5 in)

Certification

Certifications60601-1 4th Edition

Warranty

WarrantyUp to 5 Years

Electronic Medical Records (EMR): The TMD-25-15 medical monitor is ideal for accessing and viewing electronic medical records, allowing healthcare professionals to easily navigate and review patient information with its intuitive touch screen interface.

Patient Data Visualization: This medical monitor enables the visualization of patient data, including vital signs, test results, and medical imaging, providing a clear and detailed view of important information for accurate diagnosis and treatment planning.

Point-of-Care Applications: With its compact and lightweight design, the TMD-25-15 can be conveniently mounted on a medical cart or machine, allowing for point-of-care applications such as medication administration, bedside documentation, and real-time data entry.

Dimensional Drawings & I/Os

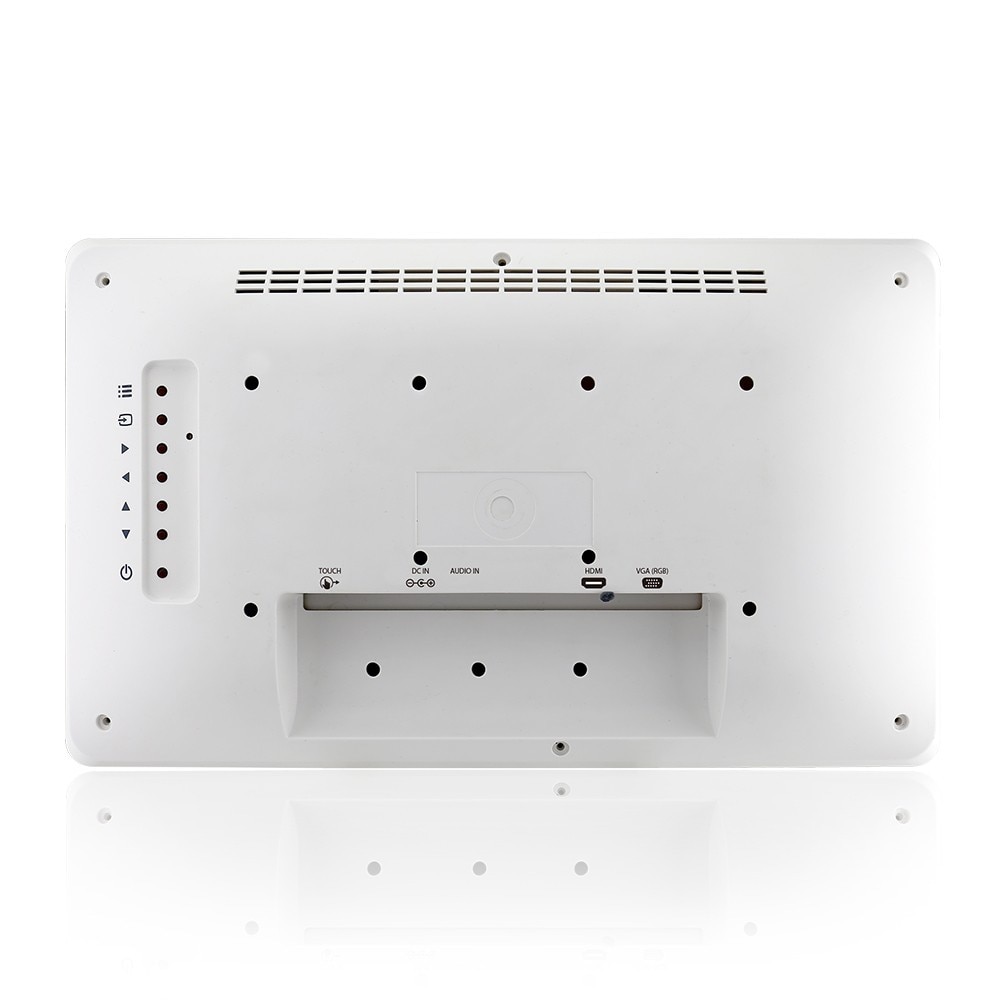

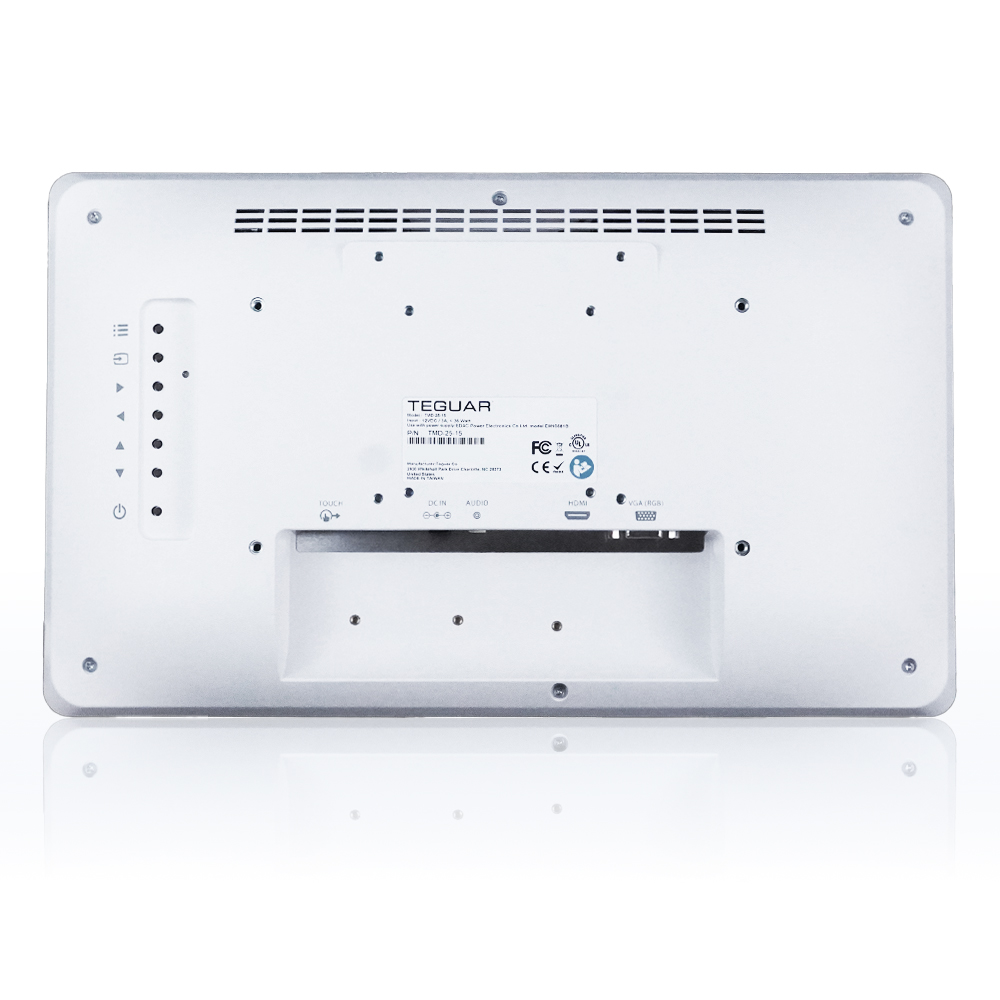

I/O Diagram Images

Medical Display Inputs and Outputs Labeled

Tech Diagram Images

TMD-10-15 Technical Drawing
