TMD-10-22

22" Medical Computer Monitor
Available – Contact Us for Quick Quote

Description

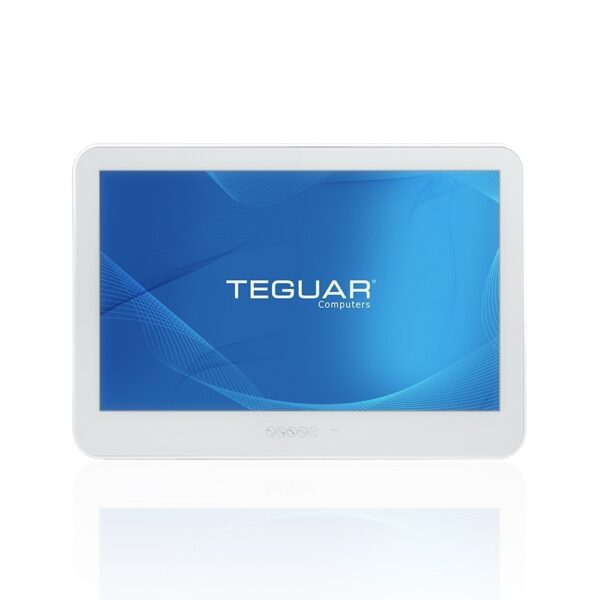

The TMD-10-22 Medical Display meets the latest medical certification and has a 21.5” full HD 1920 x 1080 touchscreen. This monitor has USB, DVI-D, HDMI, Display, Audio Ports and built-in 1.5W stereo speakers. The TMD-10-22 can be connected to any computer, including a medical box PC or a medical all-in-one computer, where it can act as a cloned or extended display. This display is DICOM compatible and can be mounted to a medical cart or a desktop stand. The TMD-10-22 also has an IP65 rated front bezel that can withstand daily cleanings with medical grade cleansers.

Key Highlights

  • 21.5″ Widescreen Full HD Display
  • Anti-bacteria, Anti-MRSA Plastic Housing
  • IEC60601-1 4th Edition Medically Certified
  • HDMI, DisplayPort, DVI-D, Audio-in
  • Compatible with DICOM

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 350 nits DICOM, 250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)
Hardness7H

External I/O Ports

USB1x USB 2.0

Power

Standard Power AdapterAC input 100 ~ 264V / 47 ~ 63 Hz / DC output 12V

Expansion Slots

OtherOptional PCI-e Riser Card

Multimedia

Speakers2x 1.5W Speakers

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialPlastic
IP RatingIP65 Front Bezel
ColorWhite
Led Indicator LightPower
Control ButtonsAudio Down, Audio Up, Auto, Display on/off, Down, Enter, Power Button

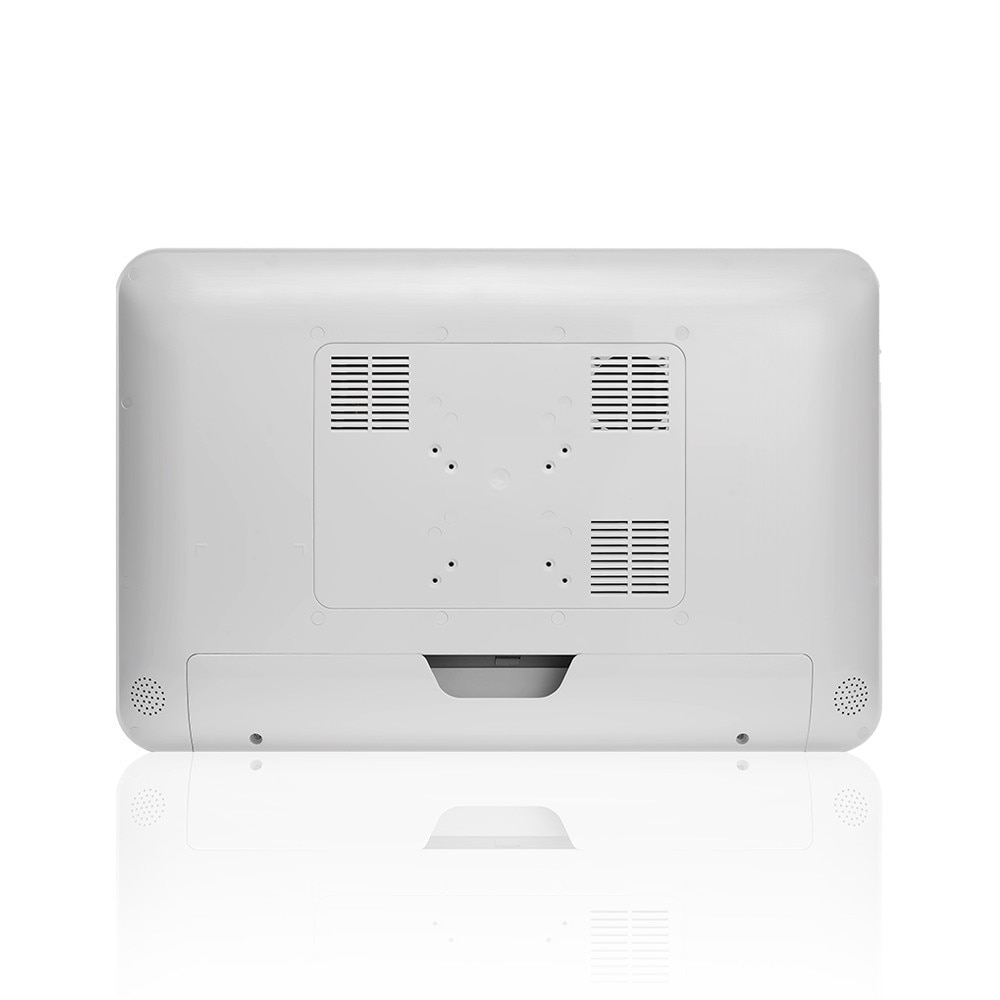

Mounting OptionsDesktop Stand, VESA 100 Mount, VESA 75 Mount

Weight / Dimensions

Weight6.4 kg (14.1 lbs)
Dimensions540 x 375 x 78 mm (21.3 x 14.8 x 3.1 in)

Warranty

WarrantyUp to 5 Years

Medical Imaging: The TMD-10 Medical Display Series is suitable for medical imaging applications, providing high-quality visual representation of medical images such as X-rays, CT scans, and MRI scans.

Telemedicine: These medical-grade monitors are ideal for telemedicine setups, enabling healthcare professionals to communicate with patients remotely and review medical data and images in real-time.

Clinical Documentation: The TMD-10 monitors can be used for clinical documentation, allowing healthcare providers to view and input patient data, access electronic health records (EHR), and document medical procedures efficiently.

Patient Monitoring: These monitors can be utilized for patient monitoring purposes, providing real-time visual feedback on vital signs, patient data, and medical alarms, facilitating continuous care and timely interventions.

Dimensional Drawings & I/Os

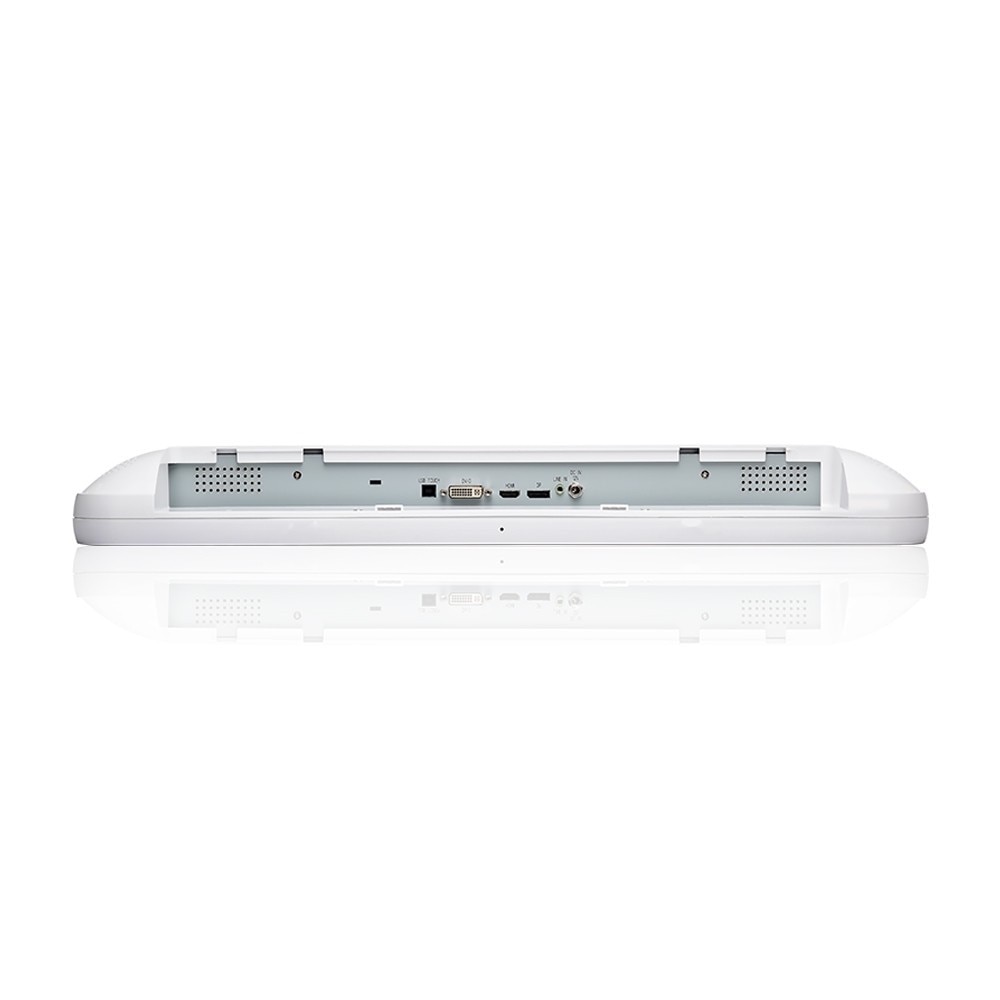

I/O Diagram Images

22" Medical Display IOs

Tech Diagram Images

22" Medical Monitor Tech Draw
