TM-4815

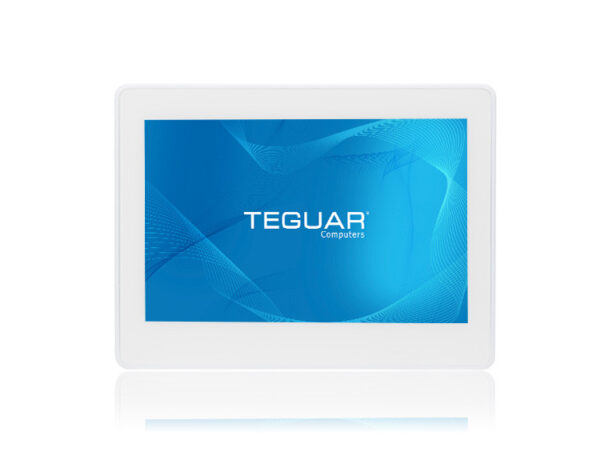

10" Medical Panel PC
Available – Contact Us for Quick Quote

Description

The 10” Medical Panel PC with Touch is a compact and versatile solution tailored to meet the specific needs of healthcare professionals. Its 10-inch optical bonding touchscreen offers intuitive and responsive interaction, enhancing workflow efficiency. With optional features like an RFID reader capable of reading various credentials, Power over Ethernet (PoE) for simplified installation, and programmable LED light bars for clear visual indicators, it adapts seamlessly to diverse medical environments. Its flush wall-mount design saves space while ensuring easy access to critical data. Whether used for patient records, patient vitals, or part of a medical system, this panel PC delivers reliability and performance crucial for modern healthcare.

Key Highlights

  • 10” Projected Capacitive Touchscreen with Optical Bonding
  • Intel Celeron N6210 Elkhart Lake CPU
  • Programmable LED light bars on both sides
  • Multiple I/Os such as 1x HDMI, 1x RS-232, 1x GbE, 2x USB 3.2
  • IP65 Rated

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron N6210
Processor SpeedUp to 2.6 GHz, 1.2 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 2242 Slot, SATA3 or NVMe
Storage SupportM.2: 128GB-512GB

Display

Screen Size10.1"
Resolution1280 x 800 (WXGA)
Screen Ratio5:4
Brightness400 nits

Touch Screen

Touch ScreenOptically Bonded Projected Capacitive
Hardness6H

External I/O Ports

USB2x USB 3.2
Serial / Com1x COM
Serial Protocol DetailRS-232
Ethernet / LAN1x Optional Gbe LAN PD POE Class 4 802.3at/Class 5 802.3.bt, 1x RJ45 GbE LAN
Video Outputs1x HDMI
Audio Ports1x 3.5mm Audio Line-Out/Mic-In
Power Input PortDC-in via adapter cable

Power

Input Voltage RangeOptional POE with PD, 12V DC
Standard Power AdapterExternal Medical Grade, 65W, 12Vdc, 5.42A, with US Power Cord

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Multimedia

Speakers2x 1W Speakers
MicrophoneBuilt-in Microphone

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 95% Non-condensing

Enclosure

MaterialPC+ABS
IP RatingIP65 Front Bezel
ColorWhite
Control ButtonsAT/ATX, Clear CMOS, Power Button, Reset Button
Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

WiFiIntel® Wi-Fi 6E AX210
BluetoothBluetooth 5.0

Weight / Dimensions

Weight2.8 kg (6.2 lbs)
Dimensions261 x 40 x 196.4 mm (10.3 x 1.6 x 7.7 in)

Certification

CertificationsCE, UL 62368

Warranty

WarrantyUp to 2 Years

Clinical Communication: The TM-4815 series excels as a clinical communication hub across various healthcare settings. Powered by the Intel Elkhart Lake processor, this panel PC ensures robust performance for demanding applications. With programmable light bars and a space-saving in-wall mount design, it becomes a versatile tool for communication in areas such as point of care, surgery rooms, and telemedicine, facilitating efficient interactions among healthcare professionals.

Patient Care Optimization: The TM-4815 series, designed to enhance patient care, is a valuable addition to healthcare facilities. With features like a responsive surgical glove interface and optical bonding for clear displays, this Medical Panel PC, powered by the Intel Elkhart Lake processor, supports patient care optimization across various medical imaging and surgical environments. Its programmable light bars and customizable alerts contribute to workflow efficiency in point-of-care applications.

Dimensional Drawings & I/Os

I/O Diagram Images

TM-4815 Labeled I/Os

Tech Diagram Images

Tm-4815-10 Technical Drawing
