TD-45-22

21.5" Industrial Monitor
Available – Buy Now or Contact Us for Quick Quote

Description

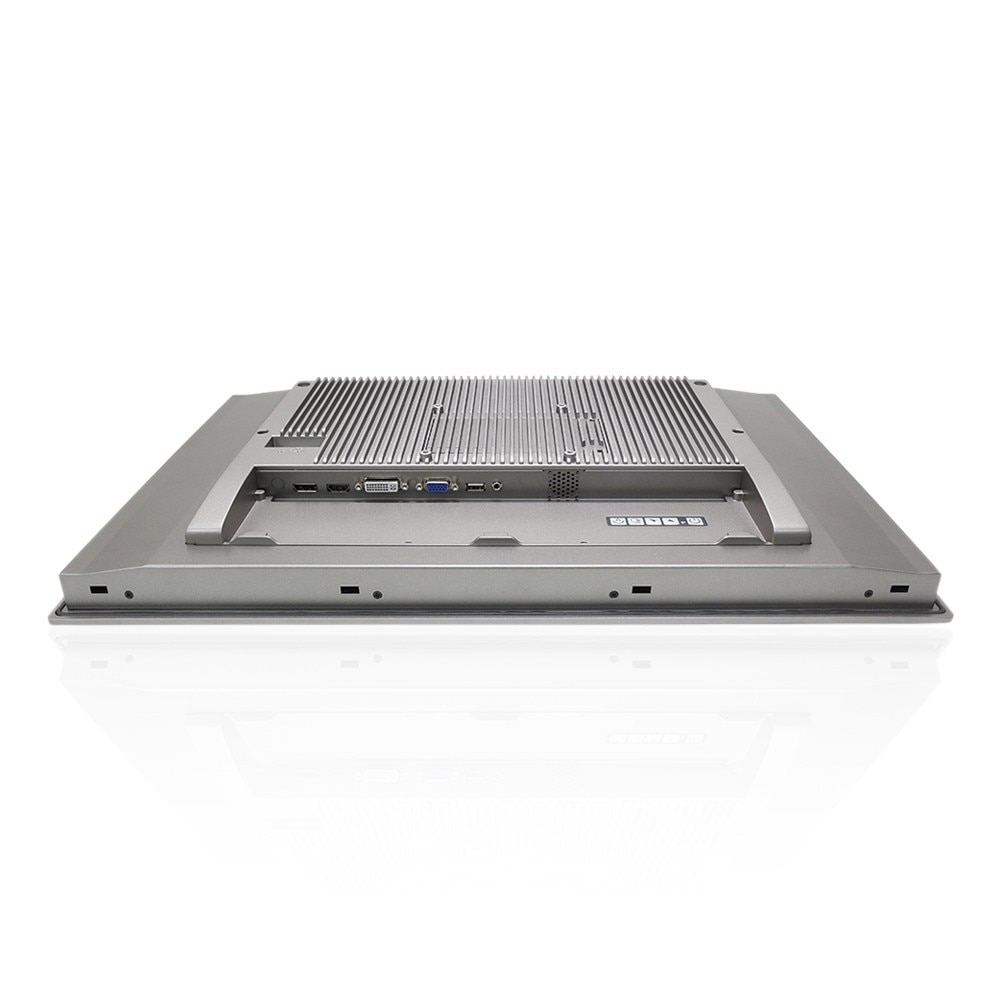

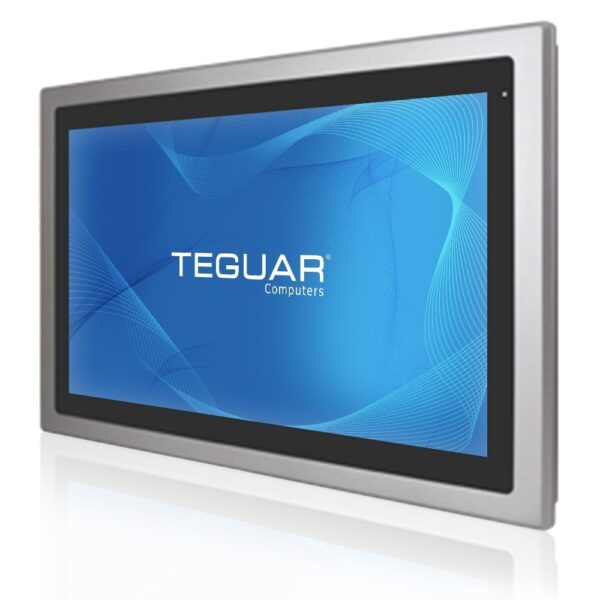

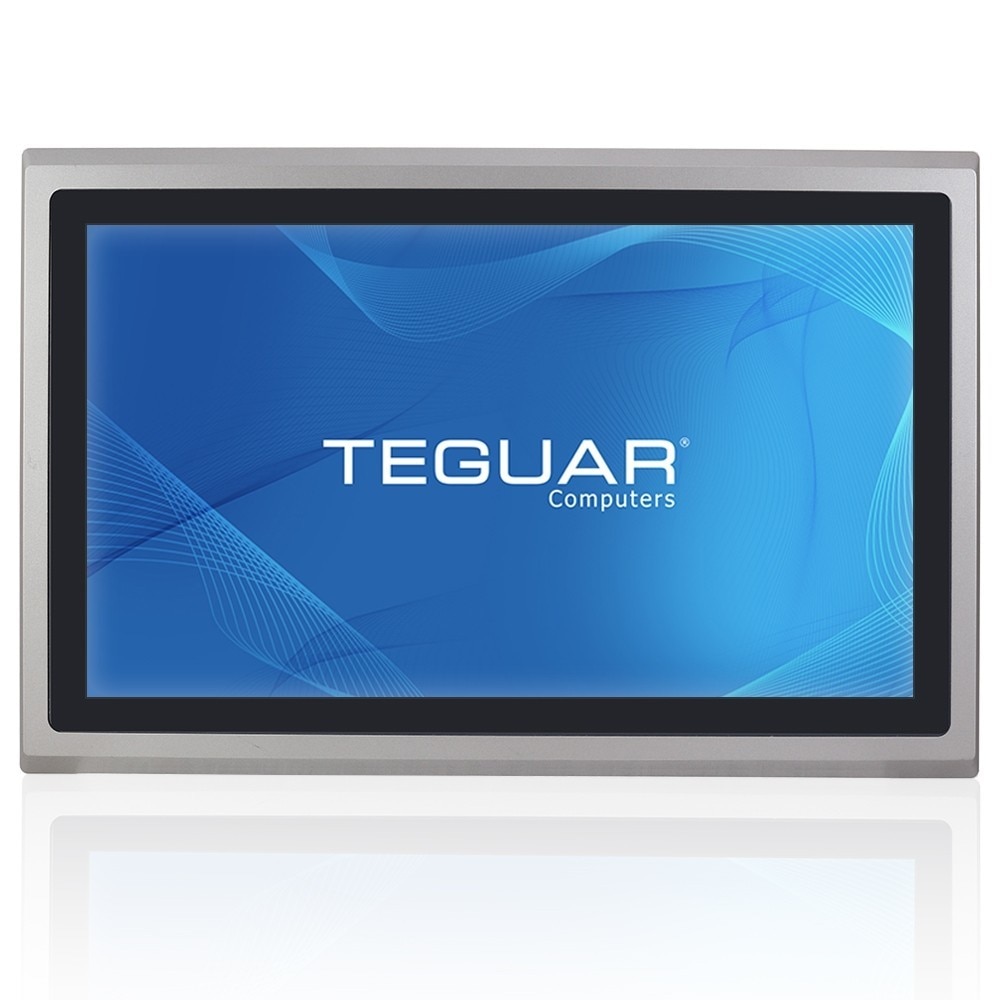

The TD-45-22 is the largest industrial touchscreen monitor in this series with a 21.5” LCD display. This monitor can be panel mounted into a cutout in an enclosure or it can be mounted to an arm, stand, or hung on a surface. When panel mounted, the front bezel is IP66 rated and protected from liquids and dust. The TD-45-22 can be can be connected to a fanless box PC, for a rugged, long-life solution, or to another touchscreen PC, where it can operate as a cloned or extended display. The same model is available in screen sizes down to 7″ to meet the needs of most applications. These industrial touchscreen monitors may be mounted into control cabinets, integrated onto an OEM machine, or used in a manufacturing environment.

Read the Product Review from RuggedPCReview >

Key Highlights

  • 21.5″ LCD High Resolution Touchscreen
  • Rugged Die Cast Aluminum Enclosure
  • Optional Sunlight Readable 1000 Nit LCD
  • IP66 Compliant Flat Front Panel
  • Resistive or Projected Capacitive Touchscreen
  • Wide Range DC 9~36V Power Input

Starting at: $1,019.72

Customize & Buy

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

Audio Ports1x Optional Speaker with 1x Audio Input
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-32V DC
Max Power Consumption18.3W (Resistive), 24.9W (P-Cap)
Standard Power AdapterOptional 12V AC/DC Adapter

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature-20°C - 60°C (-4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP66 Front Bezel, Optional IP69K
ColorSilver
Mounting OptionsPanel Mount, VESA 100 Mount

Weight / Dimensions

Weight7.6 kg (16.8 lbs)
Dimensions557 x 362 x 64.8 mm (21.9 x 14.3 x 2.6 in)

Certification

CertificationsCE, FCC Class A

Warranty

WarrantyUp to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

Dimensional Drawings & I/Os

I/O Diagram Images

21.5" Industrial Monitor IOs

Tech Diagram Images

Industrial Monitor Technical Drawing
