TD-45-19

Name: TD-45-19
SKU: 2240598
Availability: InStock

19" Industrial Monitor

Available – Buy Now or Contact Us for Quick Quote

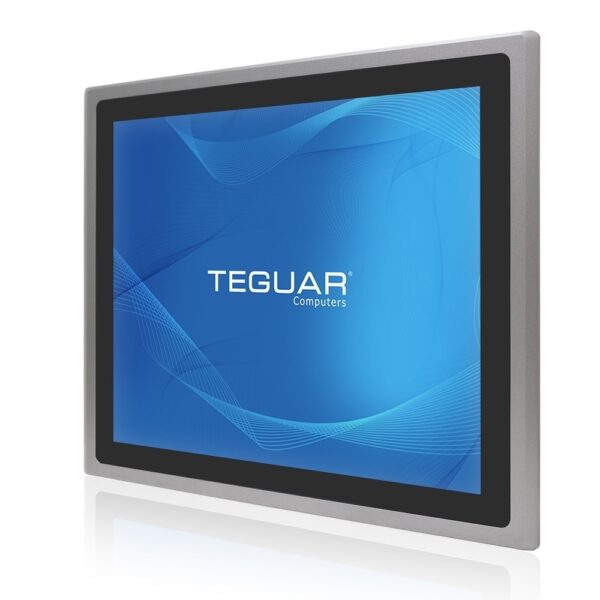

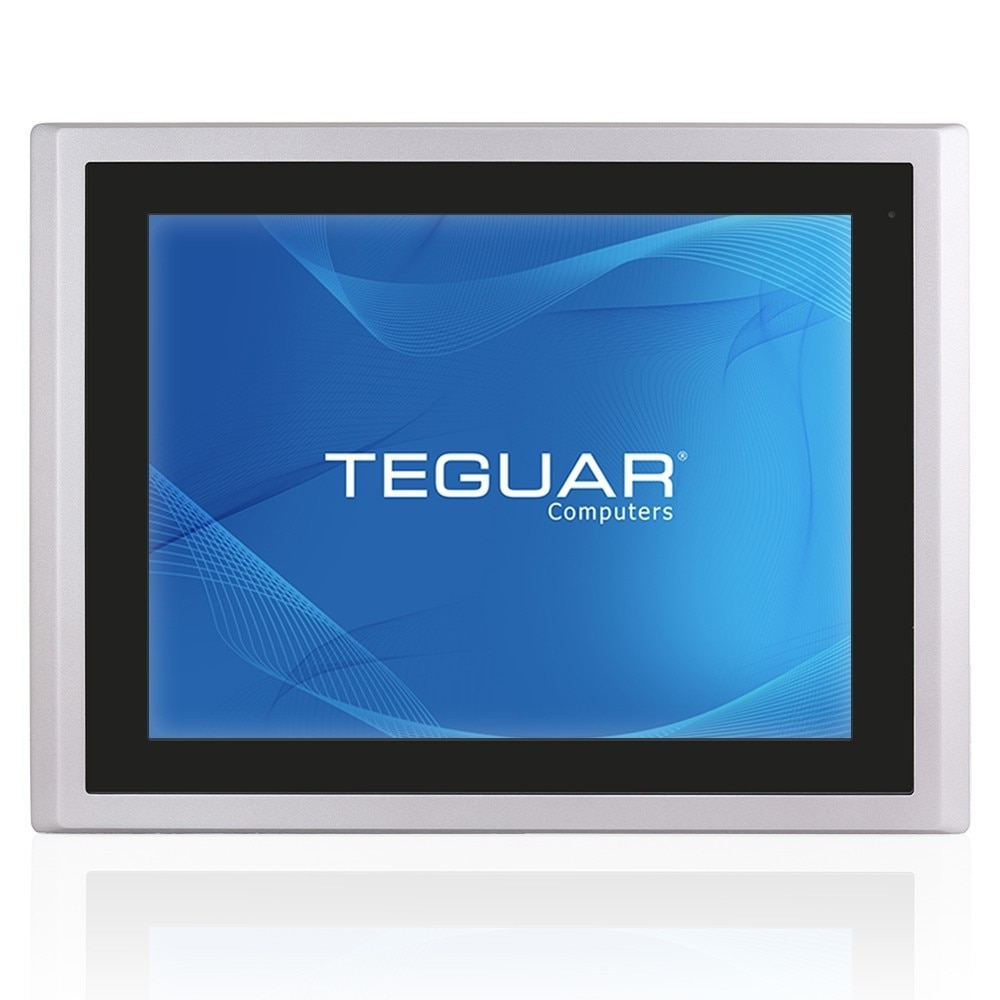

19" Industrial Touchscreen Monitor | TD-45-19

Description

The TD-45-19 is a touchscreen panel display made for industrial environments. This cost effective, versatile display has a die-cast aluminum enclosure and can be panel mounted into a cutout in an enclosure or it can be mounted to an arm, stand, or hung on a surface. When panel mounted, the front bezel is IP66 rated and protected from liquids and dust. The TD-45-19 provides a graphical user interface where the operator may perform tasks such as: operate a machine, view sensor data, or interact with ERP software. This touchscreen monitor can be connected to a rugged box PC or another panel PC. The same model is available in screen sizes from 7″ to 21.5″.

Key Highlights

19″ LCD with 1280 x 1024 Resolution
Aluminum Die Cast Chassis
Optional Sunlight Readable 1000 Nit LCD
Wide Range DC 9~36V Power Input
Full Flat Front Panel
Resistive or Projected Capacitive Touchscreen

Get a Demo Get a Quick Quote

Starting at: $1,197.80

Customize & Buy

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x Optional Speaker with 1x Audio Input
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	16.8W (Resistive), 18.3W (P-Cap)
Standard Power Adapter	Optional 12V AC/DC Adapter

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Alcohol, Chlorine and Compounds, Glutaraldehyde, Hydrogen Peroxide, Ortho-phthalaldehyde (OPA), Quaternary Ammonium Compounds

Weight / Dimensions

Weight	6.2 kg (13.7 lbs)
Dimensions	468 x 380 x 64.8 mm (18.4 x 15.0 x 2.6 in)

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

See the data sheet Warranty Download Drivers
