TD-45-17

Name: TD-45-17
SKU: 2240596
Availability: InStock

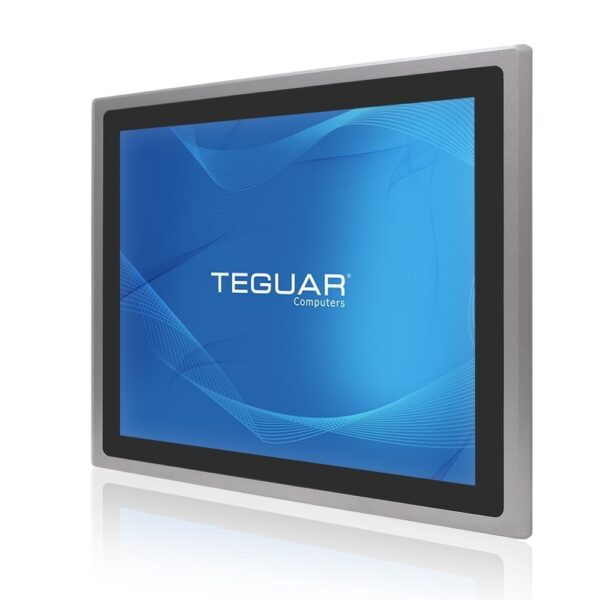

17" Industrial Touchscreen Monitor

Available – Buy Now or Contact Us for Quick Quote

Description

The TD-45-17 is a cost effective, versatile solution that fits the needs of many industrial applications. This industrial touch monitor display can be panel mounted, making its front bezel IP66 protected against dust and liquids. Or, it can be mounted to an arm, stand, or hung on a surface. The TD-45-08 can be connected to any computer including a rugged box PC or another touchscreen panel PC. This industrial touchscreen display includes VGA, DVI, HDMI, and DisplayPort video inputs. The same model is available in screen sizes from 7″ to 21.5″. These industrial touchscreen monitors may be mounted into control cabinets, integrated onto an OEM machine, or used in a manufacturing environment.

Key Highlights

17″ LCD with 1280 x 1024 Resolution
Die Cast Aluminum Chassis
Optional High Brightness LCD and Auto Dimming
Wide Range DC 9~36V Power Input
Resistive or Projected Capacitive Touchscreen
IP66 Compliant Front Panel

Get a Demo Get a Quick Quote

Starting at: $991.10

Customize & Buy

Display

Screen Size	17"
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x Optional Speaker with 1x Audio Input
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Max Power Consumption	11.6W (Resistive), 27.3W (P-Cap)
Standard Power Adapter	Optional 12V AC/DC Adapter

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Alcohol, Chlorine and Compounds, Glutaraldehyde, Hydrogen Peroxide, Ortho-phthalaldehyde (OPA), Quaternary Ammonium Compounds

Weight / Dimensions

Weight	5.9 kg (13.0 lbs)
Dimensions	439 x 348 x 64.8 mm (17.3 x 13.7 x 2.6 in)

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.
