TD-45-08

Name: TD-45-08
SKU: 2240591
Availability: InStock

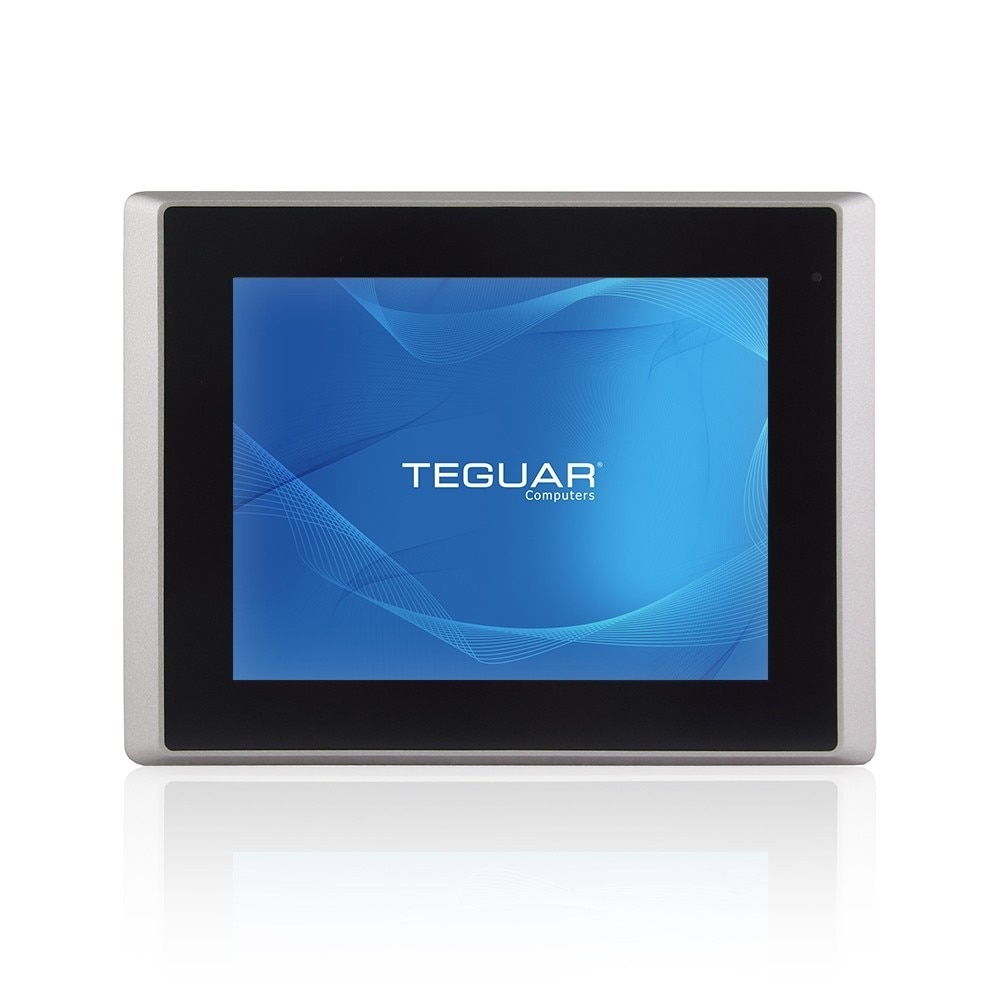

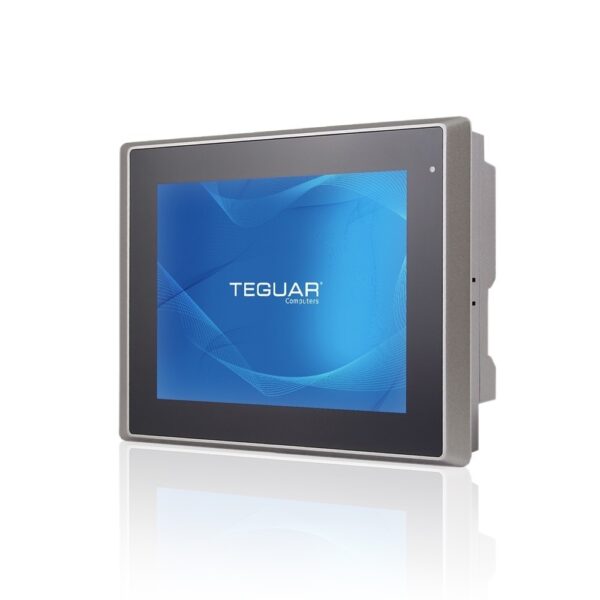

8" Industrial Monitor

Available – Buy Now or Contact Us for Quick Quote

Back view of the Teguar TD-45-08 industrial monitor

Description

The TD-45-08 is a cost effective, versatile rugged computer monitor solution that fits the needs of many industrial applications. The same model is available in screen sizes from 7″ to 21.5″. This display includes a wide range 9~36VDC power input for applications that use their own DC voltage source. An optional AC-to-DC power supply is also available for AC powered applications. The TD-45-08 can be panel mounted, making its front bezel IP66 protected against dust and liquids. Or, it can be mounted to an arm, stand, or hung on a surface. This display can be connected to any computer including a rugged box PC or another touchscreen panel PC. The touchscreen monitor provides a graphical user interface where the operator may perform tasks such as: operate a machine, view sensor data, or interact with ERP software.

Key Highlights

8″ LCD with 800 x 600 Resolution
Rugged Die Cast Aluminum Chassis
IP66 Compliant Front Panel
Optional Optical Bonding
Resistive or Projected Capacitive Touchscreen
Full Flat Front Panel

Get a Demo Get a Quick Quote

Starting at: $624.34

Customize & Buy

Display

Screen Size	8"
Resolution	800 x 600 (SVGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Max Power Consumption	4.7W (Resistive), 3.6W (P-Cap)
Standard Power Adapter	Optional 12V AC/DC Adapter

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA Mount
Approved Cleaning Solutions	Acetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water

Weight / Dimensions

Weight	1.8 kg (4.0 lbs)
Dimensions	231.1 x 176.1 x 50 mm (9.1 x 6.9 x 2.0 in)

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Back panel of TD-45-08 including inputs and outputs

Tech Diagram Images

Flush VESA Wall Mounting Kit

30lbs capacity
VESA 75/100
Easy 2 piece installation
Holds unit 0.6 inches from wall
