Scout TB-6293

Name: Scout TB-6293
SKU: 7945-93
Availability: BackOrder

Miniature Fanless Edge Gateway PC

Available – Buy Now or Contact Us for Quick Quote

Ultra compact, sleek and handheld, PoE (Power over Ethernet), DIN Rail mount included

Description

TB-6293 epitomizes its name Scout as the perfect small gateway for aggregation or data transport. Connect with IoT or a central hub to send data over Wi-Fi or cellular network, accelerated and streamlined with PoE . The extra-small form factor doesn’t sacrifice safety, as internal aluminum blocks provide tidy passive cooling and a physical TPM 2.0 chip ensures maximum security where data privacy is paramount. Scout supports two displays natively and can expand on them via Multi-Stream Transport (MST).

Scout is part of the Regiment Series product family.

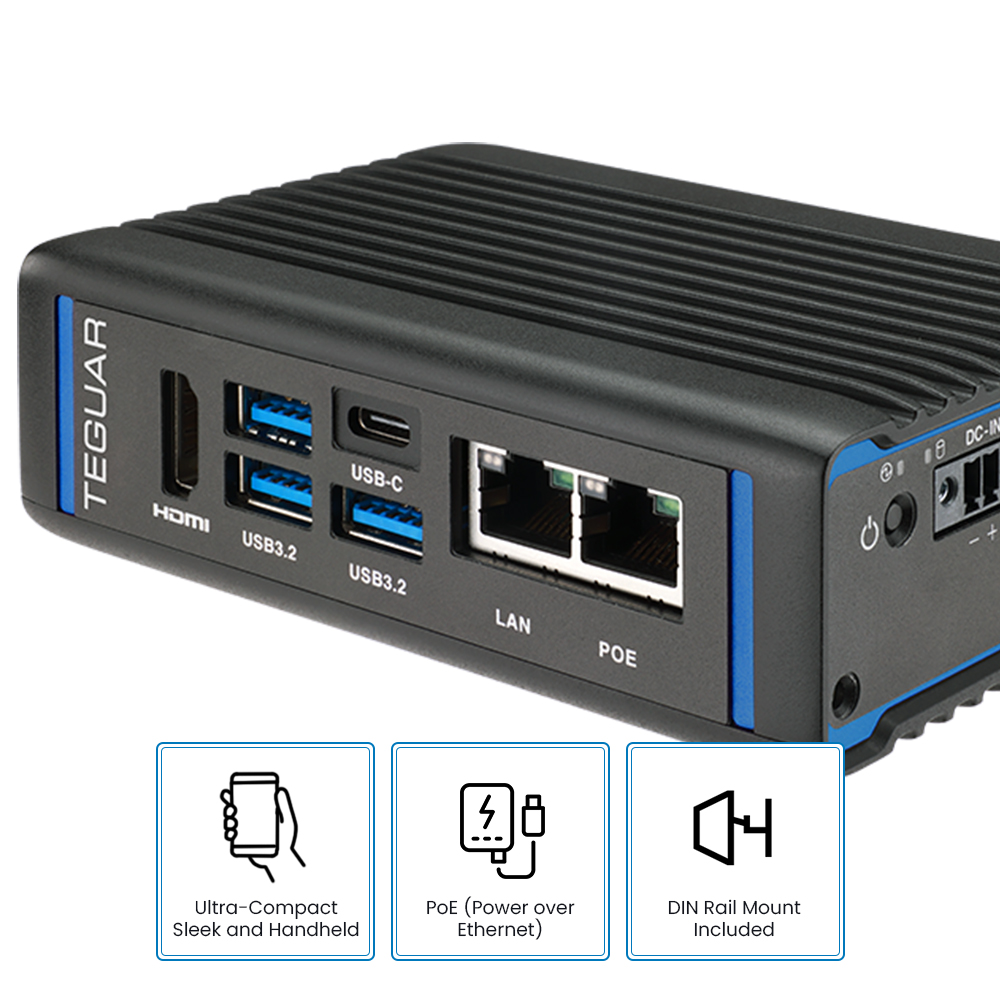

Key Highlights

Ultra-Compact and Sleek Handheld Design
Power over Ethernet (PoE) functionality
Powered by Twinlake CPU
DIN Rail Mount Included
Dual Video Out via USB-C and HDMI
Supports Wi-Fi and Cellular

Get a Demo Get a Volume Quote

Starting at: $514.10

Configure & Buy

Why Buy from Teguar

✆ Dedicated, Quick Response Customer Support Experts
✓ 30-Day Worry Free Return, Plus Up to 5 Years Warranty
★ Top-Rated by Our Customers on Google & Trustpilot

Primary Components

Processor Family	Intel Twin Lake
Processor Model	Intel Core 3 N355, Intel Processor N150
Memory Type	Onboard LPDDR5
Memory Support	8GB, 16GB
Storage Type	Onboard eMMC Flash, 1x M.2 B-Key 2242/3042 Slot for SATA SSD

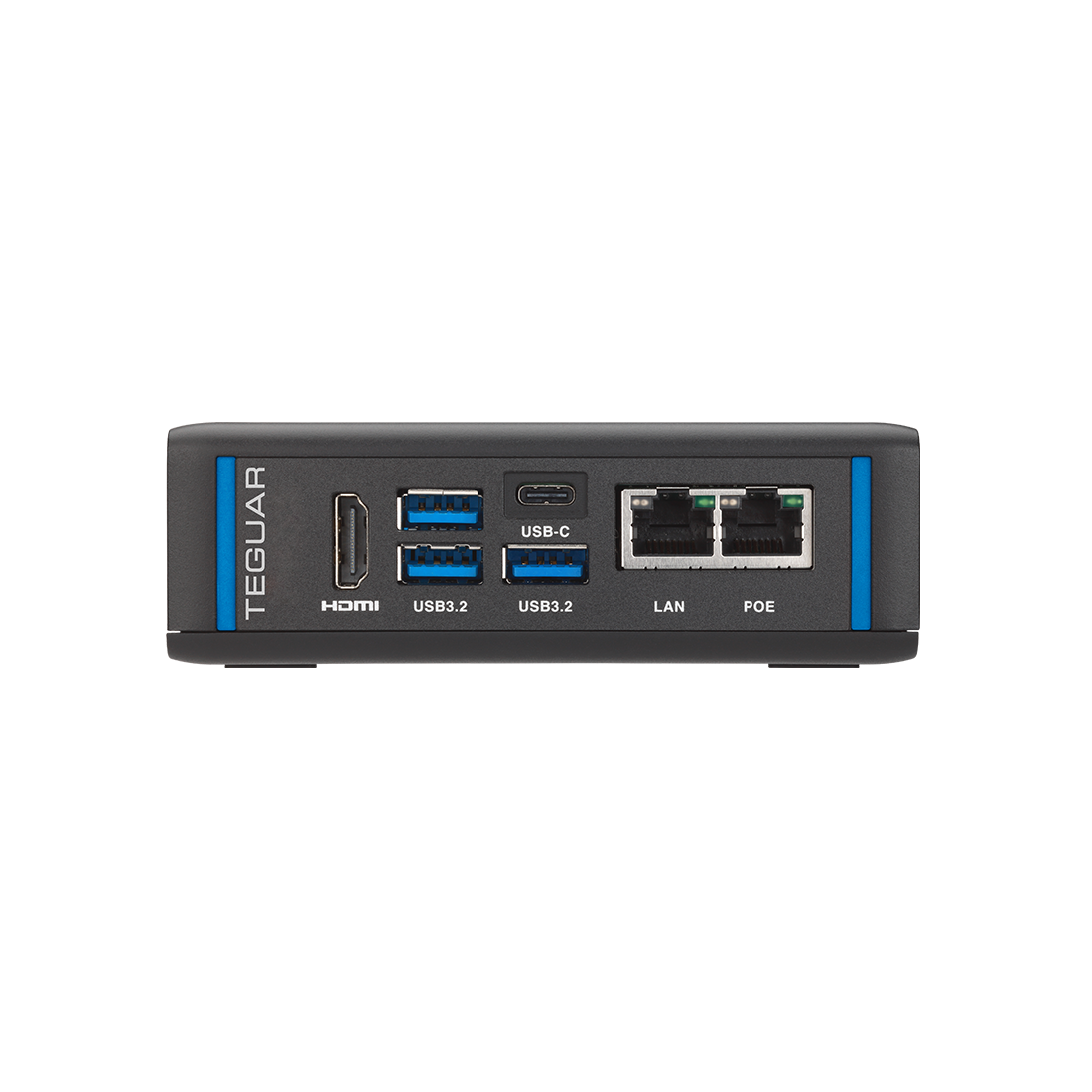

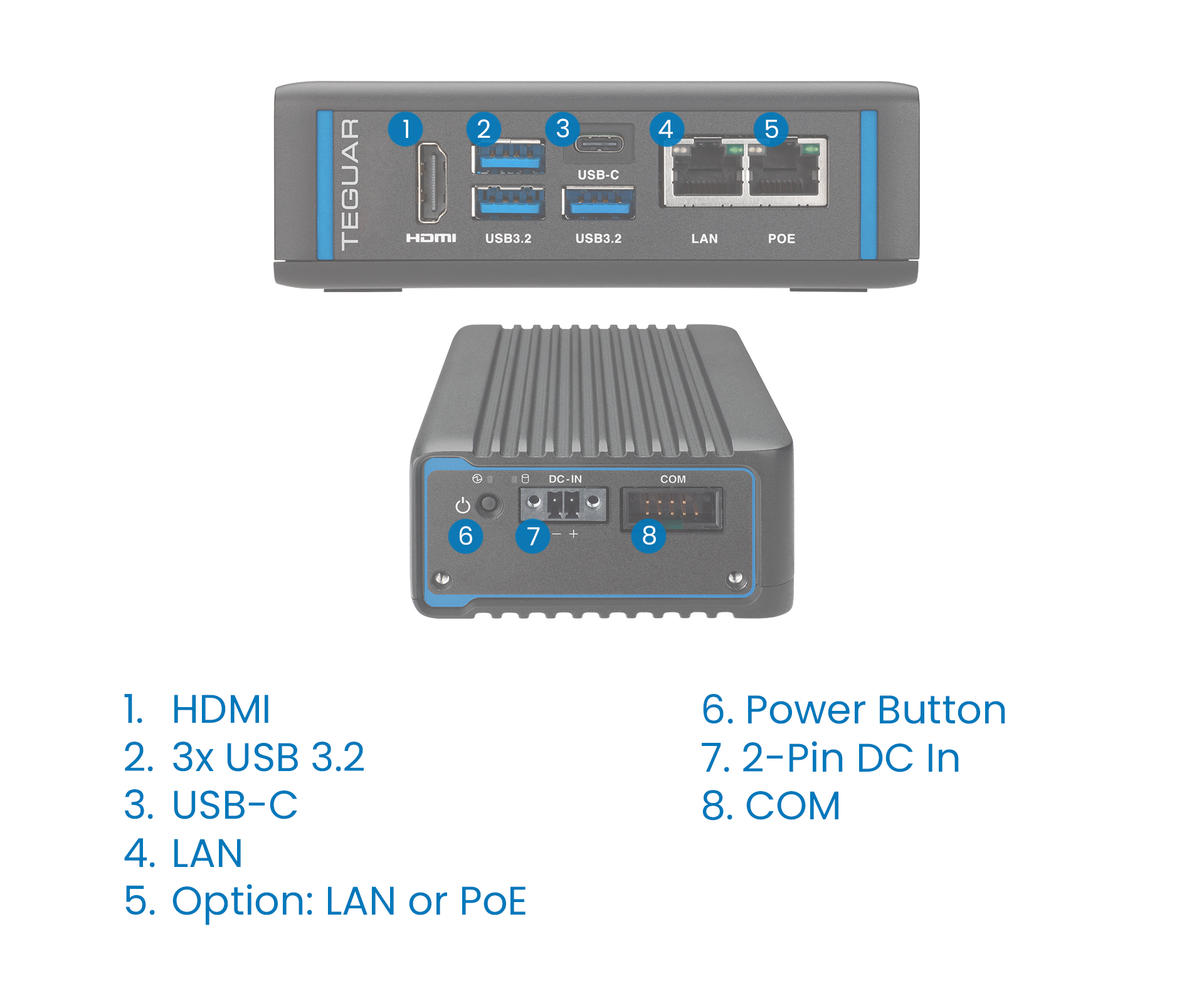

External I/O Ports

USB	1x USB 3.2 Type-C (DP 1.4A), 3x USB 3.2 Gen2
Serial / Com	1x COM via 59x2 NP9 Header (Adapter to DB9 Included)
Serial Protocol Detail	1x RS-232/422/485
Ethernet / LAN	2x RJ45 Gbe LAN Port (1x with PoE+ on PoE Models)
Video Outputs	1x DisplayPort via USB-C Alt Mode, 1x HDMI

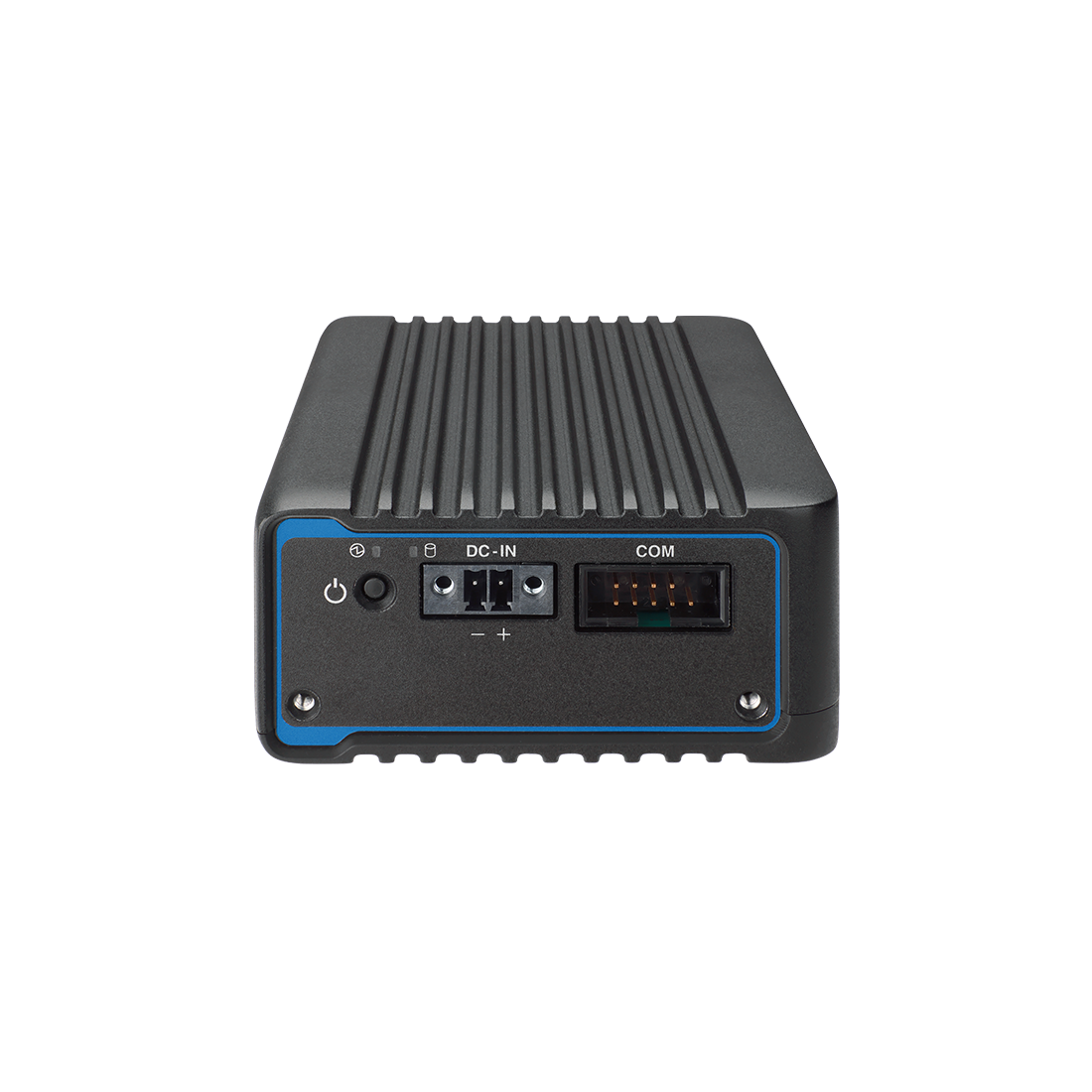

Power Input Port	2-Pin Terminal Connector (Not included on PoE PD model)

Power

Input Voltage Range	8-26V DC
Standard Power Adapter	65W (12V/5A) External Power Supply

Operating Systems

Windows	Windows 10 IoT, Windows 11 IoT, Windows 11 Pro
Linux	Linux Ubuntu 22.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 B-Key 2242/3042 Slot (USB2.0, SATAIII, PCIex1)

Thermal & Environmental

Operating Temperature	-25°C - 55°C (-13°F – 131°F), -25°C - 35°C (-13°F - 95°F (For PoE PSE Models))
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless with Heatsink
Storage Humidity	10%~95%, non-condensing

Enclosure

Material	Aluminum
Color	Black & Blue
Led Indicator Light	Power, Storage
Control Buttons	Power Button
Mounting Options	DIN Rail Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi 6E
Bluetooth	Optional Bluetooth 5.3
Sim Card	1x Nano SIM Card Slot

Weight / Dimensions

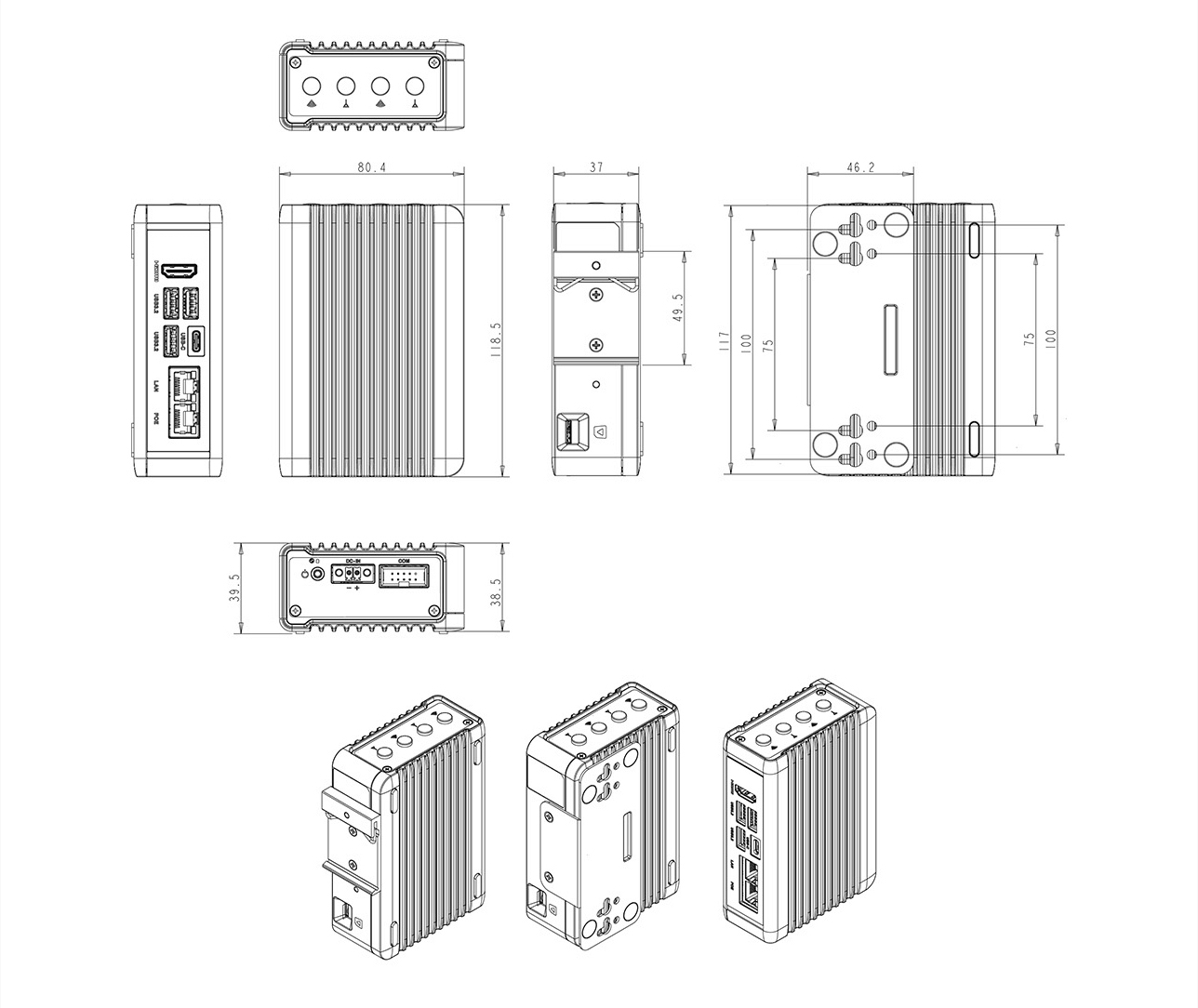

Dimensions

118.5 x 80.4 x 39.5 mm (4.7 x 3.2 x 1.6 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Thin Client – Wi-Fi, Cellular, and Ethernet – Relying on storage and management from a central database enables TB-6293 as a lightweight access point across facilities. Mount to the back of a display or set it neatly beside one with rubber feet for discreet tabletop usage.

Manufacturing – Edge Data Aggregator – Connect to devices across the production floor, collecting data locally to report back to your central edge computer. PoE in allows TB-6293 to simultaneously draw power and stay connected to the network.

Space Saver – Smallest Footprint Yet – TB-6293 fits compactly in environments where space is a premium. Conserve real estate by storing this sleek PC in a cabinet beside PLCs, desktop behind a display, or wall mounted beside the peripherals it powers.

See the data sheet Warranty Download Drivers
