Tech Specs
Primary Components
| Processor Family | Intel Celeron or Core I series 12th Generation Alder Lake N |
| Processor Model | Celeron N97, Core i3-N305 |
| Processor Speed | Up to 3.6 GHz, Up to 3.8 GHz, 1.8 GHz, 2.0 GHz |
| Memory Type | 1x DDR5 SO-DIMM |
| Memory Support | 8GB, 16GB, 32GB, 64GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 2280 NVME SSD slot |
| Storage Support | M.2 and 2.5": 128GB - 1TB |

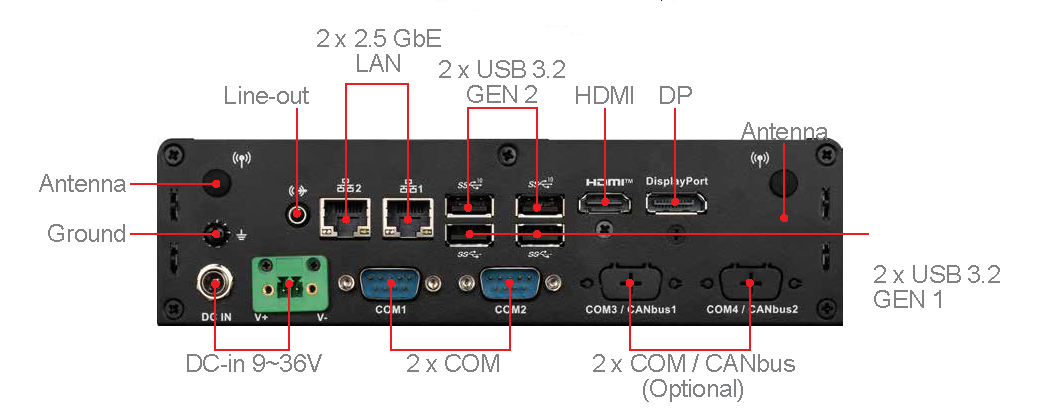

External I/O Ports
| USB | 2x USB 3.2 Gen 1, 2x USB 3.2 Gen 2 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | COM1: RS-232/422/485, 0V/5V/12V, COM2: RS-232 |
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN |
| Video Outputs | 1x DisplayPort, 1x HDMI |
| Audio Ports | 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack, 1x Audio Line-Out |
| Power Input Port | DC-in Jack (Phoenix Type), Locking Type |
Power
| Input Voltage Range | 9-36V DC |
| Max Power Consumption | 65W |
| Standard Power Adapter | DC 19V/65W adapter, US AC power cord |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option) |
Thermal & Environmental
| Operating Temperature | -10°C - 55°C (14°F – 131°F (With WT devices)) |
| Humidity Range | 10% – 90% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Color | Black |
| Led Indicator Light | Power |
| Control Buttons | Power Switch |
Weight / Dimensions
| Weight | 1.38 kg (3.0 lbs) |

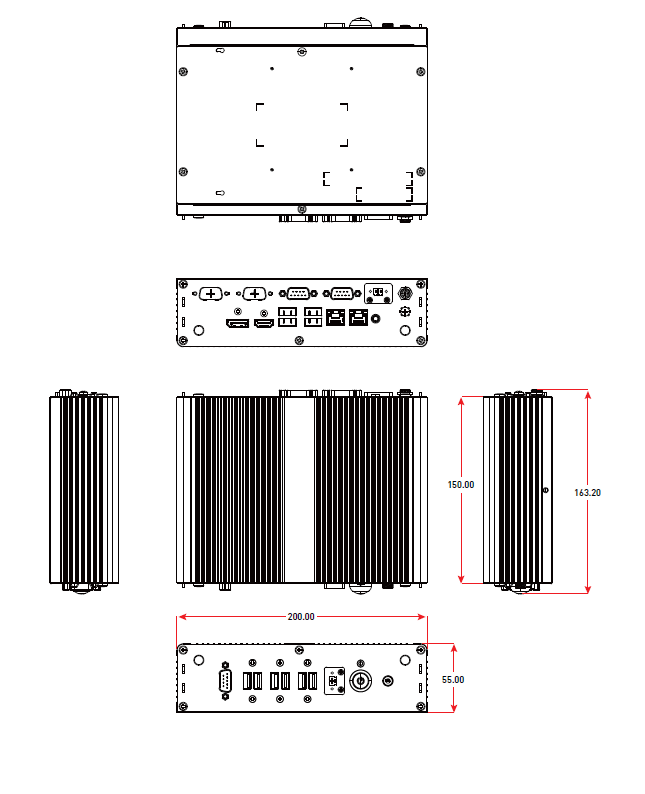

| Dimensions | 200 x 55 x 150 mm (7.9 x 2.2 x 5.9 in) |
Warranty
| Warranty | Up to 5 Years |
