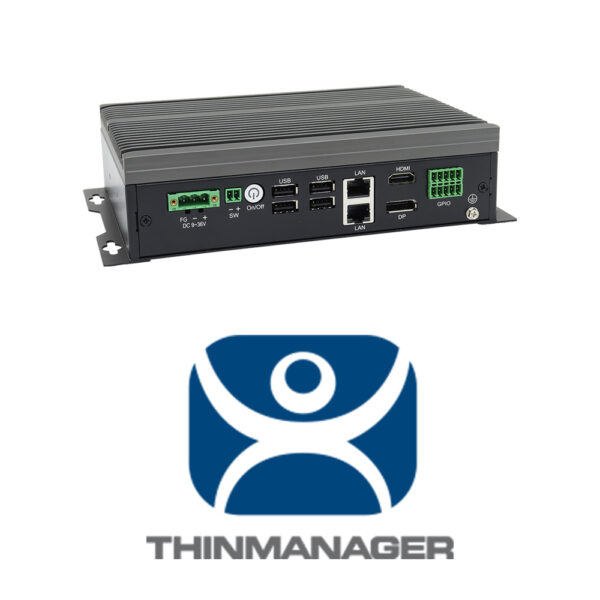

TB-6145-TM

Name: TB-6145-TM
SKU: TB-6145-TM
Price: 1534.88 USD
Availability: InStock

ThinManager-Ready Industrial-Grade Fanless PC

Available – Buy Now or Contact Us for Quick Quote

Description

The TB-6145-TM is purpose-built as a ThinManager®-ready endpoint, delivering reliable, high-performance thin client operation for demanding industrial environments. Powered by the Intel® Processor N97 and paired with high-speed DDR5 memory, the TB-6145-TM provides the responsive performance needed for centralized application delivery and seamless ThinManager® sessions.

Designed for industrial deployment, the TB-6145-TM combines a rugged fanless enclosure with extensive connectivity, including dual DisplayPort outputs, 8-channel GPIO, a Mini PCIe expansion slot, and multiple high-speed I/O options to support a wide range of industrial peripherals and display configurations. Flexible wall mount and DIN Rail mounting options make installation easy across manufacturing, automation, and edge computing environments while providing the reliability expected in 24/7 industrial operation.

Key Highlights

Optimized for ThinManager® thin client deployments
Intel® Processor N97 with DDR5 memory for responsive thin client performance
Dual DisplayPort outputs for multi-display industrial workstations
Rugged fanless design for reliable operation in industrial environments
Rich industrial I/O, including 8-channel GPIO and Mini PCIe expansion
Wall mount and DIN Rail mounting options for flexible installation

Get a Demo Get a Volume Quote

Starting at: $1,534.88

Configure & Buy

Why Buy from Teguar

✆ Dedicated, Quick Response Customer Support Experts
✓ 30-Day Worry Free Return, Plus Up to 5 Years Warranty
★ Top-Rated by Our Customers on Google & Trustpilot

Primary Components

Processor Family	Intel Celeron or Core I series 12th Generation Alder Lake N
Processor Model	AlderLake-N N97
Processor Speed	0.8 GHz (N305), up to 3.8 GHz (N305), x 3.4 GHz (X7425e), x Up to 3.6 GHz (N97)
Memory Type	1x DDR5 SO-DIMM
Memory Support	8GB, 16GB
Storage Type	1x M.2 B+M Key SATA3 2242 Slot
Storage Support	M.2: 128GB-1TB

External I/O Ports

USB	4x USB 2.0
Serial / Com	1x GPIO, 2x COM, Add 4x COM( Adds 2nd GPIO), Optional
Serial Protocol Detail	2x COM (RS-232/422/485 configured in BIOS)
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x DisplayPort, 1x HDMI
Power Input Port	DC-in Jack (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	65W
Standard Power Adapter	12Vdc, 5A, 60W US power cord

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F), -30°C - 70°C (-22°F – 158°F (Option, With WT devices))
Humidity Range	95% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Color	Black
Led Indicator Light	Power
Control Buttons	Power Switch

Weight / Dimensions

Weight	2.2 kg (4.9 lbs)
Dimensions	200 x 55 x 140 mm (7.9 x 2.2 x 5.5 in)

Warranty

Up to 5 Years

ThinManager® endpoint: Purpose-built as a ThinManager®-ready endpoint, the TB-6145-TM delivers reliable, centralized access to industrial applications and operator sessions. Its fanless design, dual DisplayPort outputs, and industrial-grade connectivity make it ideal for HMI and workstation deployments.

Industrial thin client: Designed for secure industrial environments, the TB-6145-TM combines the Intel® Processor N97, DDR5 memory, and robust networking to provide responsive ThinManager® sessions with centralized management and simplified endpoint maintenance.

Operator workstation: Support modern industrial visualization with dual DisplayPort outputs, extensive industrial I/O, and a rugged fanless enclosure. The TB-6145-TM is well suited for operator stations, manufacturing work cells, and centralized control room deployments powered by ThinManager®.
