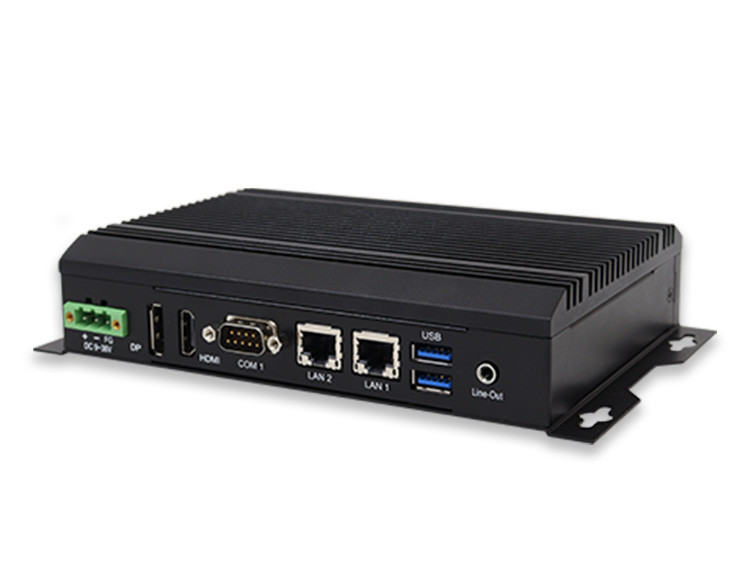

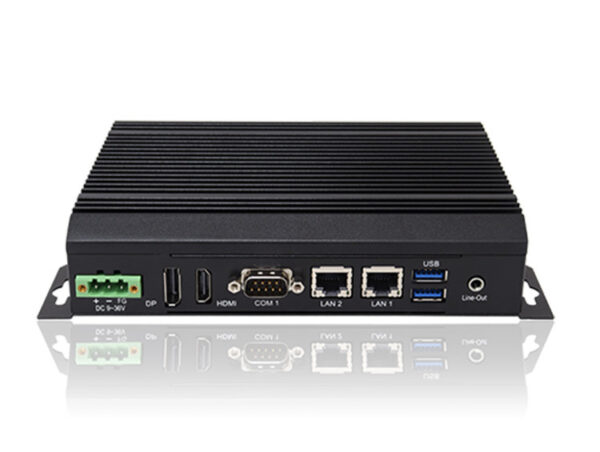

TB-4845

Industrial Mini PC
Available – Buy Now or Contact Us for Quick Quote

Description

The Industrial Mini PC redefines versatility with its wall-mount capability, offering the choice of direct wall attachment or VESA mounting options. Running on Windows 11 and powered by the robust Intel Celeron J6412, this mini PC seamlessly blends performance and efficiency. Its wide temperature support ensures reliability in diverse industrial environments. The fanless design guarantees silent operation, while the compact, low-profile build makes it an ideal fit for tight industrial spaces where space optimization is paramount. Combining innovation and adaptability, this Industrial Mini PC delivers a powerful computing solution tailored to the demands of modern industrial settings.

Key Highlights

  • Intel Celeron J6412 Processor
  • Windows 11 Compatible
  • Wall or DIN rail Mounting Options
  • Wide Temperature Support
  • Multiple Inputs and Outputs including Dual LAN and 2x USB 3.2

Starting at: $686.88

Customize & Buy

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412
Processor Speed2.0 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB
Storage Type1x M.2 SATA3 2280 Slot, 1.8" Half Size MO297 SATA Drive Bay
Storage SupportM.2: 256GB-1TB, M0297: 16GB-128GB

External I/O Ports

USB2x USB 3.2
Serial / Com1x COM
Serial Protocol DetailRS-232/422/485 (RS-232 Default)
Ethernet / LAN1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs1x DisplayPort, 1x HDMI
Audio Ports1x 3.5mm Audio Line-Out
Power Input Port3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range9-36V DC
Max Power Consumption24W
Standard Power AdapterUS AC/DC 12V DC, 5A

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature-40°C - 85°C (-40°F – 185°F)
Cooling SolutionPassive – Fanless with Heatsink
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialAluminum Heatsink and Steel Chassis
ColorBlack
Control ButtonsPower Button
Mounting OptionsDIN Rail Mount, Wall Mount

Weight / Dimensions

Weight1.0 kg (2.2 lbs)
Dimensions207 x 41.5 x 130 mm (8.1 x 1.6 x 5.1 in)

Certification

CertificationsCE, FCC, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), UKCA

Warranty

WarrantyUp to 5 Years

Industrial Manufacturing Control Stations: The TB-4845 Industrial Mini PC serves as an excellent choice for industrial manufacturing control stations. With its wall-mount capability and fanless design, it seamlessly integrates into diverse industrial environments. Running on Windows 11 and powered by the robust Intel Celeron J6412, this mini PC ensures reliable and efficient performance in manufacturing control applications.

Industrial Automation Systems: This box PC offers a powerful computing solution with its wide temperature support and compact, low-profile build. The fanless design ensures silent operation, making it an ideal fit for tight industrial spaces where space optimization is crucial.

Surveillance and Security Hub in Tight Spaces: The wall-mount capability and compact design of the TB-4845 Industrial Mini PC make it a suitable choice for surveillance and security hubs in tight industrial spaces. Running on Windows 11 and featuring a fanless design, it delivers reliable and silent operation, making it ideal for applications where space optimization and quiet operation are essential.

Dimensional Drawings & I/Os

I/O Diagram Images

TB-4845 Labeled IOs

Tech Diagram Images

TB-4845 Technical Drawing
