TA-Q5340-18

18.5” All-in-One Android Touchscreen Kiosk
Available – Contact Us for Quick Quote

Description

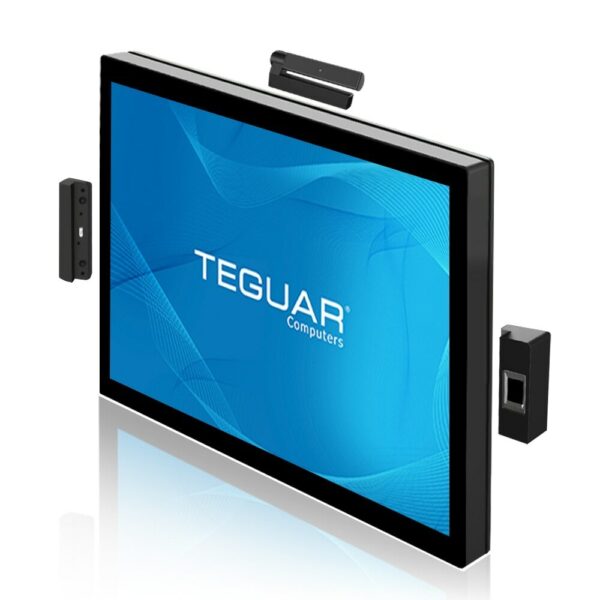

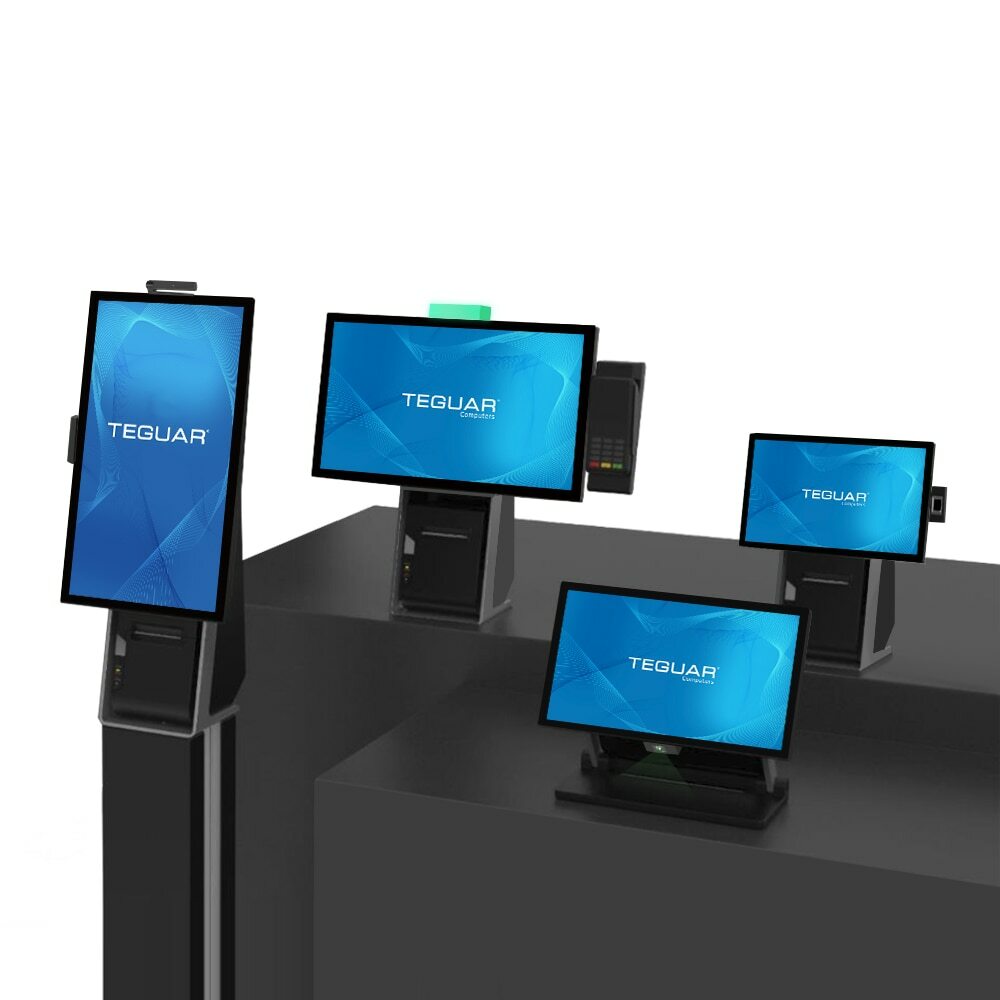

The TA-Q5340-18 is a durable and modular All-in-One Computer. It has a removable box PC on the back of the unit and expansion options on all four sides of the housing. It is ideal for touchscreen kiosks, point-of-sale systems, and light-industrial applications. This computer runs on a Qualcomm Snapdragon CPU and has an 18.5” full HD touchscreen. Optional peripherals include a 3-Track Magstripe Reader, Fingerprint Reader, HF RFID Reader, Supported Verifone® or Ingenico payment terminals, 2D Barcode Scanner, and 5MP Camera with mic. You can order this computer with a POS stand, printer stand, floor stand, or use its VESA mounting hole pattern to mount it onto virtually any stand or arm.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Industrial All In One PCs.

Key Highlights

  • 18.5” Touchscreen Display
  • Qualcomm CPU and Android 9.0

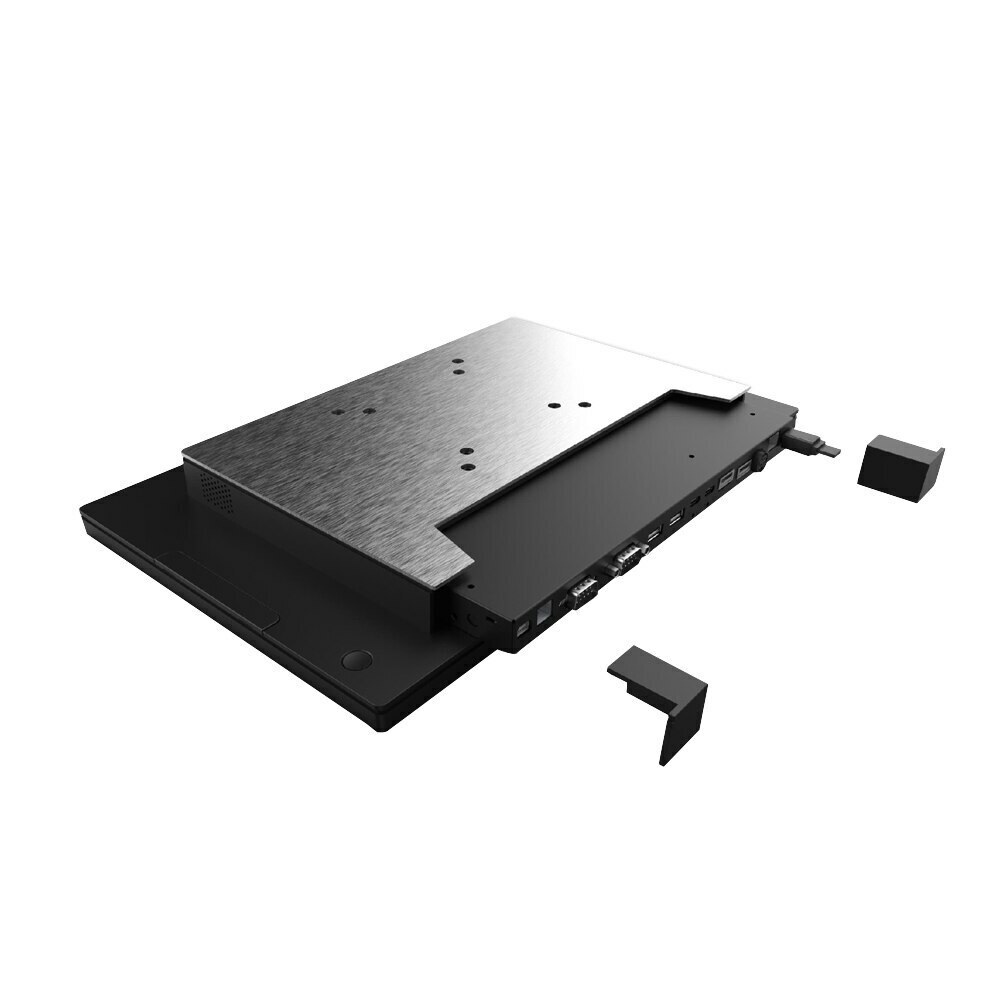

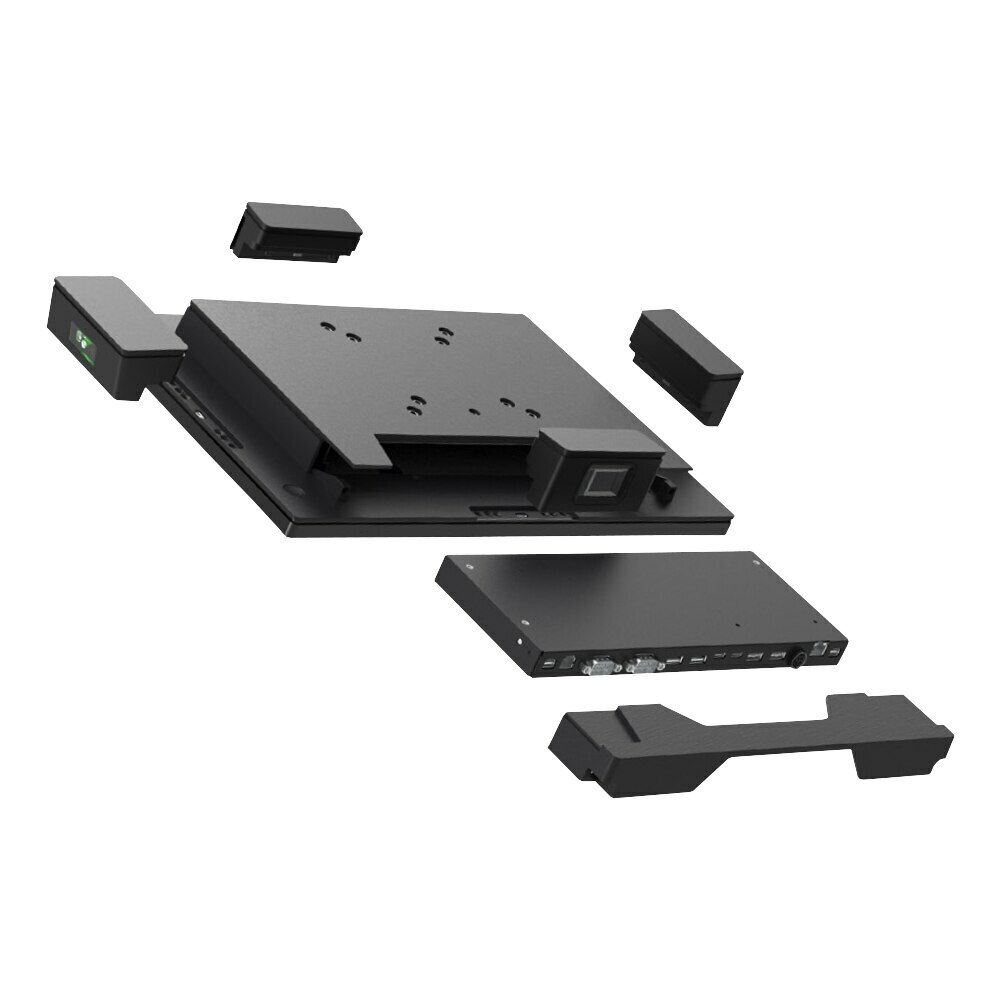

  • Modular Design with Removable Box PC
  • Multiple Mounting Options
  • Customizable and Expandable

Why Buy from Teguar

Primary Components

Processor ModelMT8735A QuadCore
Memory TypeOnboard DDR3
Storage Support32GB

Display

Screen Size18.5"
Screen Resolution1366 x 768
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x USB 3.0 type C, 2x USB 2.0, 2x USB 3.0
Serial / Com2x COM
Serial Protocol Detail2x DB9 (Powered RS232) (COM1 0V*/5V, COM2 0V*/12V)
Ethernet / LAN1x RJ45 GbE LAN
Other Ports1x RJ11
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC

Operating Systems

AndroidAndroid 9.0

Multimedia

Speakers1x 3W Speaker
CameraOptional Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialPlastic
IP RatingIP54 Front Bezel
ColorBlack
Led Indicator LightPower
Control ButtonsPower Button
Mounting OptionsVESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiWiFi/BT (a/b/g/n)
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID
Peripheral Other3-Track MSR; Fingerprint Reader; Supported Verifone® VX820, P400, Ingenico iPP 325; POS Stand; Printer Stand; Floor Stand; Printer, Epson® TM-m30 / TM-T88IV, Star mc-Print3/ TSP-100/TSP-654

Weight / Dimensions

Weight9.7 kg (21.4 lbs)
Dimensions451 x 273 x 51 mm (17.8 x 10.7 x 2.0 in)

Certification

CertificationsCE, FCC Class A, LVD

Warranty

WarrantyUp to 5 Years

The 18.5″ HD Pcap touchscreen, Android 9.0, and optional PoE make the TA-Q5340-18 ideal for kiosk and POS applications. It is fanless and modular, so you can configure it for your light industrial or commercial space.

Dimensional Drawings & I/Os

I/O Diagram Images

Inputs and outputs labeled

Tech Diagram Images

Teguar 18 inch computer technical drawing
