6-Bay Battery Charger for TME-7115 Series

Available – Contact Us for Quick Quote

Description

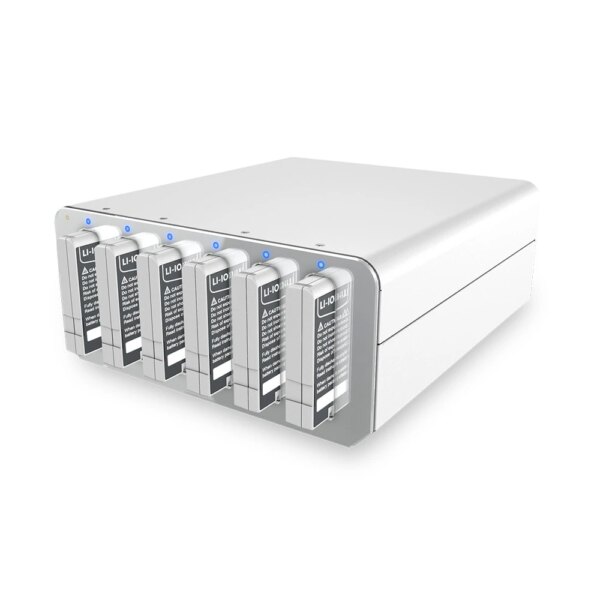

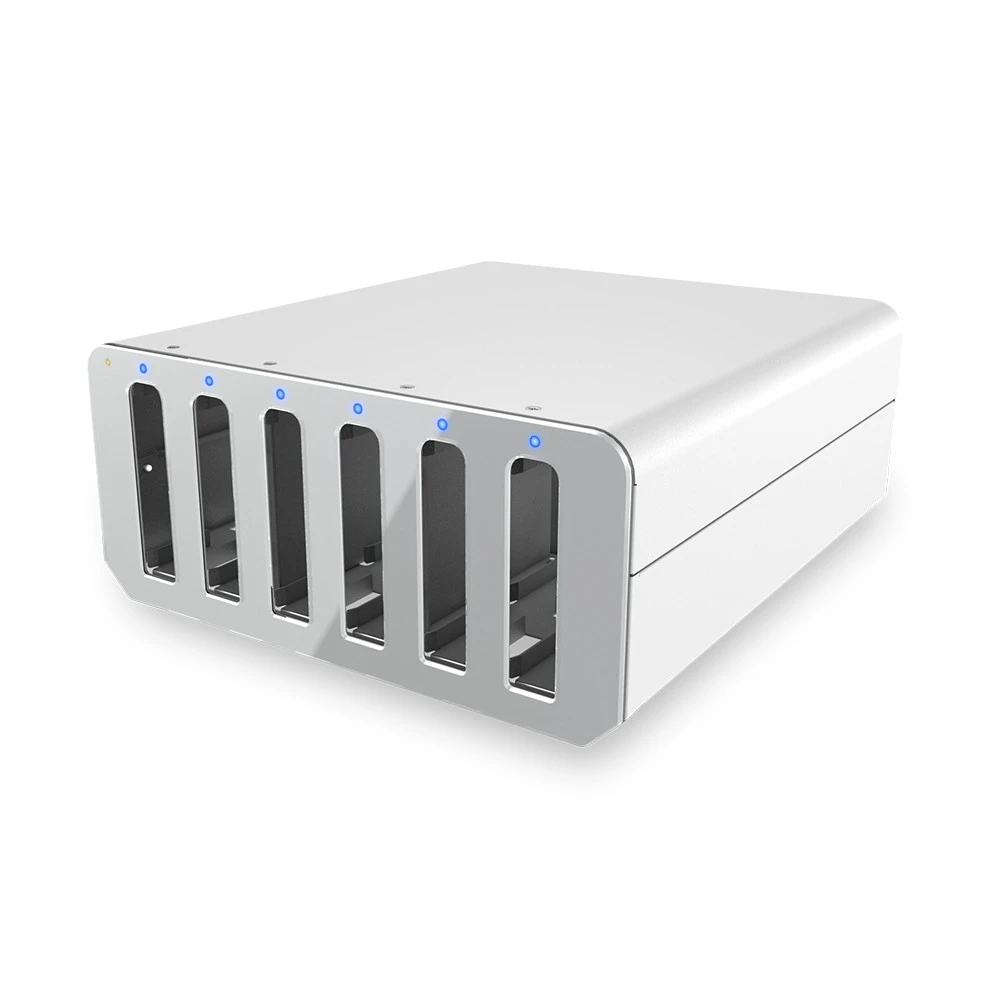

6-Bay Battery Charger for TME-7115 Series, including the TME-7115-16 and TME-7115-22. Holds and charges up to 6 batteries at once. The batteries slot into the sides, leaving the top flat, so you can easily stack multiple chargers on top of one another.

Key Highlights

  • Built in 300W Power Supply

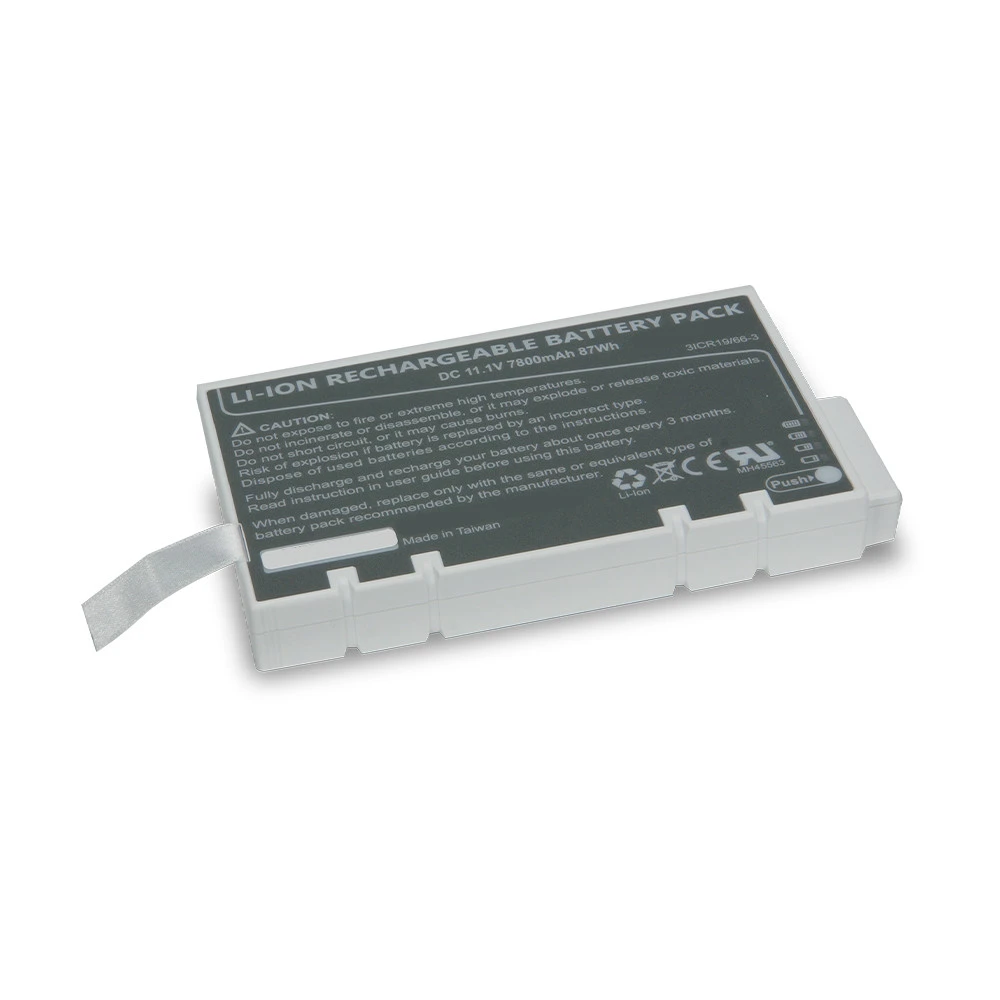

  • Six 202 group, 7800 mah batteries
  • 3~3.5 hrs from 0% to 100%
  • AT / Advanced Technology Power Switch
  • US AC Power Cord

Power

Input Voltage Range85-264V AC
Max Power Consumption37.8W, 230.09W (Max Load on 230V AC), 239.88 W (Max Load on 110V AC)
Standard Power AdapterC13 US AC Type B Power Cord, 300W Power Supply is built-into the Chassis

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionActive – with Fan
Humidity Range20% – 90% Non-condensing
Storage Humidity10%~95%, non-condensing

Enclosure

MaterialMetal Housing
ColorWhite

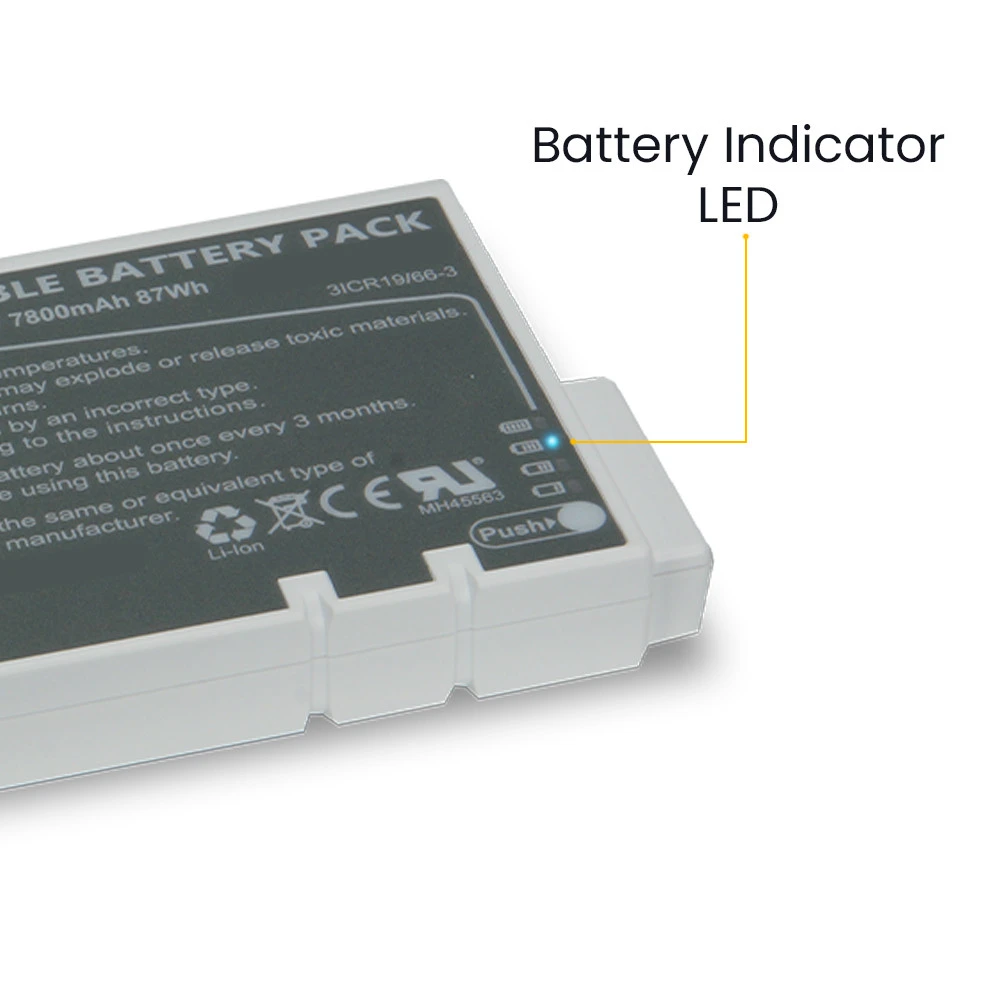

Led Indicator LightBattery, Power

Weight / Dimensions

Weight0.8 kg (1.8 lbs)
Dimensions273.8 x 122 x 301.8 mm (10.8 x 4.8 x 11.9 in)

Charges and stores up to 6 batteries for TME-7115 Series computers.

Dimensional Drawings & I/Os

I/O Diagram Images

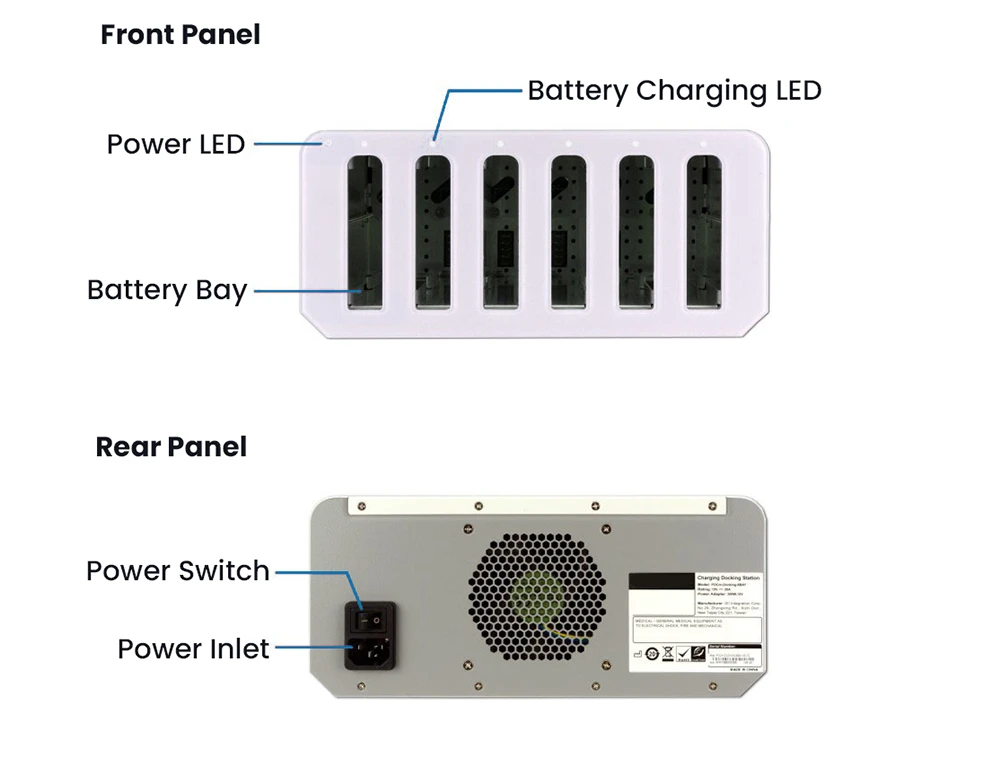

6 Bay Battery Charger for TME-7115, IO Diagram

Tech Diagram Images

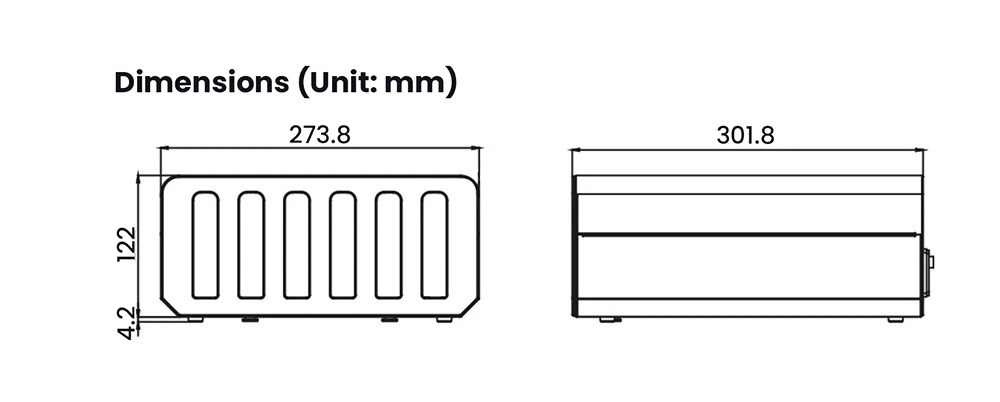

6 Bay Battery Charger for TME-7115, 2D Drawing
