24" Medical Display

TMD-65-24

Available


Description

The 24” Medical Display is a versatile solution designed to meet the needs of various medical applications. Its PCAP Multi-Touch Screen enables intuitive and interactive user experiences. The display features an anti-microbial housing in white, ensuring a clean and hygienic environment. Equipped with a range of buttons for easy navigation and control, it offers convenient operation. With multiple USB ports, including USB 2.0 and USB 3.0, along with HDMI connectivity, it provides seamless integration with peripherals and external devices. Built-in speakers enhance audio capability. The display comes with essential cables and an external 72W medical power supply for reliable performance. Suitable for dentists, sports medicine, eye doctors, hospice care, and more, it caters to diverse medical use cases.

Key Highlights

  • 23.8” Full HD Display Size
  • FCC, CE, and 60601-1-2 Medically Compliant
  • Built-in speakers with optional Auto Focus Webcam
  • Multiple Inputs and Outputs such as 1x USB 2.0 Type-B, 1x USB 3.0 Type-B, 6x USB 3.0, 1x HDMI
  • IP65 Rated

Use Cases

Medical Imaging: The Medical Display Series is perfect for medical imaging applications, providing high-definition and detailed visuals for accurate interpretation of radiological images such as X-rays, CT scans, and MRIs.

Operating Room Integration: These displays can be integrated into operating rooms, allowing surgeons and medical staff to view critical information such as patient vitals, surgical imaging, and real-time data during procedures.

Telemedicine and Teleconferencing: The TMD-65 display, equipped with built-in speakers and an optional 5MP AF webcam, is ideal for telemedicine applications, enabling remote consultations, video conferences, and virtual patient assessments.

What’s in the Box

    • 1x USB 2.0 Type-B cable, 6ft, white, for touchscreen

    • 1x USB 3.0 Type-B cable, 6ft, white, for 3.0 hub

    • 1x HDMI cable, 6ft, white, for display

    • 1x Medical Power Supply, US AC Power Cord, 19V DC, 3.78A, 72W
See the data sheet Warranty

Dimensional Drawings & I/Os

See the data sheet

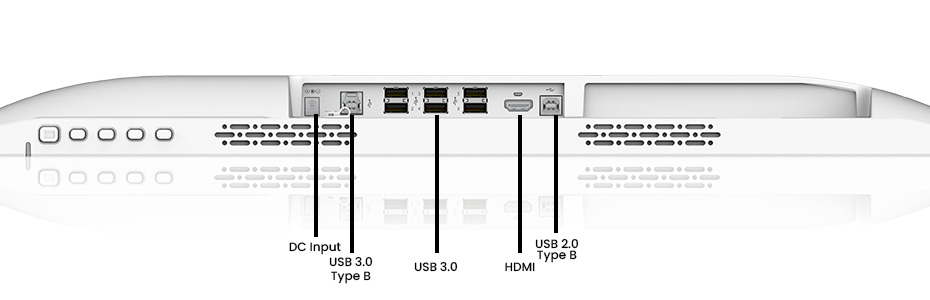

Inputs / Outputs

Medical Display Labled Ios

Technical Drawings

Medical Displays Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 23.8” Full HD Display Size
  • FCC, CE, and 60601-1-2 Medically Compliant
  • Built-in speakers with optional Auto Focus Webcam
  • Multiple Inputs and Outputs such as 1x USB 2.0 Type-B, 1x USB 3.0 Type-B, 6x USB 3.0, 1x HDMI
  • IP65 Rated

General

Main Category Medical Computer

Display

Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 250 nits
Viewing Angle 89º (H), 89º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)

External I/O ports

USB 1x USB 2.0 Type-B (touch), 1x USB 3.0 Type-B (HUB), 6x USB 3.0
Video Inputs 1x HDMI
Power Input Port 5.0mm DC-in Jack

Power

Input Voltage Range 19V DC
Max Power consumption 52W
Standard Power Adapter 19Vdc 3.78A, 72W, US AC

Multimedia

Speakers 2x 1W Speakers
Camera Optional 5MP Auto Focus Webcam
Microphone With Optional 5MP Auto Focus Webcam

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -10°C – 50°C
(14°F – 122°F)
Humidity Range 0% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Anti-Microbial, PC+ABS
Ip Rating IP65 Front Bezel
Color White
Antibacterial Housing Yes
Led Indicator Light Power
Control Buttons Auto/Exit, Menu, Power Button, Up/Down
Mounting Options VESA 100 Mount

Dimensions / Weight

Weight 7.32 KG (16.1 lbs)
Dimensions 370.5x567x45.2 mm (14.6 x 22.3 x 1.8 in)

Warranty

Warranty Up to 2 Years

Filters

Main Category Filter Medical Computer

Accessories

See the data sheet
