TP-5645-22

Available


Description

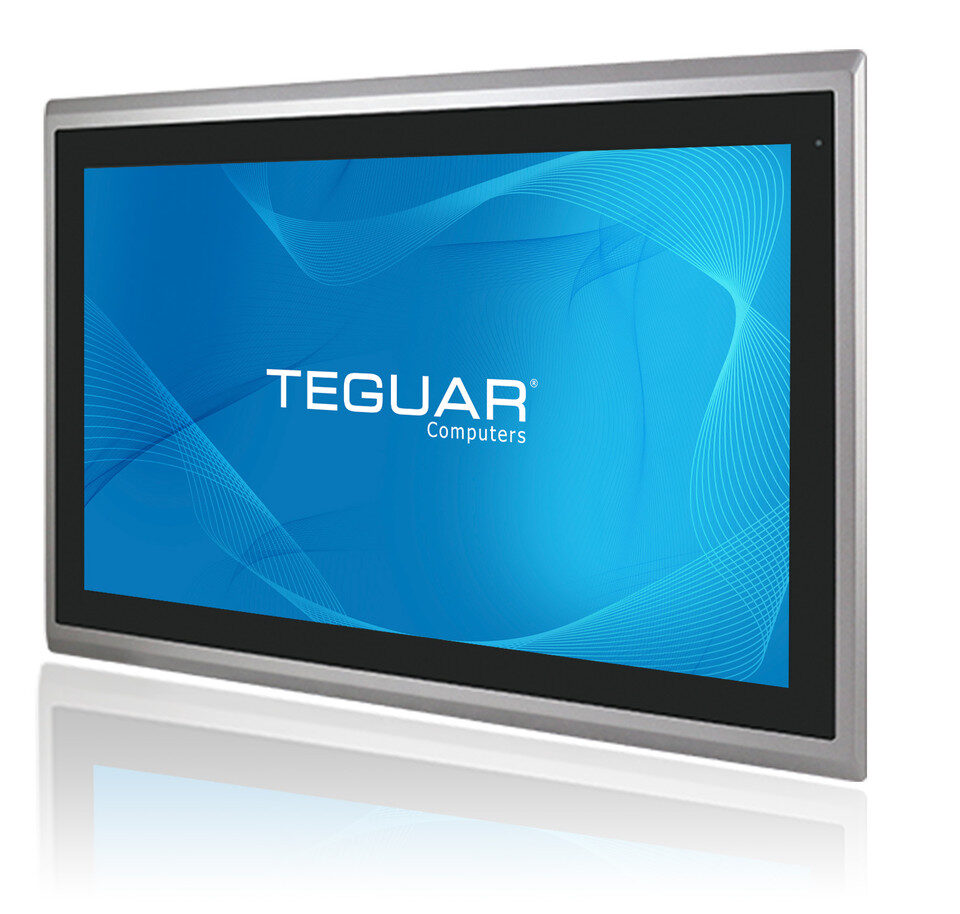

The TP-5645-22 Panel Mount Computer offers strong processing power with an Intel 8th generation Core i3 or i5 CPU with long life cycle support. With up to 16GB of DDR4 memory and an M.2 key capable of up to 512GB of SSD storage, the TP-5645-22 Panel Mount Computer is a great solution for most Linux or Windows based applications. The unique compact thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates. A high-brightness touchscreen option can be chosen for environments with low screen visibility. The TP-5645-22 is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

Key Highlights

  • 21.5" P-Cap or Resistive Touchscreen
  • Fanless Cooling System
  • Easily accessible M.2 storage, up to 1TB
  • IP66 Protected Front with Aluminum Housing
  • Wide Range 9~36VDC Power Input
  • Intel 8th Gen. Core i3/i5 CPUIP66 Protected Front with Aluminum Housing

Use Cases

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TP-5645-22 I/Os

Technical Drawings

TP-5645-22-technical-drawing

TECH SPECS

See the data sheet

Key Highlights

  • 21.5" P-Cap or Resistive Touchscreen
  • Fanless Cooling System
  • Easily accessible M.2 storage, up to 1TB
  • IP66 Protected Front with Aluminum Housing
  • Wide Range 9~36VDC Power Input
  • Intel 8th Gen. Core i3/i5 CPUIP66 Protected Front with Aluminum Housing

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model Core i3 8145UE, Core i5-8365UE
Processor Speed 2.2 GHz
Memory Type 1x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage support M.2: 128GB-1TB

Display

Screen Size 21.5"
Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 250 nits, Optional 1000 nit High Brightness
Contrast Ratio 3000:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)
Lifetime Usage 30,000 hrs, 50,000 hrs (High Brightness)

External I/O ports

USB 4x USB 3.0
Serial / Com 1x COM
Serial Protocol Detail Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x DisplayPort
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Audio Line-Out
Power Input Port 2-Pin Power Switch

Power

Input Voltage Range 9-36V DC
Max Power consumption 74W

Operating Systems

Windows Windows 11, Windows 10 IoT
Linux Yocto Linux, Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA Mount

Dimensions / Weight

Weight 7.5 KG (16.5 lbs)
Dimensions 557.3x362.3x64.8 mm (21.9 x 14.3 x 2.6 in)

Certification

Certifications CE, FCC Class A

Warranty

Warranty 1 Year
