19" Cable Gland Computer

TSC-4810-19

Available


Description

The 19" Cable Gland Computer stands as a rugged computing solution, boasting an IP69K waterproof rating to tackle the rigorous cleaning procedures essential in food and meat processing environments. Its integrated cable gland, accommodating up to five I/O cables, facilitates efficient cable management and ensures a sealed design. Running on Windows 11, powered by the dependable Celeron J6412 CPU, this computer offers seamless performance. Its WiFi 6 capabilities enable high-speed and reliable wireless connectivity, enhancing productivity in demanding industrial settings. With a focus on durability, hygiene, and robust processing, the 19" Cable Gland Computer proves to be a crucial asset in these industries.

Key Highlights

  • 19” Resistive or PCap Touchscreen Options
  • Intel Celeron J6412 Processor Passmark Rating 3839
  • Windows 11 Capabilities
  • Integrated Cable Gland supporting up to 5 I/O cables
  • IP69K Waterproof Rated

Use Cases

Food and Meat Processing: The TSC-4810 series, with its rugged design, integrated cable gland, and IP69K waterproof rating, is specifically tailored for demanding environments like food and meat processing. Powered by Windows 11 and a Celeron J6412 CPU, this series provides a resilient and reliable computing solution, ensuring durability and hygiene in critical processes.

Clean Room Monitoring: The rugged and waterproof features of the TSC-4810 series make it suitable for industrial hygiene monitoring applications. With its integrated cable gland supporting multiple I/O cables, it ensures efficient cable management in environments where cleanliness is crucial. This computing solution, driven by Windows 11 and a Celeron J6412 CPU, is well-suited for monitoring and managing hygiene conditions in industrial settings, contributing to overall workplace safety.

Dimensional Drawings & I/Os

See the data sheet

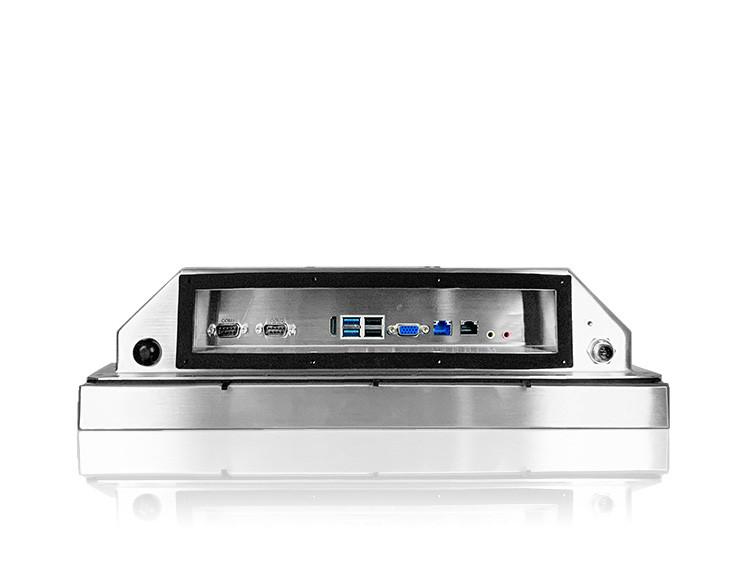

Inputs / Outputs

TSC-4810 Labeled IOs

Technical Drawings

TSC-4810-19 Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 19” Resistive or PCap Touchscreen Options
  • Intel Celeron J6412 Processor Passmark Rating 3839
  • Windows 11 Capabilities
  • Integrated Cable Gland supporting up to 5 I/O cables
  • IP69K Waterproof Rated

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Elkhart Lake
Processor Model Celeron J6412
Processor Speed 2.0 GHz, 2.6 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 SATA3 2242 Slot
Storage support M.2 and 2.5": 128GB - 1TB

Display

Screen Size 19"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness 350 nits
Contrast Ratio 1000:1
Viewing Angle 170º (H), 160º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen 5 Wire Resistive, Projected Capacitive (Multi-touch)
Light Transmission 80±5% (Resistive), 90±3% (P-Cap)
Hardness Resistive: 3H, P-cap: 7H

External I/O ports

USB 2x USB 2.0, 2x USB 3.2
Serial / Com 2x COM
Serial Protocol Detail RS-232/422/485
Ethernet / LAN 1x RJ45 GbE LAN, 1x RJ45 2.5 GbE LAN
Video Outputs 1x HDMI 2.0b, 1x VGA
Audio 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 12-28V DC
Standard Power Adapter 100~277Vac /47~63 Hz/ 24Vdc, 120W, IP68

Operating Systems

Windows Windows 11 IoT, Windows 11 Pro, Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware fTPM 2.0, Optional TPM 2.0

Multimedia

Speakers Optional Speaker

Thermal and Environmental

Operating Temperature 0°C – 40°C (With HDD), 0°C – 50°C (With SSD)
(32°F – 104°F (With HDD), 32°F – 122°F (With SSD))
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 0% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Stainless Steel
Ip Rating IP66, IP69K
Color Stainless Steel
Control Buttons Power Button
Mounting Options VESA 100 Mount, Wall Mount, Yoke Mount

Peripherals & Wireless Connectivity

WiFi Optional Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Dual band with Flat Robust Antennas
BlueTooth Optional Bluetooth 5.3
Barcode Scanner Optional 1D/2D with Device Box

Dimensions / Weight

Weight 11.5 KG (25.4 lbs)
Dimensions 458 x 64 x 386 mm (18.0 x 2.5 x 15.2 in)

Warranty

Warranty Up to 5 Years

Filters

Main Category Filter Industrial Computer

Accessories

See the data sheet
