TP-5645-16

Available


Description

The TP-5645-16 Panel Mount Computer offers a unique thermal design, including a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates on the front surface. A high-brightness touchscreen option can be chosen for environments with low screen visibility. Advanced processing power from the latest Intel 8th generation core i3/i5 CPUs has long life cycle support. With up to 16GB of DDR4 memory, the TP-5645-16 Panel Mount Computer is a great solution for most Windows or Linux based applications. Easily accessible M.2 storage can be configured as high as 512GB. The TP-5645-16 is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

Key Highlights

  • Intel 8th Gen. Core i3/i5 CPU
  • Easily accessible M.2 storage, up to 2TB
  • Fanless Cooling System
  • 15.6" P-Cap or Resistive Touchscreen
  • Wide Range 9~36VDC Power Input
  • IP66 Protected Front with Aluminum Housing

Product Features

The TP-5645-16 Panel Mount Computer has a rugged die cast aluminum frame that is IP 66 rated to protect from debris and moisture during washdowns. This computer runs on an 8th Gen Intel Core i3 or i5 CPU, depending on your preferences.

Dimensional Drawings & I/Os

See the data sheet

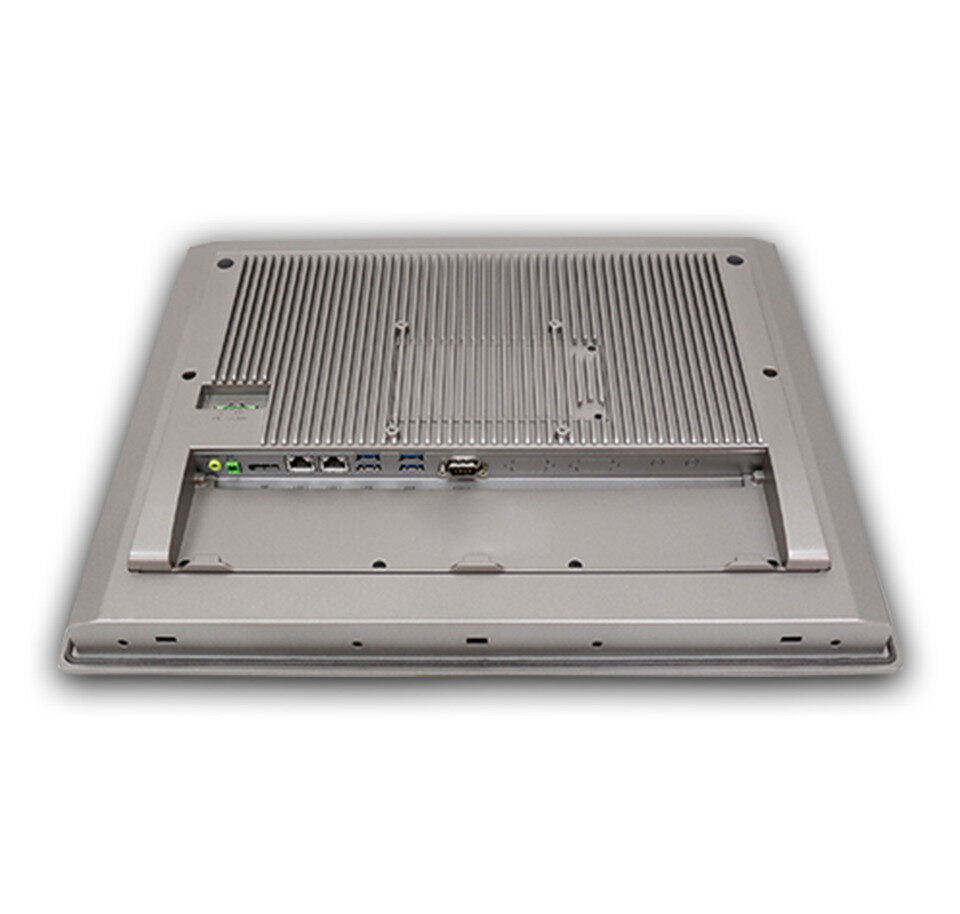

Inputs / Outputs

TP-5645-16-IO-Labels

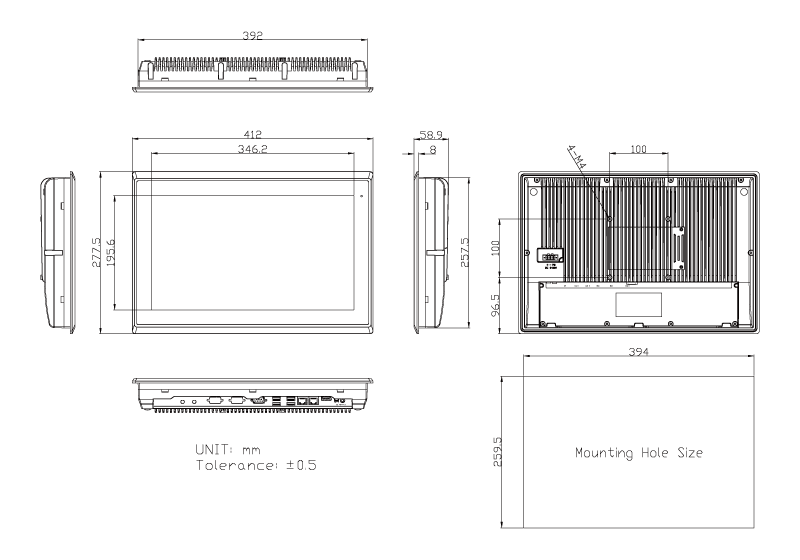

Technical Drawings

TP-5645-2D-Tech Diagram

TECH SPECS

See the data sheet

Key Highlights

  • Intel 8th Gen. Core i3/i5 CPU
  • Easily accessible M.2 storage, up to 2TB
  • Fanless Cooling System
  • 15.6" P-Cap or Resistive Touchscreen
  • Wide Range 9~36VDC Power Input
  • IP66 Protected Front with Aluminum Housing

Primary Components

Processor Family Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model Celeron 4305UE, Core i3 8145UE, Core i5-8365UE, Core i7 8665UE
Processor Speed 2.2 GHz
Memory Type 1x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage support M.2: 64GB-2TB

Display

Screen Size 15.6"
Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 450 nits, Optional 1000 nit High Brightness
Contrast Ratio 800:1
Viewing Angle 160º (H), 170º (V), 160º (H), 170º (V) High Brightness
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)
Lifetime Usage 50,000 hrs, 50,000 hrs (High Brightness)

External I/O ports

USB 4x USB 3.0
Serial / Com 1x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x DisplayPort
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x 3.5mm Audio Line-Out
Power Input Port DC-in Jack (Phoenix Type), 2-Pin Power Switch

Power

Input Voltage Range 9-36V DC
Max Power consumption 59W
Standard Power Adapter Optional 12V 5A AC/DC Adapter

Battery

Type Optional Internal Battery
Operating Time 20min
Quantity 1x Optional Battery

Operating Systems

Windows Windows 11, Windows 10 IoT
Linux Yocto Linux, Linux Ubuntu 20.04 or above

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe
Internal M.2 1x M.2 for NVME SSD Support

Multimedia

Speakers Optional Speaker

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 95% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Color Gray
Led Indicator Light Power
Mounting Options Panel Mount, VESA Mount

Dimensions / Weight

Weight 4.32 KG (9.5 lbs)
Dimensions 412x277.5x58.9 mm (16.2 x 10.9 x 2.3 in)

Certification

Certifications CE, FCC Class A

Warranty

Warranty 1 Year

Accessories

See the data sheet

Flush VESA Wall Mounting Kit

This Wall Mount Kit is compatible with most Teguar Industrial and Medical Computers screen sizes 10"...

Table Stand for VESA mount

Teguar's universal table stand is compatible with any computer with a VESA 75 or 100 mounting pattern....
