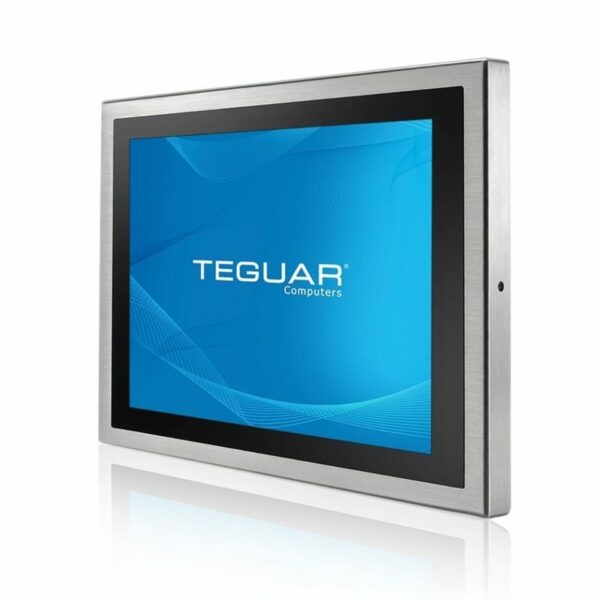

15" Stainless Steel Core i Computer

TS-5610-15

Available


Description

The TS-5610 Stainless Steel Core i Series is the latest in a long line of strong and dependable waterproof computers. While the TS-5610-15 may be the smallest offering in the Stainless Steel Core i series, it's no less powerful than the other three sizes available. In fact, the TS-5610-15 may in fact be the best value of the four, since it manages to pack so much computational power into the smallest size. The 4:3 ratio display comes equipped with either P-cap or resistive touchscreen capabilities and, as the name suggests, the 4.1 GHz processor is a Core i Series, with options for i3, i5, or i7 available. With the inclusion of an 8th Gen Intel CPU, the TS-5610-15 is Windows 11 compatible.

Key Highlights

  • 15" 4:3 Ratio Touchscreen
  • 8th Gen Intel Core Whiskey Lake i3/i5/i7 CPU
  • Full IP66 and IP69K with Optional IP67
  • Flat Wireless WiFi/BT Antenna
  • Optional Speakers and Barcode Reader (MOQ)
  • Supports Intel Vpro Technology

Use Cases

Food and Beverage Manufacturing: The TS-5610 Stainless Steel Core i Series, with its fully sealed stainless steel housing and optional waterproof features, is well-suited for demanding environments in the food and beverage manufacturing industry, providing reliable computing solutions for process control, recipe management, and quality assurance.

Industrial Automation: The TS-5610 Stainless Steel Core i Series, with its customizable options and compatibility with Windows 11, is ideal for industrial automation applications. It can be configured to meet specific control and monitoring needs, providing reliable and high-performance computing for manufacturing processes.

Cleanroom Applications: With its sealed stainless steel housing and the ability to include optional waterproof features, the TS-5610 Series is well-suited for cleanroom environments, providing contamination-resistant computing for critical tasks in industries such as semiconductor manufacturing and biotechnology.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

Inputs and outputs of Teguar's TS-5610-15 Stainless Steel Computer

Technical Drawings

TECH SPECS

See the data sheet

Key Highlights

  • 15" 4:3 Ratio Touchscreen
  • 8th Gen Intel Core Whiskey Lake i3/i5/i7 CPU
  • Full IP66 and IP69K with Optional IP67
  • Flat Wireless WiFi/BT Antenna
  • Optional Speakers and Barcode Reader (MOQ)
  • Supports Intel Vpro Technology

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Core I series 8th Generation Whiskey Lake-U
Processor Model Core i5-8365UE
Processor Speed Up to 4.1 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 15"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness 450 nits
Contrast Ratio 800:1
Viewing Angle 160º (H), 160º (V)
Number of Colors Supported 16.2M

Touch Screen

Touch Screen 5 Wire Resistive, Projected Capacitive
Light Transmission 80±5% (Resistive), >86% (P-Cap)
Hardness Resistive: 3H, P-cap: 7H

External I/O ports

USB 2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com 2x M12 8-pin for COM
Serial Protocol Detail RS-232/422/485
Ethernet / LAN 1x M12 8pin RJ45 Gbe LAN
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 19-28V DC
Max Power consumption 83.9W
Standard Power Adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68

Operating Systems

Windows Windows 11, Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware Optional TPM 2.0, Supports Intel Vpro

Expansion Slots

Internal M.2 1x M.2 for NVME SSD Support

Thermal and Environmental

Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel
Ip Rating IP66, IP69K, NEMA 4X
Color Stainless Steel
Control Buttons Power Button
Mounting Options VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi Optional Wi-Fi 802.11 a/b/g/n/ac
BlueTooth Optional Bluetooth 5.1
Barcode Scanner Optional 1D/2D Barcode Scanner

Dimensions / Weight

Weight 8.4 kg KG (18.5 lbs)
Dimensions 395 x 309.5 x 58 mm (15.6 x 12.2 x 2.3 in)

Certification

Certifications CE, FCC, VCCI Class B

Warranty

Warranty Up to 5 Years
