22" Medical Touch Screen Computer

TME-7115-22

Available

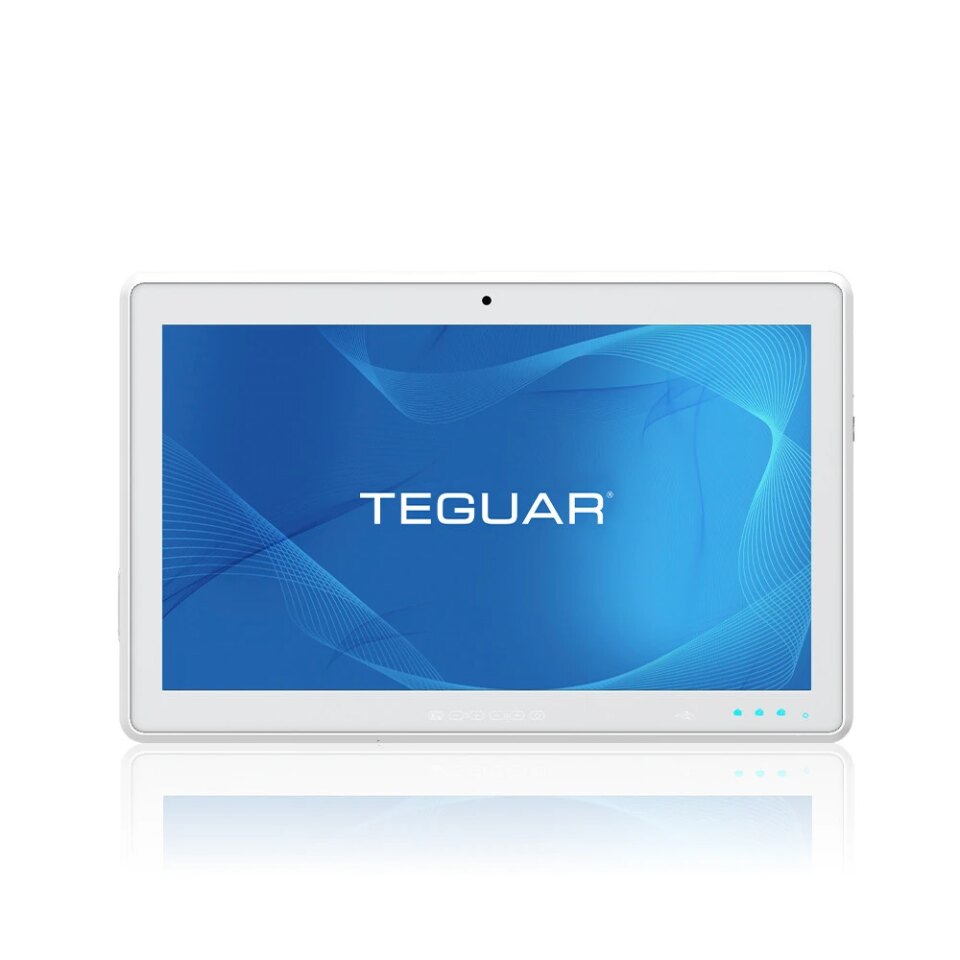

22 inch touch screen computer TME-7115-22 Front

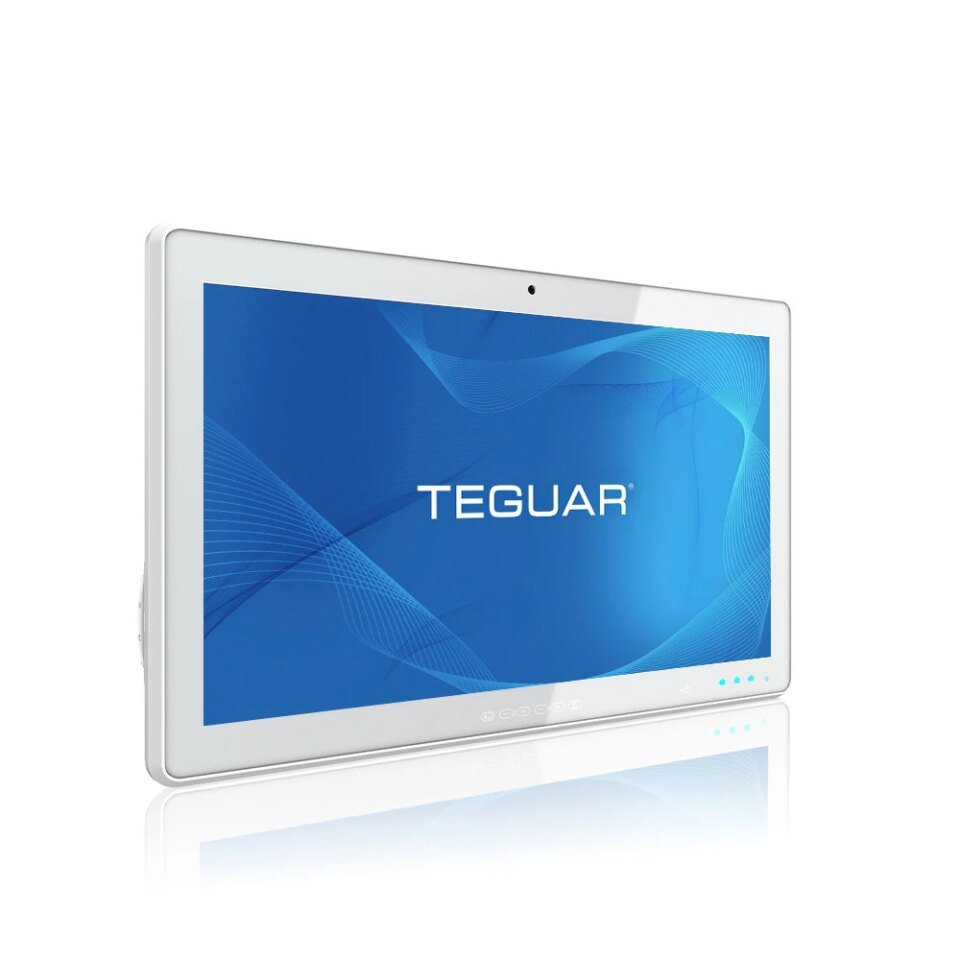

22 inch touch screen computer TME-7115-22 Front Angle

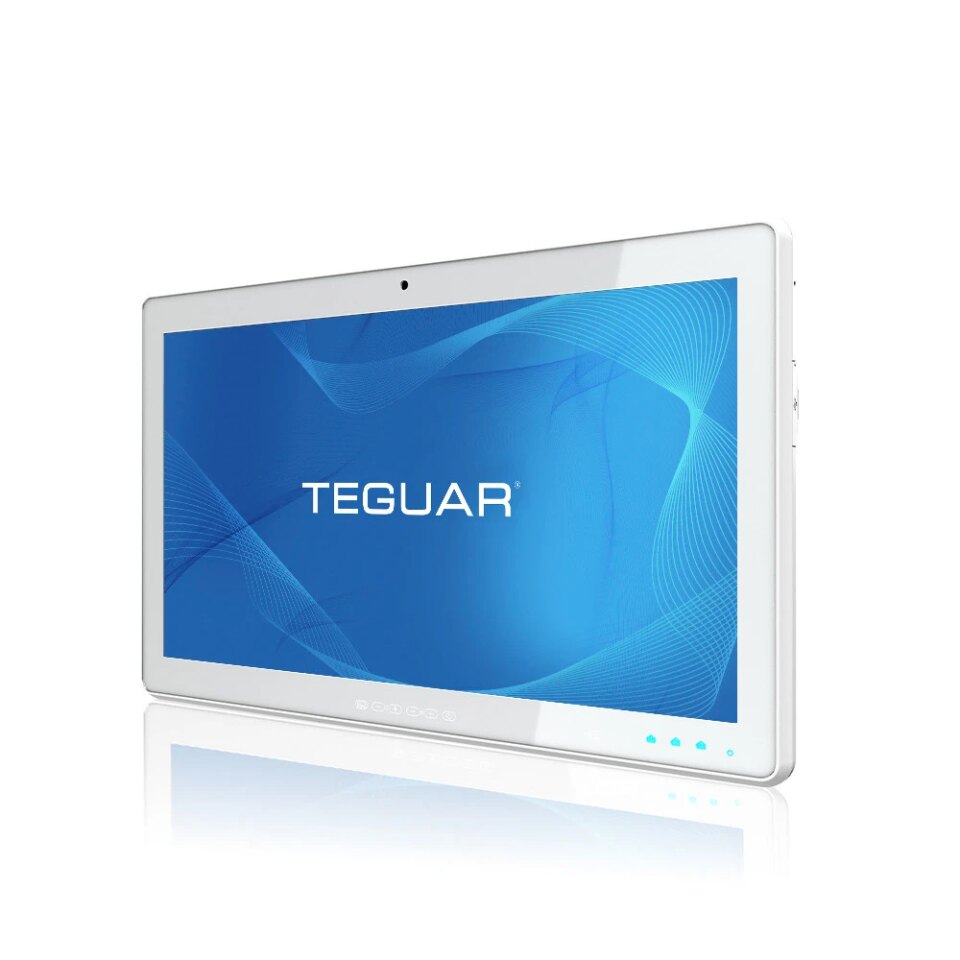

22 inch touch screen computer TME-7115-22 Front Angle left

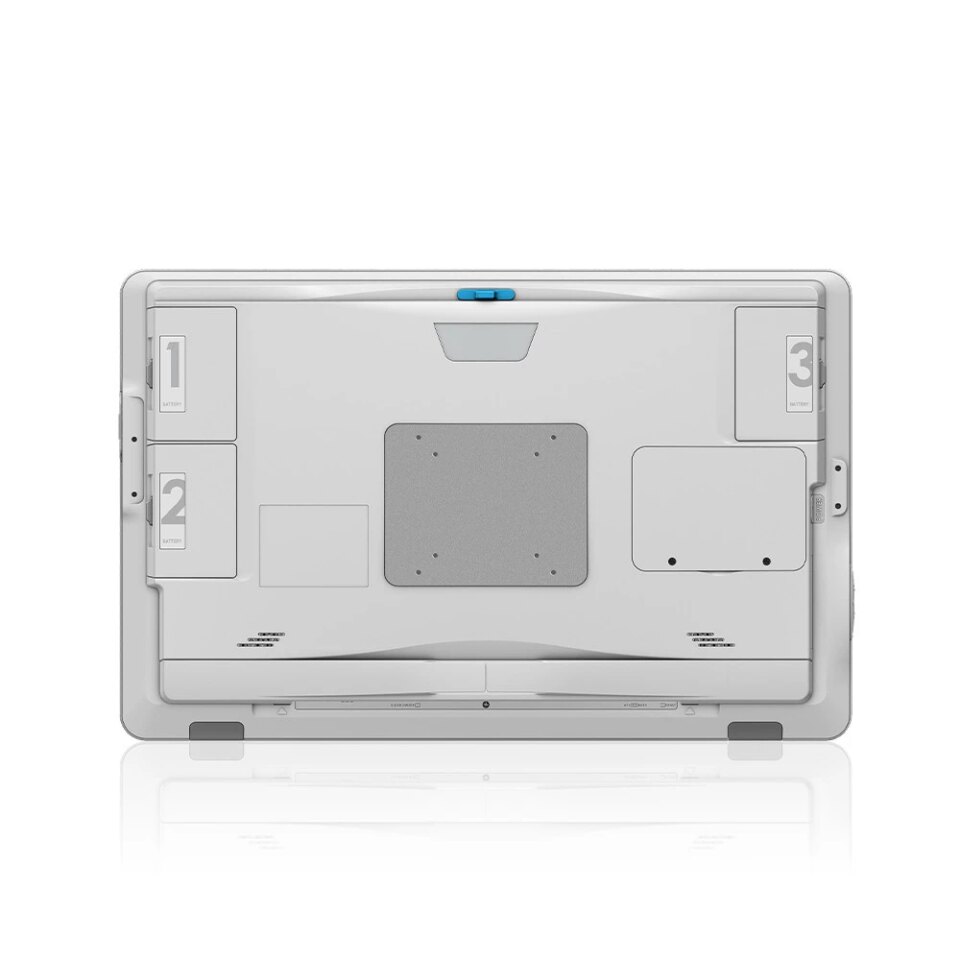

22 inch touch screen computer TME-7115-22 Back

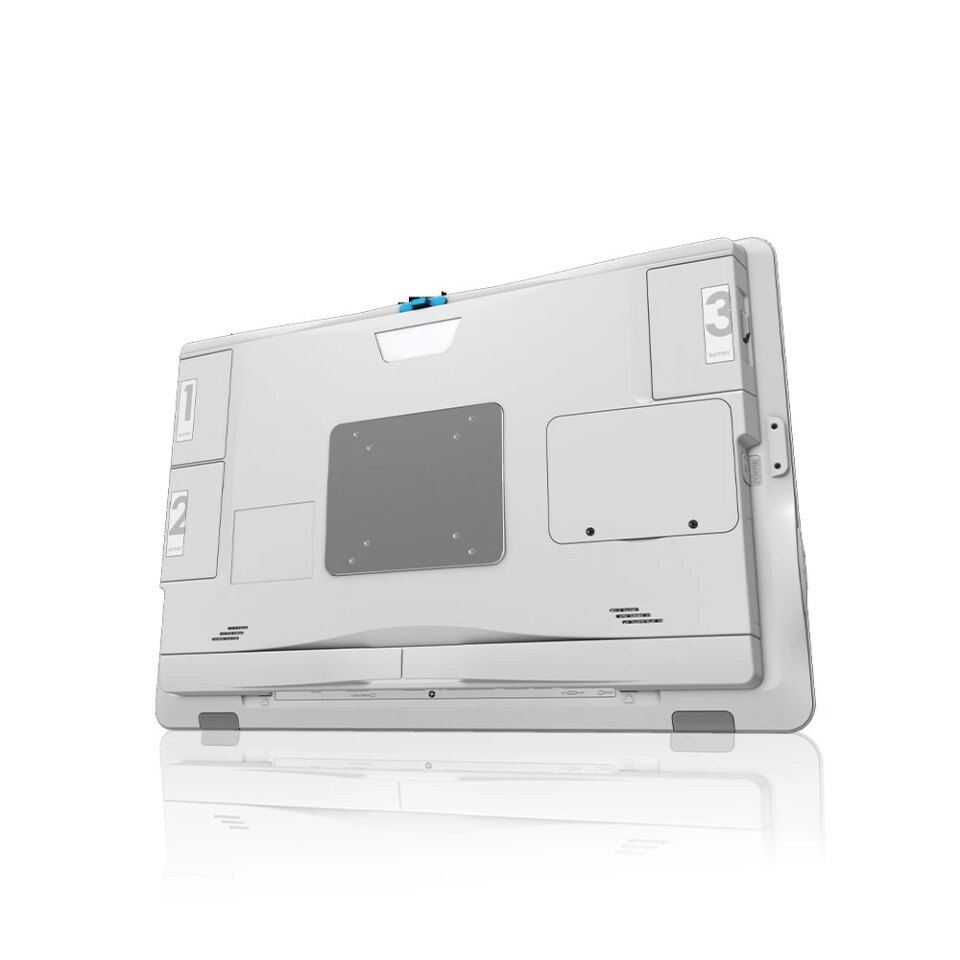

22 inch touch screen computer TME-7115-22 Back Angle Left

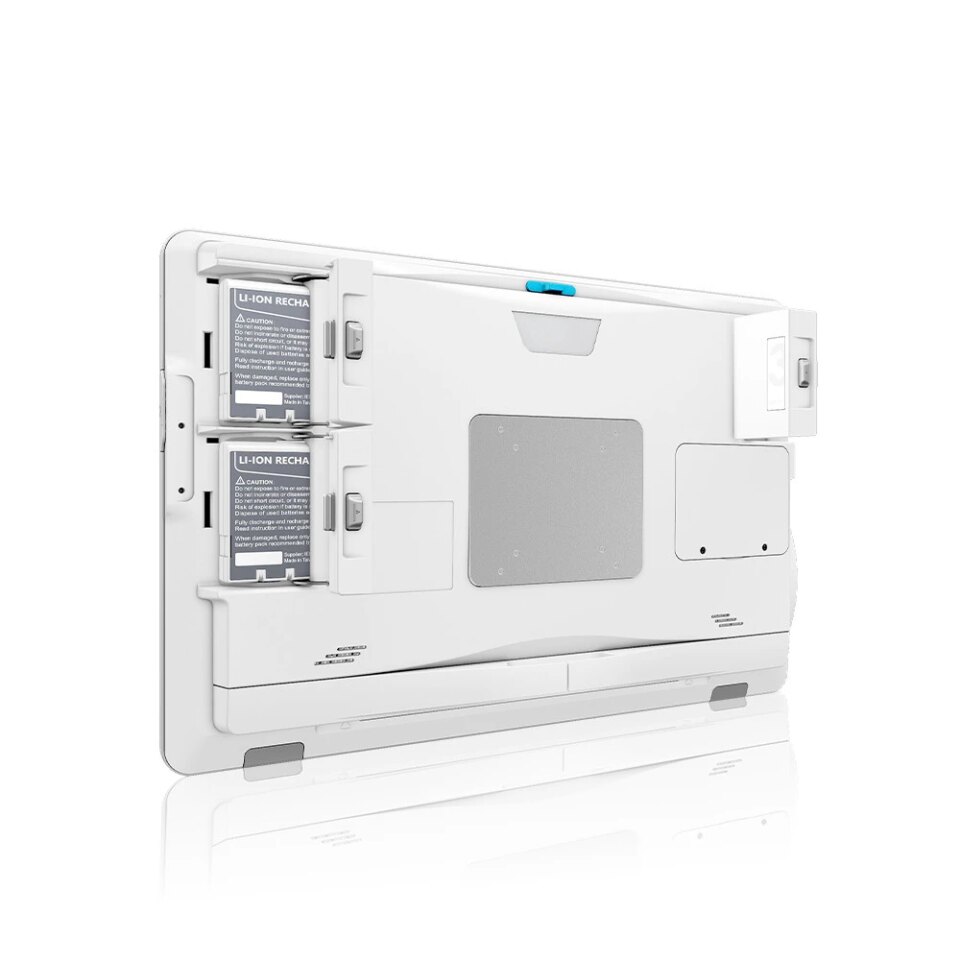

22 inch touch screen computer TME-7115-22 Back Angle Right

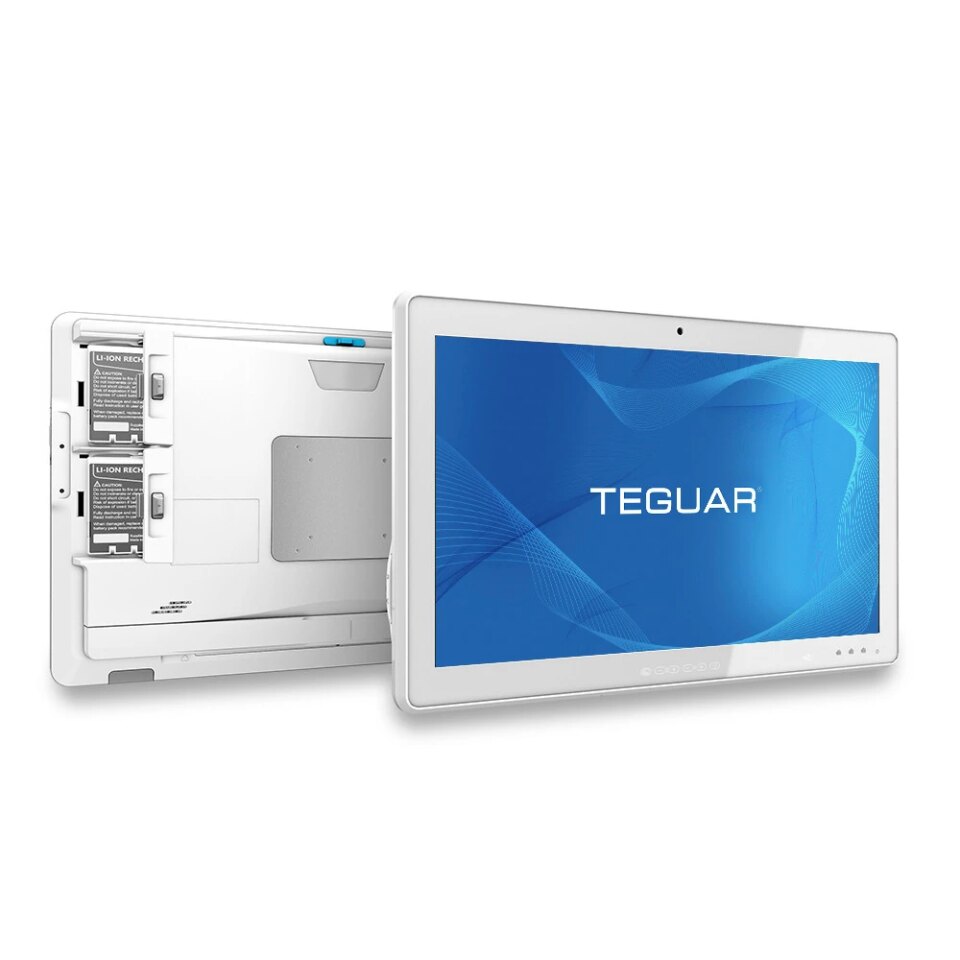

22 inch touch screen computer TME-7115-22 Front and Back

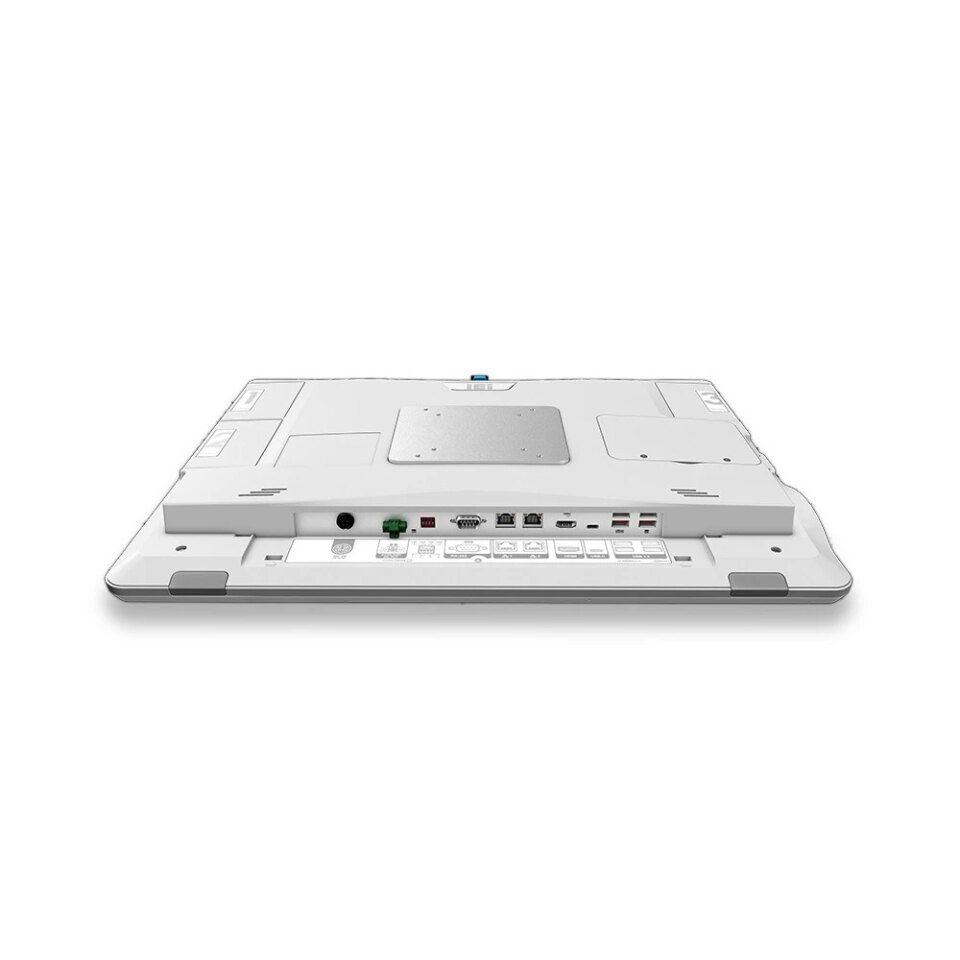

22 inch touch screen computer TME-7115-22 IO Angled

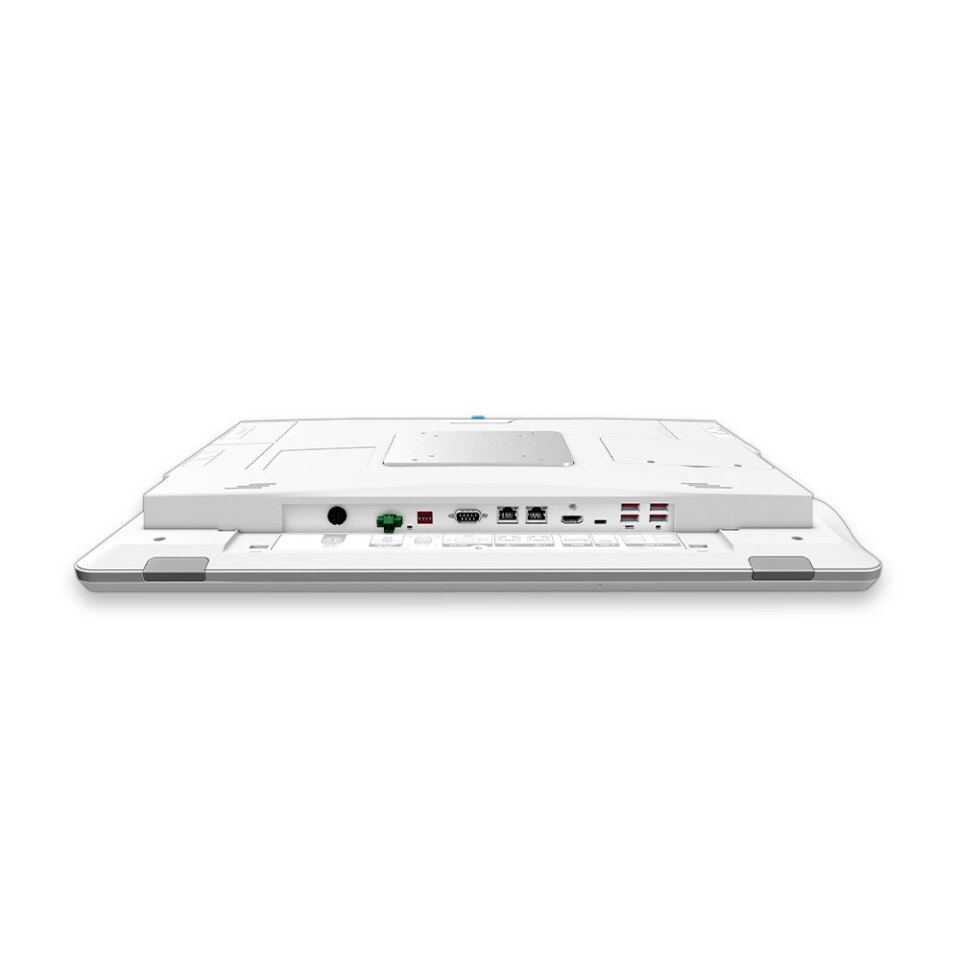

22 inch touch screen computer TME-7115-22 IO Flat

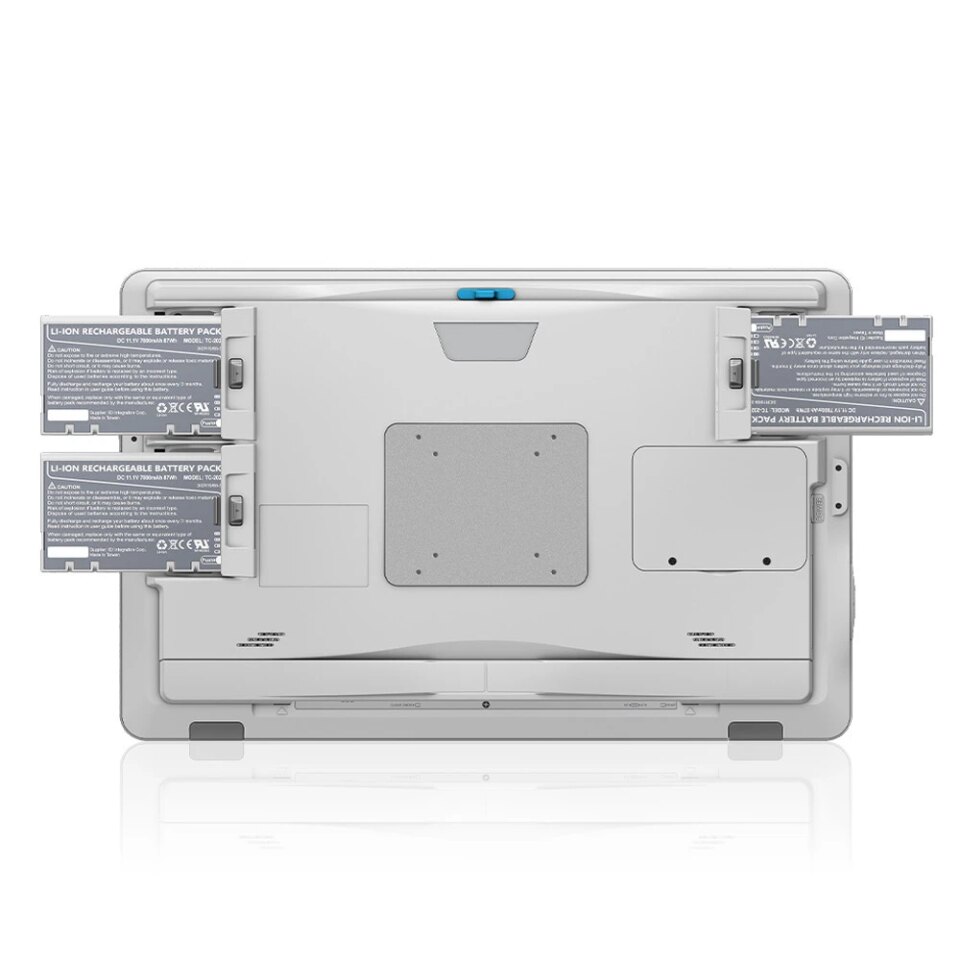

22 inch touch screen computer TME-7115-22 Back with Batteries
22 inch touch screen computer TME-7115-22 Front
22 inch touch screen computer TME-7115-22 Front Angle
22 inch touch screen computer TME-7115-22 Front Angle left
22 inch touch screen computer TME-7115-22 Back
22 inch touch screen computer TME-7115-22 Back Angle Left
22 inch touch screen computer TME-7115-22 Back Angle Right
22 inch touch screen computer TME-7115-22 Front and Back
22 inch touch screen computer TME-7115-22 IO Angled
22 inch touch screen computer TME-7115-22 IO Flat
22 inch touch screen computer TME-7115-22 Back with Batteries

Description

TME-7115-22 is a high-powered touch screen computer designed for ease and excellence on medical carts and in other mobile medical applications. Hot-swappable batteries set this product apart from other medical-grade all-in-ones. With 3 battery bays, battery indicator LED lights, and a charging station accessory for up to 6 additional batteries, the TME-7115-22 can maintain 24/7 uptime anywhere. The 22” PCAP touch screen is ultra-responsive even through five layers of gloves or with water on the IP65-rated front face, ensuring nothing gets between you and your work. Power the entire medical cart straight from this computer with its configurable DC output, USB 3.2 slots, and USB-C perfect for any cart attachments or accessory equipment.

Key Highlights

  • Intel® Core i5 and i7 options
  • Windows 11 or Linux
  • Three hot-swappable batteries
  • Configurable DC output and versatile USB-C port for high-power attachments
  • Accessible NVMe & 2.5” storage slot
  • DDR5 offering 36% increase in bandwidth
GET A DEMO GET A QUICK QUOTE

Use Cases

Medical Cart Computer: TME-7115-22 uses hot-swappable batteries keep it mobile, perfect for an untethered medical cart. Power auxiliary accessories or attachments on your cart right from the computer using its DC output and array of USB ports.

Handle Complex Medical Software: Access EMR/EHR and run demanding imaging software with ease thanks to the highly efficient DDR5 and the Core i processor options of the TME-7115-22. Dual NVMe offers RAID support for extra security.

Point of Care Computer: High speed computing brings peace of mind to patients and professionals alike. This computer is perfect for accessing patient information at the point of care with a hygienic design that looks sharp in any patient-facing setting.

See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TME-7115 IO Diagram

Technical Drawings

TME-7115-22 2D Drawing

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • Intel® Core i5 and i7 options
  • Windows 11 or Linux
  • Three hot-swappable batteries
  • Configurable DC output and versatile USB-C port for high-power attachments
  • Accessible NVMe & 2.5” storage slot
  • DDR5 offering 36% increase in bandwidth

General

Main Category Medical Computer

Primary Components

Processor Family Intel Core I series 13th Generation Raptor Lake
Processor Model Core i5-1340PE, Core i7-1370PE Optional
Processor Speed 8x Efficient Cores up to 3.3 GHz Turbo, 4x Performance Cores up to 4.5 GHz
Memory Type 2x DDR5 SO-DIMM
Memory Support 8GB, 16GB, 32GB, 64GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 2x NVME SSD M.2 2280 (easily accessible)
Storage support M.2 and 2.5": 256GB - 1TB

Display

Screen Size 21.5"
Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 350 nits
Contrast Ratio 1000:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Hardness 6H
Lifetime Usage 50,000 hrs

External I/O ports

USB 2x USB 2.0, 4x USB 3.2, 1x USB Type-C
Serial / Com 1x COM
Serial Protocol Detail RS-232 Default/422/485- BIOS selectable
Ethernet / LAN 2x RJ45 2.5 GbE LAN
Video Outputs 1x HDMI
Audio 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port 4-Pin DC-In Jack

Power

Input Voltage Range 19V DC
Standard Power Adapter 19Vdc, 150W Medical Power Supply with US power Cord

Battery

Type Hot Swappable 10.8V/9000mAh Battery
Quantity 3x Optional Batteries
Weight with Optional Batteries 8.43 (with 3x Batteries) KG (15.59 lbs)

Operating Systems

Windows Windows 11 IoT, Windows 11 Pro, Windows 10 IoT, Windows 10 Pro
Linux Linux (Contact your sales rep for more information)

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Multimedia

Speakers 2x 2W Speakers
Camera Front: 8MP
Microphone Built-in Microphone

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Ip Rating IP65 Front Bezel
Color White
Antibacterial Housing Yes
Led Indicator Light Battery, Charging Indicator, Power
Control Buttons Audio Down, Audio Up, Brightness Down, Brightness Up, LCD ON/OFF and Touch Lock for Cleaning, Power Button
Mounting Options Desktop Stand, VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi Included 802.11 a/b/g/n/ac/ax Wi-Fi 6E
BlueTooth Bluetooth 5.2
RFID Optional RFID module, 13.56MHz/125KHz

Dimensions / Weight

Weight 7.07 (Without Batteries) KG (15.6 lbs)
Dimensions 543 x 61 x 350 mm (21.4 x 2.4 x 13.8 in)

Warranty

Warranty Up to 5 Years

Filters

Main Category Filter Medical Computer

Accessories

See the data sheet
