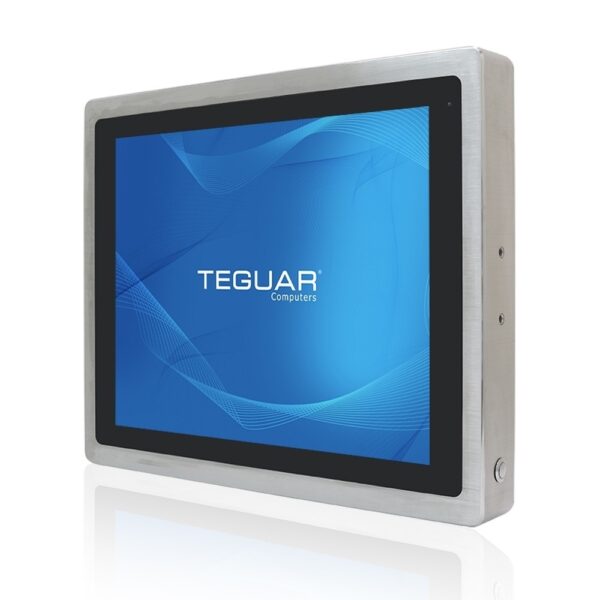

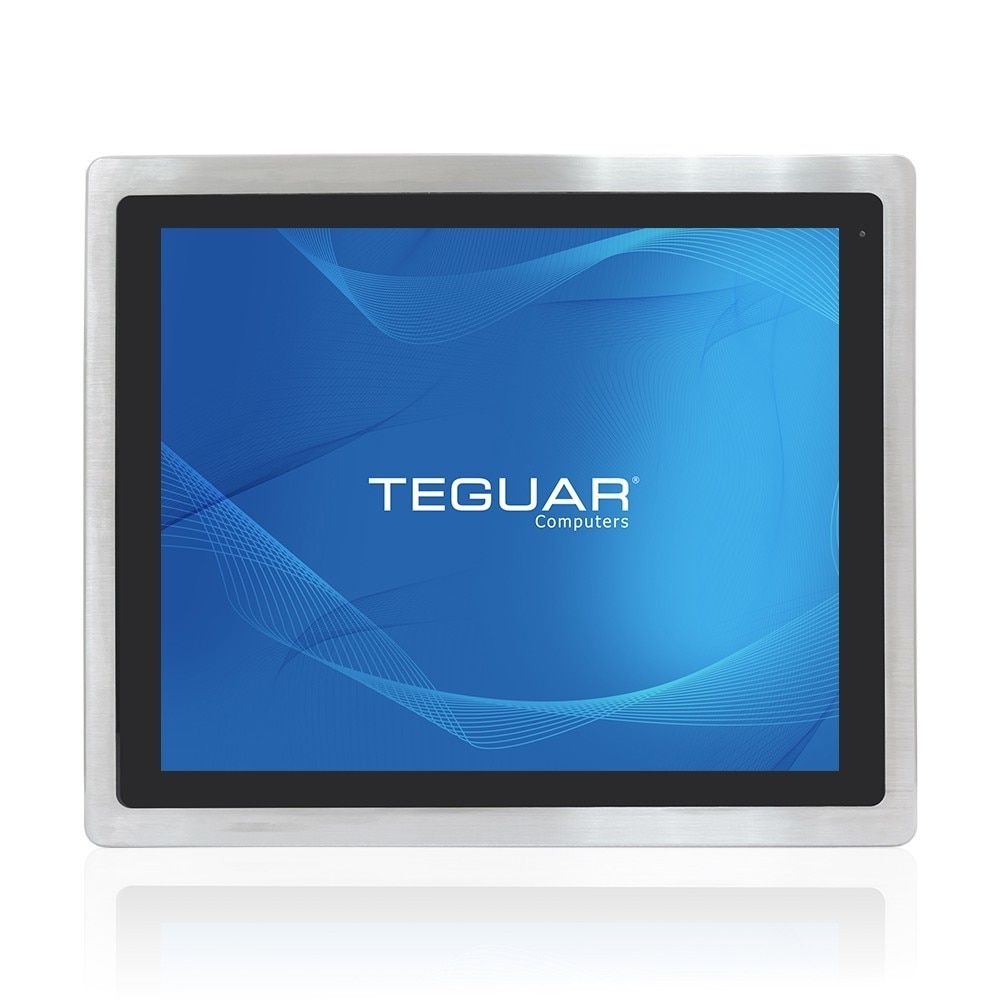

TSD-45-17

17" Waterproof Touchscreen Monitor
Available – Buy Now or Contact Us for Quick Quote

Description

This TSD-45-17 is a fully waterproof touchscreen display, ideal for food and beverage manufacturing facilities, clean rooms, and even outdoor applications. This unit is IP66/IP69K rated and NEMA 4x compliant. The grade 304 stainless steel housing ensures that the monitor will not rust, even if exposed to water and moisture daily. You can also upgrade to grade 316L stainless steel, for settings exposed to salt water. The on-screen display (OSD) controls placed on the rear of the monitor allow for quick adjustments of display settings and the IOs are protected by M12 metal connectors, included with the unit. The TSD-45 series comes in screen sizes from 10” up to 24” and in various screen ratios, so you can choose the best configuration for your application.

Key Highlights

  • 17″ Resistive or Projected Capacitive Touchscreen
  • Full-Flush LCD Display
  • IP66/IP69K Fully Enclosed Fanless Design
  • Optional 1000 nit High Brightness and Optical Bonding
  • M12 Metal I/O Connectors

Starting at: $1,813.40

Customize & Buy

Display

Screen Size17"
Resolution1280 x 1024 (SXGA)
Screen Ratio4:3
BrightnessOptional 1000 nit High Brightness, 350 nits

Touch Screen

Touch ScreenProjected Capacitive, Resistive

External I/O Ports

USB1x M12 USB
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption19W

Multimedia

SpeakersOptional Speaker

Thermal & Environmental

Operating Temperature-20°C - 60°C (-4°F – 140°F)
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing

Enclosure

MaterialOptional SUS316 Stainless Steel, SUS304 Stainless Steel
IP RatingIP66, IP69K
Control ButtonsOn-Screen Display (OSD), Touchscreen Lock for Cleaning
Mounting OptionsVESA 75 Mount, Yoke Mount
Approved Cleaning SolutionsAcetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water

Weight / Dimensions

Weight7.5 kg (16.5 lbs)
Dimensions432 x 358 x 55 mm (17.0 x 14.1 x 2.2 in)

Certification

CertificationsCE, FCC Class A

Warranty

WarrantyUp to 5 Years

Outdoor Applications: With optional features like high brightness, optical bonding, and ambient light sensors, the TSD-45 Series is well-suited for outdoor applications where sunlight readability and visibility are crucial. It can be used in industries such as outdoor signage, transportation, and agriculture, providing reliable and visible monitors in various weather conditions.

Industrial Automation: The TSD-45 Series, with its robust construction and M12 connectors, is suitable for industrial automation environments that require waterproof and durable monitors. It can be used for tasks such as machine control, process visualization, and data monitoring, providing reliable and rugged monitors in demanding industrial settings.

Production Line Monitoring: The TSD-45 Series, with its optional integrated IP65-rated speakers, can be used for production line monitoring and signaling. It provides visual and audio feedback for alarms, notifications, and process control in industries such as manufacturing, assembly, and packaging.

Dimensional Drawings & I/Os

I/O Diagram Images

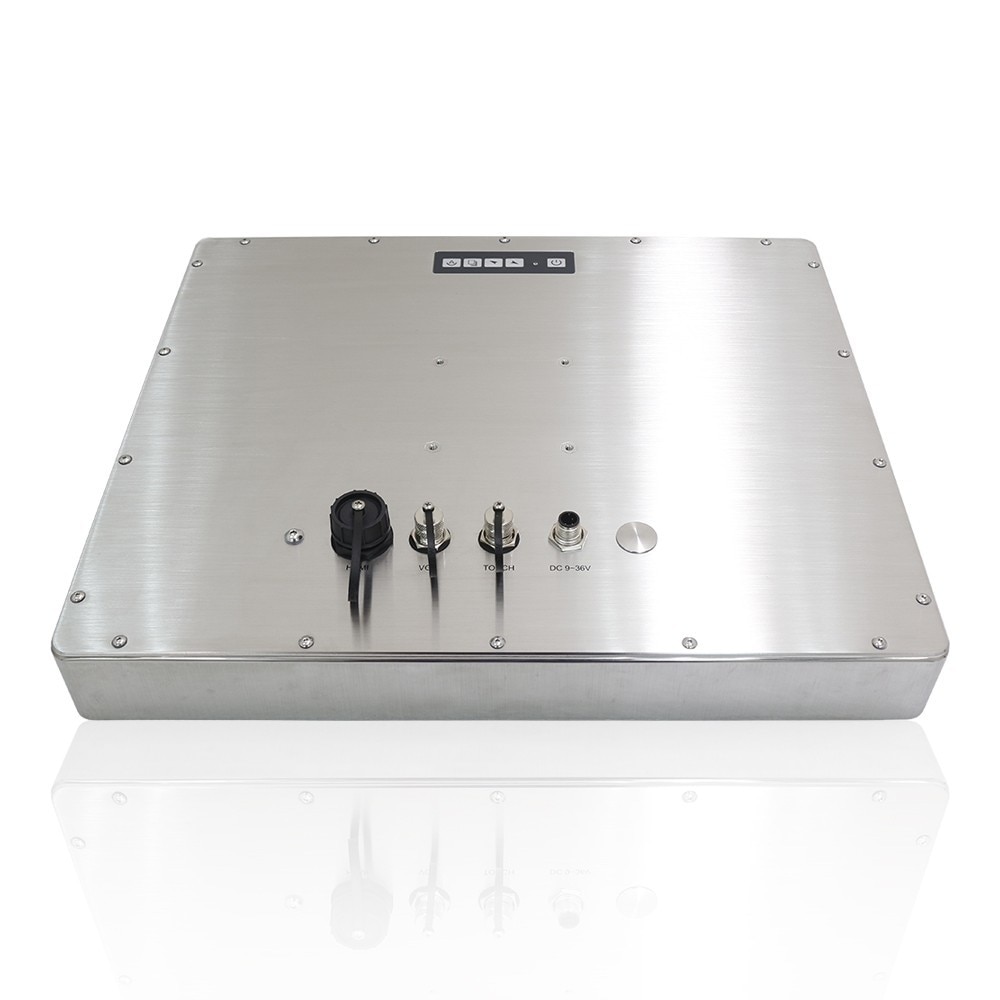

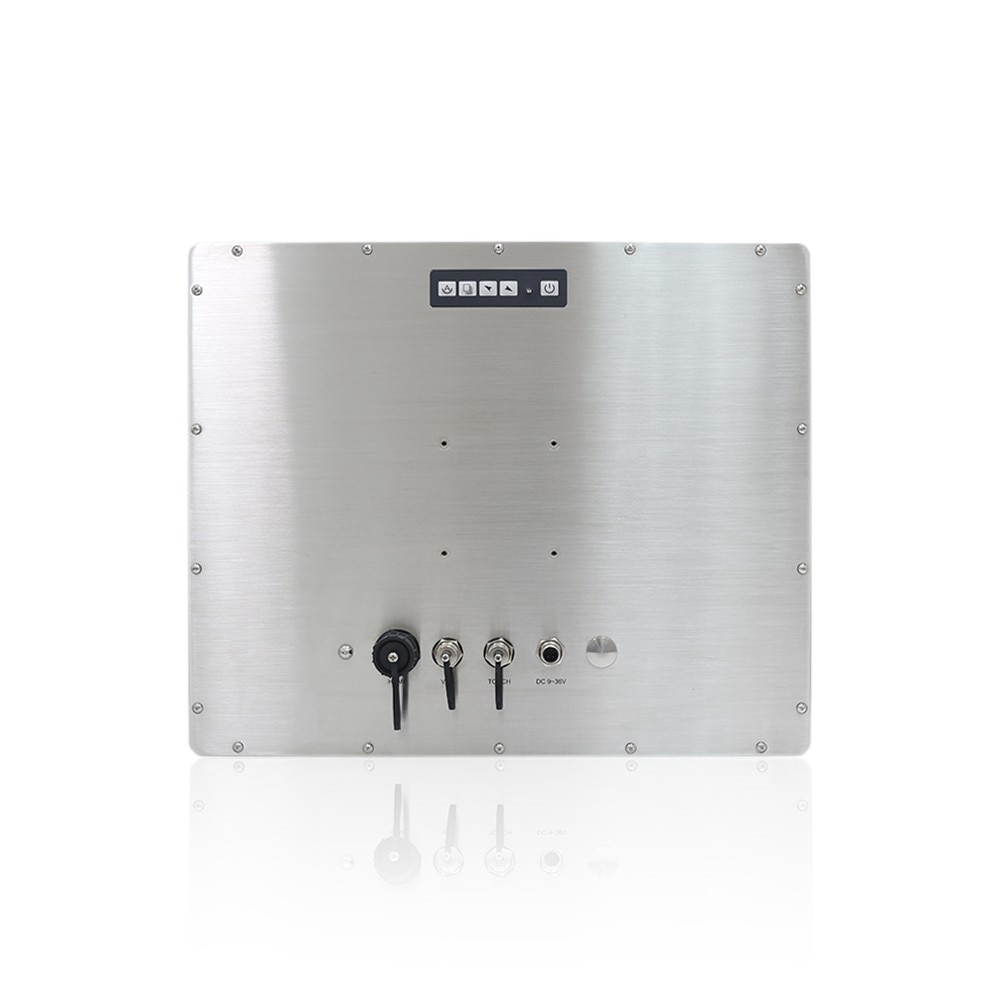

IP66 Waterproof Monitor IOs Teguar

Tech Diagram Images

TSD-45-17 Technical Drawing
