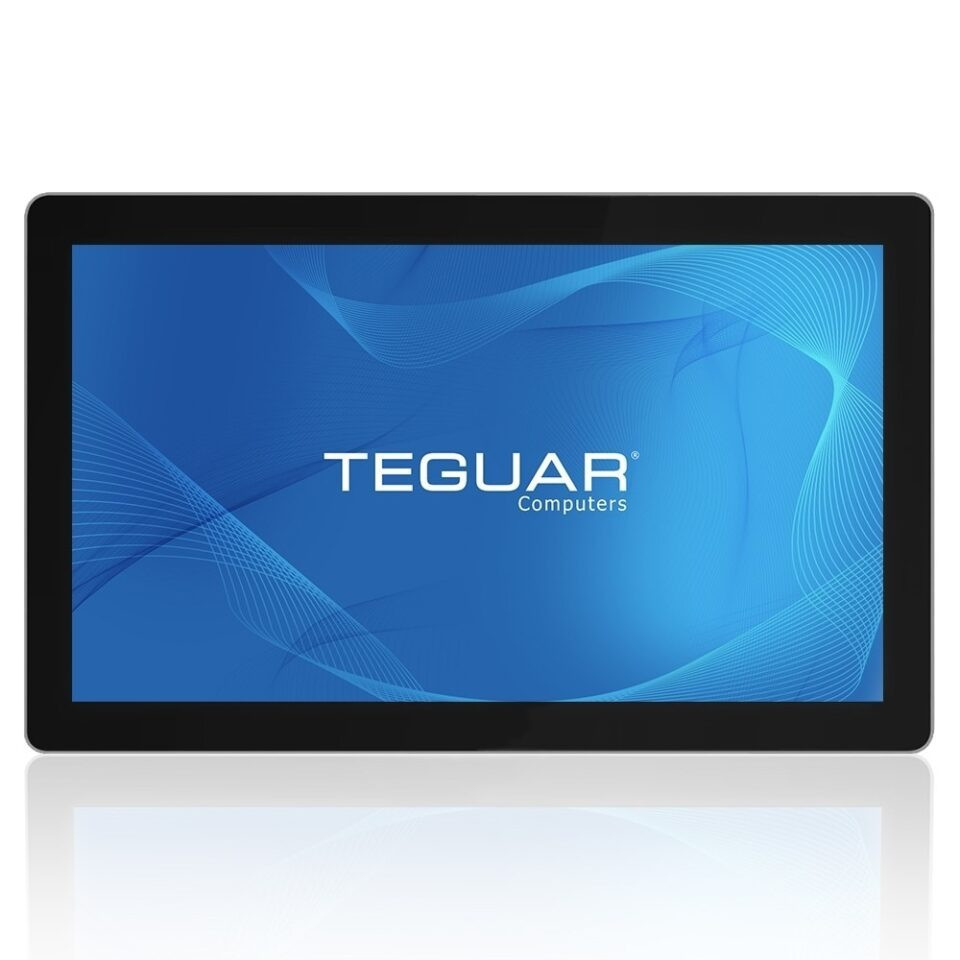

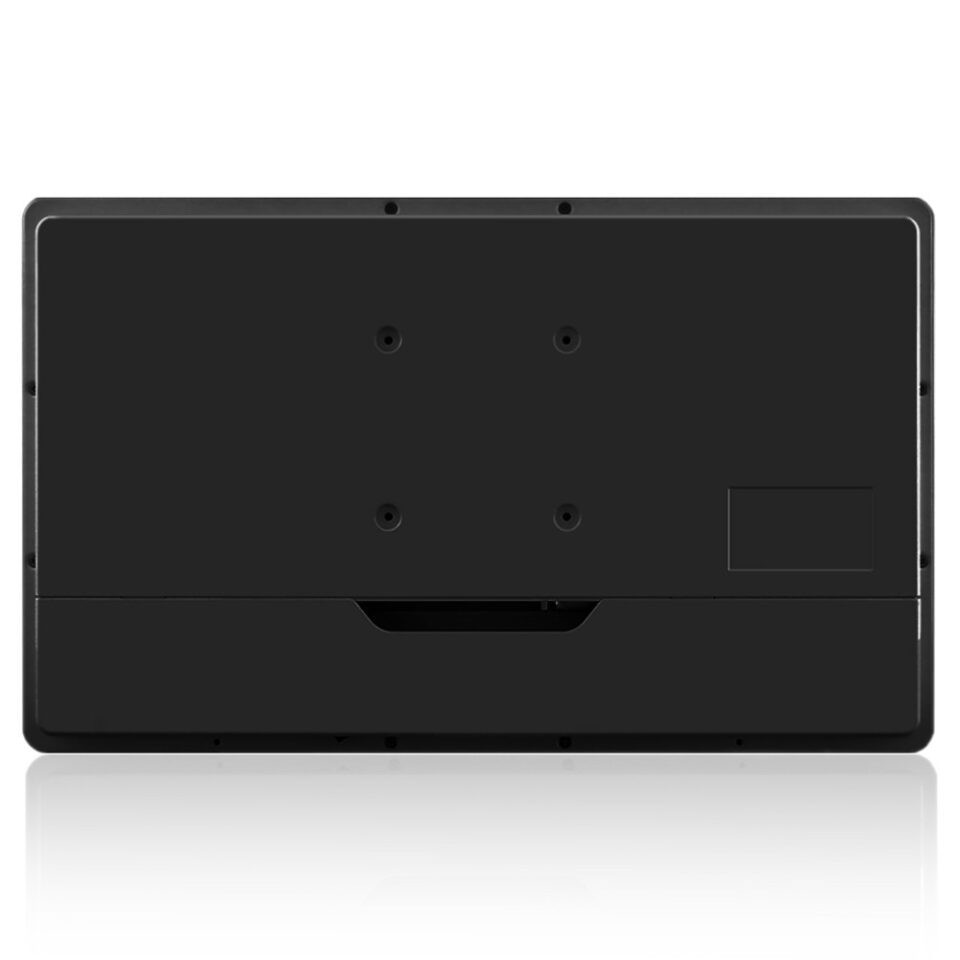

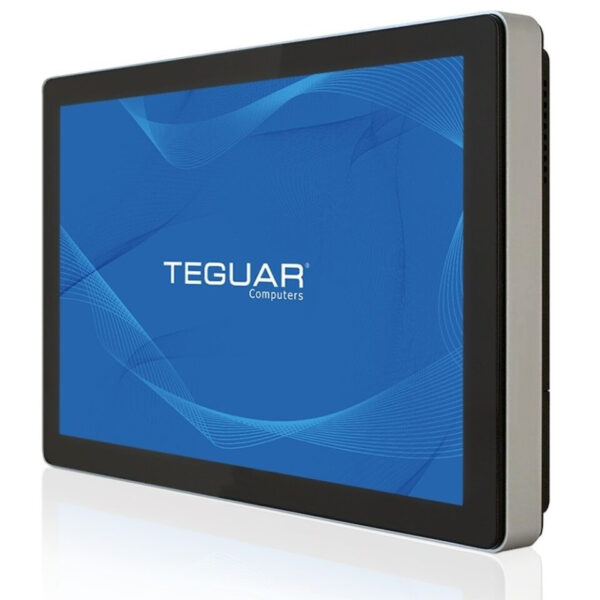

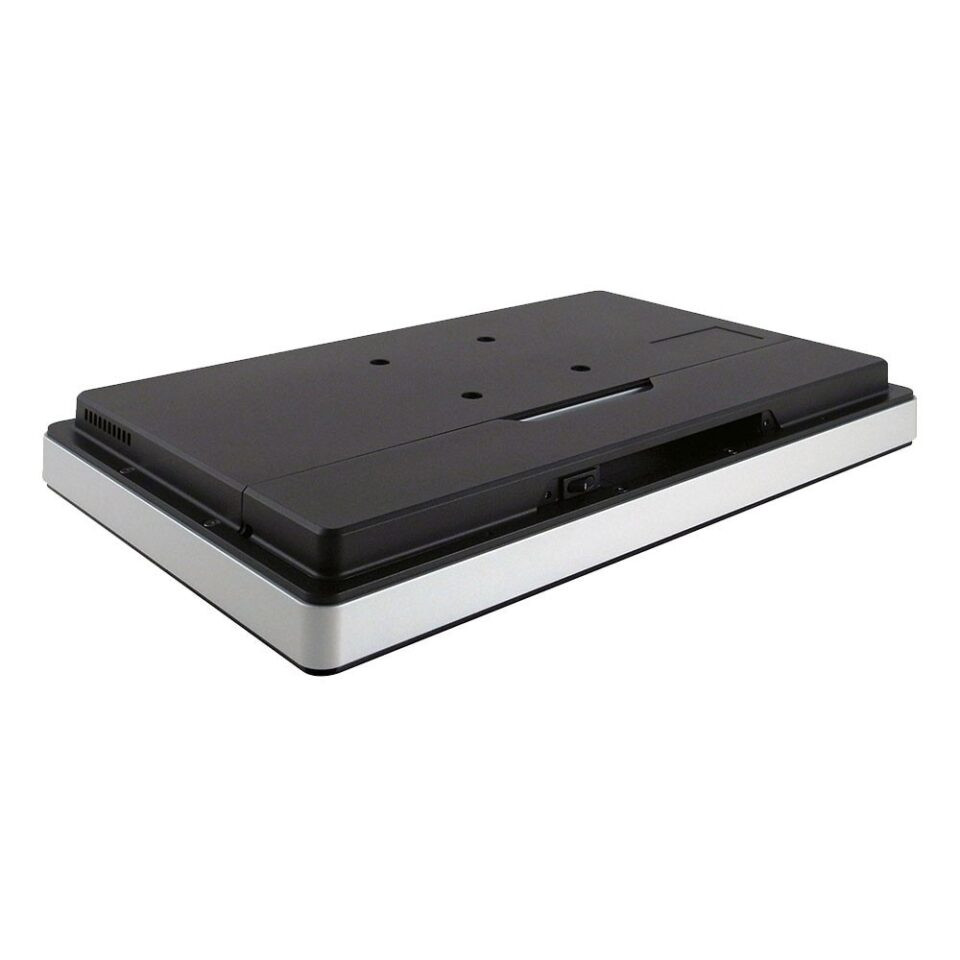

TP-5940-22

22" Fanless All-in-One PC
Available – Contact Us for Quick Quote

Description

This industrial computer has a 21.5” widescreen P-cap touchscreen and runs on the powerful Intel Tiger Lake Core i5 CPU. The TP-5940-22 utilizes fanless cooling and is built with rugged aluminum housing. The front bezel of this computer is IP65 rated waterproof, so it can easily be sprayed and wiped down for cleaning. This PC has options for a webcam, Bluetooth, RFID and barcode reader, for seamless integration into your system. This reliable computer is designed for 24/7 operation in even the most demanding of work environments.

Key Highlights

  • 21.5″ True Flat IP65 Protected Touchscreen
  • Intel Tiger Lake Core i5 CPU
  • Fanless and low power consumption
  • Aluminum Die-Cast Housing
  • Multiple I/Os including 2x USB Type C, 2x USB 3.0, 2x USB 2.0, 1x LAN, 2x DB9

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i5 1145G7
Processor Speed2.6 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support2GB, 4GB, 8GB, 16GB
Storage Type1x M.2 slot for SSD
Storage Support32GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB2x USB 2.0, 2x USB 3.0, 2x USB 3.0 type C
Ethernet / LAN1x RJ45 GbE LAN
Other Ports2x DB9 COM
Audio Ports1x Audio Line-In, 1x Audio Line-Out
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Standard Power Adapter120W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11

Compatibility

Security HardwarefTPM 2.0, Intel vPro Technology: Intel AMT Supported

Multimedia

Speakers2x 2W Speakers
Camera2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 35°C (32°F – 95°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range20% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel
Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional 802.11 b/g/n/ac
BluetoothOptional Bluetooth 5.1
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID Module

Weight / Dimensions

Weight7.75 kg (17.1 lbs)
Dimensions536 x 48 x 328 mm (21.1 x 1.9 x 12.9 in)

Warranty

WarrantyUp to 5 Years

Manufacturing: The TP-5940 series is well-suited for manufacturing environments, where it can be used for process control, data monitoring, and production line management. Its rugged design, fanless cooling, and durable housing make it ideal for withstanding the demands of industrial settings.

Warehousing and Logistics: These all-in-one computers can be utilized in warehouses and logistics operations for inventory management, order tracking, and barcode scanning. The integrated barcode scanner and RFID reader streamline operations and improve efficiency in handling goods and managing inventory.

Shop Floor Automation: In industrial settings, these computers can be used for shop floor automation, providing real-time access to production data, work instructions, and quality control processes. Their ruggedness and compatibility with industrial protocols make them suitable for integration into automation systems.

Dimensional Drawings & I/Os

I/O Diagram Images

tp-5940-ios

Tech Diagram Images

TP-5940 Tech Drawing
