TP-4840-22

22" Industrial Computer
Available – Contact Us for Quick Quote

Description

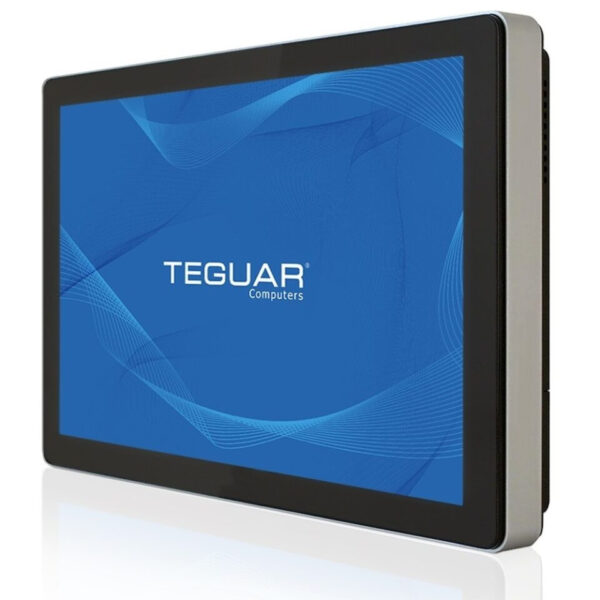

The 22” Industrial All-In-One PC runs on a Elkhart Lake Quad Core CPU with Windows 11 capabilities. The front bezel is IP65 rated, which protects the unit from dust and water. This rugged computer has aluminum die cast housing and a fanless operation. This industrial panel pc is ideal for commercial use with its progressive design and industrial grade components. The strong processor allows for many programs to run simultaneously with Linux OS or 64 bit Windows OS installed.

Key Highlights

  • 21.5″ Protected Capacitive Touchscreen
  • Intel Elkhart Lake 10th Gen Celeron J6412 Quad core CPU
  • Optional Built-in 2MP Webcam
  • Durable Aluminum Die-Cast Housing
  • Fanless with Low Power Consumption
  • Multiple I/Os including 6x USB ports total, 1x LAN & more

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz, 2.6 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x M.2 slot for SSD
Storage SupportM.2: 64GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB1x USB 2.0 type C (data only), 1x USB 3.0 type C (data only), 2x USB 2.0, 2x USB 3.0
Serial / Com2x COM
Serial Protocol DetailDB-9 interface, RS-232 protocol, with configurable power to Pin-9
Ethernet / LAN1x RJ45 GbE LAN
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19.5V DC
Max Power Consumption65W
Standard Power Adapter90W, 19.5V Power Adapter Included

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11
LinuxLinux (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2
Video Card SupportIntel HD Graphics

Multimedia

Speakers2x 2W Speakers
CameraOptional 2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range25% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel

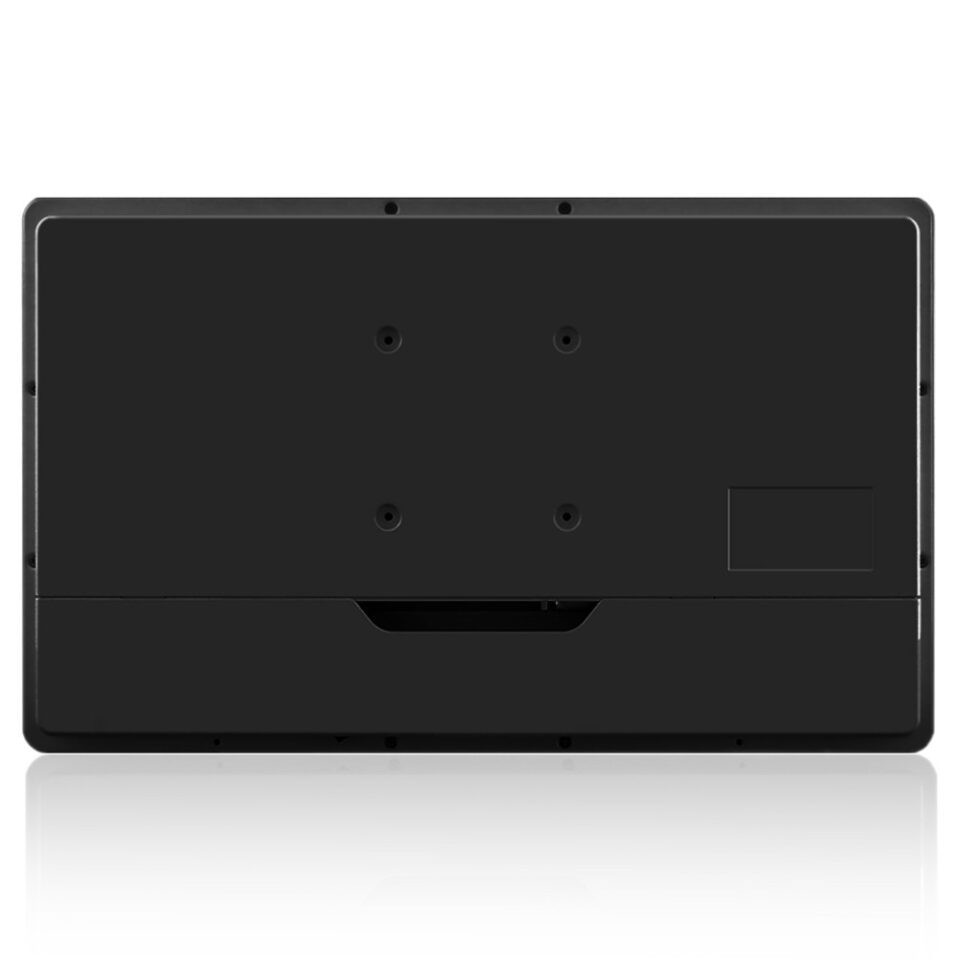

Mounting OptionsVESA 75 Mount
Approved Cleaning SolutionsAcetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat

Peripherals & Wireless Connectivity

WiFiOptional WiFi 6E
BluetoothOptional Bluetooth 5.3

Weight / Dimensions

Weight8 kg (17.6 lbs)
Dimensions536 x 48 x 328 mm (21.1 x 1.9 x 12.9 in)

Certification

CertificationsCE, FCC Class B, LVD

Warranty

WarrantyUp to 5 Years

Manufacturing Line Monitoring in Automotive Industry: The TP-4840 Series can be used to monitor and control manufacturing lines in the automotive industry, providing real-time data visualization, process tracking, and quality control for improved efficiency and productivity.

Assembly Operations in Electronics Industry: These industrial all-in-one PCs are suitable for assembly operations in the electronics industry, enabling operators to access work instructions, perform quality checks, and manage inventory, ensuring accurate and efficient assembly processes.

Industrial Automation in Food Processing Industry: The TP-4840 Series can be integrated into industrial automation systems in the food processing industry, enabling operators to monitor and control production processes, manage recipe settings, and ensure compliance with safety regulations.

Facility Management in Logistics and Warehousing: These computers can be utilized for facility management in logistics and warehousing, providing real-time monitoring of equipment, energy consumption, and environmental conditions, optimizing resource allocation and enhancing operational efficiency.

Dimensional Drawings & I/Os

I/O Diagram Images

Tech Diagram Images

TP-4040-22 Technical Drawing
