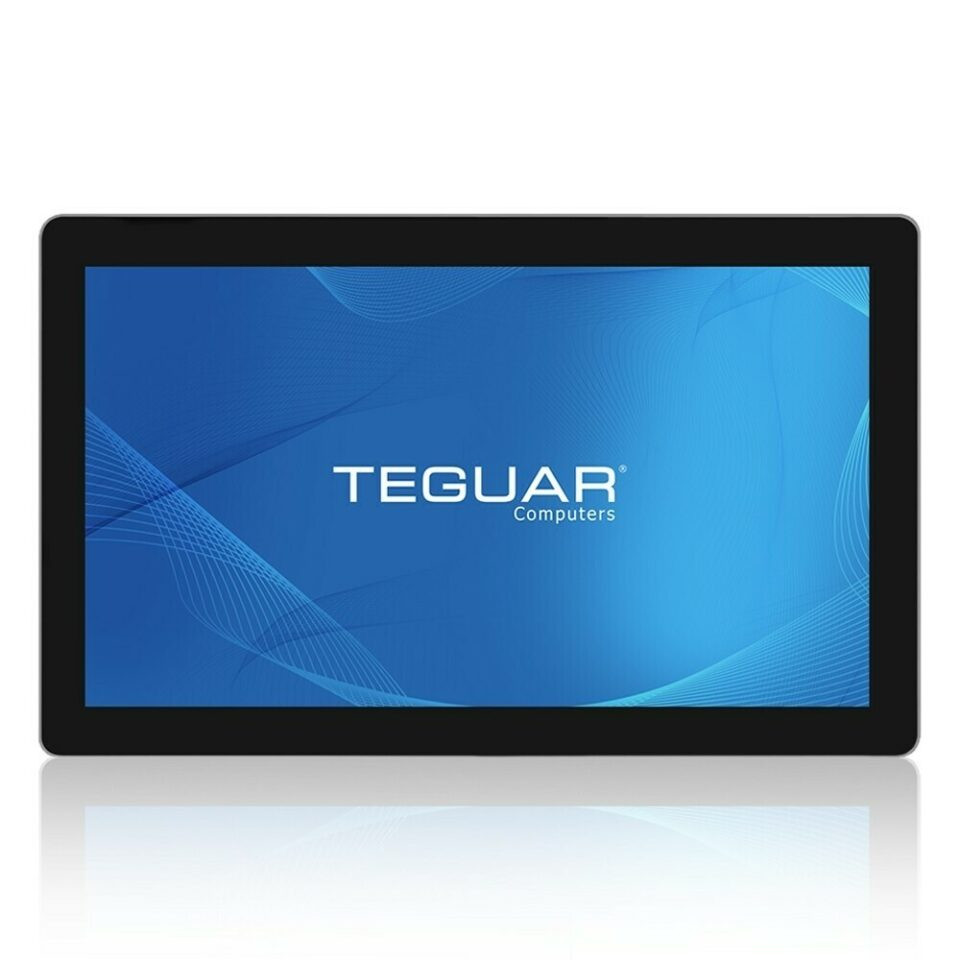

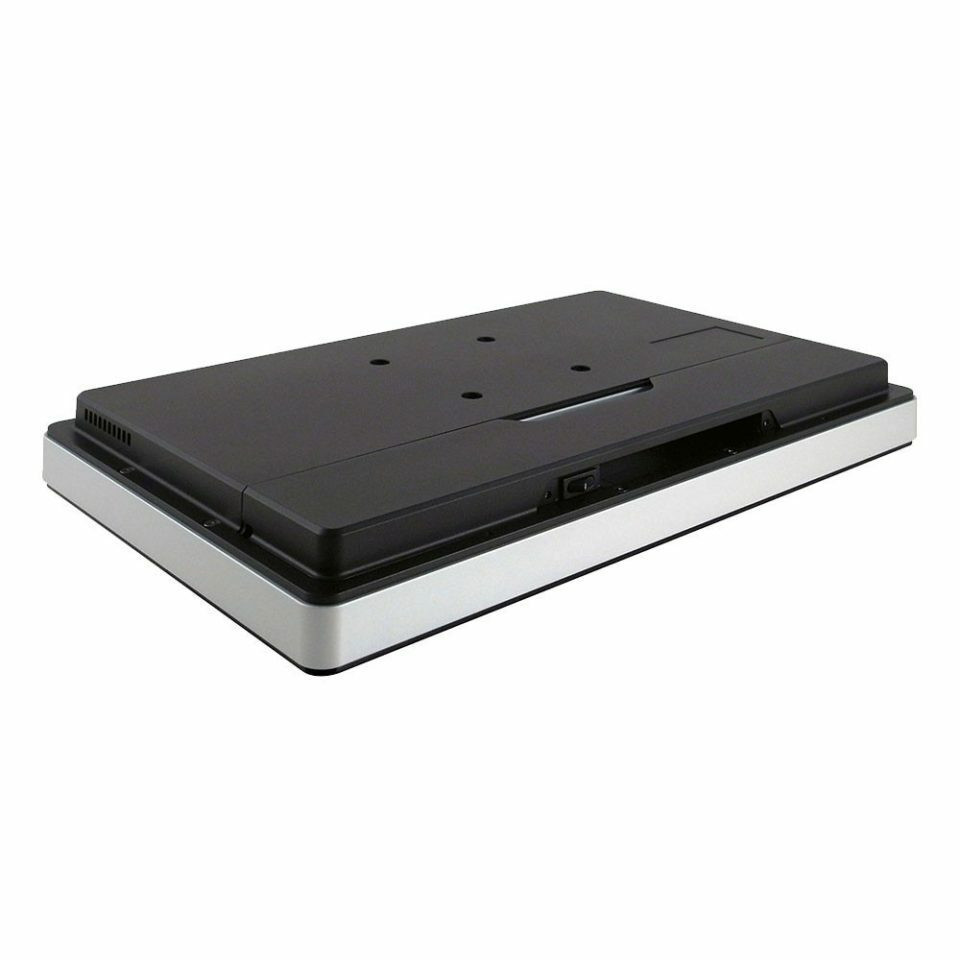

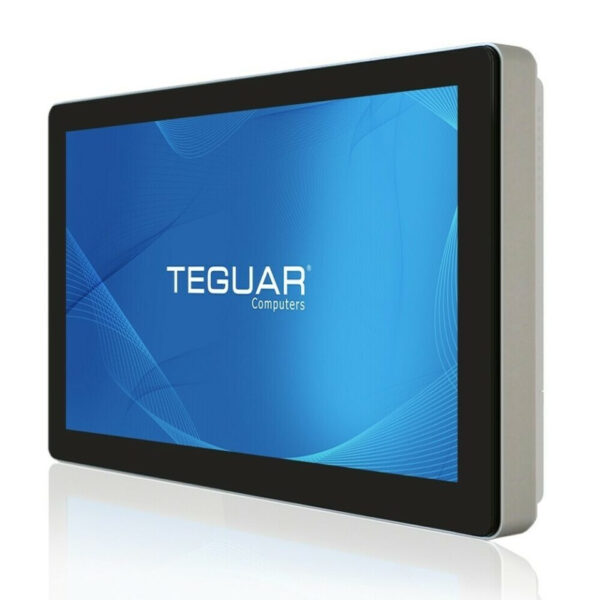

TP-4840-18

18" Industrial Computer
Available – Contact Us for Quick Quote

Description

This 18.5” Industrial All-In-One PC runs on a Elkhart Lake Quad Core CPU with Windows 11 capabilites. The front bezel is IP65 rated, which protects the unit from dust and water. This rugged computer has aluminum die cast housing and a fanless operation. This all-in-one computer is ideal to use as the HMI (Human Machine Interface) in a kiosk, where touchscreen interaction is required. The TP-4840-18 provides consistent, reliable performance in manufacturing and production environments 24/7.

Key Highlights

  • 18.5″ LED LCD Touchscreen
  • Intel Elkhart Lake 10th Gen Celeron J6412 Quad-core CPU
  • Fanless Cooling System
  • Aluminum Die-Cast Housing
  • Integrated Webcam, WLAN, & BT 4.0
  • Multiple I/Os including 6x USB Ports total, 1x LAN & more

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz, 2.6 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x M.2 slot for SSD
Storage SupportM.2: 64GB-1TB

Display

Screen Size18.5"
Resolution1366 x 768
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB2x USB 2.0, 2x USB 3.0, 2x USB Type C (Data only)
Serial / Com2x COM
Serial Protocol DetailDB-9 interface, RS-232 protocol, with configurable power to Pin-9
Ethernet / LAN1x RJ45 GbE LAN
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Max Power Consumption65W
Standard Power Adapter120W Power Adapter Included

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11
LinuxLinux (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2

Multimedia

Speakers2x 2W Speakers
Camera2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range25% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel

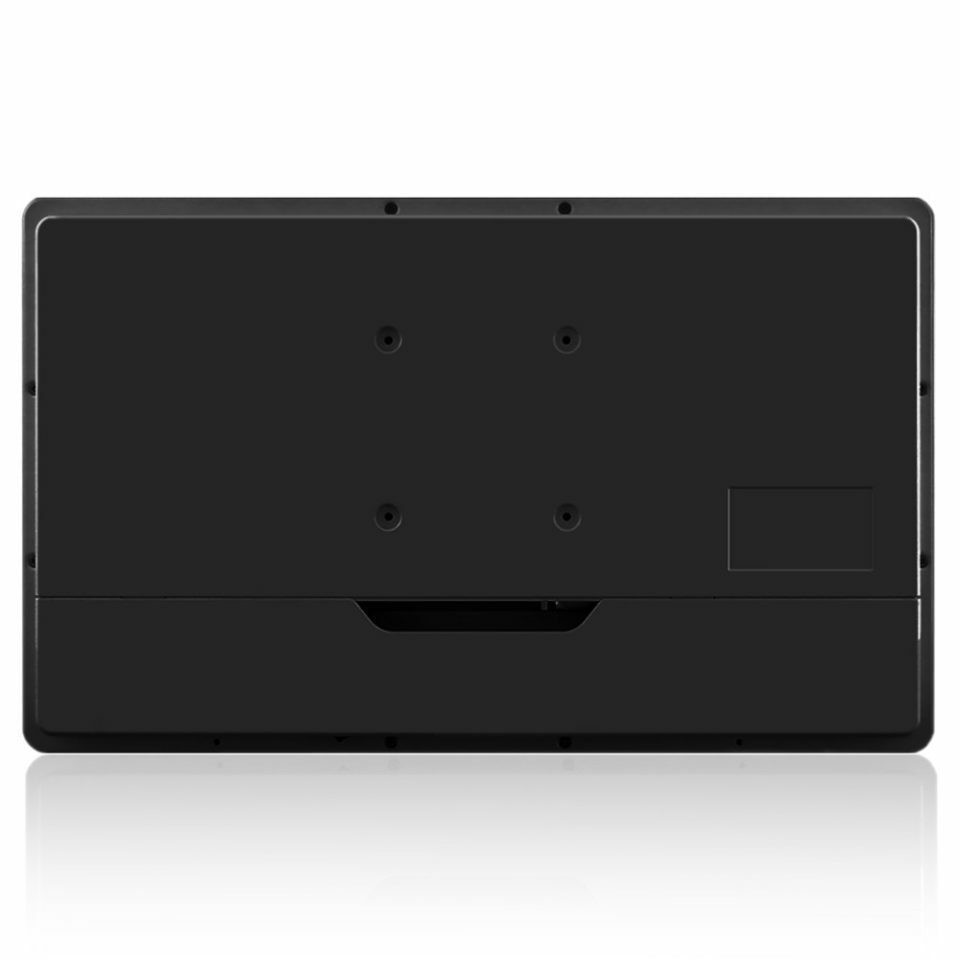

Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi 6E
BluetoothOptional Bluetooth 5.3
Barcode ScannerOptional 1D/2D Barcode Scanner

Weight / Dimensions

Weight6.8 kg (15.0 lbs)
Dimensions464 x 284 x 48 mm (18.3 x 11.2 x 1.9 in)

Certification

CertificationsCE, FCC Class B, LVD

Warranty

WarrantyUp to 5 Years

Manufacturing Line Monitoring in Automotive Industry: The TP-4840 Series can be used to monitor and control manufacturing lines in the automotive industry, providing real-time data visualization, process tracking, and quality control for improved efficiency and productivity.

Assembly Operations in Electronics Industry: These industrial all-in-one PCs are suitable for assembly operations in the electronics industry, enabling operators to access work instructions, perform quality checks, and manage inventory, ensuring accurate and efficient assembly processes.

Industrial Automation in Food Processing Industry: The TP-4840 Series can be integrated into industrial automation systems in the food processing industry, enabling operators to monitor and control production processes, manage recipe settings, and ensure compliance with safety regulations.

Facility Management in Logistics and Warehousing: These computers can be utilized for facility management in logistics and warehousing, providing real-time monitoring of equipment, energy consumption, and environmental conditions, optimizing resource allocation and enhancing operational efficiency.

Dimensional Drawings & I/Os

I/O Diagram Images

Tech Diagram Images

Teguar Industrial PC Technical Drawing
