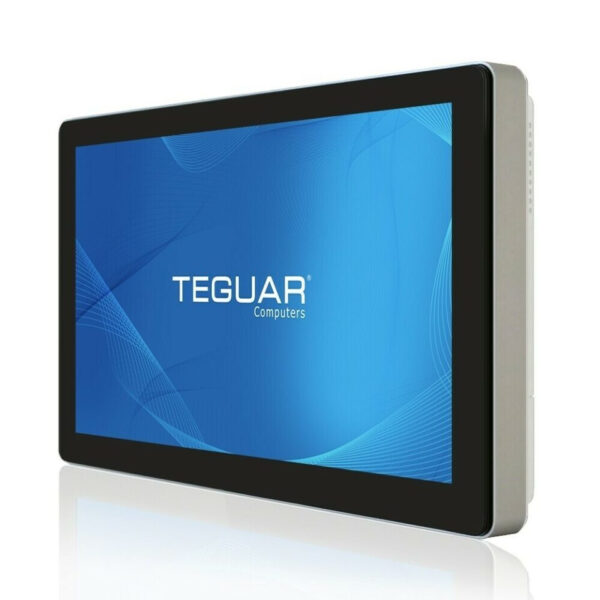

TP-4840-16

16" Industrial PC
Available – Contact Us for Quick Quote

Description

The TP-4840-16 is best in class for industrial all-in-one computers. The Elkhart Lake Quad Core CPU allows for multiple programs to run simultaneously and is capable of runnign Windows 11 smoothly. This all-in-one computer is ideal to use as the HMI (Human Machine Interface) in a kiosk where constant use and touch screen interaction is required. Point of Sale payment modules and other custom configurations are available to meet your particular needs. The TP-4840-16 has highly durable housing, a fanless design, and multiple I/Os.

Key Highlights

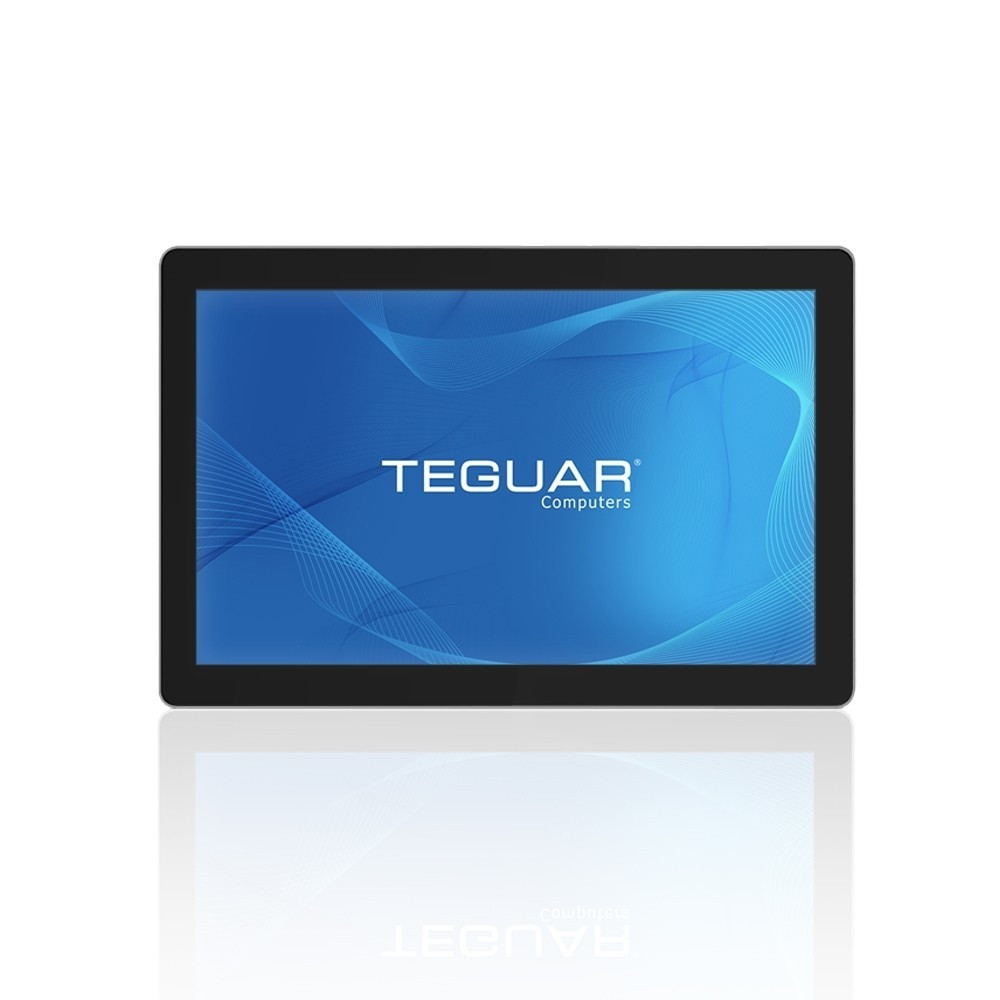

  • 15.6″ True Flat Touchscreen with LCD Display
  • Intel Elkhart Lake 10th Gen Celeron J6412 Quad core CPU
  • Aluminum Die-Cast Housing
  • Integrated Webcam, WLAN, & BT 4.0
  • Fanless and Low Power Consumption

Primary Components

Processor FamilyIntel Celeron Elkhart Lake
Processor ModelCeleron J6412 Quad
Processor Speed2.0 GHz, 2.6 GHz
Memory Type1x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB
Storage Type1x M.2 slot for SSD
Storage SupportM.2: 64GB-1TB

Display

Screen Size15.6"
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness220 nits

Touch Screen

Touch ScreenProjected Capacitive

External I/O Ports

USB2x USB 2.0, 2x USB 3.0, 2x USB Type C (Data only)
Serial / Com2x COM
Serial Protocol DetailDB-9 interface, RS-232 protocol, with configurable power to Pin-9
Ethernet / LAN1x RJ45 GbE LAN
Power Input Port4-Pole DIN (latching)

Power

Input Voltage Range19V DC
Standard Power Adapter65W Power Adapter

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11
LinuxLinux (Contact your sales rep for more information)

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2
Video Card SupportIntel HD Graphics

Multimedia

Speakers2x 2W Speakers
Camera2MP Webcam

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Cooling SolutionPassive – Fanless
Humidity Range25% – 85% Non-condensing

Enclosure

MaterialAluminum
IP RatingIP65 Front Bezel

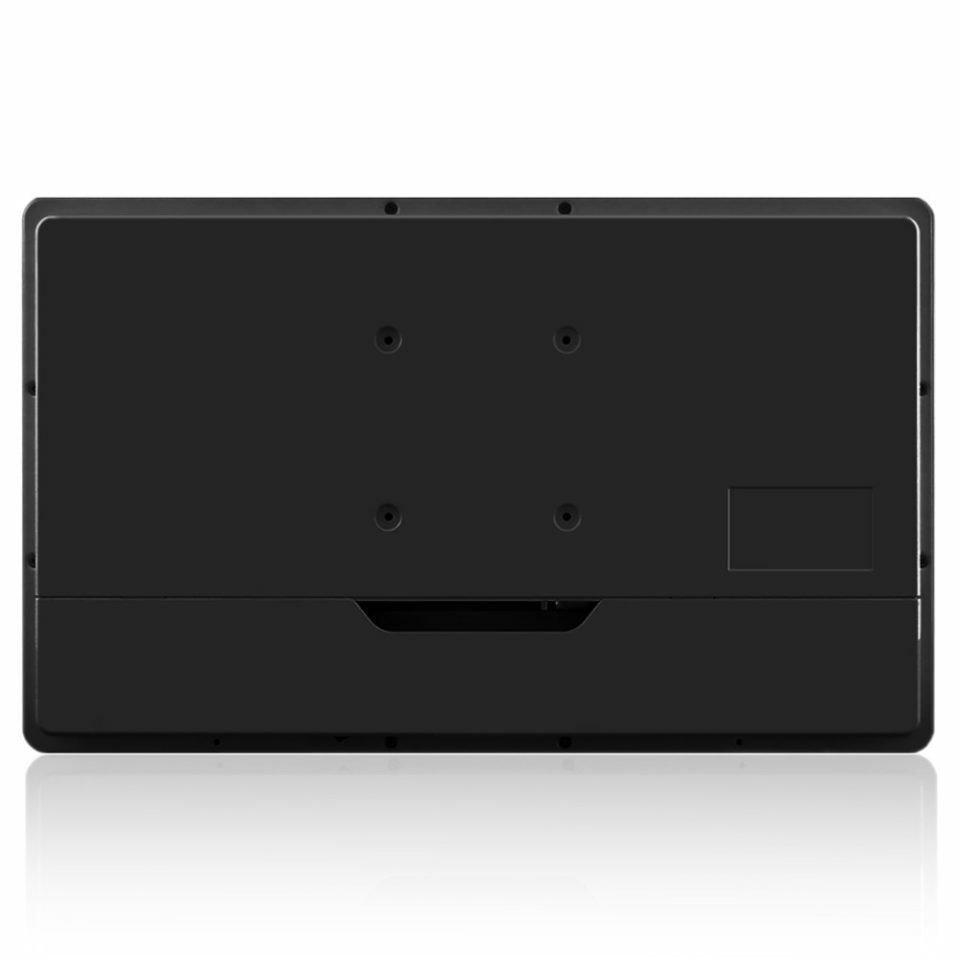

Mounting OptionsVESA 75 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi 6E
BluetoothOptional Bluetooth 5.3
Barcode ScannerOptional 1D/2D Barcode Scanner
RFIDOptional RFID Module

Weight / Dimensions

Weight4.5 kg (9.9 lbs)
Dimensions396 x 48 x 245 mm (15.6 x 1.9 x 9.6 in)

Certification

CertificationsBIS, CCC, CE, FCC Class B, LVD

Warranty

WarrantyUp to 5 Years

Manufacturing Line Monitoring in Automotive Industry: The TP-4840 Series can be used to monitor and control manufacturing lines in the automotive industry, providing real-time data visualization, process tracking, and quality control for improved efficiency and productivity.

Assembly Operations in Electronics Industry: These industrial all-in-one PCs are suitable for assembly operations in the electronics industry, enabling operators to access work instructions, perform quality checks, and manage inventory, ensuring accurate and efficient assembly processes.

Industrial Automation in Food Processing Industry: The TP-4840 Series can be integrated into industrial automation systems in the food processing industry, enabling operators to monitor and control production processes, manage recipe settings, and ensure compliance with safety regulations.

Facility Management in Logistics and Warehousing: These computers can be utilized for facility management in logistics and warehousing, providing real-time monitoring of equipment, energy consumption, and environmental conditions, optimizing resource allocation and enhancing operational efficiency.

Dimensional Drawings & I/Os

I/O Diagram Images

Tech Diagram Images

TP-5040-15 Industrial Computer Drawing
