TP-3445-15

15” Fanless Industrial Computer

Available – Contact Us for Quick Quote

Description

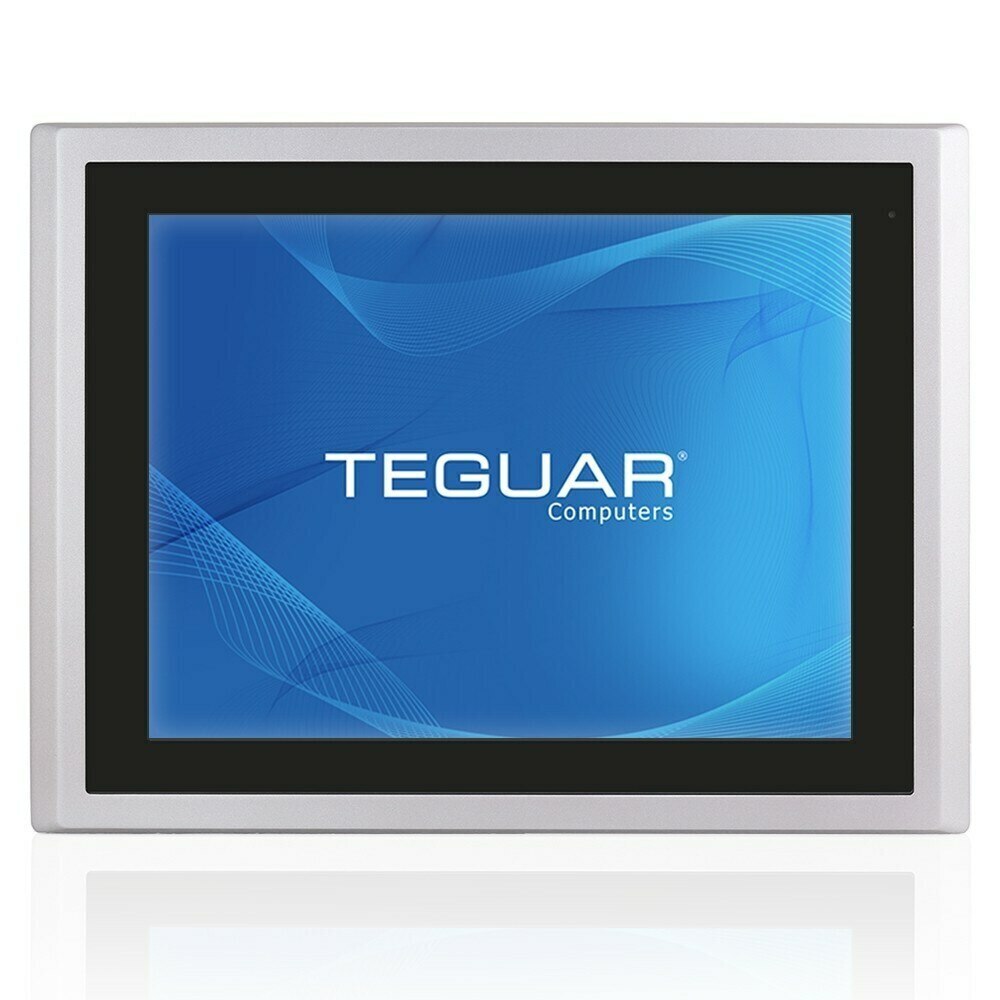

The TP-3445-15 is an industrial grade panel PC built to last in tough manufacturing environments. It is built with durable die cast aluminum and has an IP66 waterproof rated front bezel. Running on an Intel Quad Core CPU, the TP-3445-15 is ideal for SCADA, HMI and other IIoT applications. This PC has several expansion boards to choose from, which allow you to add Mini-PCIe, SIM, USB or COM. This computer also supports Power over Ethernet, an optional internal backup battery, Pcap or resistive touch, and a high bright LCD. Teguar is committed to supporting and selling this unit until at least 2030, so you don’t need to worry about unexpected hardware changes interrupting your workflow.

Key Highlights

15” Pcap or Resistive Touch Screen
Intel Apollo Lake N4200 Quad Core CPU
Die-cast Aluminum Housing & IP66 Front
Wide Range DC 9~36V Power Input
Optional Power over Ethernet

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Pentium Apollo Lake
Processor Model	N4200
Processor Speed	1.10 GHz
Memory Type	Onboard DDR3
Memory Support	4GB, 8GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 300 nits

Touch Screen

Projected Capacitive, Resistive

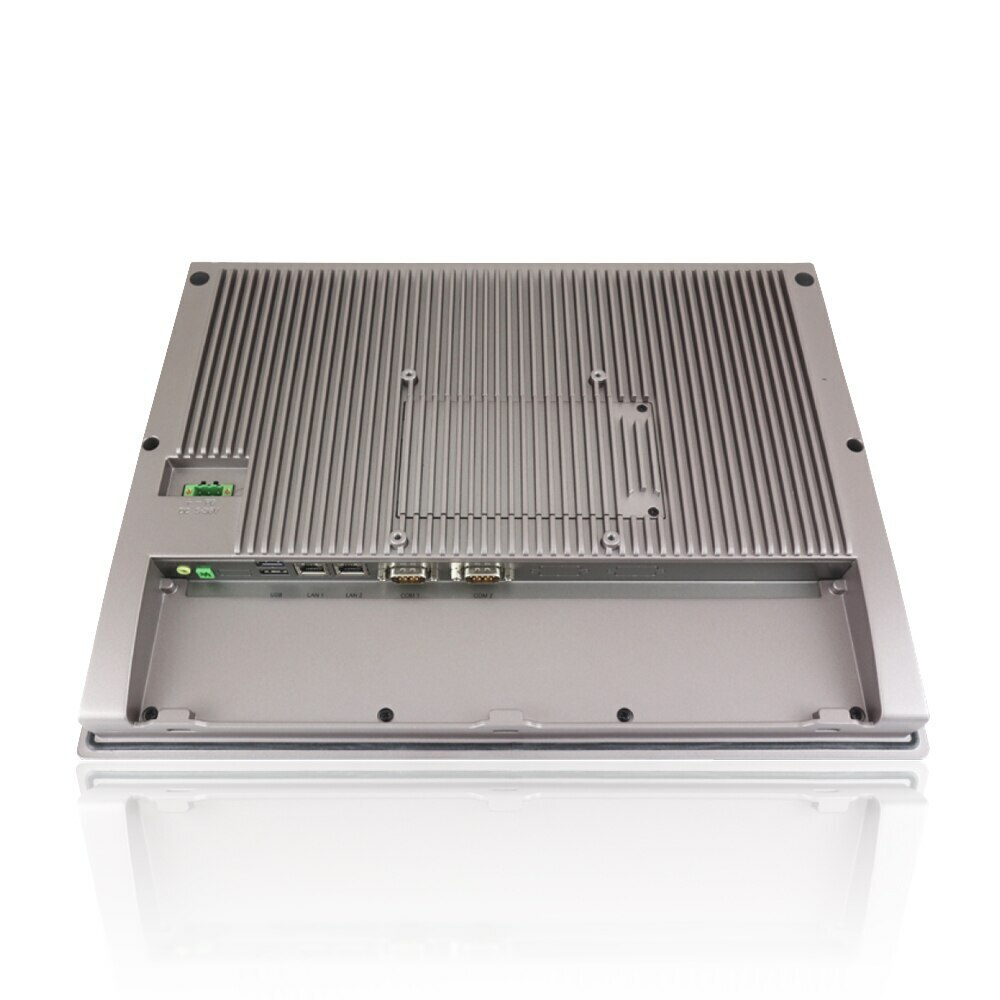

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	Optional POE++, 45W with 2x USB 2.0, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	32W
Standard Power Adapter	Optional 12V AC/DC Adapter

Battery

Battery Type

Optional Internal Battery

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro
Linux	Linux (Contact your sales rep for more information)

Expansion Slots

SD card

1x Micro SD Slot

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi
Bluetooth	Optional Bluetooth 4.0
Mobile Network 4G LTE	Optional 4G

Weight / Dimensions

Weight	4.5 kg (9.9 lbs)
Dimensions	410 x 310 x 54.7 mm (16.1 x 12.2 x 2.2 in)

Certification

Certifications

CE, FCC Class A, UL 60950, UL 62368

Warranty

Up to 5 Years

Industrial Automation: The TP-3445 Series is well-suited for industrial automation applications such as machine control, data acquisition, and process monitoring. The durable construction and wide range of expansion options make it reliable and flexible in various industrial environments.

Outdoor Digital Signage: With its optional high-bright, sunlight-readable LCD, the TP-3445 Series is ideal for outdoor digital signage. It can withstand different weather conditions and deliver clear and visible content to engage customers or provide information in outdoor settings.

Transportation and Logistics: These panel PCs are suitable for transportation and logistics applications such as fleet management, vehicle tracking, and warehouse management. The wide range DC power input and optional internal backup battery ensure uninterrupted operation in mobile and remote environments.
