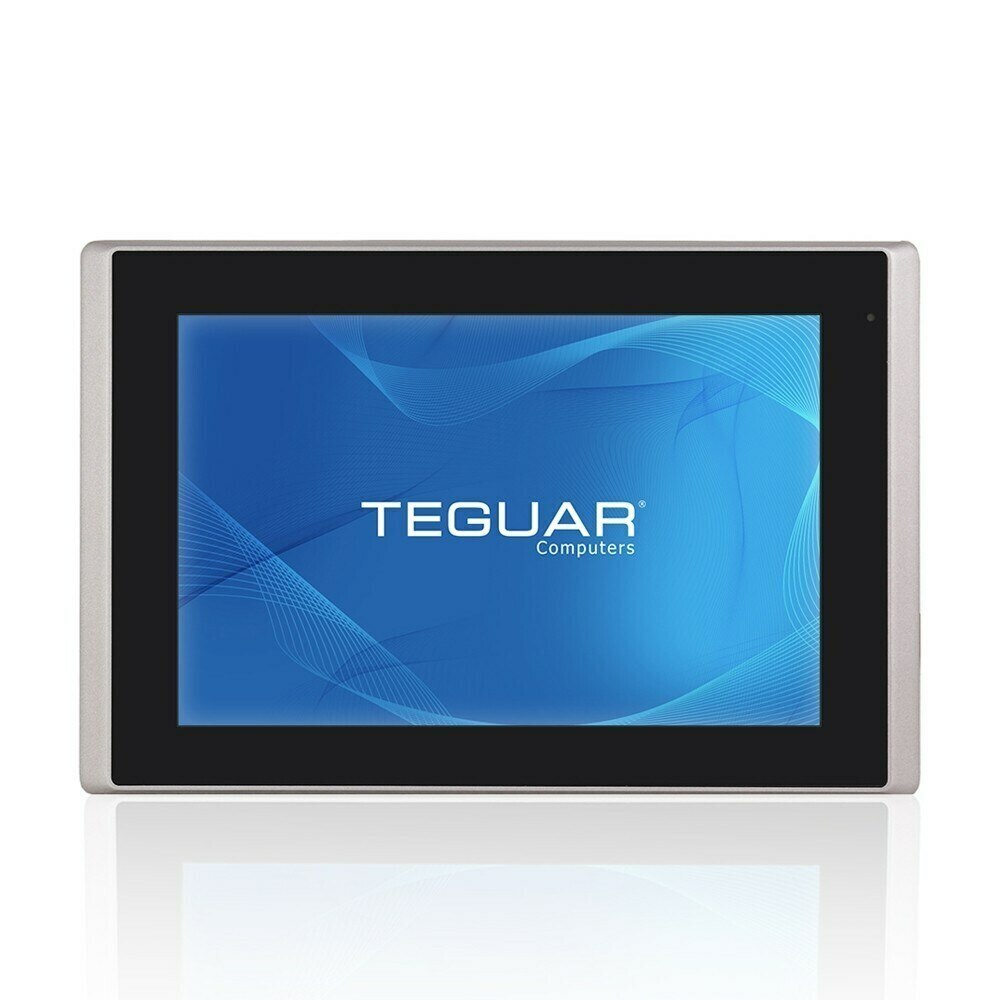

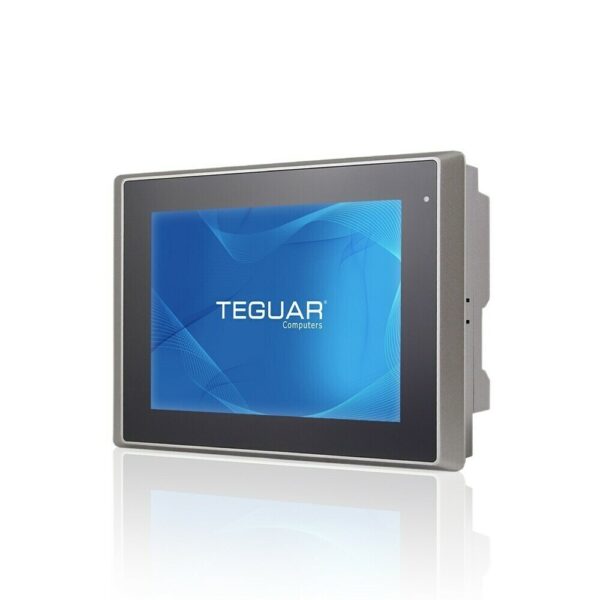

TP-3445-07

7” Industrial Panel PC

Available – Contact Us for Quick Quote

Description

The TP-3445-07 is a compact panel PC that can fit into a control cabinet or tight space on your production line. This computer is built with die-cast aluminum housing and fanless heatsink cooling. It has an IP66 rated front bezel and accessable storage via 3 screws on the back of the unit. This 7 inch panel pc runs on an Intel Apollo Lake CPU and is on the embedded roadmap, meaning Teguar will produce and support this PC until at least 2030. This means you don’t have to worry about unexpected hardware changes interrupting your workflows and can continue to purchase this unit unchanged over the next decade. The TP-3445-07 is an industrial grade computer and it’s built to last, even in tough manufacturing environments.

Key Highlights

7” TFT-LCD Touchscreen
Intel Apollo Lake N4200 Quad Core CPU
Die-cast Aluminum Housing
Accessable Storage Bay
Light Weight at Only 2.4lbs

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Pentium Apollo Lake
Processor Model	N4200
Processor Speed	1.10 GHz
Memory Type	1x DDR3L SO-DIMM
Memory Support	4GB, 8GB
Storage Type	1.8" Half Size MO297 SATA Drive Bay
Storage Support	32GB-256GB

Display

Screen Size	7"
Resolution	800 x 480 (WVGA)
Screen Ratio	5:3
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

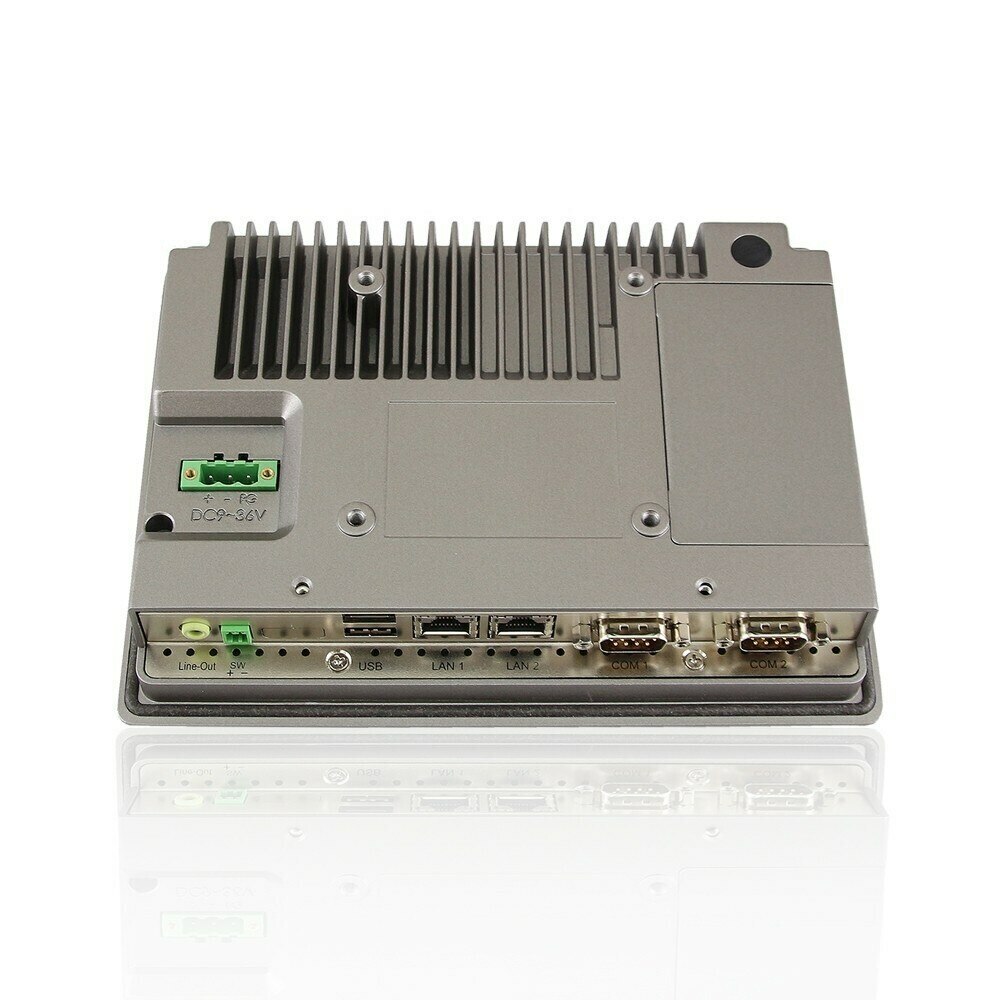

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V AC/DC Adapter

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro
Linux	Linux (Contact your sales rep for more information)

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel

Peripherals & Wireless Connectivity

WiFi	Optional WiFi
Bluetooth	Optional Bluetooth 4.0
Mobile Network 4G LTE	Optional 4G

Weight / Dimensions

Weight	1.1 kg (2.4 lbs)
Dimensions	202 x 149 x 39 mm (8.0 x 5.9 x 1.5 in)

Certification

Certifications

CE, FCC Class A, UL 60950, UL 62368

Warranty

Up to 5 Years

Industrial Automation: The TP-3445 Series is well-suited for industrial automation applications such as machine control, data acquisition, and process monitoring. The durable construction and wide range of expansion options make it reliable and flexible in various industrial environments.

Outdoor Digital Signage: With its optional high-bright, sunlight-readable LCD, the TP-3445 Series is ideal for outdoor digital signage. It can withstand different weather conditions and deliver clear and visible content to engage customers or provide information in outdoor settings.

Transportation and Logistics: These panel PCs are suitable for transportation and logistics applications such as fleet management, vehicle tracking, and warehouse management. The wide range DC power input and optional internal backup battery ensure uninterrupted operation in mobile and remote environments.
