TMD-65-22B

21.5" Portable Medical Display
Available – Contact Us for Quick Quote

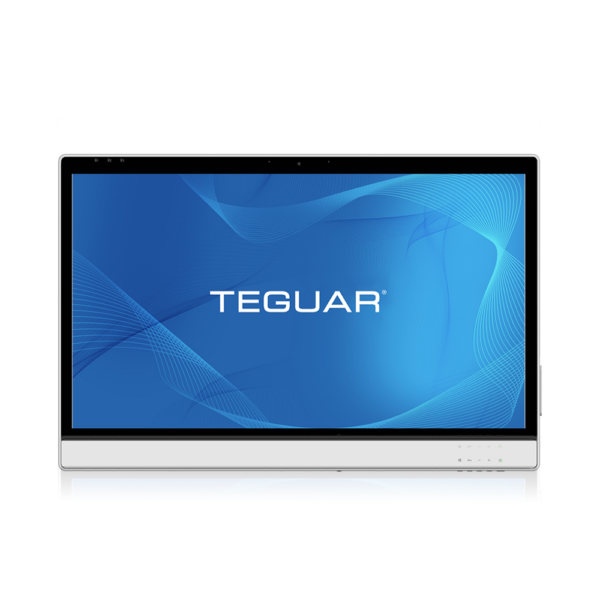

22" Portable Medical Display TMD-65-22B Front
22" Portable Medical Display TMD-65-22B Front

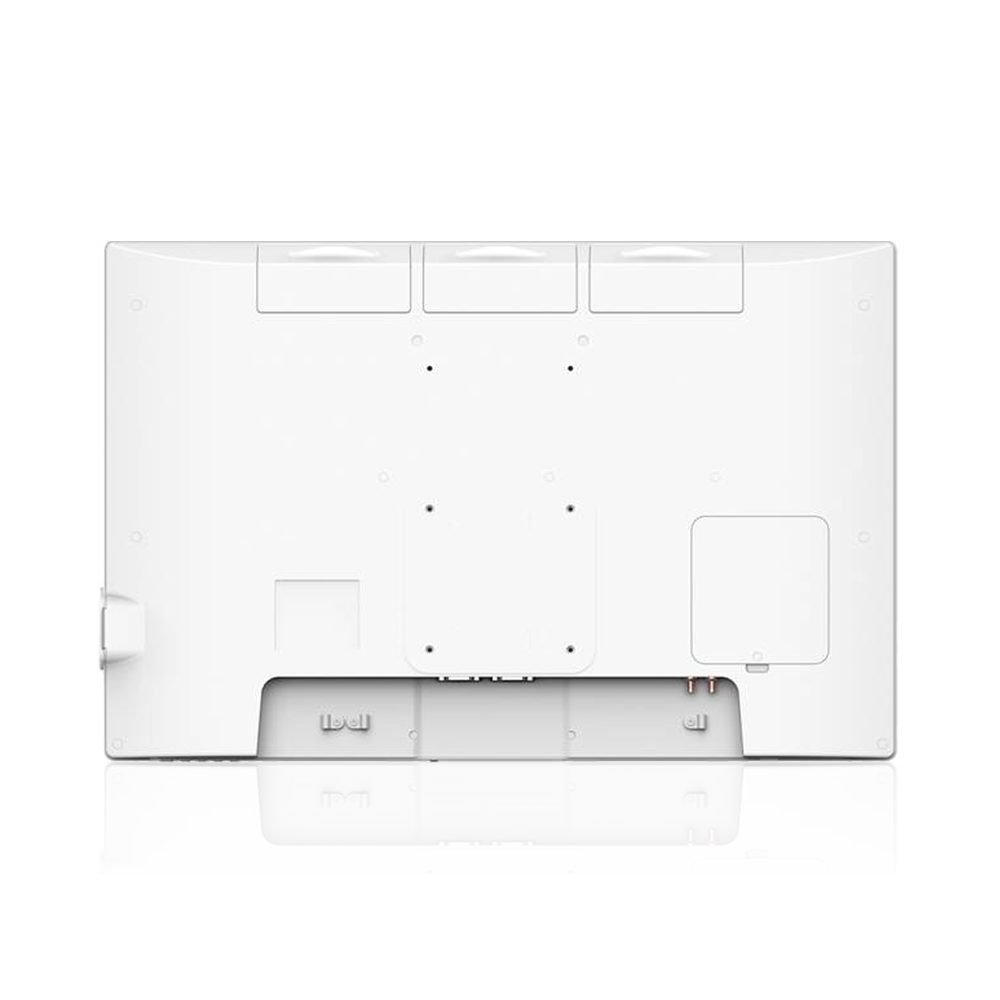

22" Portable Medical Display TMD-65-22B Back

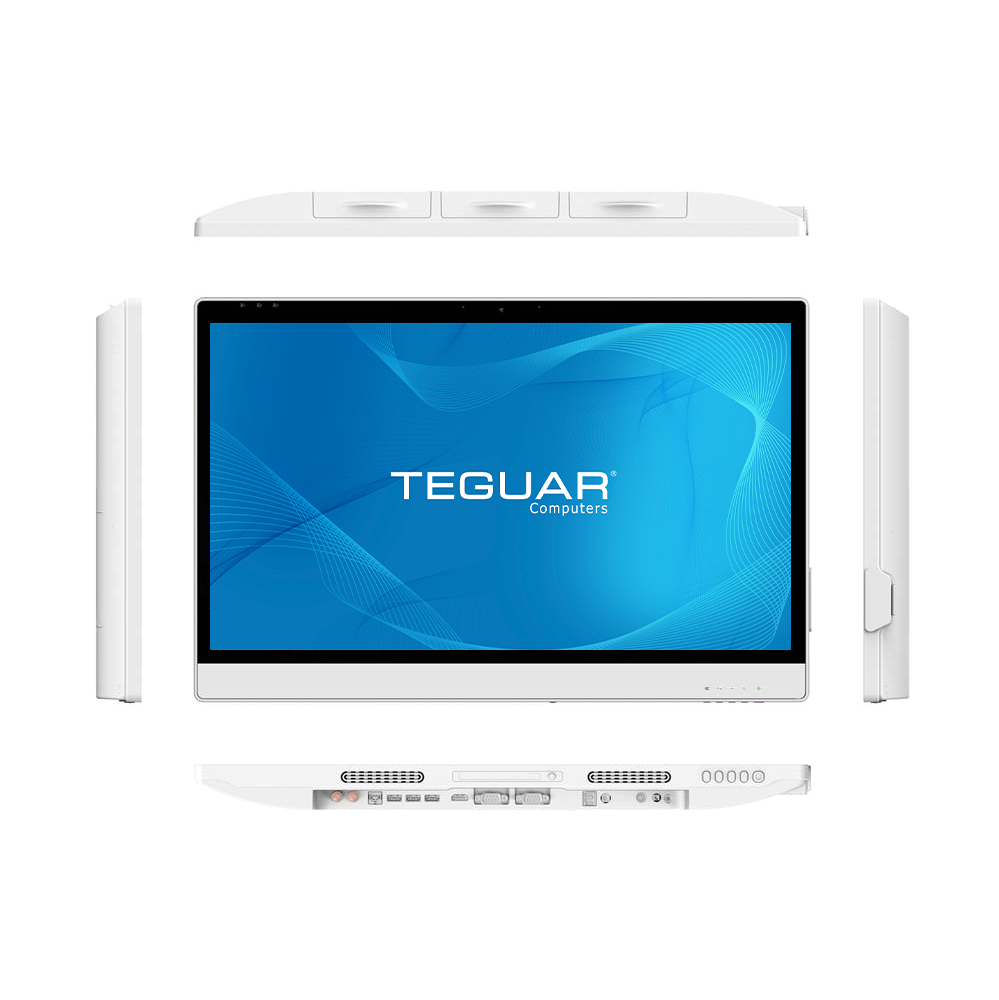

22" Portable Medical Display TMD-65-22B Front and Sides

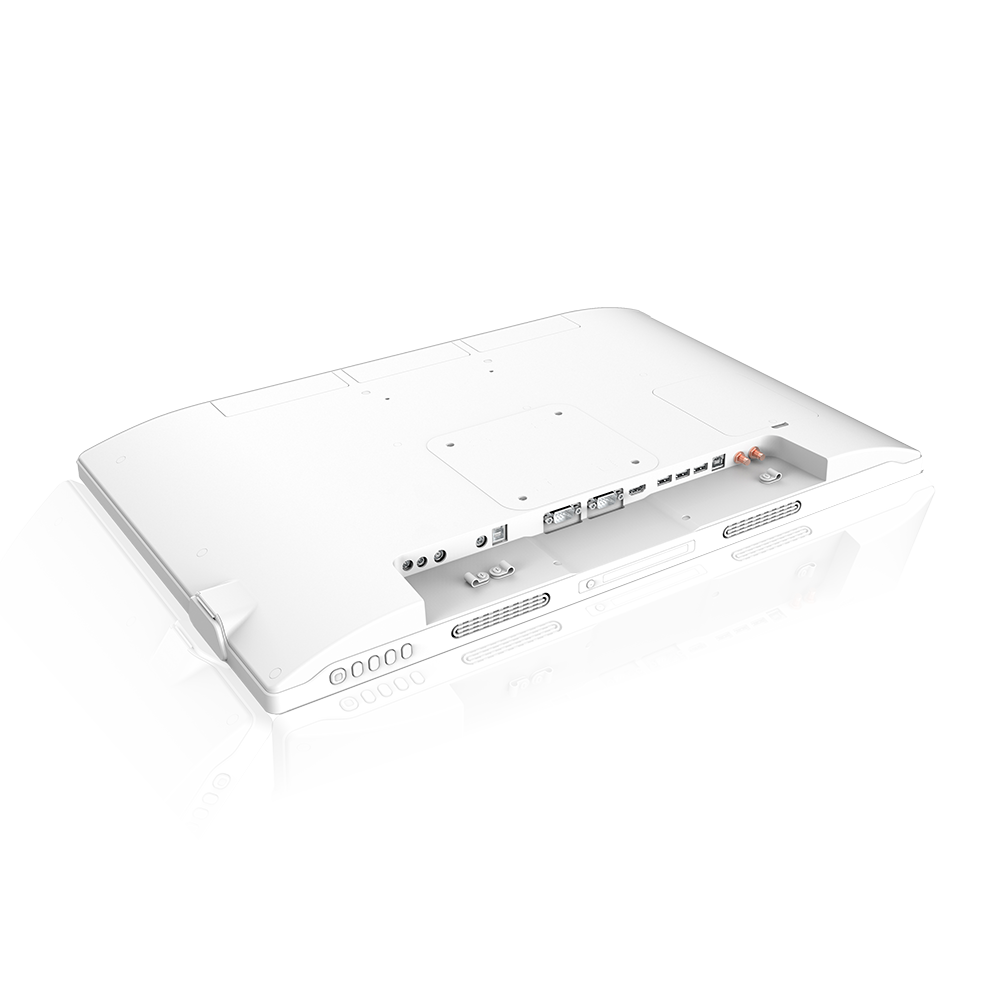

22" Portable Medical Display TMD-65-22B Flat IOs

Description

This portable medical display is a highly customizable vessel for any medical application. Featuring an IP65 water-resistant front panel for safe sanitization, this monitor is ideal wherever hygiene is key. The display is compatible with several accessories, including mounts, RFID scanners, a camera, and DC outputs with varied voltage to power accessories — even the PC it’s connected with. These specialized options allow for the device to be customized — and optimized — for each use case’s specific needs. What sets this apart from other medical displays is its battery operation, allowing it to be used anywhere, untethered. With batteries that can be exchanged without powering down, the portable display can operate seamlessly without interruption.

Key Highlights

  • Full HD 21.5” touch screen display
  • Three bays for hot-swappable batteries
  • VESA mountable
  • Built-in WiFi antennas and speakers
  • Medically compliant with anti-microbial surfaces

Screen Size

21.5" Battery 23.8" Battery 23.8" 27"
Get a DemoGet a Quick Quote

Tech Specs

See the data sheet Download Drivers

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x USB 2.0 Type-B (touch), 1x USB 3.0 Type-B, 2x USB 2.0, 3x USB 3.0
Serial / Com2x COM
Other Ports2x WiFi Antenna Passthrough

Power

Input Voltage Range19V DC
Standard Power Adapter19V, 6.31A DC Power Supply w/ US AC Power Cord

Battery

Battery TypeOptional Hot-Swappable 90Wh/8250mAh Battery

Multimedia

Speakers2x Speakers
CameraOptional 5MP Webcam
MicrophoneWith Optional 5MP Webcam

Thermal & Environmental

Operating Temperature0°C - 40°C - 0°C - 50°C (32°F – 104°F (With HDD), 32°F – 122°F (With SSD))
Storage Temperature-20°C - 60°C (-4°F – 140°F)
Humidity Range0% – 90% Non-condensing

Enclosure

MaterialAnti-Microbial, PC+ABS
IP RatingIP65 Front Bezel, IPX2 enclosure
ColorWhite
Control ButtonsAuto/Exit, Display on/off, Menu, Up/Down
Mounting OptionsDesktop Stand, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFiBuilt-In WiFi Antennas
RFIDOptional RFID Available

Weight / Dimensions

Dimensions345.9 x 516.9 x 40.4 mm (13.6 x 20.4 x 1.6 in)

Certification

Certifications60601 Compliant

Medical Imaging: View diagrams and data, from CT scans to X-rays, with perfect clarity on the high-contrast full HD (1920 x 1080) display.

Telemedicine: Patients can utilize the monitor’s built-in speakers and reading light, optional 5MP camera, and variety of mounting capabilities for virtual calls and other telehealth possibilities.

Patient Monitoring: With three integrated battery bays and an optional additional charger for six more, medical staff can monitor crucial and ever-changing information such as a patient’s vitals without missing a beat.

See the data sheetWarrantyDownload Drivers

Dimensional Drawings & I/Os

See the data sheet

I/O Diagram Images

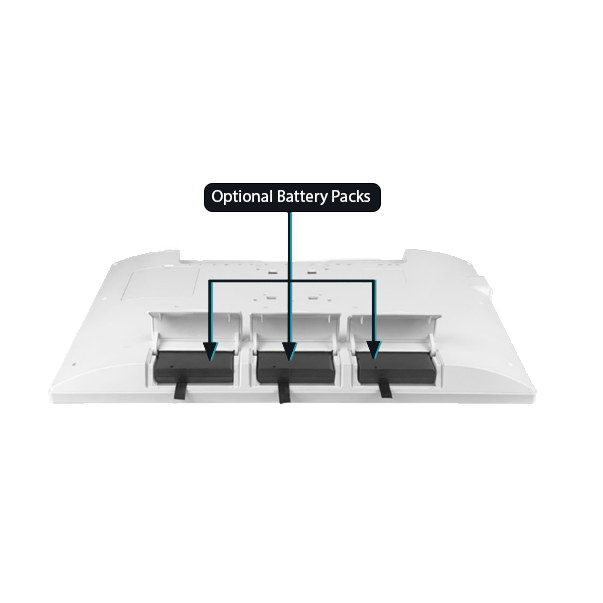

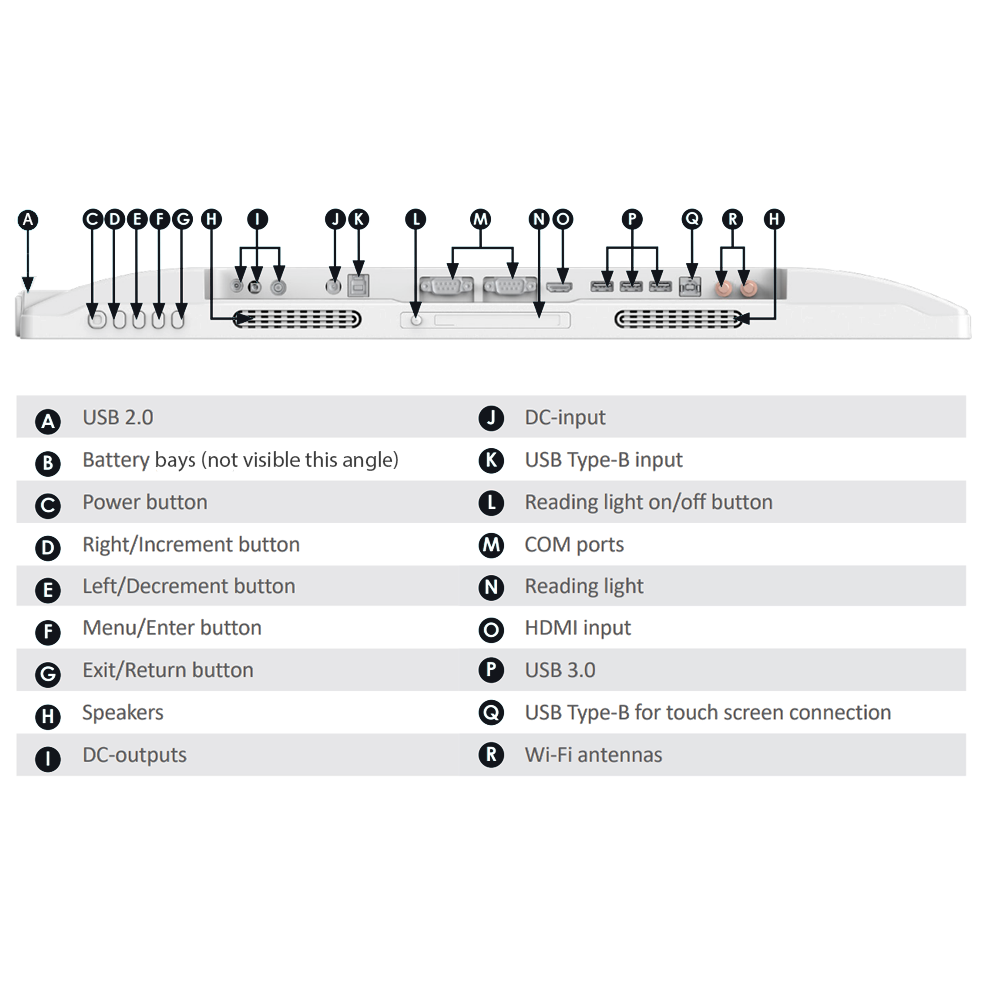

Labeled image describing the IOs of the portable medical display.Labeled diagram indicating the portable medical display's optional battery packs.

Tech Diagram Images

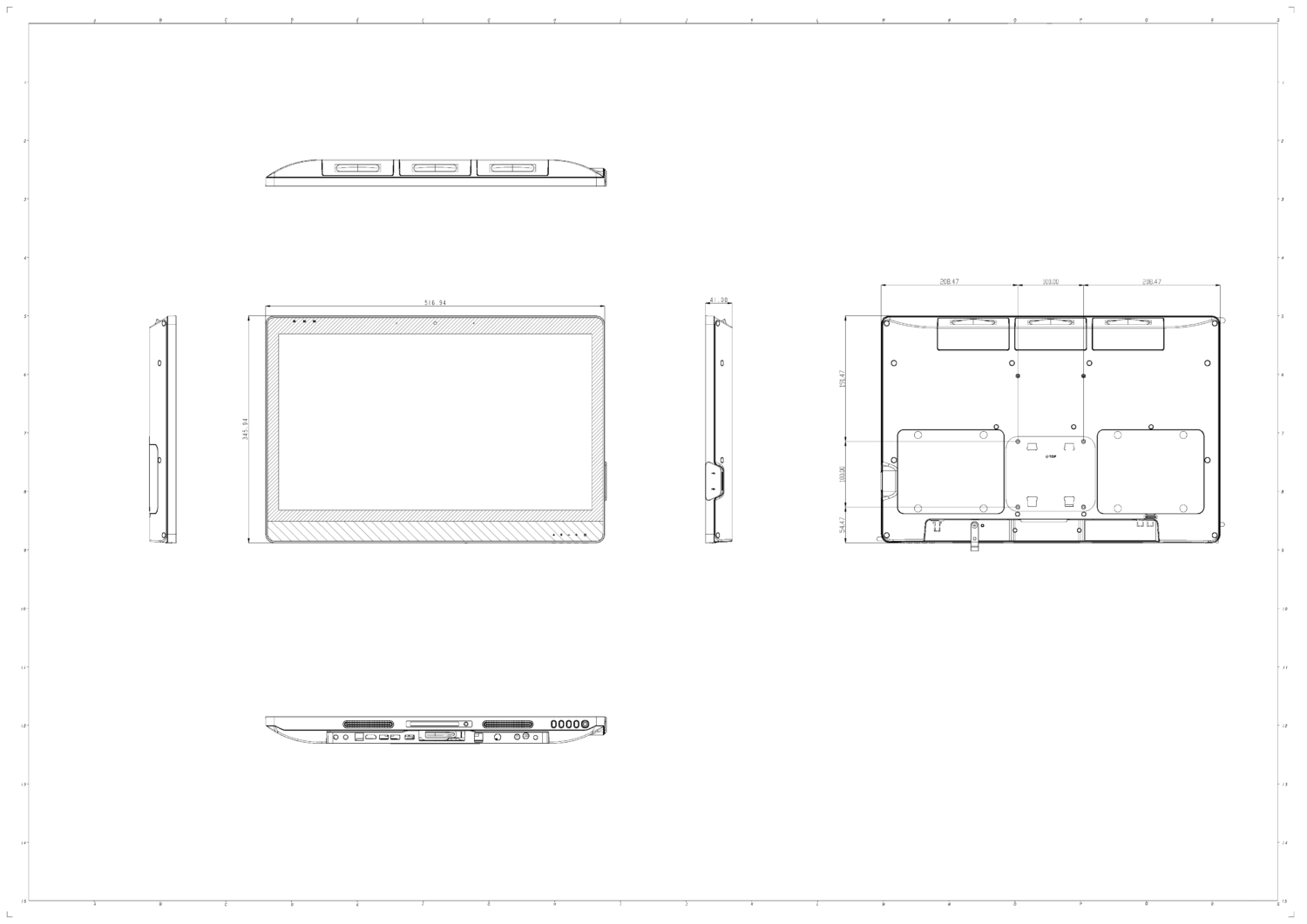

Technical 2D drawing of the 22" portable medical display.
