Comparing 22- and 24-inch Medical AIOs from Teguar

Teguar boasts an extensive catalog of embedded and panel computers in our efforts to support as many medical and industrial applications as possible. We have an array of medical all-in-ones with a variety of features to best suit your facility and project spec requirements. Today, we’re highlighting a few of our best-sellers in comparable screen sizes for a spotlight comparison. These units are available in 22- or 24-inch screens with bright, multi-touch displays.

Before we examine the details, first let’s answer what makes a Medical Computer.

What is a Medical Computer?

Medical computers are set apart from other commercial types primarily in their stringent safety requirements. Teguar’s medical AIOs are built with antimicrobial enclosures that repel bacteria and hold up to harsh cleaning chemicals. The exterior isn’t the only distinguishing feature, though; they’re also specially designed internally to eliminate risk of electrical shock. Many medical computers are also made with hot-swappable batteries, allowing them to operate for some time even if disconnected from a power source. All of these features are designed to improve patient outcomes and support medical professionals.

Benefits of a Medical Computer from Teguar

No matter what unit you choose, you can count on Teguar’s medical computers to have easy-clean antibacterial exteriors, fully fanless architecture, and the world-class service and support provided by our teams in the U.S. and Europe.

• Electrically and hygienically safe
• MRSA-resistant enclosures
• Fully fanless Design
• Multi-touch screens
• IP65 front bezels

Comparing Medical All-in-Ones

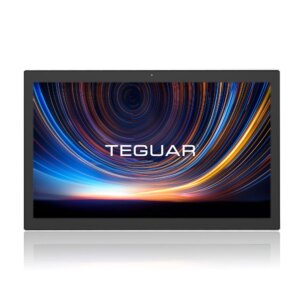

Specs	Clarion TM-5900-24	TM-5957-22	TME-7115-24	Horizon TM-7240-22
Screen size	23.8”	21.5”	23.8”	21.5”
Processor	11th Generation Core i5	11th Generation Core i5 and Core i7	13th Generation Core i5 and Core i7	Core Ultra Series 1
Memory Type	2x DDR4 SO-DIMM	2x DDR4 SO-DIMM	2x DDR5 SO-DIMM	1x DDR5 SO-DIMM
Memory Support	8GB, 16GB, 32GB	4GB, 8GB, 16GB, 32GB, 64GB	8GB, 16GB, 32GB, 64GB	8GB, 16GB, 32GB
Resolution	1920 x 1080 (Full HD)	1920 x 1080 (Full HD)	1920 x 1080 (Full HD)	1920 x 1080 (Full HD)
Brightness	250 nits	500 nits	350 nits	250 nits (450 optional)
Regulatory	FCC, CE, RoHS, UL, UKCA, 60601-1, 60601-1-2	FCC, CE, RoHS, 60601-1	FCC, CE, RoHS, UL, 60601-1	FCC, CE, RoHS, UL, UKCA, 60601-1, 60601-1-2
GPU/NPU		Hailo-8 M.2 AI module up to 26 TOPS		Intel’s integrated NPU
Storage	1x 2.5″ SATA Drive Bay for SSD/HDD 1x M2	2x NVME SSD M.2 2280	1x 2.5″ SATA Drive Bay for SSD/HDD (easily accessible), 2x NVME SSD M.2 2280 (easily accessible)	1x M.2 2280 SATA3/NVMe Slot
Expansion	Speaker Box	Dual RFID & Dual SmartCard		71W PoE Module/2nd LAN Module/Powered USB Module (2x 12V, 1x 24V)/Isolated LAN+DB9 Serial

Shop Medical AIOs

Choosing a Medical Computer

For any questions beyond the details provided here, we have a team of experts dedicated to understanding your specific application to right-size the perfect computer for you. Give us a call, a chat on our website, or fill out the form below to get the conversation started.

---
