19˝ Industrial Panel PC

TP-7045-19

Available

19" Industrial Panel PC Front
19" Industrial Panel PC Front Angle

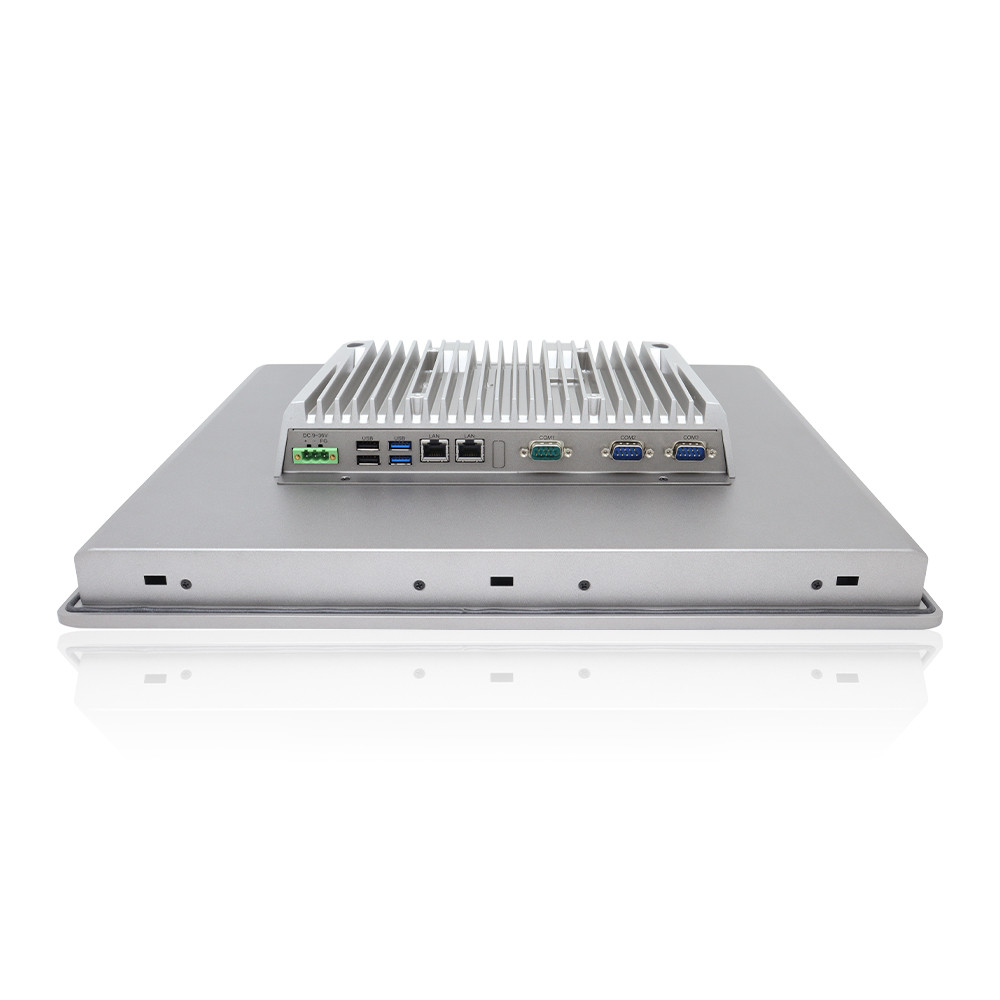

19" Industrial Panel PC Back IO
19" Industrial Panel PC Front
19" Industrial Panel PC Front Angle
19" Industrial Panel PC Back IO

Description

Meet Cornerstone, the TP-7045-19 19” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

Lay the groundwork for your industrial application with Cornerstone.

Key Highlights

  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM
GET A DEMO GET A QUICK QUOTE

Use Cases

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

Retail and Point-of-Sale (POS):  Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

See the data sheet Warranty Download Drivers

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

Industrial Panel PC Cornerstone I/O Diagram

Technical Drawings

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • 12th Generation Alder Lake CPU
  • Windows 11
  • Fanless with wide operating temperature range
  • Multitude of screen sizes (compare to TP-5645)
  • Two slots of DDR4 RAM

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Core I series 12th Generation Alder Lake
Processor Model Core i3-1215U
Processor Speed 4x Efficient Cores @ 3.3 GHz, 2x Performance Cores @ 4.4 GHz, Up to 4.4 GHz
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB, 64GB
Storage type 1x M.2 2280 NVME SSD slot
Storage support M.2: 256GB-1TB

Display

Screen Size 19"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 1000:1
Viewing Angle 170º (H), 160º (V), 170º (H), 160º (V) High Brightness
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive (Multi-touch), Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)
Lifetime Usage 50,000 hrs, 50,000 hrs (High Brightness)

External I/O ports

USB 2x USB 2.0, 2x USB 3.0
Serial / Com 3x COM
Serial Protocol Detail COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
Ethernet / LAN 2x RJ45 GbE LAN
Power Input Port 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range 9-36V DC

Operating Systems

Windows Windows 11 IoT, Windows 11 Pro, Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Internal M.2 1x M.2 2230 Key E (for WiFi expansion option)

Thermal and Environmental

Operating Temperature -20°C – 60°C
(-4°F – 140°F)
Storage Temperature -30°C – 70°C
(-22°F – 158°F)
Humidity Range 10% – 95% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
Ip Rating IP66 Front Bezel
Color Gray
Led Indicator Light Power
Mounting Options Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
BlueTooth Optional Bluetooth 5.3

Dimensions / Weight

Dimensions 468 x 78 x 380 mm (18.4 x 3.1 x 15.0 in)

Warranty

Warranty Up to 5 Years
