18˝ Industrial Panel PC
TP-7045-18
Available
Description
Meet Cornerstone, the TP-7045-18 18” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.
Lay the groundwork for your industrial application with Cornerstone.
Key Highlights
- 12th Generation Alder Lake CPU
- Windows 11
- Fanless with wide operating temperature range
- Multitude of screen sizes (compare to TP-5645)
- Two slots of DDR4 RAM
Use Cases
Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.
Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.
Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.
Key Highlights
- 12th Generation Alder Lake CPU
- Windows 11
- Fanless with wide operating temperature range
- Multitude of screen sizes (compare to TP-5645)
- Two slots of DDR4 RAM
General
| Main Category | Industrial Computer |
Primary Components
| Processor Family | Intel Core I series 12th Generation Alder Lake |
| Processor Model | Core i3-1215U |
| Processor Speed | 4x Efficient Cores @ 3.3 GHz, 2x Performance Cores @ 4.4 GHz, Up to 4.4 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB, 64GB |
| Storage type | 1x M.2 2280 NVME SSD slot |
| Storage support | M.2: 256GB-1TB |
Display
| Screen Size | 18.5" |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 300 nits, Optional 1000 nit High Brightness |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 170º (H), 170º (V), 170º (H), 160º (V) High Brightness |
| Number of Colors Supported | 16.7M |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch), Resistive |
| Light Transmission | Over 80% (Resistive), Over 90% (P-Cap) |
| Lifetime Usage | 50,000 hrs |

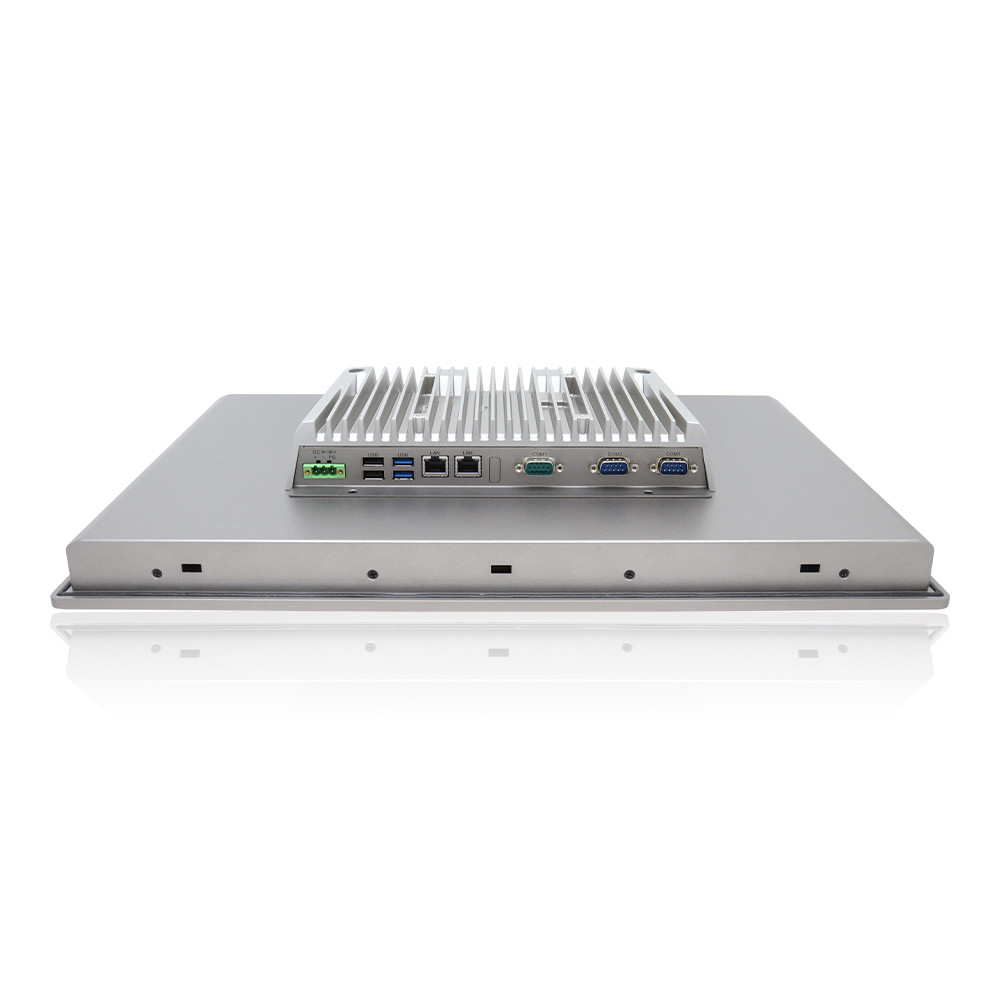

External I/O ports
| USB | 2x USB 2.0, 2x USB 3.0 |
| Serial / Com | 3x COM |
| Serial Protocol Detail | COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232 |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 9-36V DC |
Operating Systems
| Windows | Windows 11 IoT, Windows 11 Pro, Windows 10 IoT, Windows 10 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option) |
Thermal and Environmental
| Operating Temperature |
-20°C – 60°C (-4°F – 140°F) |
| Storage Temperature |
-30°C – 70°C (-22°F – 158°F) |
| Humidity Range | 10% – 95% Non-condensing |
| Cooling Solution | Passive – Fanless with Heatsink |
Enclosure
| Material | Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis |
| Ip Rating | IP66 Front Bezel |
| Color | Gray |
| Led Indicator Light | Power |
| Mounting Options | Panel Mount, VESA 100 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 |
| BlueTooth | Optional Bluetooth 5.3 |
Dimensions / Weight
| Dimensions | 499 x 78 x 314 mm (19.6 x 3.1 x 12.4 in) |
Warranty
| Warranty | Up to 5 Years |
Filters
| Main Category Filter | Industrial Computer |
Accessories
