GPU Expansion x16 Box PC

TB-5745-PCIe

Available - Contact Us for Lead Time Details


Description

Teguar's GPU Expansion x16 Box PC is perfect for those looking for a rugged box PC with a high level of thermal design power (TDP) available for a GPU. The TB-5745-PCIe contains 1x PCIe-16, 2x PCIe-4 and a mini PCIe capable of drawing a total of 400W together (as high as 650W available upon request). This makes the unit compatible with the strongest and most popular graphics cards on the market today, including the AMD Radeon Pro W6600, the MSI GeForce RTX 3090, or other graphics cards that are PCI Express 4.0 x16 compatible. Couple this with the option of fanless cooling systems and you have countless GPU options regardless of environment. In addition to the added GPU compatibility, the TB-5745-PCIe comes equipped with over a dozen unique I/Os, including four USB 3.1 ports, two LAN ports, two COM ports, HDMI, DP, GPIO and more.

Key Highlights

  • PCI Express 4.0 x16 GPU Support
  • Mainboard CPU Fanless Design for some Processors and GPU Card Expansion
    with Smart Fan support
  • Intel 9th Gen. Core i7/i5/i3 Processors / Intel Xeon Processor
  • Removable drive-bays for easy data storage maintenance
  • Flexible expansion through I/O module with miniPCIe and Add-on card

starting at

$1,705.00

CUSTOMIZE & BUY

Use Cases

Machine Vision: Teguar's GPU Expansion x16 Box PC serves as an ideal solution for machine vision applications. With its high thermal design power (TDP) and GPU compatibility, including support for powerful graphics cards like the AMD Radeon Pro W6600 or MSI GeForce RTX 3090, it enables efficient processing and analysis of visual data. The multiple I/Os, such as HDMI and DP, enhance connectivity for diverse machine vision setups, providing a reliable platform for advanced image processing.

Industrial Automation: The TB-5745-PCIe is well-suited for industrial automation tasks. Its rugged design and high TDP, coupled with GPU compatibility for graphics-intensive applications, make it an excellent choice for automation systems that demand robust computing power. With over a dozen unique I/Os, including USB 3.1 ports, LAN ports, COM ports, and GPIO, this box PC offers versatility for connecting and controlling various industrial devices, contributing to streamlined automation processes.

Data Processing in Challenging Environments: Designed with fanless cooling systems and a rugged build, the TB-5745-PCIe is a reliable choice for data processing in challenging environments. Its high TDP and GPU compatibility make it suitable for applications requiring significant computational power, such as data analysis and processing.

What’s in the Box

    • TB-5745 Box PC
    • Wall Mount Bracket
    • 2x Keys for HDD Bays (lockable)
    • 1x GPIO Terminal Block
    • 1x Terminal Block for Remote Power Switch
    • 2x Terminal Blocks for Power Input
See the data sheet Warranty

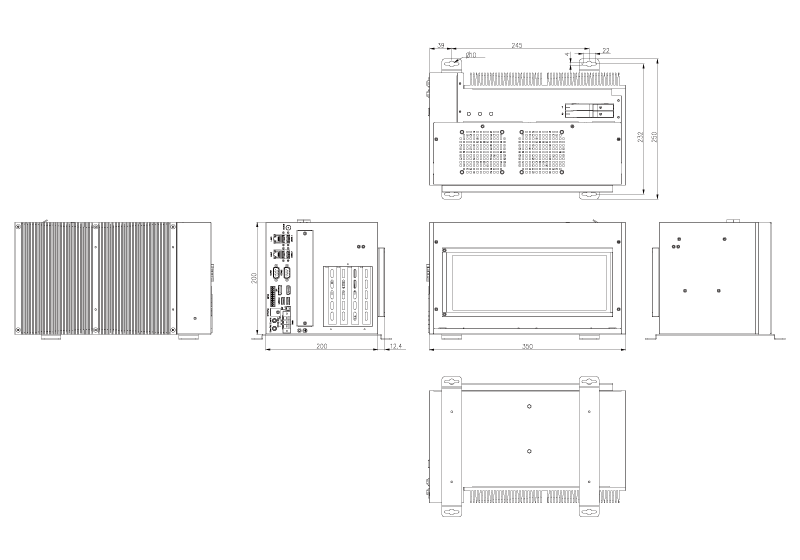

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TB-5745-PCIe inputs and outputs

Technical Drawings

TECH SPECS

See the data sheet

Key Highlights

  • PCI Express 4.0 x16 GPU Support
  • Mainboard CPU Fanless Design for some Processors and GPU Card Expansion
    with Smart Fan support
  • Intel 9th Gen. Core i7/i5/i3 Processors / Intel Xeon Processor
  • Removable drive-bays for easy data storage maintenance
  • Flexible expansion through I/O module with miniPCIe and Add-on card

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Core-I Series 9th Generation Coffee Lake
Processor Model Xeon Options E-2278GEL; E-2278GE
Processor Speed Up to 4.7 GHz Turbo
Memory Type 2x DDR4 SO-DIMM
Memory Support Up to 32GB (i3), Up to 64GB (i5/i7)
Storage type 2x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 2x 2.5" SATA Drive Bay for SSD/HDD (Internal), 1x M.2 SATA3 2280 Slot
Storage support 32GB-1TB, M.2: 64GB-1TB

Display

Resolution Supports Up to 4096 x 2160 for HDMI Output, Supports Up to 4096 x 2304 for DP Output

External I/O ports

USB 2x USB 2.0, 4x USB 3.1 Gen.1 (Lockable), 1x USB 2.0 (Internal Type A on Motherboard)
Serial / Com 2x COM
Serial Protocol Detail RS-232/422/485 DB-9, Default RS-232
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x DisplayPort 1.2, 1x HDMI
Other Ports 1 x 8-bit GPIO (4x in, 4x out, Isolated 2500Vrms, NPN/PNP Selected, Default NPN)
Audio 1x Audio Line-Out, 1x Mic-In
Power Input Port 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range DC 12-36V (Default 24V)
Max Power consumption 250W for PC, up to 400W reserved for PCIe Cards
Standard Power Adapter AC100~240V Input, (24V/25A), US AC Power Cord

Operating Systems

Windows Windows 11, Windows 10 IoT, Windows 10 Pro
Linux Linux 4.20.2+

Compatibility

Security Hardware TPM 2.0

Expansion Slots

Internal Mini PCIe 2x Mini-PCIe
Internal M.2 1x M.2 for NVME SSD Support
PCIe Slot Yes
PCIe Expansion Details PCIe x16 Dual Slot and PCIe x4

Thermal and Environmental

Operating Temperature 0°C – 45°C (i7), 0°C – 50°C (i3/i5)
(32°F – 113°F (i7); 32°F – 122°F (i3/i5))
Storage Temperature -40°C – 85°C
(-40°F – 185°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution 35W CPU (Fanless), 65W CPU (External Fan)

Enclosure

Material Metal Steel Chassis
Color Black
Led Indicator Light Power
Control Buttons Power Switch
Mounting Options Desktop Stand, Wall Mount

Peripherals & Wireless Connectivity

WiFi Optional WIFI b/g/n/ac
BlueTooth Optional Bluetooth 4.0
Sim card 1x Micro SIM Card Slot

Dimensions / Weight

Weight 7 KG (15.4 lbs)
Dimensions 200 x 200 x 350 mm (7.9 x 7.9 x 13.8 in)

Certification

Certifications CE, FCC Class A

Warranty

Warranty Up to 5 Years

Filters

Main Category Filter Industrial Computer

Accessories

See the data sheet

Customize & Buy

CPU
RAM
SSD
Power Supply
WiFi AC + Bluetooth
Operating System
Accessories

Select the accessories you wish to add to your order.
See the Accessories tab for accessory details.

GPU Expansion x16 Box PC

TB-5745-PCIe

Includes:

  • PCI Express 4.0 x16 GPU Support
  • Mainboard CPU Fanless Design for some Processors and GPU Card Expansion
    with Smart Fan support
  • Intel 9th Gen. Core i7/i5/i3 Processors / Intel Xeon Processor

GPU Expansion x16 Box PC

1705

$1,705.00

MSRP:

For additional customization and quantity discounts, reach out to use directly for a custom quote!

Quantities up to 10 can be purchased online.

For quantities over 10, you must request a quote or contact us at sales@teguar.com or 704-960-1761.
