8" Fanless Panel PC

TP-2945-08

Available


Description

The TP-2945-08 fanless panel PC is a very durable compact touch screen computer. It is ideal to be used as a check in station for employees or in conjunction with MES (Manufacturing Execution Systems) software. The 08” true flat touchscreen panel is made to handle high traffic use and is easy to interact with. The TP-2945-08 has accessible storage through the back panel along with eight input/outputs tucked neatly under the panel. The enclosure is a tough die-cast aluminum and the inside components are industrial grade made for 24/7 use. Power usage is kept to a minimum with the SoC chipset. The IP66 front rating ensures that the panel pc will endure contact with water, dust, and particles which can be easily wiped clean. This fanless panel PC is a reliable and well-priced choice, great for extended factory use.

Key Highlights

  • 08" Full Flat Panel Touch Screen
  • Bay Trail Celeron N2930 Quad-Core CPU
  • Very low Power Use with Fanless Design
  • Onboard DDR3L 4GB Memory
  • IP66 Protected Front with Aluminum Housing
  • 2 Pin Connector for Power Switch

Use Cases

Industrial Automation: The TP-2945 Series can be used in industrial automation applications, such as machine control, monitoring production lines, and data acquisition.

Outdoor Environments: These rugged panel PCs with IP66 rated waterproof front bezels are suitable for outdoor environments, such as outdoor kiosks, digital signage, and outdoor equipment monitoring.

Transportation and Logistics: The TP-2945 Series can be utilized in transportation and logistics settings for fleet management, vehicle tracking, and warehouse management, thanks to their durability and PoE capability.

What’s in the Box

    • Pheonix Connector for Power Input
    • Panel Mounting Clips
See the data sheet Warranty

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

8-inch Computer IOs

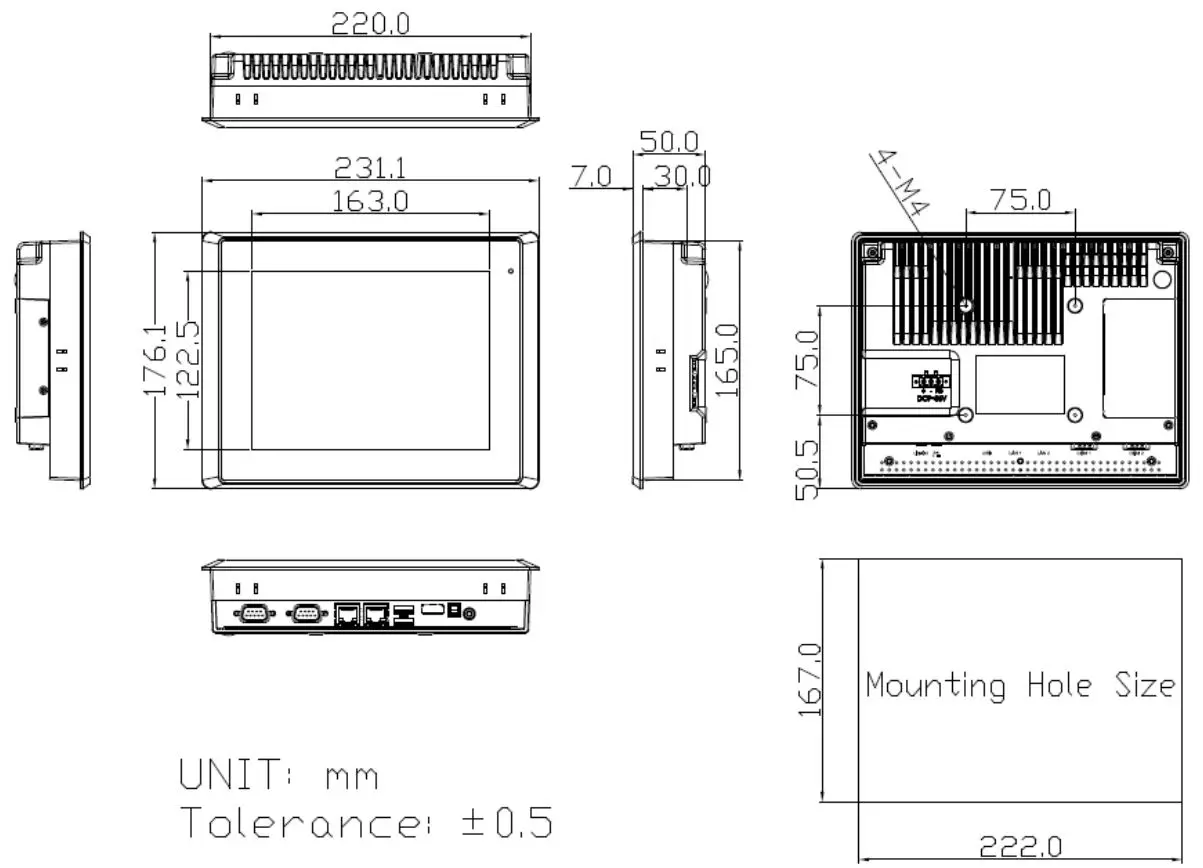

Technical Drawings

8

TECH SPECS

See the data sheet

Key Highlights

  • 08" Full Flat Panel Touch Screen
  • Bay Trail Celeron N2930 Quad-Core CPU
  • Very low Power Use with Fanless Design
  • Onboard DDR3L 4GB Memory
  • IP66 Protected Front with Aluminum Housing
  • 2 Pin Connector for Power Switch

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model N2930
Processor Speed 1.83 GHz
Memory Type Onboard DDR3
Memory Support 4GB
Storage type 1.8" Half Size MO297 SATA Drive Bay
Storage support 32GB-256GB

Display

Screen Size 8"
Resolution 800 x 600 (SVGA)
Screen Ratio 4:3
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 400:1
Viewing Angle 140º (H), 125º (V)

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

External I/O ports

USB 2x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x HDMI
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Audio Line-Out
Power Input Port 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range 9-36V DC
Standard Power Adapter Optional 12V AC/DC Adapter

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 8.1 Pro
Linux Linux (Contact your sales rep for more information)

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi Optional WiFi
BlueTooth Optional Bluetooth 4.0
Mobile Network 4G LTE Optional 4G

Dimensions / Weight

Weight 1.8 KG (4.0 lbs)
Dimensions 231 x 176 x 50 mm (9.1 x 6.9 x 2.0 in)

Certification

Certifications CE, FCC Class A, UL 60950

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
