7" Fanless Panel PC

TP-2945-07

Available


Description

The 7" Fanless Panel PC is a highly durable, very compact, fanless touch screen computer. This industrial strength PC is ideal for tracking metrics for your SCADA (Supervisory Control and Data Acquisition) program or used as a check in station for employees. The 7” full flat touchscreen panel is more durable than consumer grade touchscreens and can be used in high traffic areas. The TP-2945-07 has accessible storage through the back panel along with eight input/outputs tucked cleanly under the panel. All components are industrial grade and the enclosure is made from die-cast aluminum. Power usage is kept to a bare minimum with the SoC chipset. The IP66 front rating gives assurance that the TP-2945-07 will endure contact with water, dust, and particles which can easily be wiped clean. This fanless panel PC is a reliable and well-priced choice.

Key Highlights

  • 7" True Flat Panel Touch Screen
  • Intel Celeron Bay Trail CPU
  • Ultra-low Power Use with Fanless Design
  • Onboard DDR3L 4GB Memory
  • IP66 Protected Front with Aluminum Housing
  • Wide operating temperature range (0°-50° C or 32°-122° F)

Use Cases

Industrial Automation: The TP-2945 Series can be used in industrial automation applications, such as machine control, monitoring production lines, and data acquisition.

Outdoor Environments: These rugged panel PCs with IP66 rated waterproof front bezels are suitable for outdoor environments, such as outdoor kiosks, digital signage, and outdoor equipment monitoring.

Transportation and Logistics: The TP-2945 Series can be utilized in transportation and logistics settings for fleet management, vehicle tracking, and warehouse management, thanks to their durability and PoE capability.

What’s in the Box

    • Pheonix Connector for Power Input
    • Panel Mounting Clips
See the data sheet Warranty

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

7-inch Computer IOs

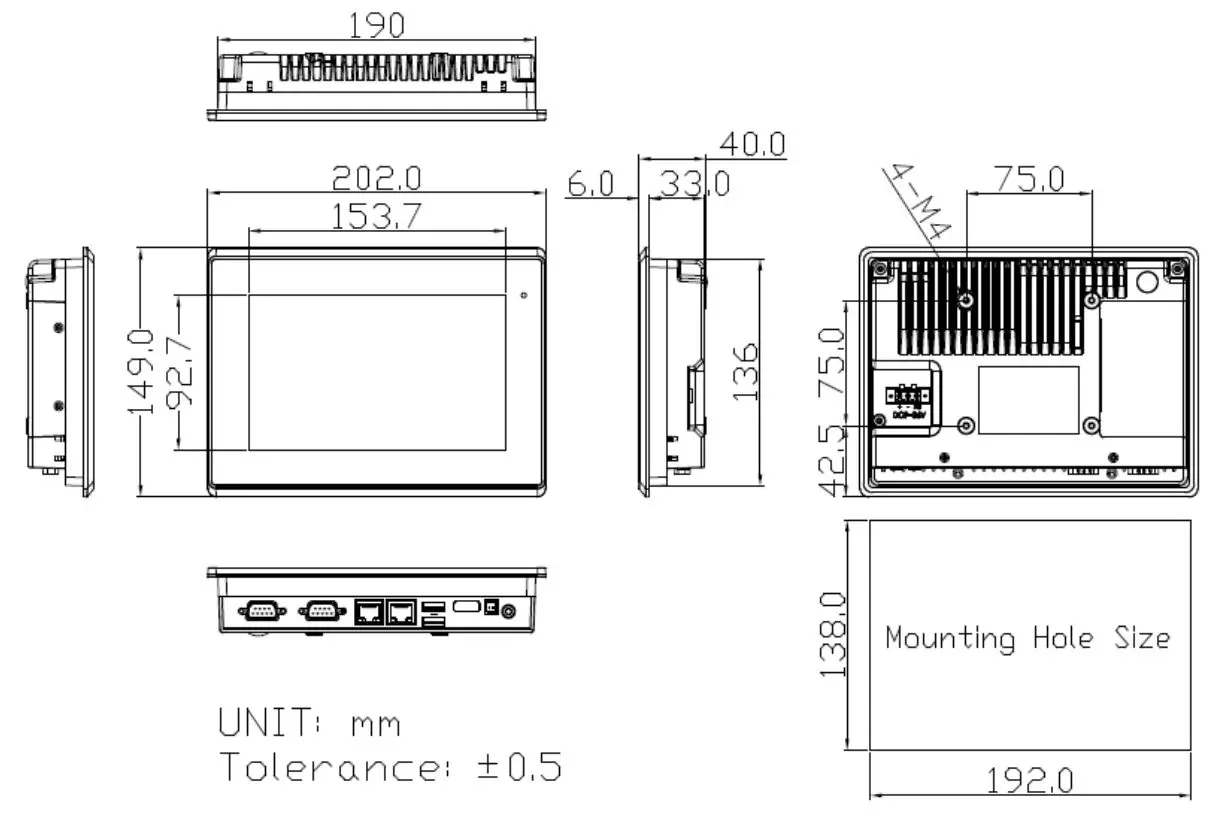

Technical Drawings

7

TECH SPECS

See the data sheet

Key Highlights

  • 7" True Flat Panel Touch Screen
  • Intel Celeron Bay Trail CPU
  • Ultra-low Power Use with Fanless Design
  • Onboard DDR3L 4GB Memory
  • IP66 Protected Front with Aluminum Housing
  • Wide operating temperature range (0°-50° C or 32°-122° F)

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model N2930
Processor Speed 1.83 GHz
Memory Type Onboard DDR3
Memory Support 4GB
Storage type 1.8" Half Size MO297 SATA Drive Bay
Storage support 32GB-256GB

Display

Screen Size 7"
Resolution 800 x 480 (WVGA)
Screen Ratio 5:3
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 400:1
Viewing Angle 140º (H), 120º (V)

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

External I/O ports

USB 2x USB 3.0
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN 2x RJ45 GbE LAN
Video Outputs 1x HDMI
Other Ports 1x 2-Pin DC Power Switch Connector
Audio 1x Audio Line-Out
Power Input Port 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range 9-36V DC
Standard Power Adapter Optional 12V AC/DC Adapter

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 8.1 Pro, Windows 7 Pro
Linux Linux (Contact your sales rep for more information)

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature 0°C – 50°C
(32°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless with Heatsink

Enclosure

Material Aluminum
Ip Rating IP66 Front Bezel
Mounting Options Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi Optional WiFi
BlueTooth Optional Bluetooth 4.0
Mobile Network 4G LTE Optional 4G

Dimensions / Weight

Weight 1.2 KG (2.6 lbs)
Dimensions 202 x 149 x 39 mm (8.0 x 5.9 x 1.5 in)

Certification

Certifications CE, FCC Class A, UL 60950

Warranty

Warranty Up to 5 Years
