5" Rugged Handheld

TRH-A5380-05 V2

Available - Contact Us for Lead Time Details

5" Rugged Tablet | TRH-A5380-05
Handheld Tablet with Barcode and RFID
White Handheld Tablet for Healthcare
Handheld Rugged Tablet
5" Rugged Tablet | TRH-A5380-05
Handheld Tablet with Barcode and RFID
White Handheld Tablet for Healthcare
Handheld Rugged Tablet

Description

The TRH-A5380-05 V2 is a powerful and durable mobile device that fits in the palm of your hand. It has endless applications in industries such as logistics, warehouse management, retail, and healthcare. The optional built-in 1D/2D barcode scanner can be used to track inventory, for Barcode Medication Administration, positive patient ID, and point-of-sale applications. The 5” touchscreen is large enough that you can read product or patient data, but the unit is small enough to fit in your pocket. The TRH-A5380-05 V2 is IP65 rated and MIL-STD-810G drop and shock proof. The 4000mAh battery is easily removable and can be charged with the optional desktop cradle, so you can switch the battery to keep the tablet running shift after shift.

Read the Product Review from RuggedPCReview >

Key Highlights

  • 5" Capacitive Touchscreen
  • Quad-core ARM Cortex-A53 CPU 2.0 GHz
  • GMS Certified for Android 11
  • Optional  Accessories
  • Built-in NFC, 4G LTE, and 2D Barcode Scanner
  • Fully Rugged and Waterproof
GET A DEMO GET A QUICK QUOTE

starting at

$571.00

CUSTOMIZE & BUY

Use Cases

Inventory Tracking in Logistics: The TRH-A5380-05 with its optional built-in 1D/2D barcode scanner is ideal for inventory tracking in logistics operations, allowing for efficient scanning and tracking of goods throughout the supply chain.

Warehouse Management: This rugged mobile device is well-suited for warehouse management tasks, enabling workers to easily manage inventory, track shipments, and perform pick and pack operations with its compact and durable design. (Industry: Warehouse Management)

What’s in the Box

    • TRH-A5380-05 V2
    • AC/DC 5V, USA Power Supply
    • USB OTG Cable
    • Wrist Strap
See the data sheet Warranty Download Drivers

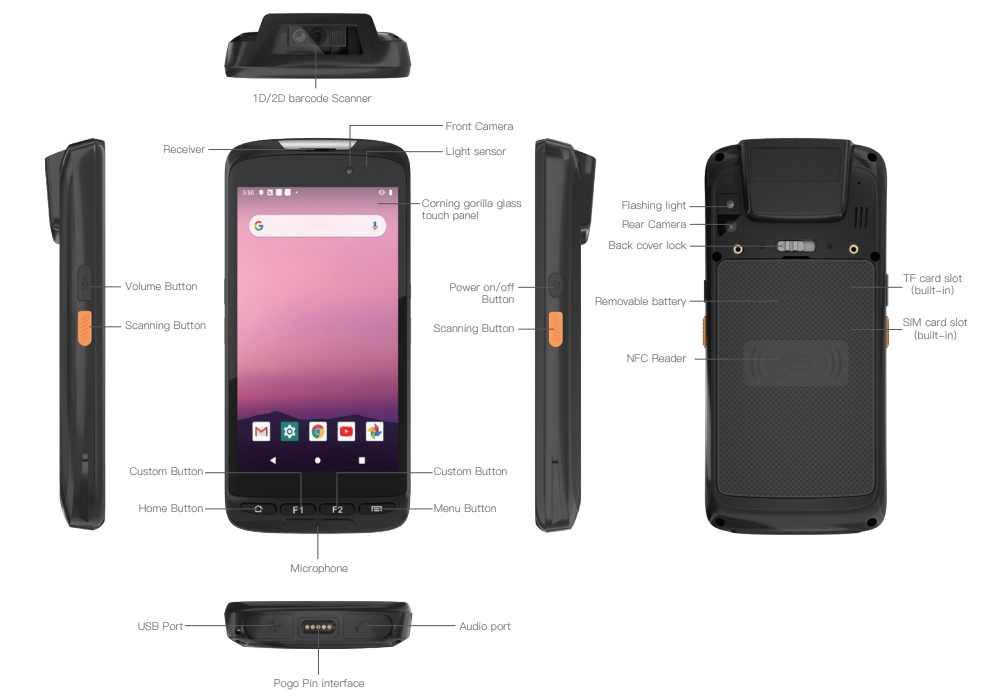

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TECH SPECS

See the data sheet Download Drivers

Key Highlights

  • 5" Capacitive Touchscreen
  • Quad-core ARM Cortex-A53 CPU 2.0 GHz
  • GMS Certified for Android 11
  • Optional  Accessories
  • Built-in NFC, 4G LTE, and 2D Barcode Scanner
  • Fully Rugged and Waterproof

General

Main Category Rugged Tablet PC

Primary Components

Processor Family MediaTek ARM Cortex-A53
Processor Model MT6762V OctaCore
Processor Speed 2.0 GHz
Memory Type Onboard LPDDR4X
Memory Support 4GB
Storage type Onboard eMMC Flash
Storage support 64GB

Display

Screen Size 5"
Resolution 1280 x 720 (WXGA)
Screen Ratio 16:9
Brightness 300 nits

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Glass type Gorilla Glass

External I/O ports

USB 1x Micro USB 2.0 OTG
Docking Connector Yes

Power

Input Voltage Range 5V DC

Battery

Type Removable 3.8V/4000mAh Battery
Operating Time 11.4hrs (Default 50% volume, 50% Brightness, Playing 1080P Video)
Quantity 1x Battery

Operating Systems

Android Android 11

Expansion Slots

video card support IMG GE8320 650MHz
SD card 1x SDHC/SDXC (max 128G)
Other Pogo Pin Expansion

Multimedia

Speakers 1x 1W Speaker
Camera Front: 5MP, Rear: 13MP
Microphone Built-in Microphone

Thermal and Environmental

Operating Temperature -10°C – 50°C
(14°F – 122°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 95% Non-condensing
Storage Humidity 5% – 95% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Double Injection
Ip Rating IP65
Color Black
Led Indicator Light Charging Indicator
Control Buttons Audio Down, Audio Up, Home, Menu, Power Button, Scanner
Programmable Function Buttons 2x Programmable Function Keys
Shock Rating MIL-STD-810G
Drop Rating 4ft Drop Protection
Approved Cleaning Solutions 3M HB Quat, Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex
Cleaning Instructions View instructions here

Peripherals & Wireless Connectivity

WiFi WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI
BlueTooth Bluetooth 4.0
Mobile Network 3G WCDMA 1/2/5/8, TD-SCDMA 34/39, GSM 2/3/5/8
Mobile Network 4G LTE Built-in 4G LTE FDD (B1, B2, B3, B4, B5, B7, B8, B13, B17, B20) TDD (B38, B39, B40, B41)
Sim card 1x SIM Card Slot
Barcode Scanner Built-in 2D Barcode Scanner
RFID NFC Built-in
Sensors Accelerometer, Light Sensor, Compass, Proximity

Dimensions / Weight

Weight 0.57 KG (1.3 lbs)
Dimensions 156 x 74 x 24 mm (6.1 x 2.9 x 0.9 in)

Certification

Certifications CE, MIL-STD-810G
GMS Certified Yes Global

Warranty

Warranty Up to 3 Years

Accessories

See the data sheet

Customize & Buy

RAM
Storage
2D Scanner
Accessories

Select the accessories you wish to add to your order.
See the Accessories tab for accessory details.

5" Rugged Handheld

TRH-A5380-05 V2

Includes:

  • 5" Capacitive Touchscreen
  • Quad-core ARM Cortex-A53 CPU 2.0 GHz
  • GMS Certified for Android 11

5" Rugged Handheld

571

$571.00

MSRP:

For additional customization and quantity discounts, reach out to us directly for a custom quote!

Get a Full Custom Quote

Quantities up to 10 can be purchased online.

For quantities over 10, you must request a quote or contact us at sales@teguar.com or 704-960-1761.
