TM-7110-24

Available


Description

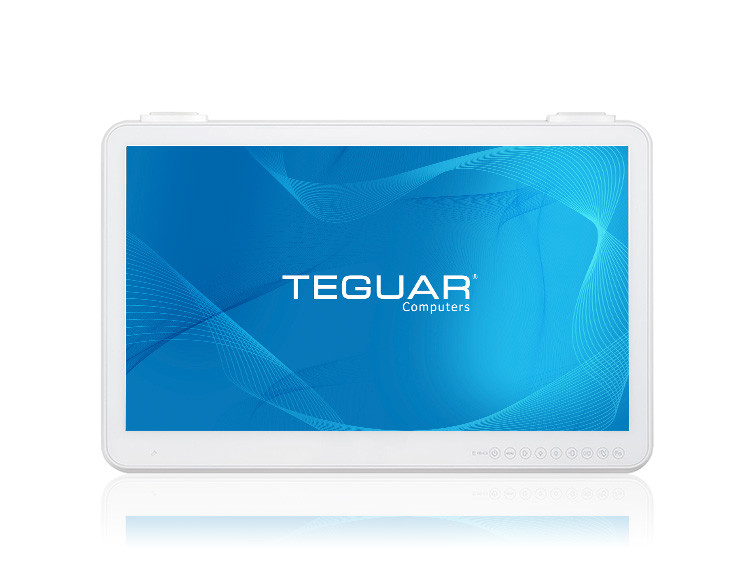

The 24" Fanless Medical PC is an exceptional healthcare technology solution designed for the most critical medical applications. With medical certification, it upholds stringent reliability and security standards. User-friendly function keys enhance usability, granting quick access to essential functions. The built-in PSU streamlines installation and maintenance, minimizing clutter. Its robust die-cast housing ensures durability, while the IP65 waterproof rating protects against moisture and contaminants. Powered by an Intel 13th Generation CPU and running Windows 11, it offers powerful, dependable performance. This PC is tailored to meet the rigorous demands of healthcare, combining cutting-edge technology with a rugged design for efficient use in clinical environments.

Key Highlights

  • 24” Touchscreen Size
  • Intel 12th Generation CPU, Passmark 24599
  • Windows 11 Compatible
  • Die Cast Housing with an IP65 Waterproof Rating
  • Built in Power Supply Unit

Use Cases

Healthcare Information Systems: The TM-7110 series represents a significant advancement in healthcare technology. Powered by an Intel 12th Generation CPU and running on Windows 11, this series seamlessly integrates into modern medical environments, providing a reliable platform for healthcare information systems. The built-in PSU streamlines operation, and the medical certification guarantees the highest standard of safety and performance.

Patient Care Management: The TM-7110 series, with its larger screen sizes boasting a die-cast housing and an IP65 waterproof rating, becomes an invaluable tool for patient care management in healthcare settings. This fanless Medical PC enhances durability and hygiene, making it suitable for applications such as patient monitoring, electronic health record management, and communication in hospitals and clinics.

Clinical Information Access: With screen size options of 22” and 24”, the TM-7110 series provides a versatile solution for clinical information access in healthcare environments. The inclusion of function keys enhances usability, ensuring efficient navigation and data input. The Fanless Medical PC's medical certification, coupled with its advanced features, guarantees a high standard of safety and performance.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TM-7110-24 Labeled IOs

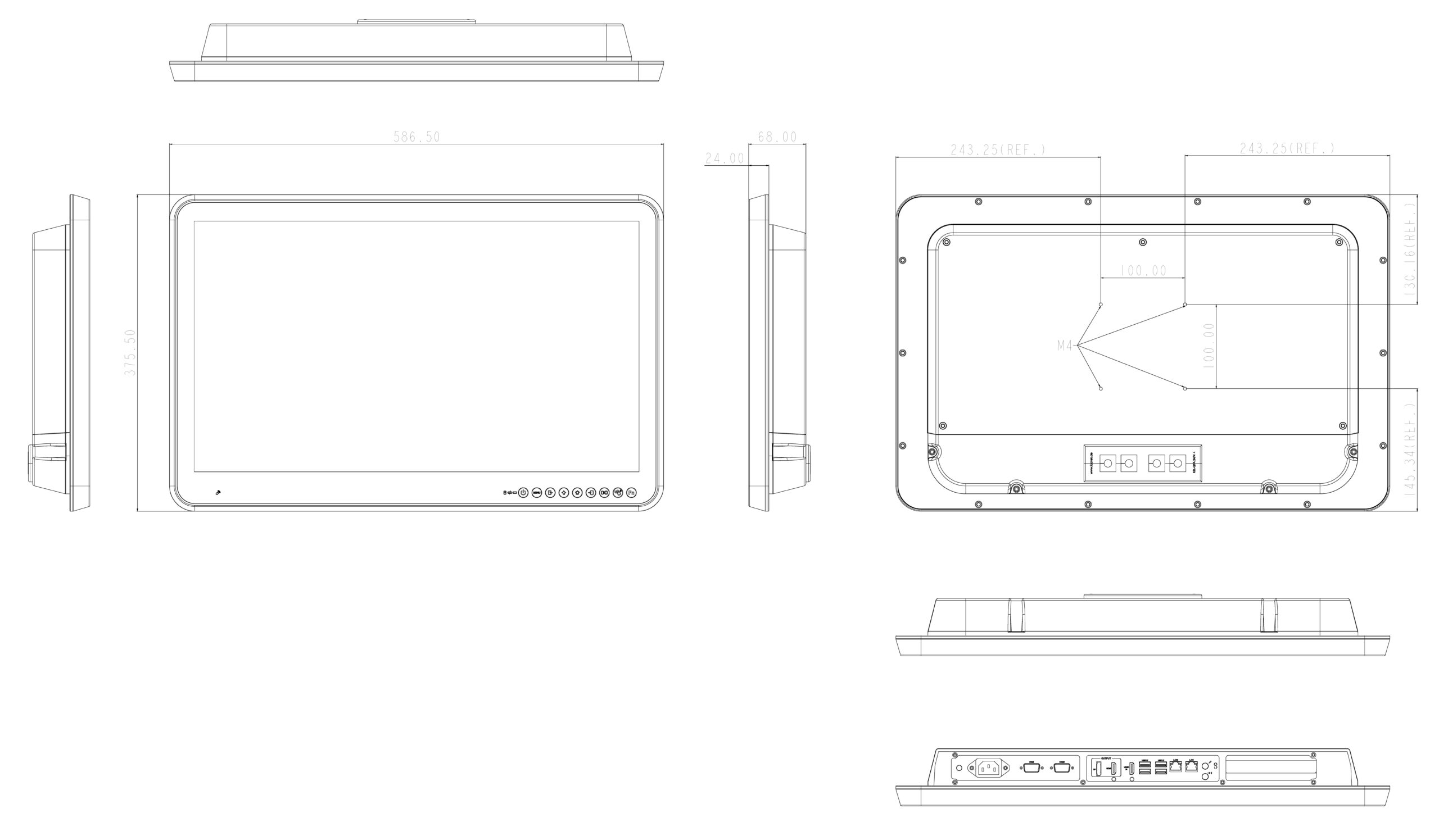

Technical Drawings

TM-7110-24 Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 24” Touchscreen Size
  • Intel 12th Generation CPU, Passmark 24599
  • Windows 11 Compatible
  • Die Cast Housing with an IP65 Waterproof Rating
  • Built in Power Supply Unit

General

Main Category Medical Computer

Primary Components

Processor Family Intel Core I series 12th Generation Alder Lake
Processor Model Core i5 12600HE
Processor Speed 8x Efficient Cores @ 2.5GHz, upto 3.3 GHz Turbo, 4x Performance Cores @ 3.3 GHz, upto 4.5GHz Turbo
Memory Type 2x DDR5 SO-DIMM
Memory Support 8GB, 16GB, 32GB, 64GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 2280 NVME SSD slot
Storage support M.2 and 2.5": 128GB - 1TB

Display

Screen Size 23.8"
Resolution 1920 x 1080 (Full HD)
Screen Ratio 16:9
Brightness 400 nits
Contrast Ratio 1000:1
Viewing Angle 178º (H), 178º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)
Light Transmission 85%±3%
Hardness 6H

External I/O ports

USB 4x USB 3.2
Serial / Com 2x COM
Serial Protocol Detail 1x RS-232, 1x RS-232/422/485
Ethernet / LAN 1x RJ45 GbE LAN, 1x RJ45 2.5 GbE LAN
Video Outputs 1x DisplayPort, supports DP++, 1x HDMI 2.0b
Video Inputs 1x HDMI
Audio 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port C13, 3-Prong AC Plug

Power

Standard Power Adapter Built-In AC 100-240V/47-60Hz to DC 24V, 250W

Operating Systems

Windows Windows 11 IoT, Windows 11 Pro, Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware TPM 2.0, Intel vPro

Expansion Slots

PCIe Slot 1x PCI-E (x8)
PCIe Expansion Details PCIe x4 signal

Multimedia

Camera Optional 5MP Webcam

Thermal and Environmental

Operating Temperature 0°C – 35°C
(32°F – 95°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material Aluminum
Ip Rating IP65 Front Bezel, IP54 with cable cover
Color White
Antibacterial Housing Yes
Control Buttons Brightness Down, Brightness Up, Clean me, Display on/off, Enter, Exit, Menu, Power Button, Video Input Selection
Programmable Function Buttons 1x Programmable Function Key
Mounting Options VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi 802.11 a/b/g/n/ac/ax
BlueTooth Bluetooth 5.0
RFID Optional
Peripheral Other POAG-Grounding Pin built-in

Dimensions / Weight

Weight 11.2 KG (24.7 lbs)
Dimensions 580x59x350 mm (22.8 x 2.3 x 13.8 in)

Warranty

Warranty Up to 5 Years
